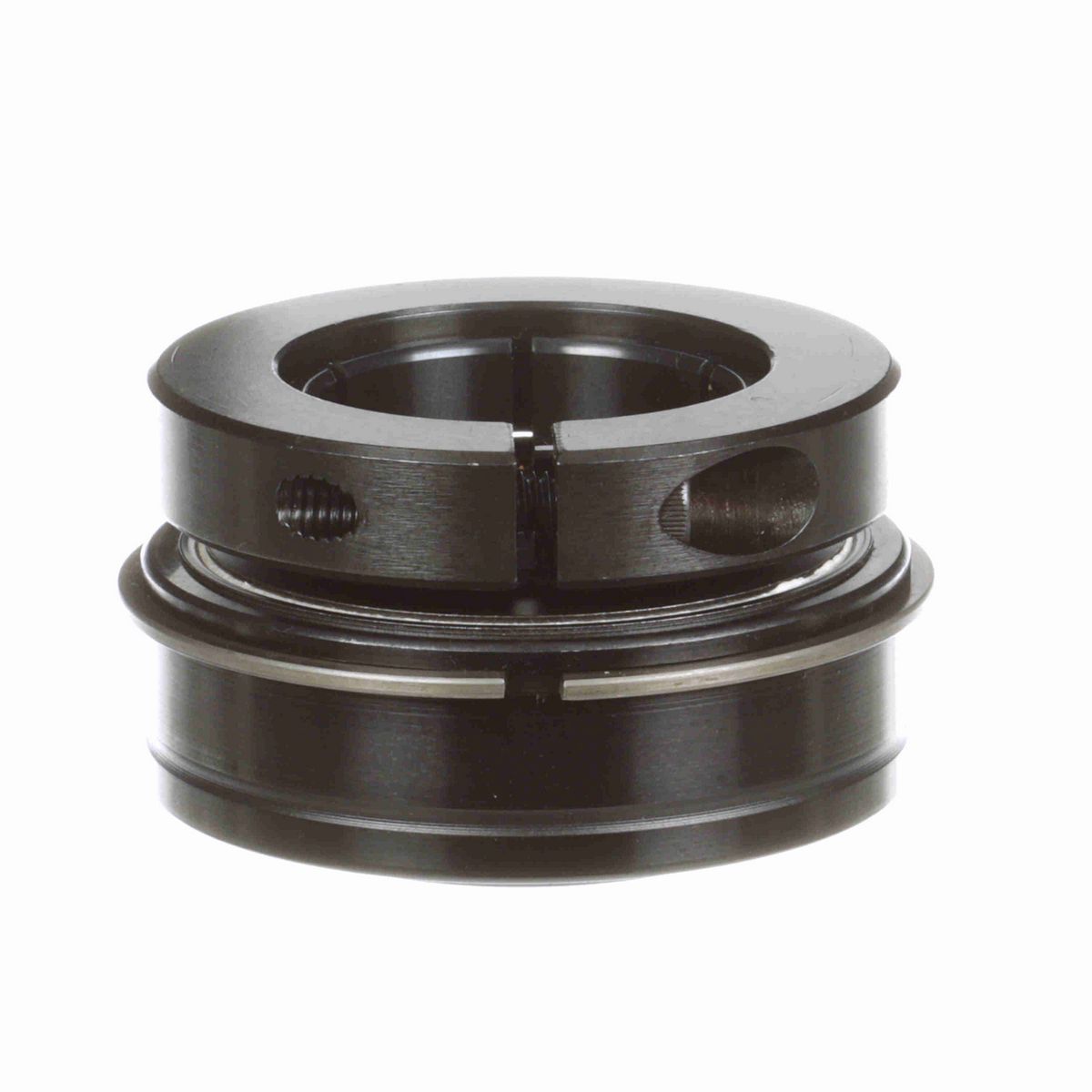

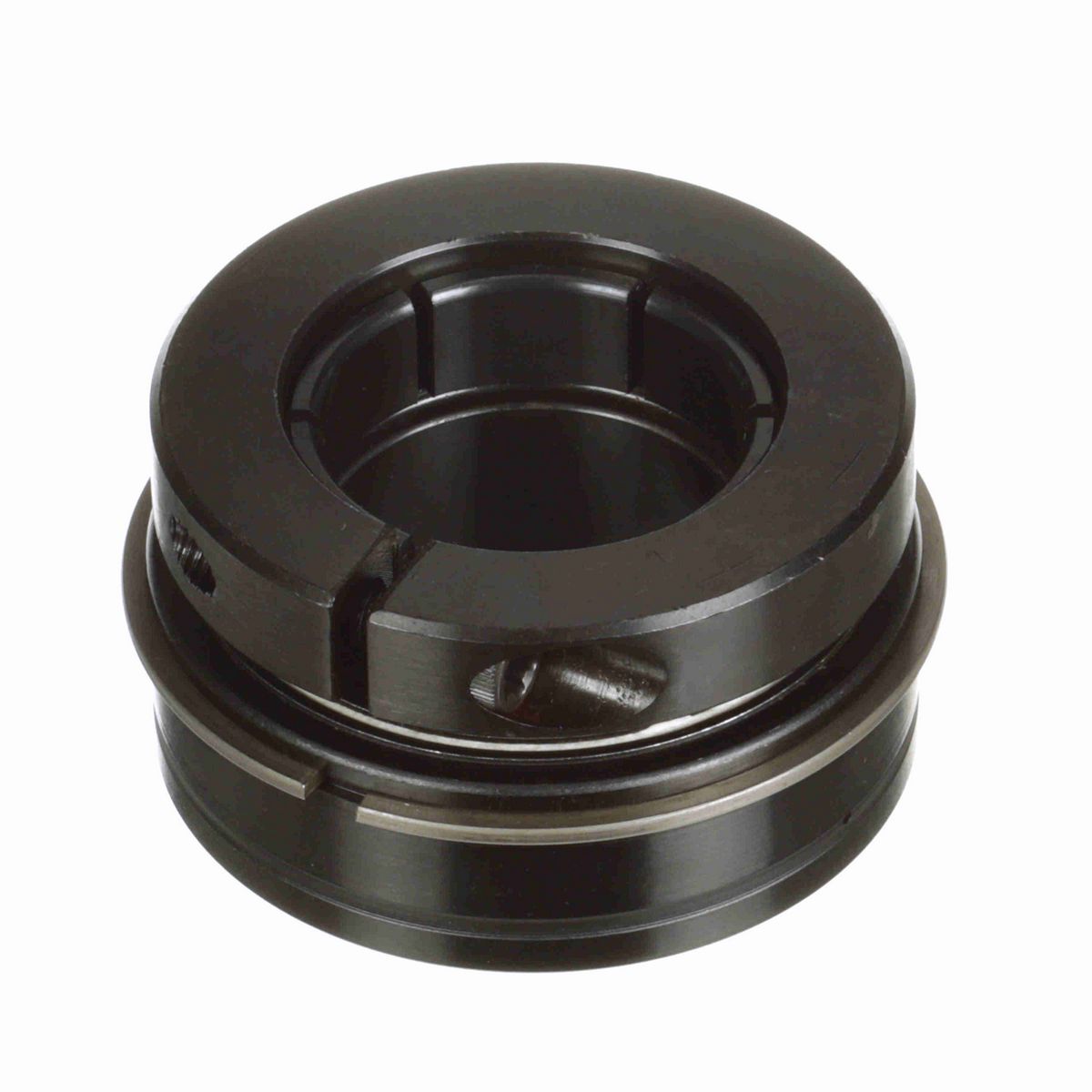

• ER style cylindrical OD bearing with snap and with black oxided bearing rings
• Skwezloc® concentric locking for near perfect concentricity
• High temperature felt labyrinth seal and flinger
• Increased internal clearance
• Krytox® high temperature grease

Dimensions

Overall Width (in)	2.09 in
Bore Size (in)	1.9375 in
Inner Ring OD (in)	2.469 in
Outer Race OD (mm)	90 mm
Outer Race Width (in)	1.125 in
Outer Race OD (in)	3.5433 in
Centerline to Front Face (in)	1.344 in
Collar OD (in)	3.47 in
Length Through Bore (in)	2.09 in
Outer Race Width (mm)	28.6 mm

Technical Specifications

Insert Material	52100 Bearing Steel
Housing Type	Insert (ER Style)
Bore Shape	Straight
Seal Type	High Temp Labyrinth
Rolling Element	Ball Bearing
Measure Units	Inch
Torx Cap Screw	5/16-18 UNC
Expansion	No
Internal Clearance	Increased
Misalignment	None
Bearing Insert Coating	Black Oxide
Outer Ring Land Profile	Tapered Lands
Platform	Gold Line Ball Bearing
Options	High Temperature
End Cap	No
Misalignment Type	Static Only
Cage Material	PPS - Polyphenylene Sulfide
Precision Rating	ABEC 1
Inner Race Profile	Wide Inner Ring
Outer Race Profile	Cylindrical
Vibration Frequency Fundamental Train	0.0068 cps
Locking Type	Concentric
Lubrication Type	PTFE thickened Grease
Maximum Operating Temperature (F)	400 °F
Size Code	2-115
Maximum Speed (rpm)	1550 rpm
Vibration Frequency Inner Ring Defect	0.0984 cps
Inner Ring Fillet Radius (in)	0.06 in
Inner Race Heat Treat Method	Zone-Hardened
Setscrew Torque (in-lbs)	495 in/lbs
Vibration Frequency Roller Spin	0.0445 cps
Vibration Frequency Outer Ring Defect	0.0683 cps
Duty/Status	Standard
Series	Unmounted Replacement Bearings
Ability to Relubricate	Yes
Cage Type	Land Riding Retainer
Static Load Rating (lb)	5,216 lb
Maximum Operating Temperature (C)	204 °C
Dynamic Load Rating (lb)	7,889 lb

General Specifications

UPC	662461269121
Weight	3.38 LB
Packaged Length	4.25 IN
Packaged Width	2.25 IN
Packaged Height	4.25 IN
HTC	8482.10.5052
Country of Origin	Mexico
