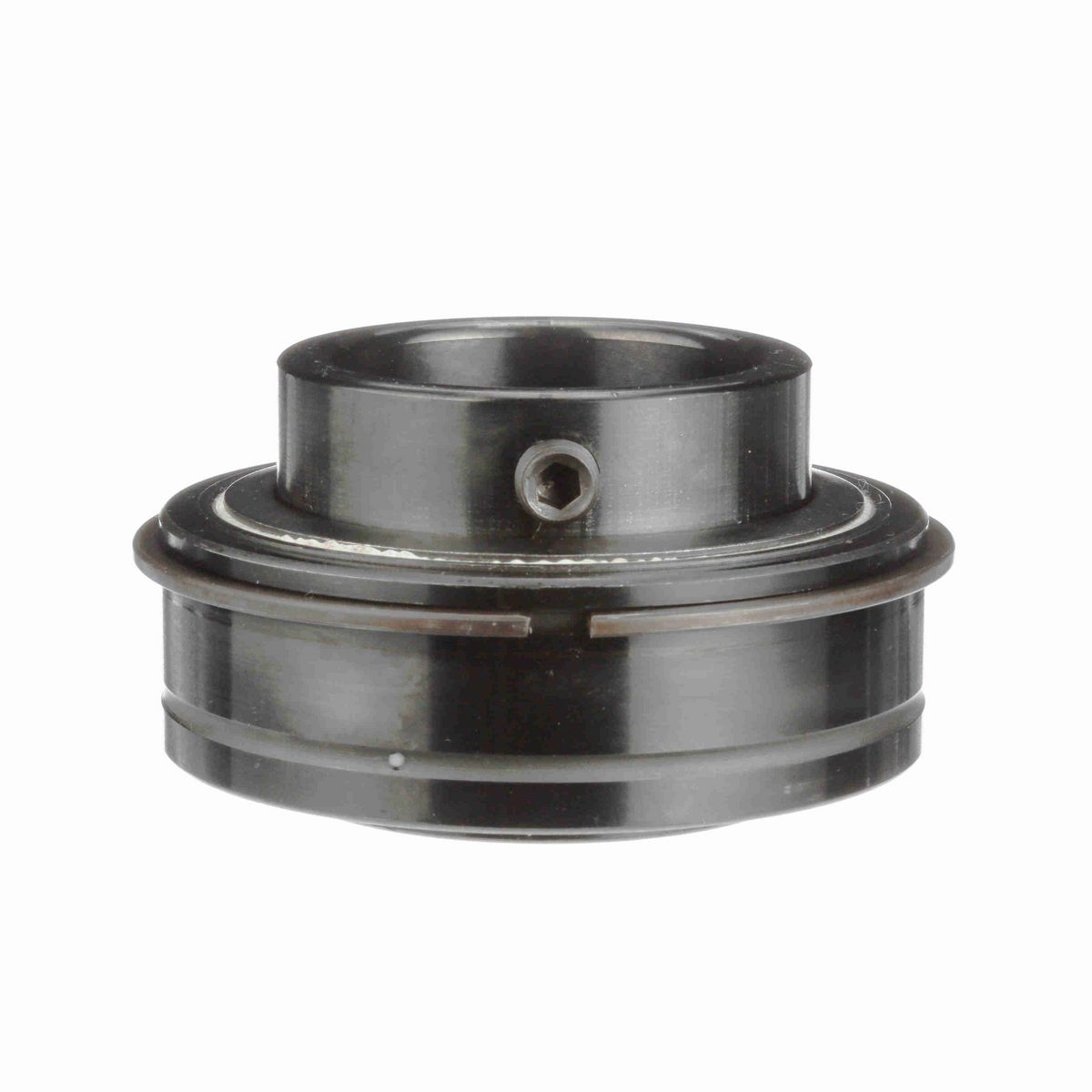

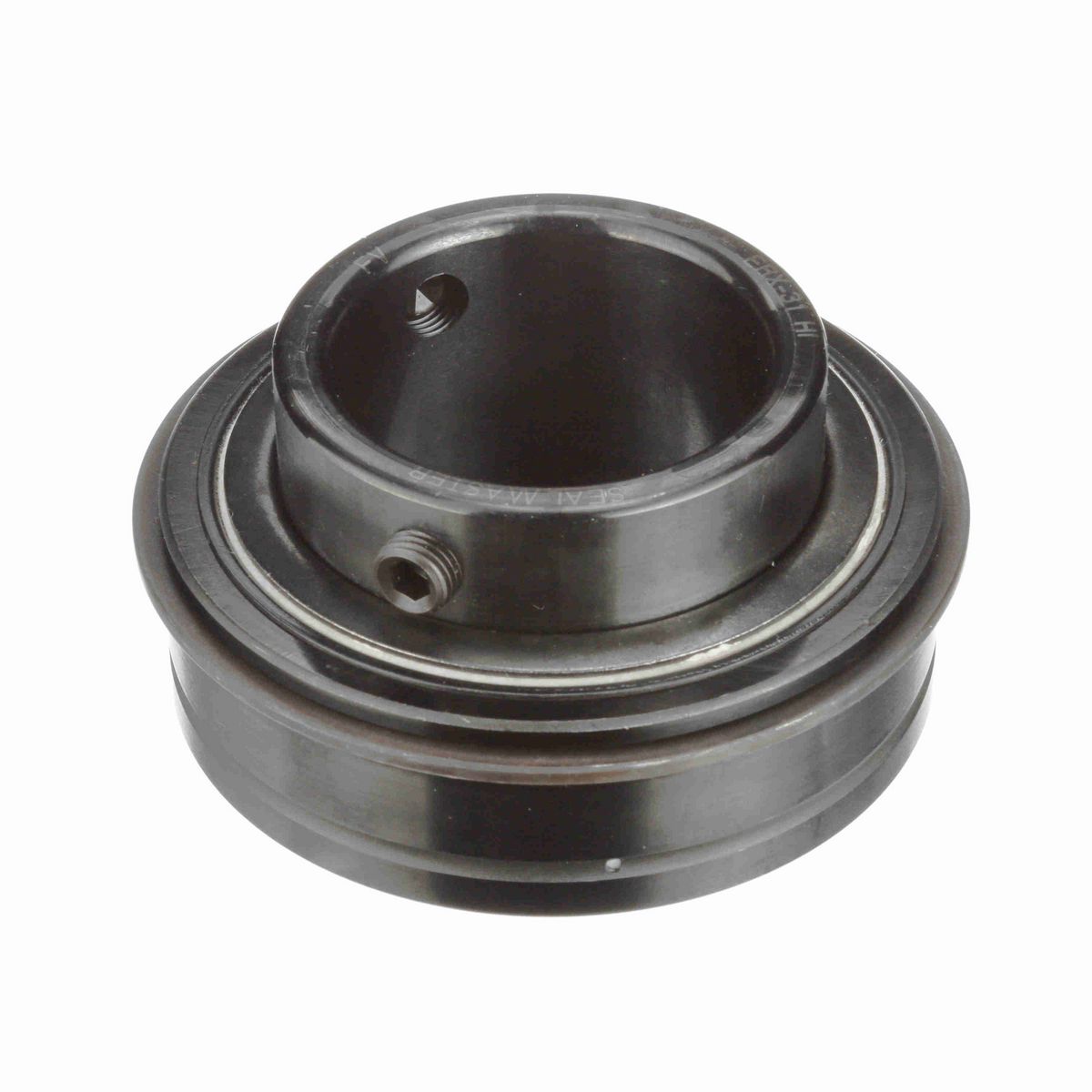

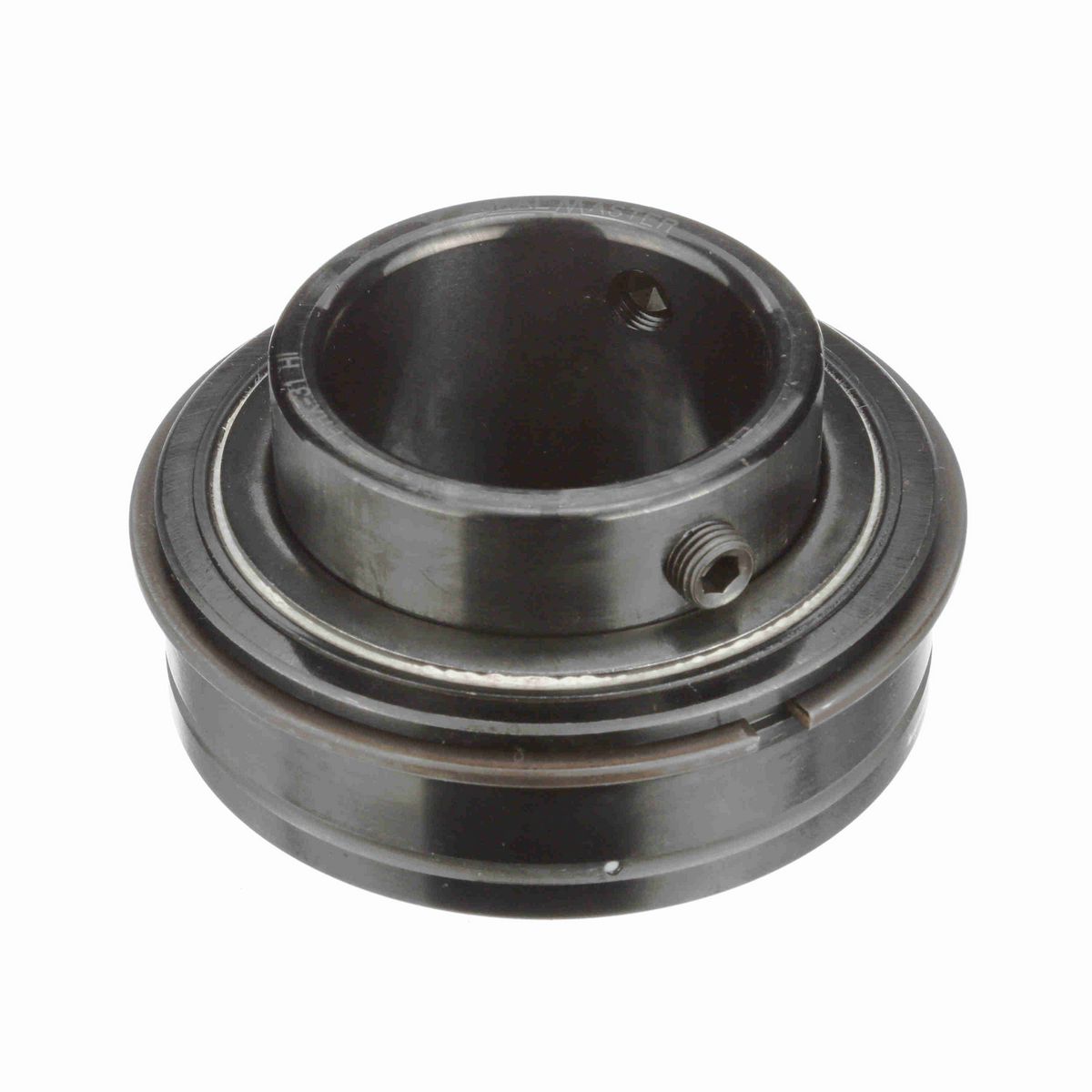

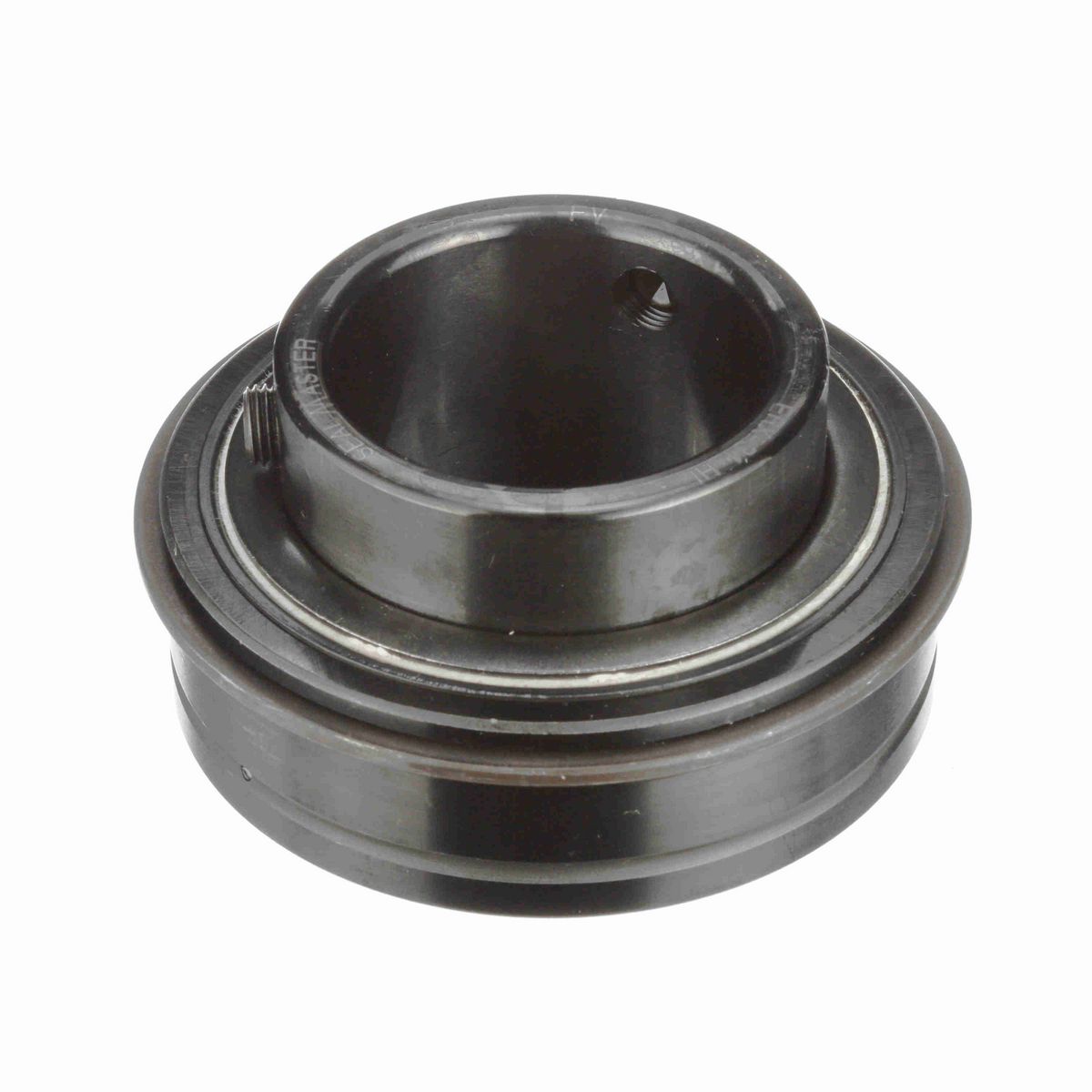

• ER style cylindrical OD bearing with snap and with black oxided bearing rings
• Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
• High temperature felt labyrinth seal and flinger
• Increased internal clearance
• Krytox® high temperature grease

Dimensions

Overall Width (in)	2.03 in
Bore Size (in)	1.9375 in
Centerline to Front Face (in)	1.281 in
Outer Race OD (in)	3.5433 in
Inner Ring OD (in)	2.469 in
Outer Race OD (mm)	90 mm
Outer Race Width (in)	1.125 in
Length Through Bore (in)	2.031 in
Outer Race Width (mm)	28.6 mm

Technical Specifications

Measure Units	Inch
Seal Type	High Temp Labyrinth
Set Screw Thread	3/8-24 UNF
Bore Shape	Straight
Housing Type	Insert (ER Style)
Insert Material	52100 Bearing Steel
Rolling Element	Ball Bearing
Misalignment	None
Internal Clearance	Increased
Expansion	No
Outer Ring Land Profile	Tapered Lands
Options	High Temperature
Bearing Insert Coating	Black Oxide
End Cap	No
Platform	Gold Line Ball Bearing
Misalignment Type	Static Only
Cage Material	PPS - Polyphenylene Sulfide
Precision Rating	ABEC 1
Inner Race Profile	Wide Inner Ring
Outer Race Profile	Cylindrical
Maximum Operating Temperature (F)	400 °F
Ability to Relubricate	Yes
Lubrication Type	PTFE thickened Grease
Duty/Status	Standard
Locking Type	Set Screw
Inner Race Heat Treat Method	Zone-Hardened
Size Code	2-115
Vibration Frequency Outer Ring Defect	0.0683 cps
Series	Unmounted Replacement Bearings
Vibration Frequency Inner Ring Defect	0.0984 cps
Vibration Frequency Roller Spin	0.0445 cps
Maximum Speed (rpm)	1550 rpm
Vibration Frequency Fundamental Train	0.0068 cps
Setscrew Torque (in-lbs)	230-300 in/lbs
Inner Ring Fillet Radius (in)	0.06 in
Cage Type	Land Riding Retainer
Dynamic Load Rating (lb)	7,889 lb
Static Load Rating (lb)	5,216 lb
Maximum Operating Temperature (C)	204 °C

General Specifications

UPC	662461259405
Weight	2.24 LB
Packaged Length	4.25 IN
Packaged Width	2.25 IN
Packaged Height	4.25 IN
HTC	8482.10.5052
Country of Origin	Mexico
