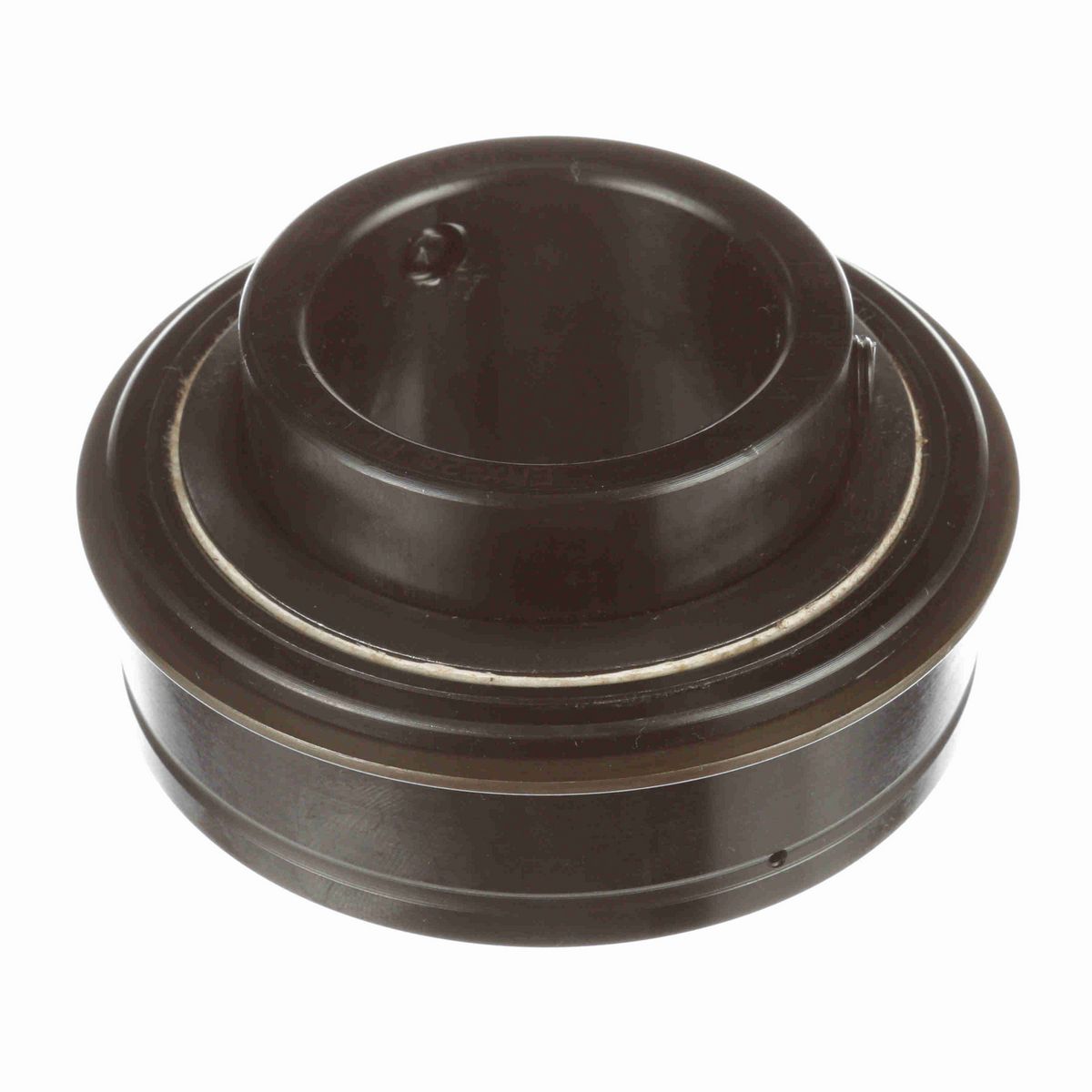

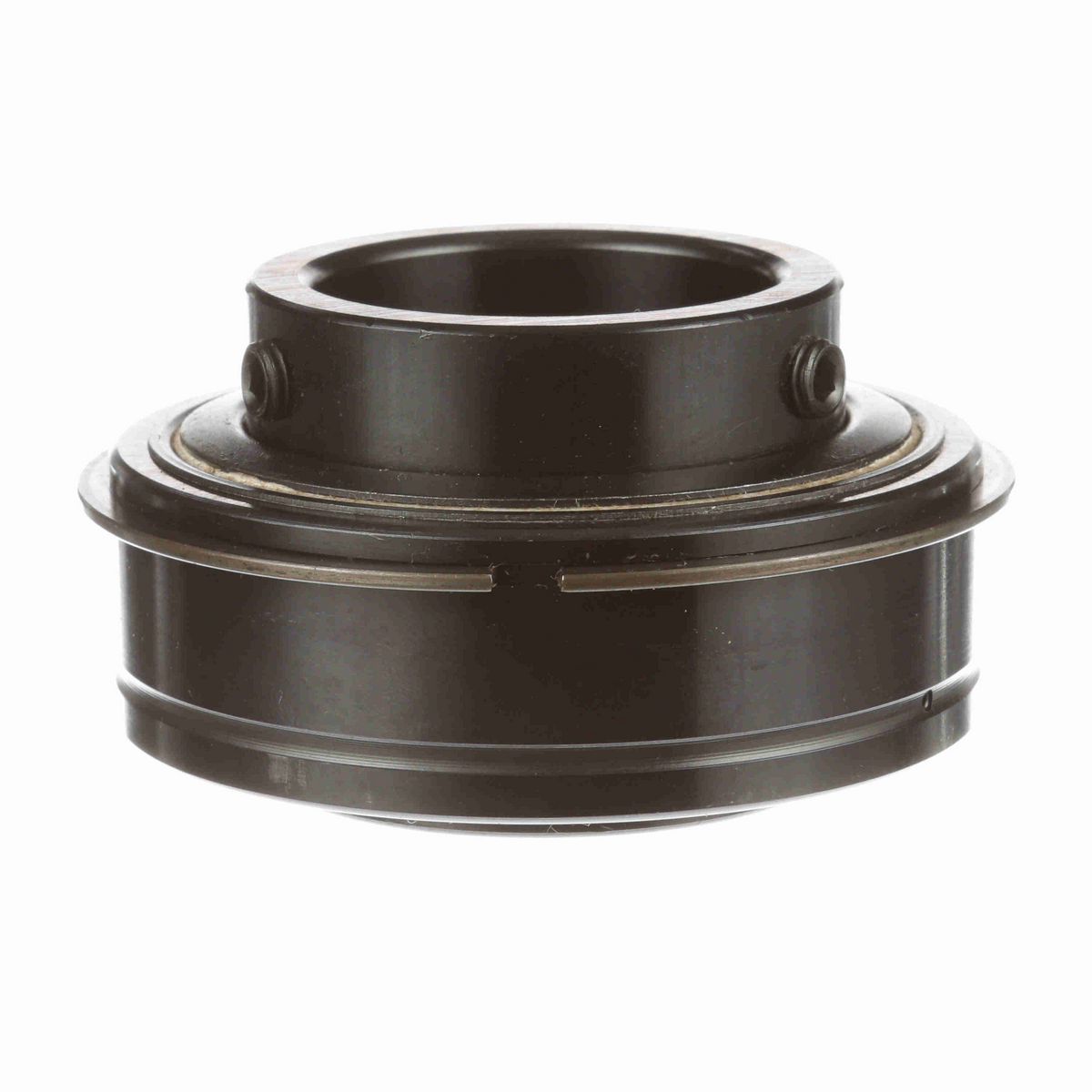

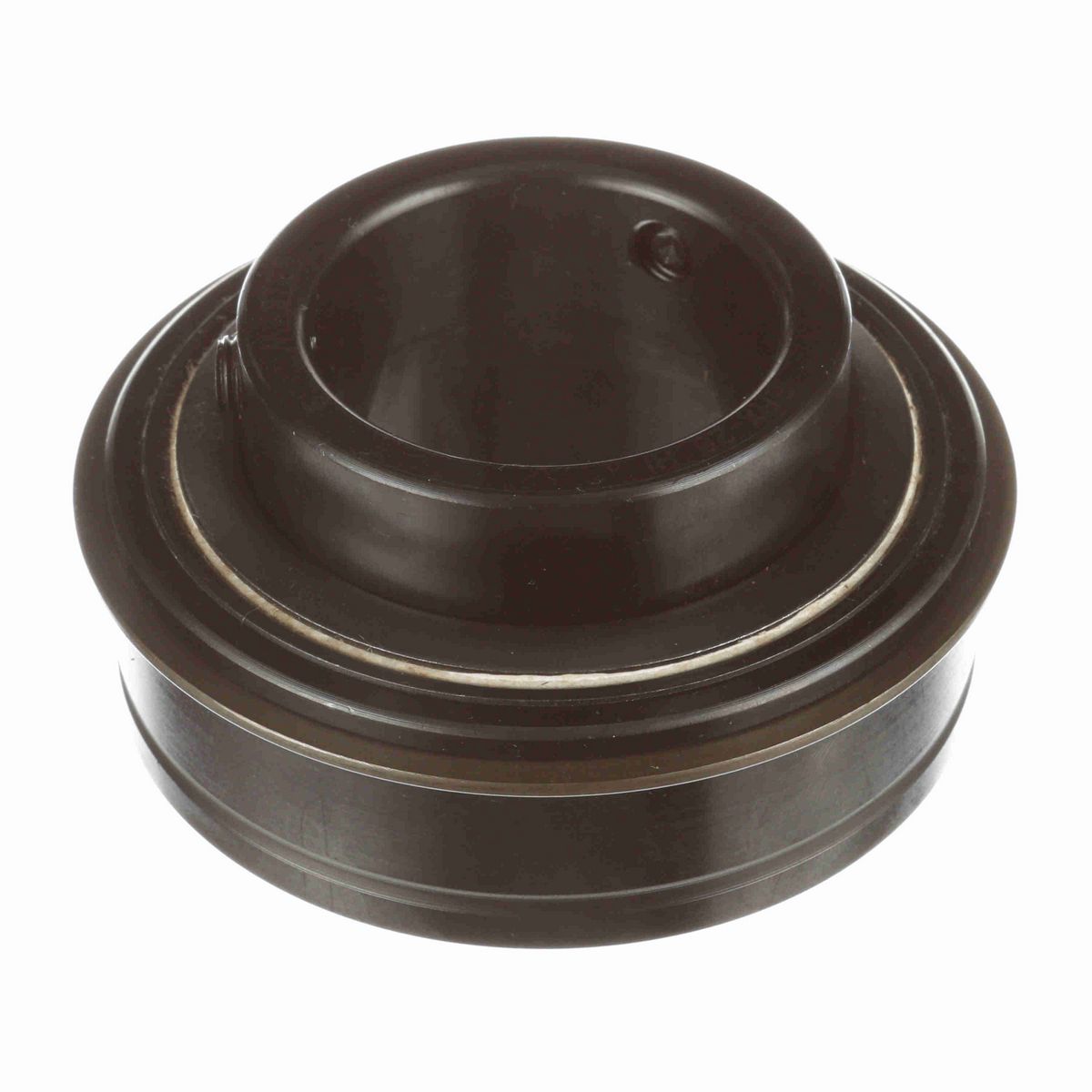

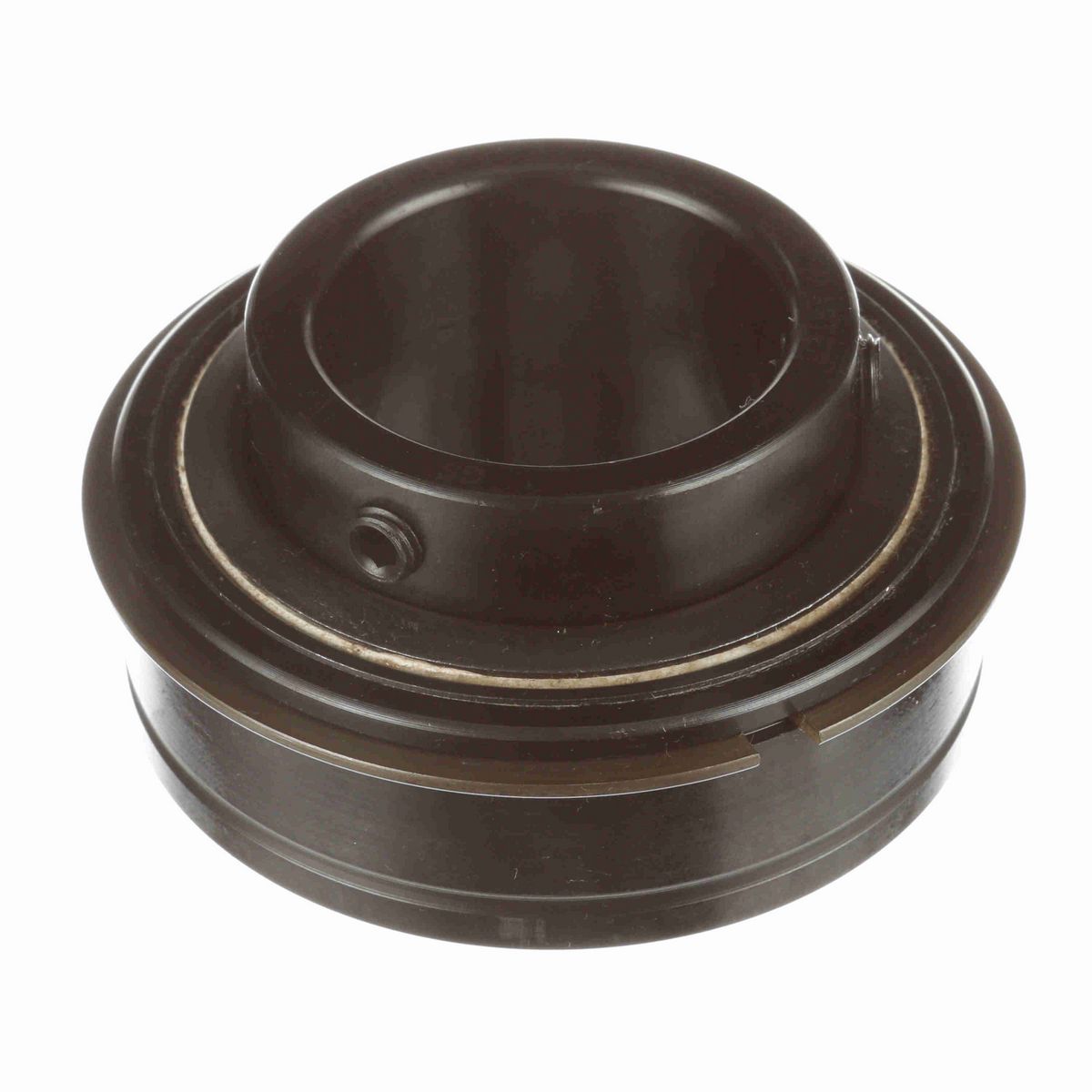

• ER style cylindrical OD bearing with snap and with black oxided bearing rings
• Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
• High temperature felt labyrinth seal and flinger
• Increased internal clearance
• Krytox® high temperature grease

Dimensions

Overall Width (in)	1.94 in
Bore Size (in)	1.75 in
Inner Ring OD (in)	2.297 in
Outer Race Width (in)	1.094 in
Centerline to Front Face (in)	1.188 in
Outer Race OD (in)	3.3465 in
Outer Race OD (mm)	85 mm
Length Through Bore (in)	1.938 in
Outer Race Width (mm)	27.8 mm

Technical Specifications

Measure Units	Inch
Insert Material	52100 Bearing Steel
Rolling Element	Ball Bearing
Bore Shape	Straight
Set Screw Thread	5/16-24 UNF
Housing Type	Insert (ER Style)
Seal Type	High Temp Labyrinth
Misalignment	None
Expansion	No
Internal Clearance	Increased
Platform	Gold Line Ball Bearing
Misalignment Type	Static Only
Outer Ring Land Profile	Tapered Lands
Bearing Insert Coating	Black Oxide
End Cap	No
Options	High Temperature
Precision Rating	ABEC 1
Cage Material	PPS - Polyphenylene Sulfide
Outer Race Profile	Cylindrical
Inner Race Profile	Wide Inner Ring
Duty/Status	Standard
Vibration Frequency Outer Ring Defect	0.0673 cps
Series	Unmounted Replacement Bearings
Vibration Frequency Inner Ring Defect	0.0994 cps
Size Code	2-111
Lubrication Type	PTFE thickened Grease
Maximum Speed (rpm)	1650 rpm
Vibration Frequency Roller Spin	0.0417 cps
Maximum Operating Temperature (F)	400 °F
Ability to Relubricate	Yes
Setscrew Torque (in-lbs)	125-165 in/lbs
Locking Type	Set Screw
Inner Race Heat Treat Method	Zone-Hardened
Vibration Frequency Fundamental Train	0.0067 cps
Inner Ring Fillet Radius (in)	0.06 in
Cage Type	Land Riding Retainer
Maximum Operating Temperature (C)	204 °C
Dynamic Load Rating (lb)	7,901 lb
Static Load Rating (lb)	5,139 lb

General Specifications

UPC	662461259382
Weight	1.99 LB
Packaged Length	3.63 IN
Packaged Width	2.00 IN
Packaged Height	3.63 IN
HTC	8482.10.5052
Country of Origin	Mexico
