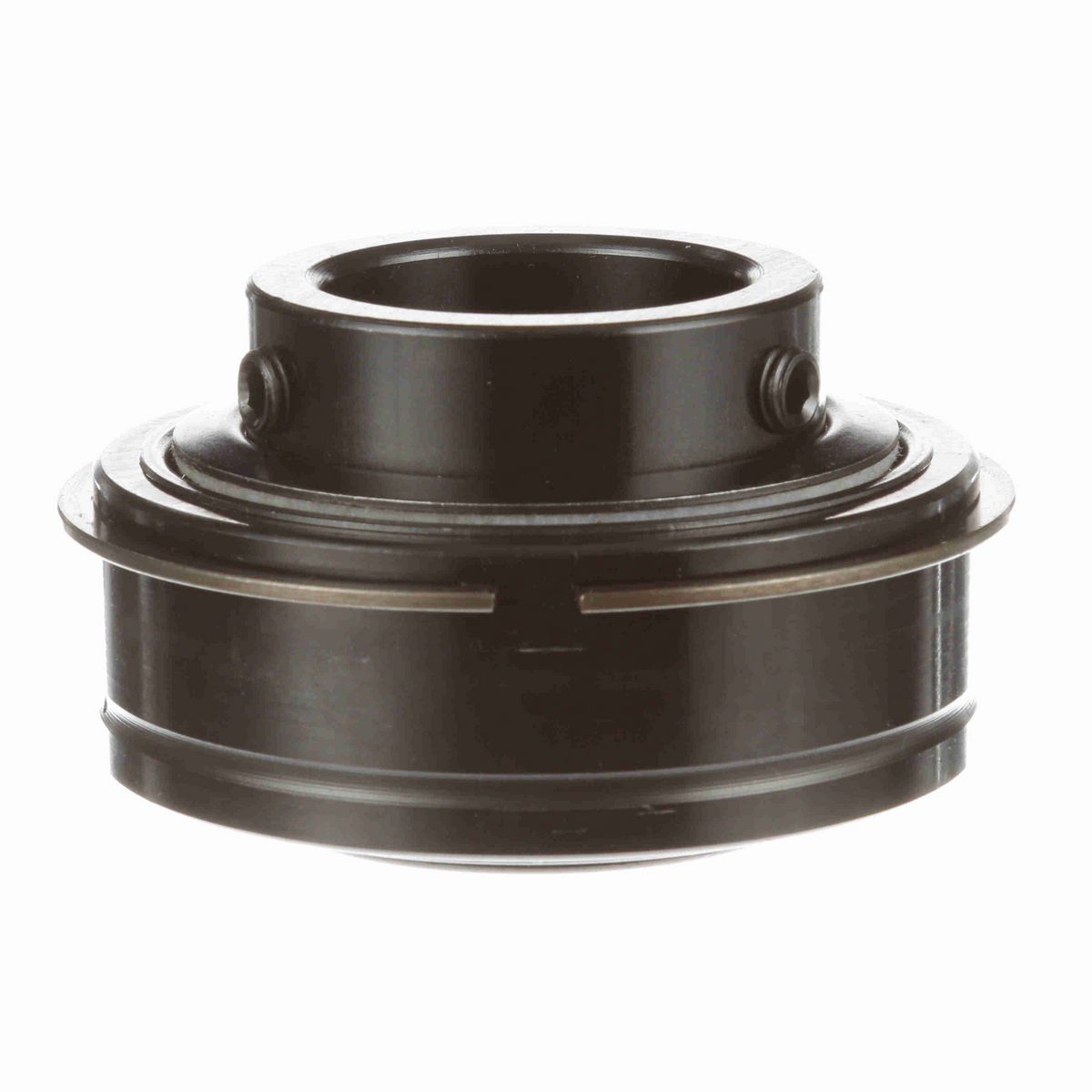

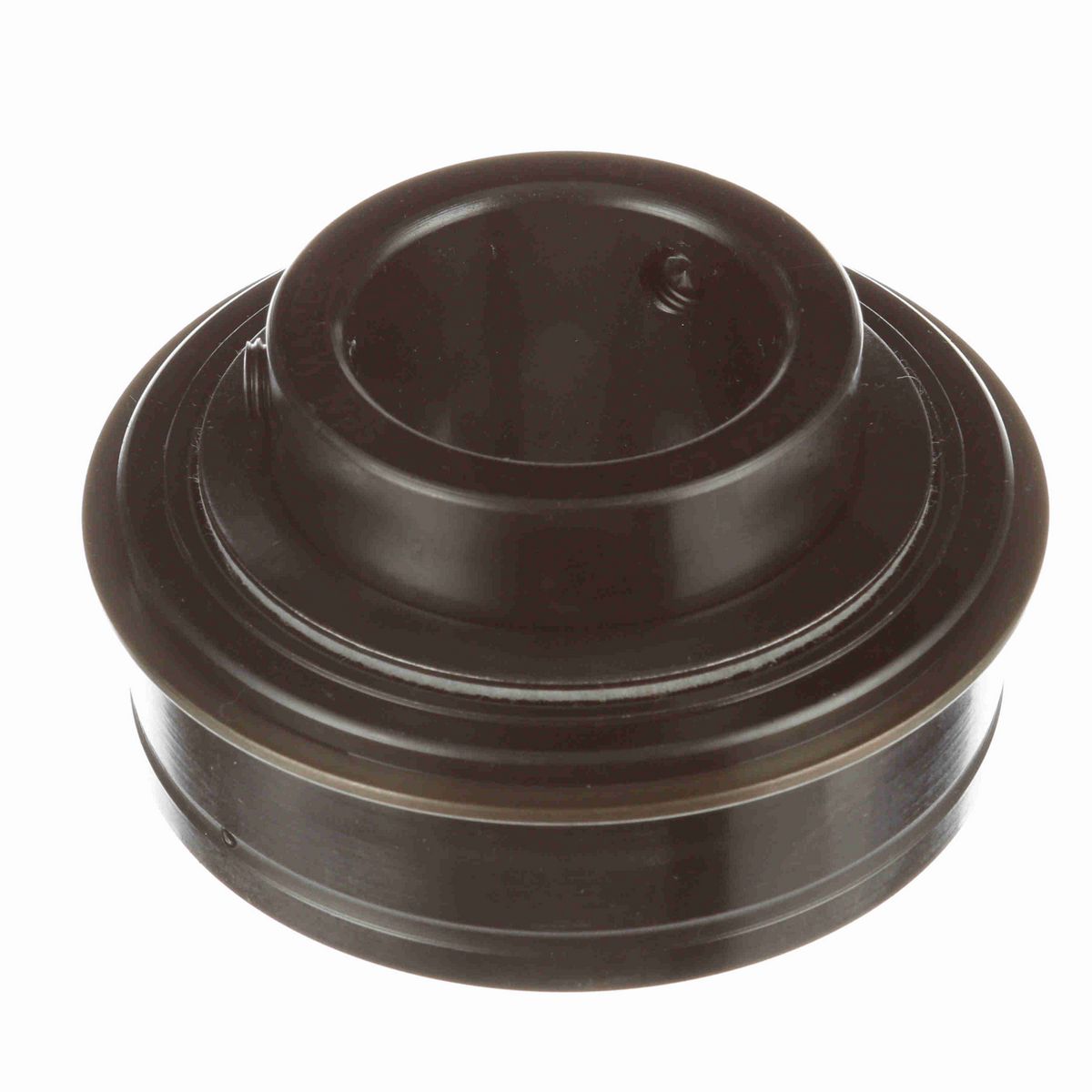

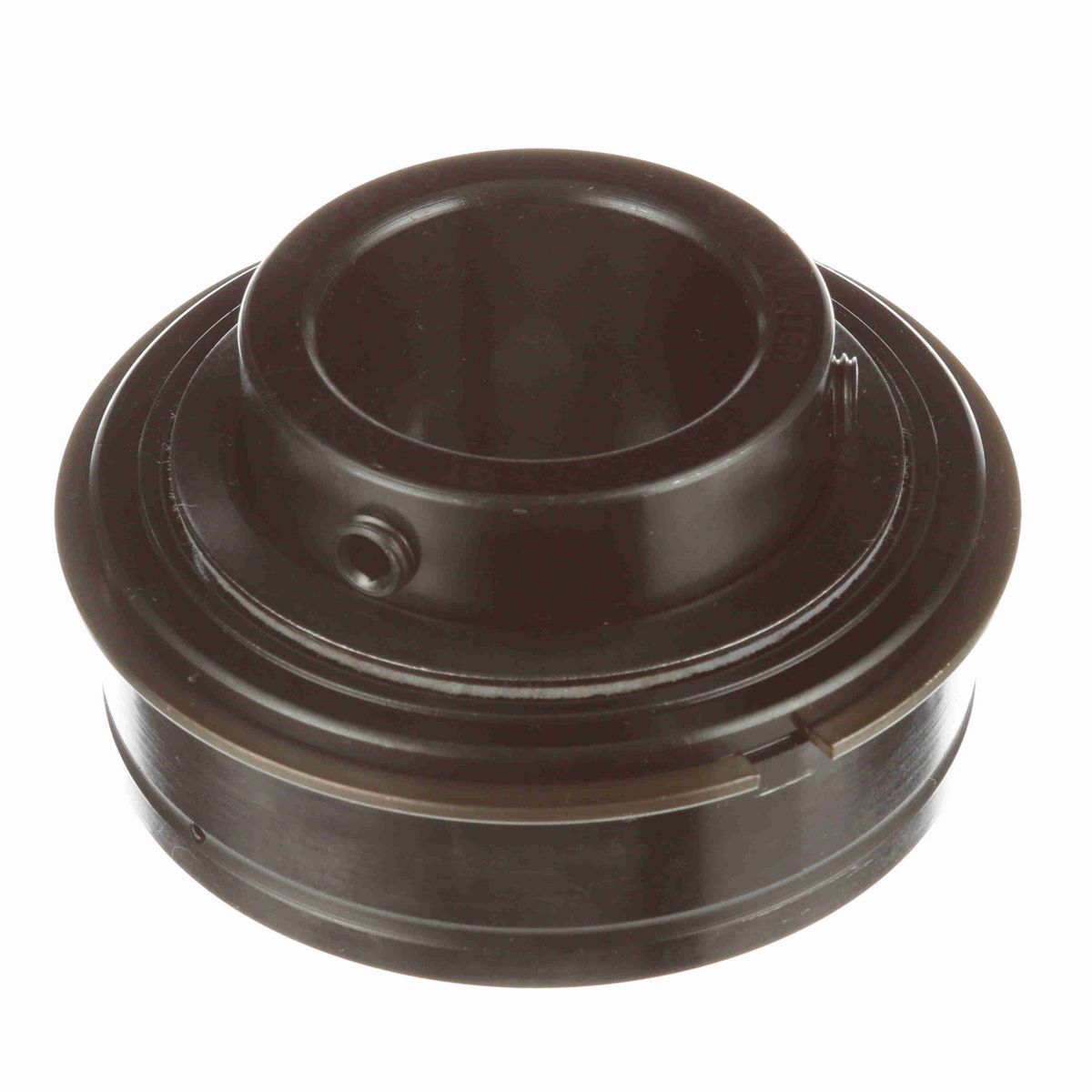

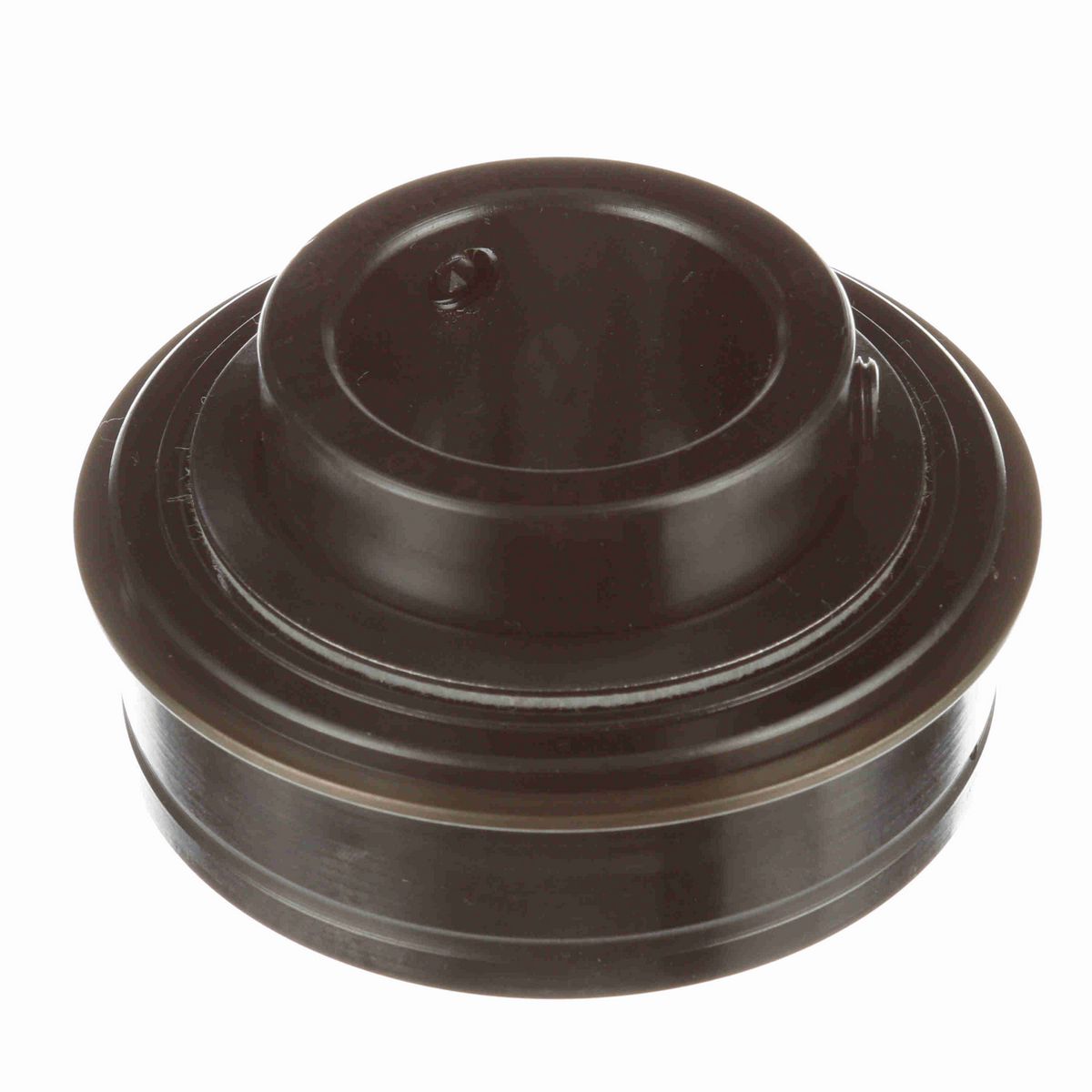

• ER style cylindrical OD bearing with snap and with black oxided bearing rings
• Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
• Extra low drag seal cut down felt labyrinth seal and flinger
• Features a channeling grease that reduces drag while lubricating the bearing
• Nylon retainer to reduce overall drag

Dimensions

Overall Width (in)	1.94 in
Bore Size (in)	1.5 in
Outer Race OD (in)	3.1496 in
Outer Race OD (mm)	80 mm
Outer Race Width (in)	1.093 in
Centerline to Front Face (in)	1.188 in
Inner Ring OD (in)	2.063 in
Length Through Bore (in)	1.938 in
Outer Race Width (mm)	27.8 mm

Technical Specifications

Rolling Element	Ball Bearing
Bore Shape	Straight
Set Screw Thread	5/16-24 UNF
Measure Units	Inch
Seal Type	Cut Down Felt Labyrinth
Insert Material	52100 Bearing Steel
Housing Type	Insert (ER Style)
Misalignment	None
Internal Clearance	Standard
Expansion	No
Options	Low Drag
Misalignment Type	Static Only
Platform	Gold Line Ball Bearing
Bearing Insert Coating	Black Oxide
Outer Ring Land Profile	Tapered Lands
End Cap	No
Precision Rating	ABEC 1
Cage Material	PPS - Polyphenylene Sulfide
Outer Race Profile	Cylindrical
Inner Race Profile	Wide Inner Ring
Series	Unmounted Replacement Bearings
Inner Race Heat Treat Method	Zone-Hardened
Vibration Frequency Roller Spin	0.0376 cps
Locking Type	Set Screw
Inner Ring Fillet Radius (in)	0.06 in
Maximum Operating Temperature (F)	220 °F
Maximum Speed (rpm)	3300 rpm
Duty/Status	Standard
Vibration Frequency Outer Ring Defect	0.0591 cps
Vibration Frequency Inner Ring Defect	0.0909 cps
Vibration Frequency Fundamental Train	0.0066 cps
Size Code	2-19
Ability to Relubricate	Yes
Setscrew Torque (in-lbs)	125-165 in/lbs
Lubrication Type	Lithium NLGI 2 Low Torque Grease
Cage Type	Land Riding Retainer
Dynamic Load Rating (lb)	7,340 lb
Static Load Rating (lb)	4,467 lb

General Specifications

UPC	662461258712
Weight	1.79 LB
Packaged Length	3.63 IN
Packaged Width	2.00 IN
Packaged Height	3.63 IN
HTC	8482.10.5052
Country of Origin	Mexico
