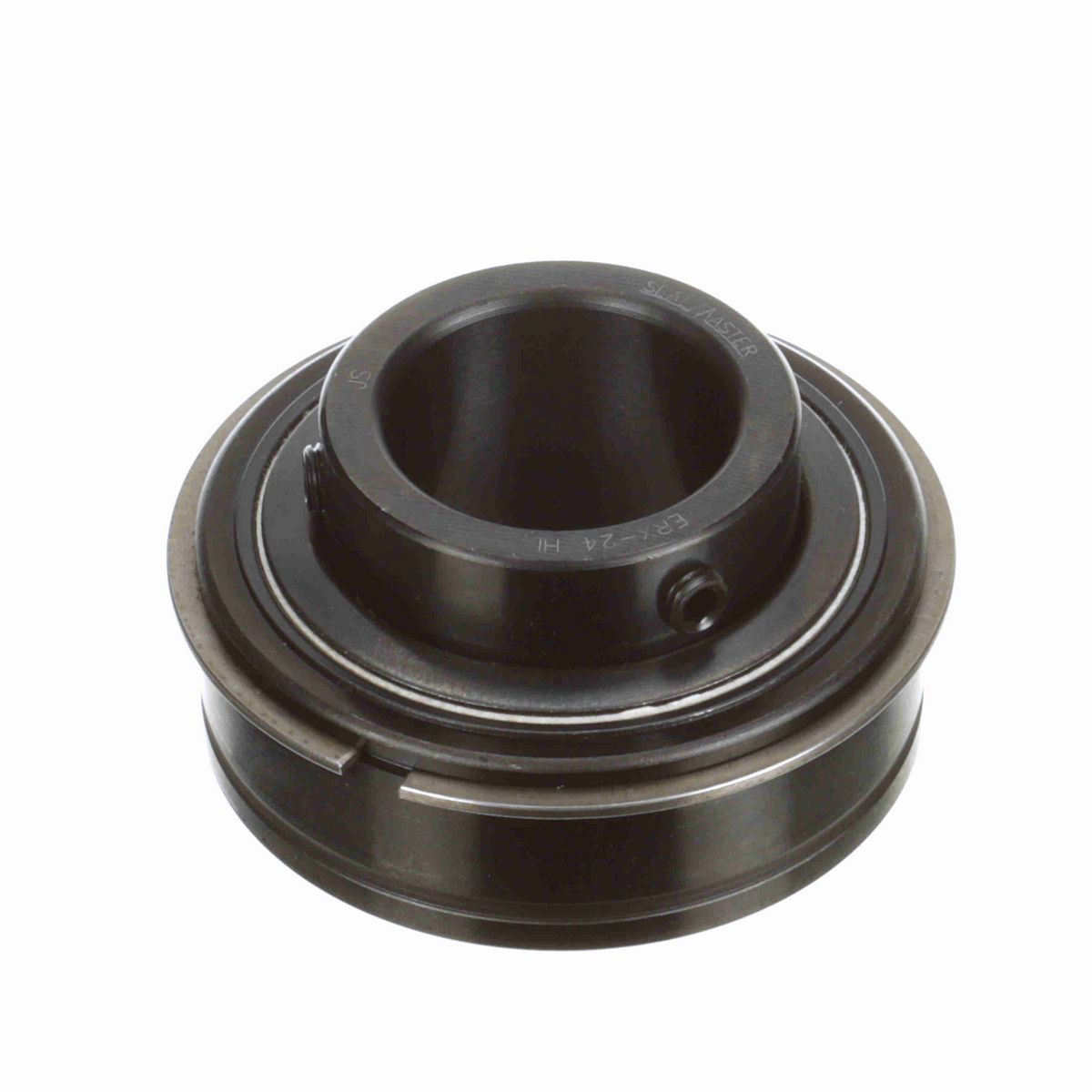

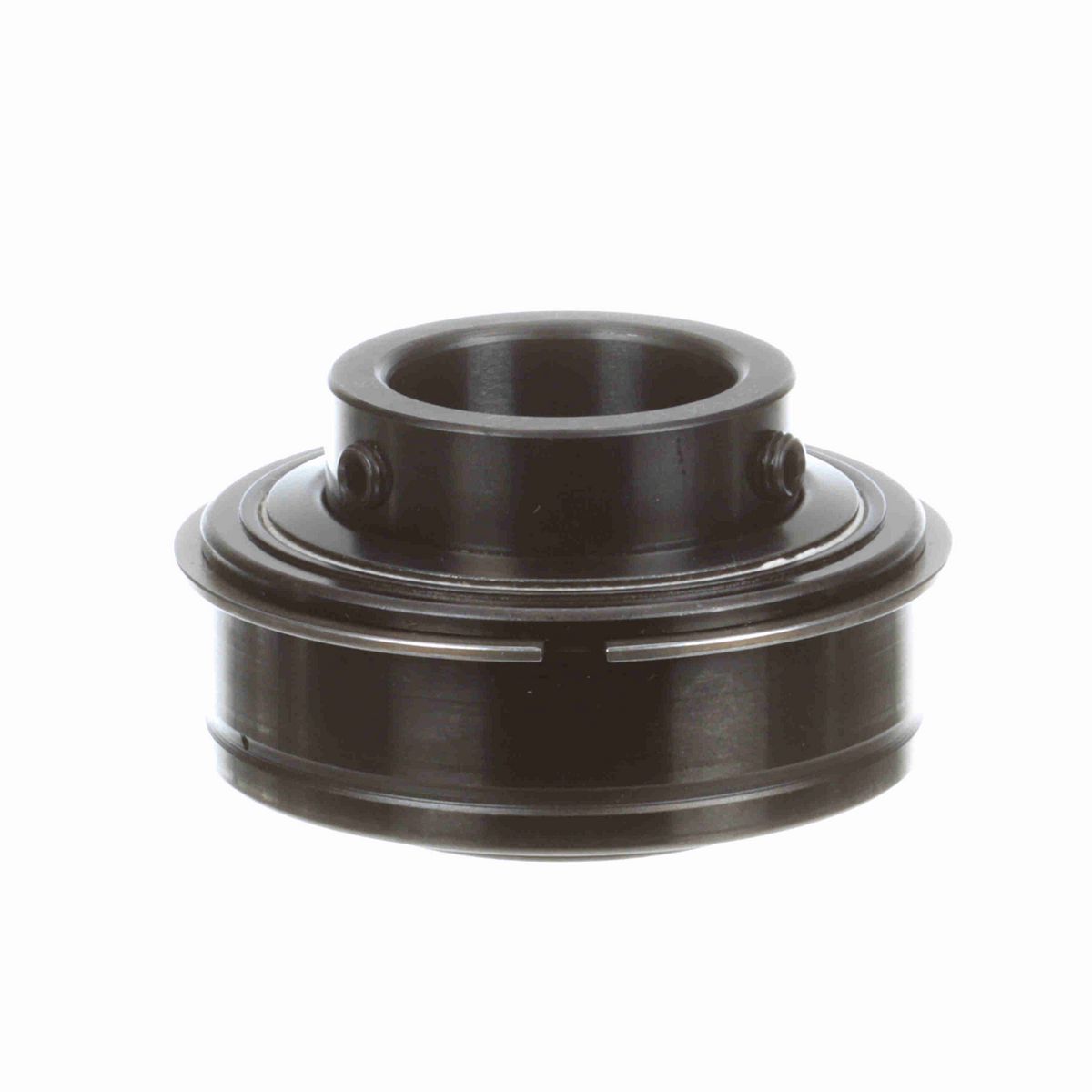

• ER style cylindrical OD bearing with snap and with black oxided bearing rings
• Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
• High temperature felt labyrinth seal and flinger
• Increased internal clearance
• Krytox® high temperature grease

Dimensions

Overall Width (in)	1.94 in
Bore Size (in)	1.5 in
Inner Ring OD (in)	2.063 in
Outer Race OD (in)	3.1496 in
Centerline to Front Face (in)	1.188 in
Outer Race OD (mm)	80 mm
Outer Race Width (in)	1.093 in
Length Through Bore (in)	1.938 in
Outer Race Width (mm)	27.8 mm

Technical Specifications

Measure Units	Inch
Set Screw Thread	5/16-24 UNF
Bore Shape	Straight
Insert Material	52100 Bearing Steel
Seal Type	High Temp Labyrinth
Housing Type	Insert (ER Style)
Rolling Element	Ball Bearing
Internal Clearance	Increased
Misalignment	None
Expansion	No
End Cap	No
Bearing Insert Coating	Black Oxide
Options	High Temperature
Platform	Gold Line Ball Bearing
Outer Ring Land Profile	Tapered Lands
Misalignment Type	Static Only
Precision Rating	ABEC 1
Cage Material	PPS - Polyphenylene Sulfide
Inner Race Profile	Wide Inner Ring
Outer Race Profile	Cylindrical
Series	Unmounted Replacement Bearings
Locking Type	Set Screw
Vibration Frequency Roller Spin	0.0376 cps
Duty/Status	Standard
Vibration Frequency Fundamental Train	0.0066 cps
Setscrew Torque (in-lbs)	125-165 in/lbs
Size Code	2-19
Ability to Relubricate	Yes
Vibration Frequency Inner Ring Defect	0.0909 cps
Maximum Operating Temperature (F)	400 °F
Inner Ring Fillet Radius (in)	0.06 in
Vibration Frequency Outer Ring Defect	0.0591 cps
Inner Race Heat Treat Method	Zone-Hardened
Maximum Speed (rpm)	1800 rpm
Lubrication Type	PTFE thickened Grease
Dynamic Load Rating (lb)	7,340 lb
Maximum Operating Temperature (C)	204 °C
Static Load Rating (lb)	4,467 lb
Cage Type	Land Riding Retainer

General Specifications

UPC	662461259023
Weight	2.00 LB
Packaged Length	3.63 IN
Packaged Width	2.00 IN
Packaged Height	3.63 IN
HTC	8482.10.5052
Country of Origin	Mexico
