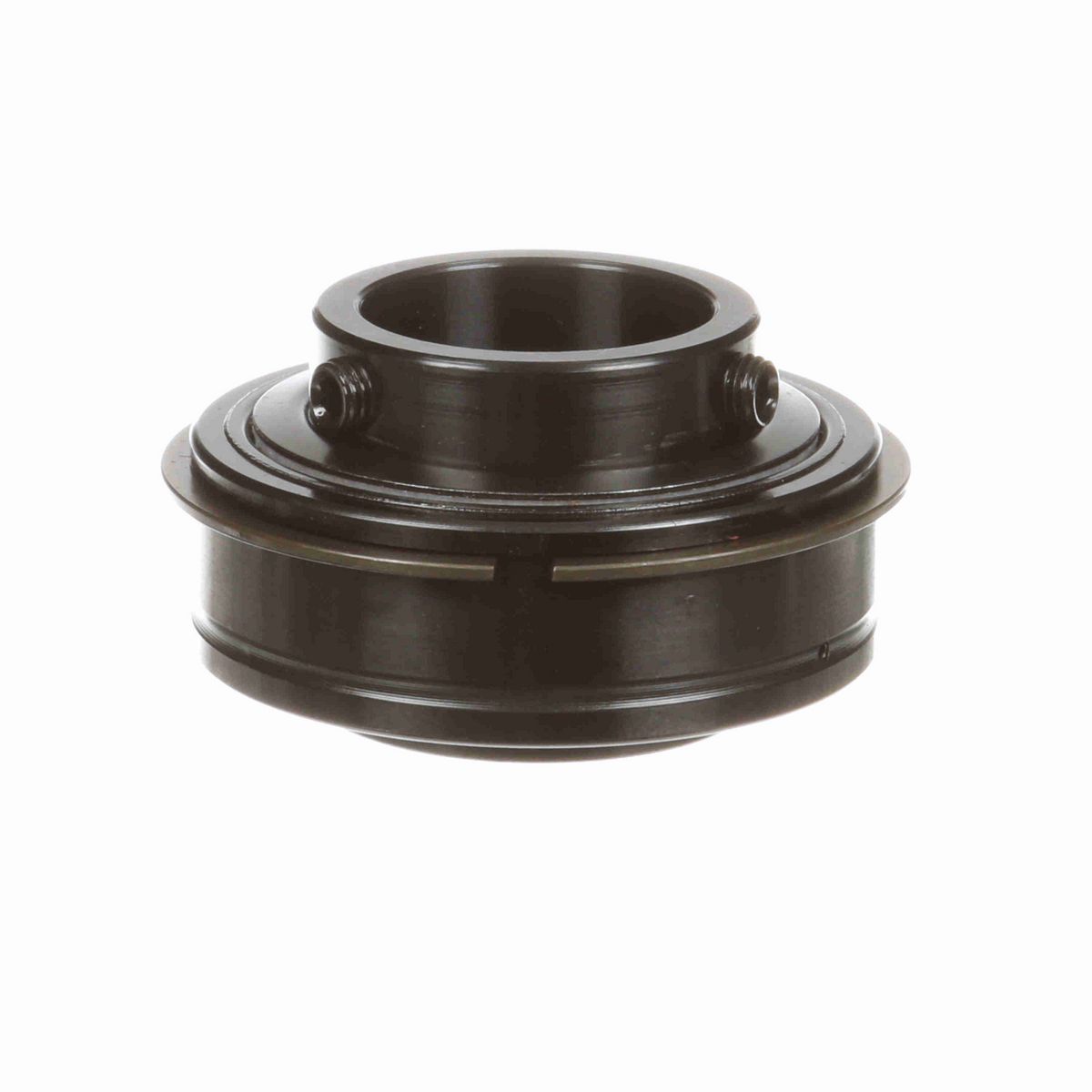

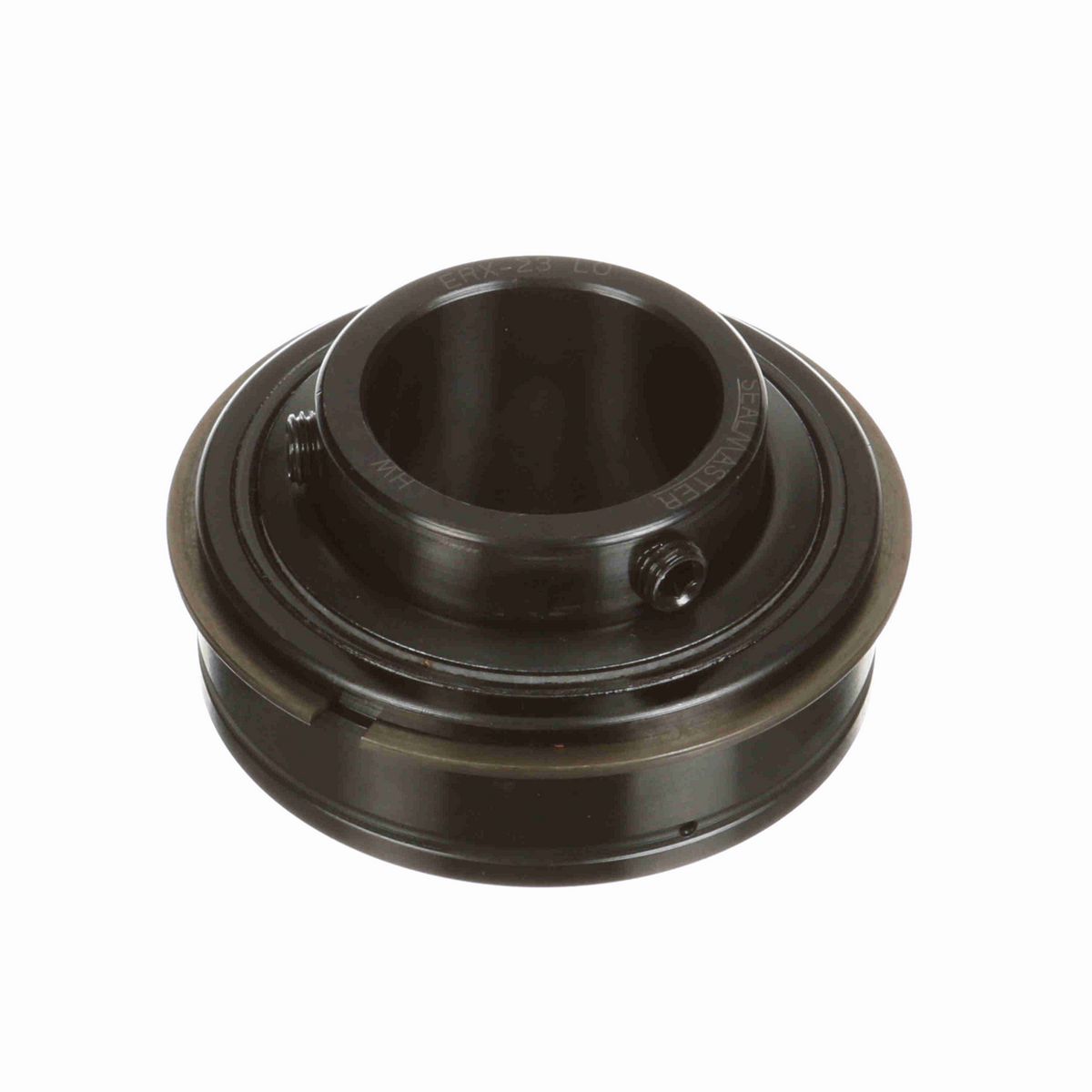

• ER style cylindrical OD bearing with snap and with black oxided bearing rings
• Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
• Extra low drag seal cut down felt labyrinth seal and flinger
• Features a channeling grease that reduces drag while lubricating the bearing
• Nylon retainer to reduce overall drag

Dimensions

Overall Width (in)	1.69 in
Bore Size (in)	1.4375 in
Outer Race OD (in)	2.8346 in
Outer Race Width (in)	0.938 in
Centerline to Front Face (in)	1 in
Outer Race OD (mm)	72 mm
Inner Ring OD (in)	1.859 in
Length Through Bore (in)	1.688 in
Outer Race Width (mm)	23.8 mm

Technical Specifications

Bore Shape	Straight
Insert Material	52100 Bearing Steel
Measure Units	Inch
Rolling Element	Ball Bearing
Housing Type	Insert (ER Style)
Seal Type	Cut Down Felt Labyrinth
Set Screw Thread	5/16-24 UNF
Misalignment	None
Internal Clearance	Standard
Expansion	No
Bearing Insert Coating	Black Oxide
Options	Low Drag
End Cap	No
Outer Ring Land Profile	Tapered Lands
Platform	Gold Line Ball Bearing
Misalignment Type	Static Only
Cage Material	PPS - Polyphenylene Sulfide
Precision Rating	ABEC 1
Inner Race Profile	Wide Inner Ring
Outer Race Profile	Cylindrical
Inner Race Heat Treat Method	Zone-Hardened
Maximum Operating Temperature (F)	220 °F
Vibration Frequency Outer Ring Defect	0.0595 cps
Vibration Frequency Inner Ring Defect	0.0905 cps
Duty/Status	Standard
Ability to Relubricate	Yes
Inner Ring Fillet Radius (in)	0.04 in
Lubrication Type	Lithium NLGI 2 Low Torque Grease
Locking Type	Set Screw
Size Code	2-17
Setscrew Torque (in-lbs)	125-165 in/lbs
Vibration Frequency Fundamental Train	0.0067 cps
Maximum Speed (rpm)	3700 rpm
Series	Unmounted Replacement Bearings
Vibration Frequency Roller Spin	0.0383 cps
Cage Type	Land Riding Retainer
Static Load Rating (lb)	3,493 lb
Dynamic Load Rating (lb)	5,782 lb

General Specifications

UPC	662461258705
Weight	1.37 LB
Packaged Length	3.13 IN
Packaged Width	1.75 IN
Packaged Height	3.13 IN
HTC	8482.10.5052
Country of Origin	Mexico
