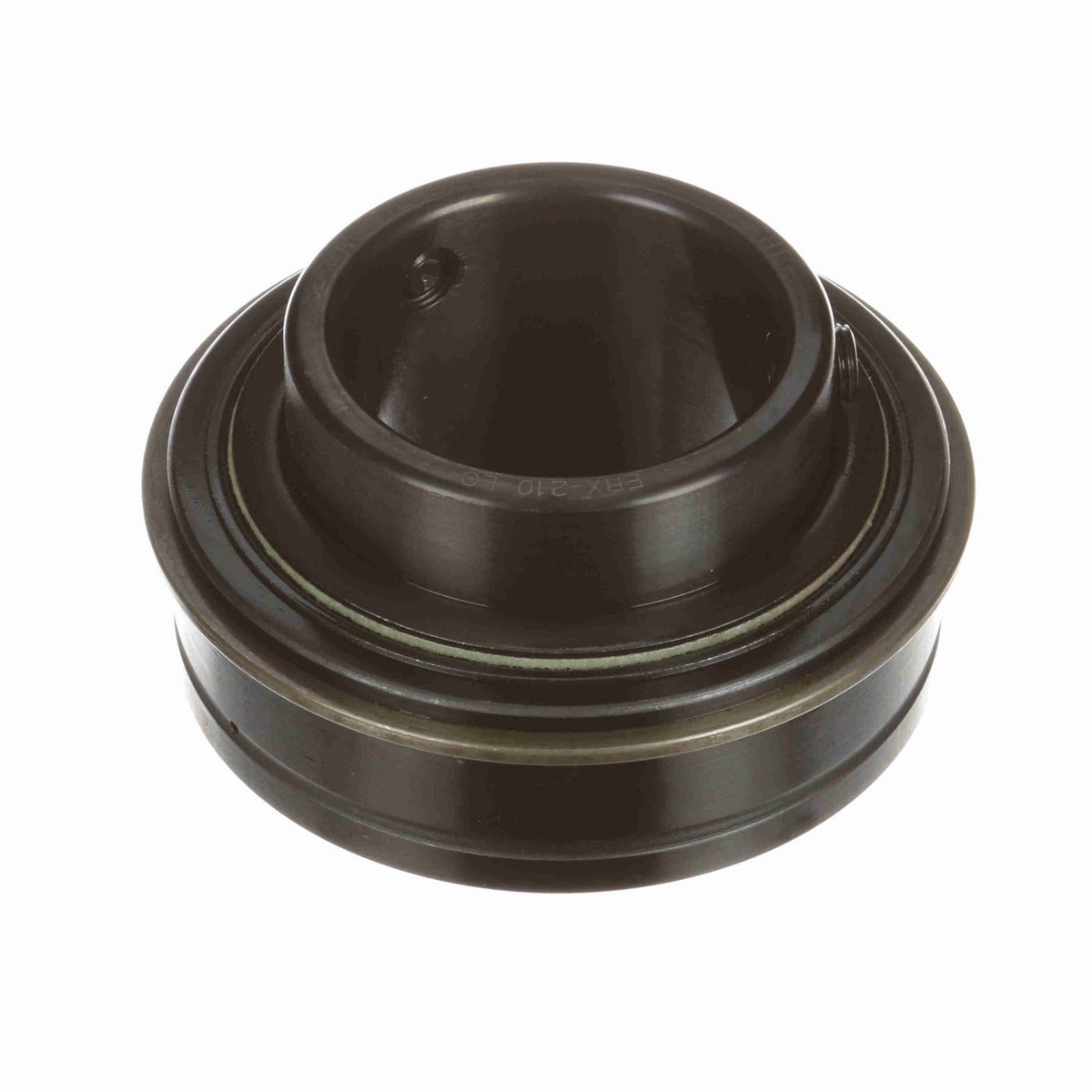

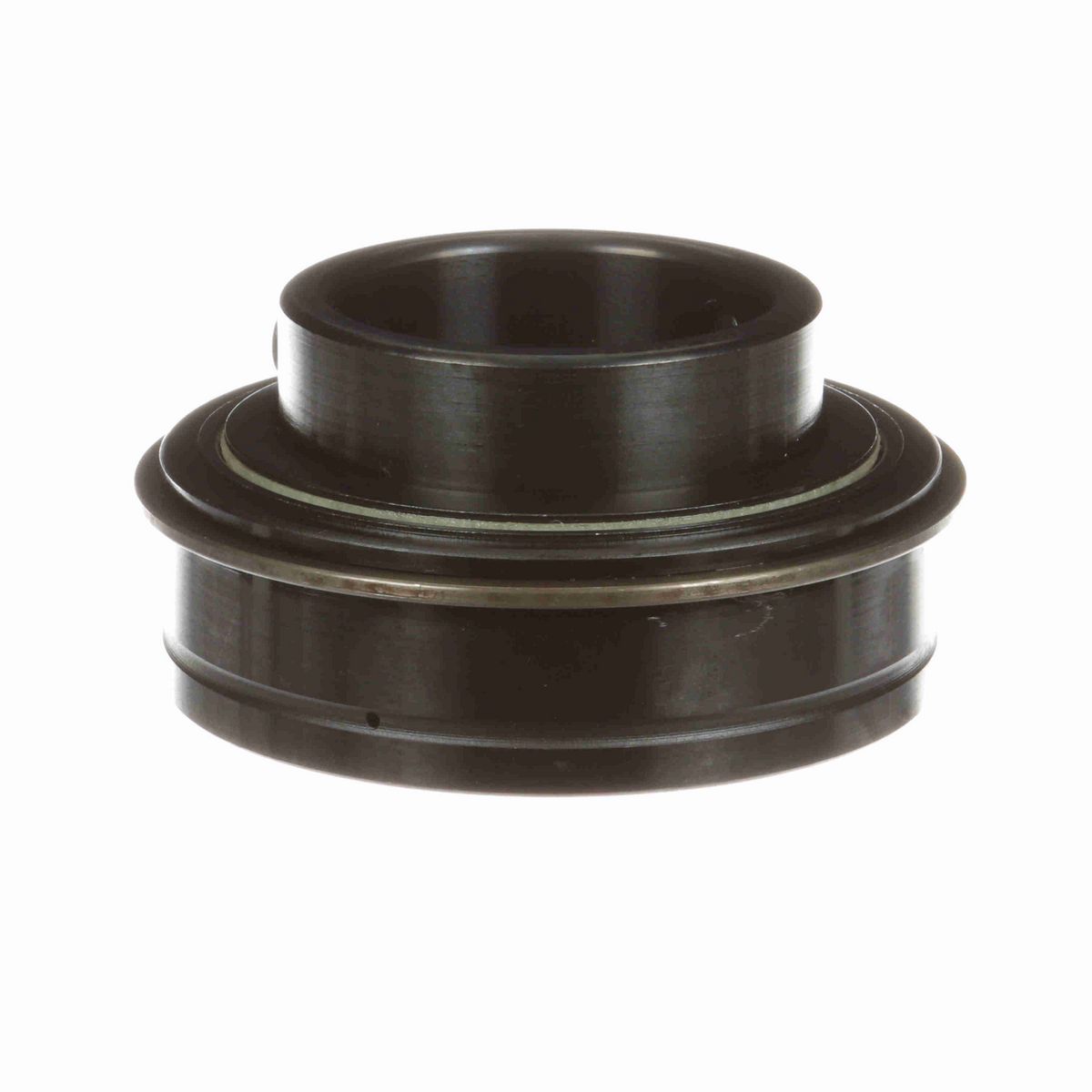

• ER style cylindrical OD bearing with snap and with black oxided bearing rings
• Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
• Extra low drag seal cut down felt labyrinth seal and flinger
• Features a channeling grease that reduces drag while lubricating the bearing
• Nylon retainer to reduce overall drag

Dimensions

Overall Width (in)	2.03 in
Bore Size (mm)	50 mm
Outer Race Width (in)	1.125 in
Inner Ring OD (in)	2.469 in
Outer Race OD (in)	3.5433 in
Centerline to Front Face (in)	1.281 in
Outer Race OD (mm)	90 mm
Length Through Bore (in)	2.031 in
Outer Race Width (mm)	28.6 mm

Technical Specifications

Measure Units	Metric
Insert Material	52100 Bearing Steel
Set Screw Thread	M10 x 1.5
Seal Type	Cut Down Felt Labyrinth
Bore Shape	Straight
Rolling Element	Ball Bearing
Housing Type	Insert (ER Style)
Expansion	No
Internal Clearance	Standard
Misalignment	None
Misalignment Type	Static Only
Bearing Insert Coating	Black Oxide
End Cap	No
Outer Ring Land Profile	Tapered Lands
Platform	Gold Line Ball Bearing
Options	Low Drag
Precision Rating	ABEC 1
Cage Material	PPS - Polyphenylene Sulfide
Outer Race Profile	Cylindrical
Inner Race Profile	Wide Inner Ring
Maximum Operating Temperature (F)	220 °F
Inner Ring Fillet Radius (in)	0.06 in
Ability to Relubricate	Yes
Vibration Frequency Outer Ring Defect	0.0683 cps
Vibration Frequency Fundamental Train	0.0068 cps
Maximum Speed (rpm)	2800 rpm
Vibration Frequency Inner Ring Defect	0.0984 cps
Setscrew Torque (in-lbs)	230-300 in/lbs
Lubrication Type	Lithium NLGI 2 Low Torque Grease
Inner Race Heat Treat Method	Zone-Hardened
Vibration Frequency Roller Spin	0.0445 cps
Size Code	2-115
Series	Unmounted Replacement Bearings
Locking Type	Set Screw
Duty/Status	Standard
Dynamic Load Rating (lb)	7,889 lb
Cage Type	Land Riding Retainer
Static Load Rating (lb)	5,216 lb

General Specifications

UPC	662461268117
Weight	2.43 LB
Packaged Length	4.25 IN
Packaged Width	2.25 IN
Packaged Height	4.25 IN
HTC	8482.10.5052
Country of Origin	Mexico
