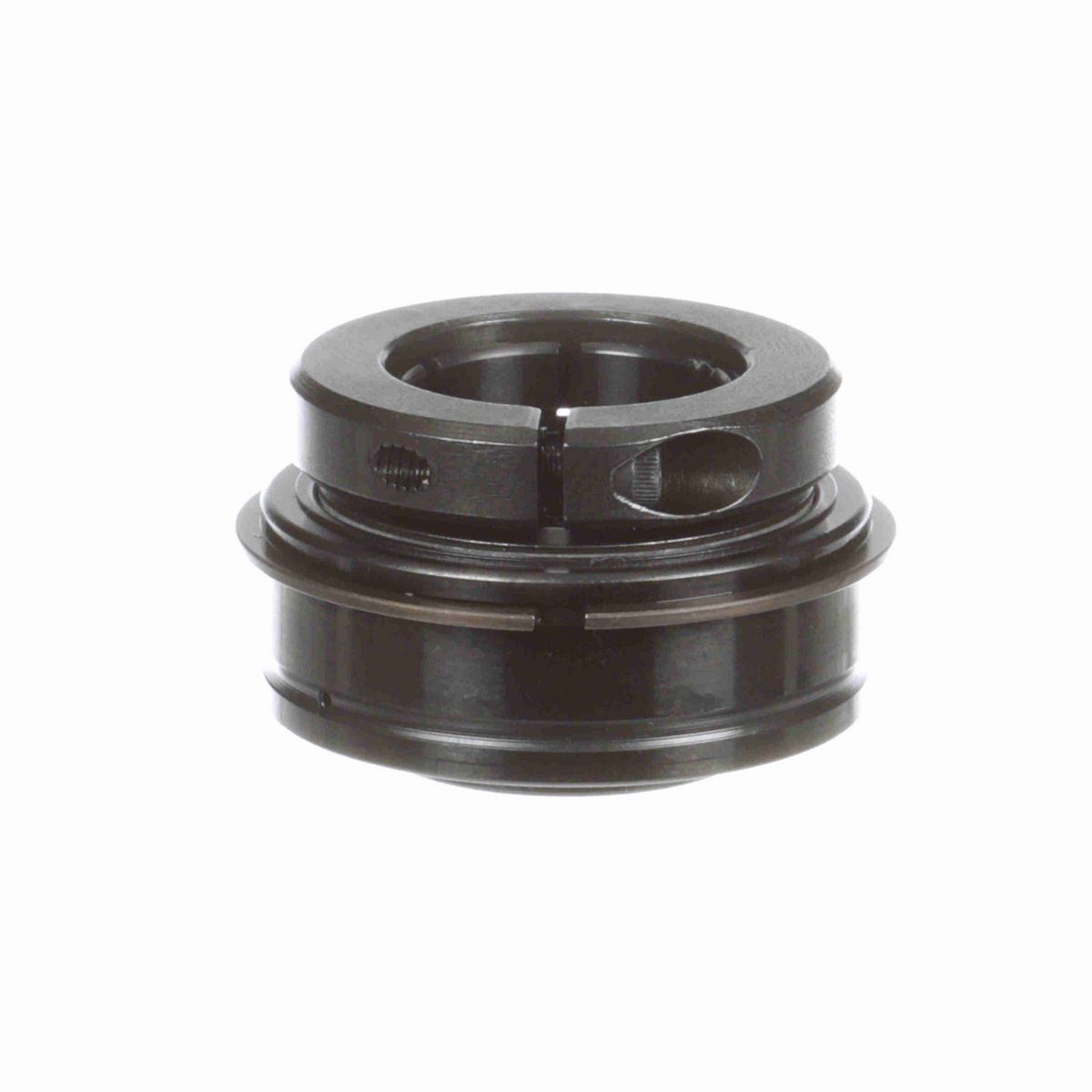

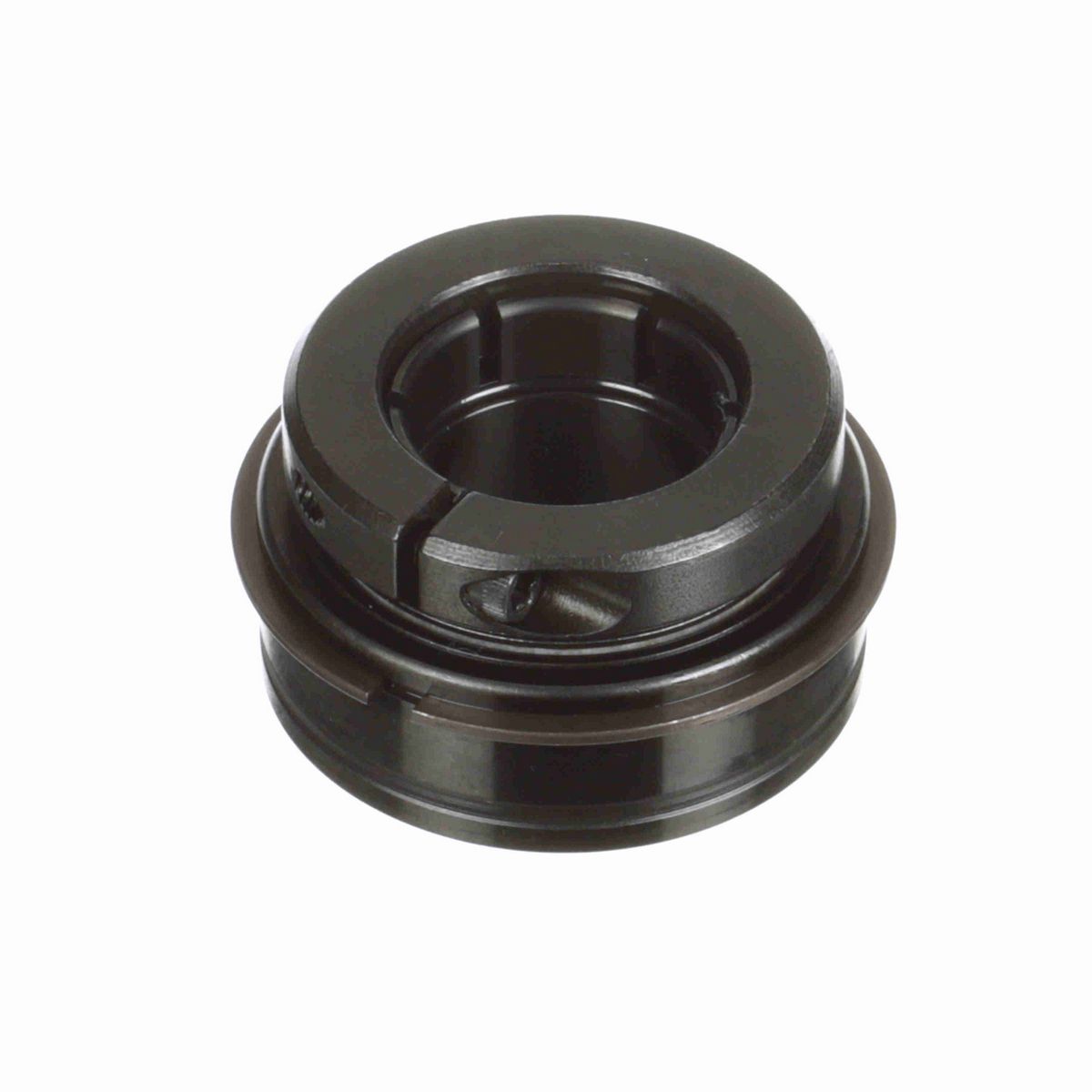

• ER style cylindrical OD bearing with snap and with black oxided bearing rings
• Skwezloc® concentric locking for near perfect concentricity
• Extra low drag seal cut down felt labyrinth seal and flinger
• Oil lubricated for reduced internal friction
• Nylon retainer to reduce overall drag

Dimensions

Overall Width (in)	1.56 in
Bore Size (in)	1.25 in
Outer Race OD (mm)	62 mm
Outer Race Width (in)	0.875 in
Centerline to Front Face (in)	0.938 in
Outer Race OD (in)	2.4409 in
Inner Ring OD (in)	1.594 in
Collar OD (in)	2.23 in
Length Through Bore (in)	1.56 in
Outer Race Width (mm)	22.2 mm

Technical Specifications

Housing Type	Insert (ER Style)
Seal Type	Cut Down Felt Labyrinth
Torx Cap Screw	10-24 UNC
Bore Shape	Straight
Insert Material	52100 Bearing Steel
Rolling Element	Ball Bearing
Measure Units	Inch
Expansion	No
Internal Clearance	Standard
Misalignment	None
Misalignment Type	Static Only
End Cap	No
Outer Ring Land Profile	Tapered Lands
Platform	Gold Line Ball Bearing
Bearing Insert Coating	Black Oxide
Options	Extra Low Drag
Cage Material	PPS - Polyphenylene Sulfide
Precision Rating	ABEC 1
Outer Race Profile	Cylindrical
Inner Race Profile	Wide Inner Ring
Inner Race Heat Treat Method	Zone-Hardened
Setscrew Torque (in-lbs)	100 in/lbs
Vibration Frequency Roller Spin	0.0385 cps
Series	Unmounted Replacement Bearings
Locking Type	Concentric
Vibration Frequency Inner Ring Defect	0.0905 cps
Maximum Operating Temperature (F)	220 °F
Vibration Frequency Fundamental Train	0.0066 cps
Inner Ring Fillet Radius (in)	0.04 in
Vibration Frequency Outer Ring Defect	0.0595 cps
Lubrication Type	Oil Coated Only - No Factory Grease Fill
Maximum Speed (rpm)	2150 rpm
Duty/Status	Standard
Size Code	2-13
Ability to Relubricate	Yes
Dynamic Load Rating (lb)	4,381 lb
Cage Type	Land Riding Retainer
Static Load Rating (lb)	2,567 lb

General Specifications

UPC	662461259283
Weight	1.00 LB
Packaged Length	2.75 IN
Packaged Width	1.56 IN
Packaged Height	2.75 IN
HTC	8482.10.5052
Country of Origin	Mexico
