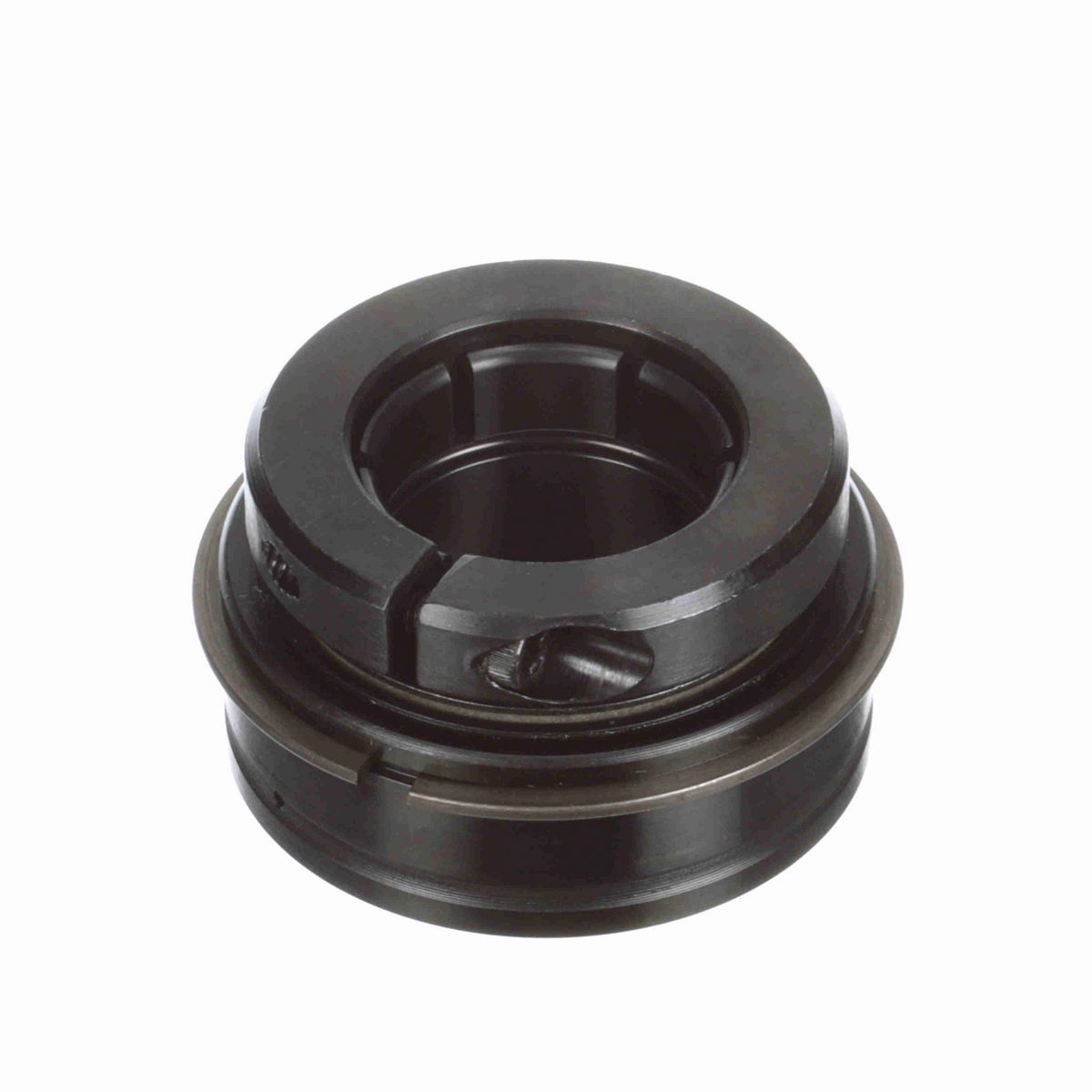

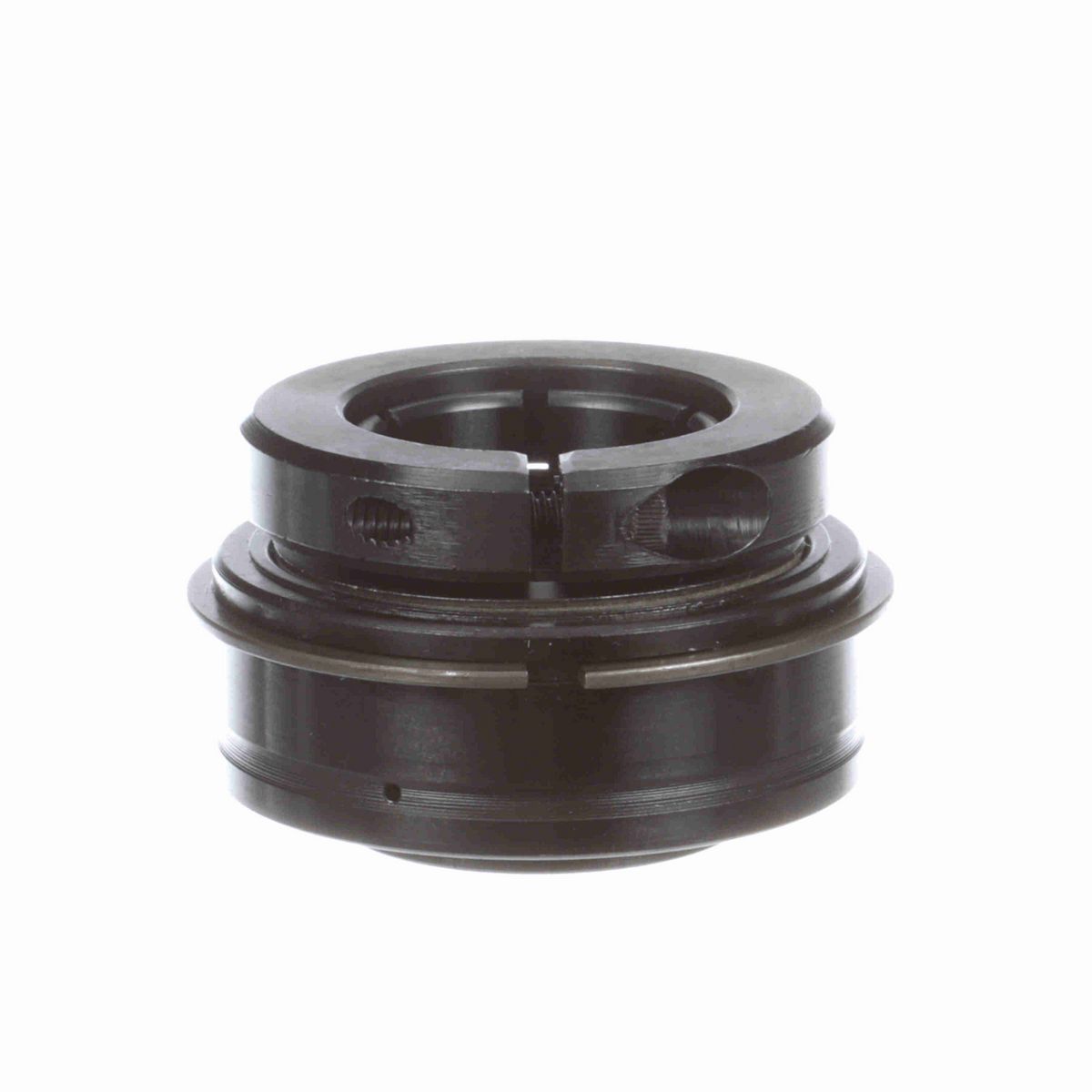

• ER style cylindrical OD bearing with snap and with black oxided bearing rings
• Skwezloc® concentric locking for near perfect concentricity
• Extra low drag seal cut down felt labyrinth seal and flinger
• Features a channeling grease that reduces drag while lubricating the bearing
• Nylon retainer to reduce overall drag

Dimensions

Overall Width (in)	1.56 in
Bore Size (in)	1.25 in
Outer Race OD (mm)	62 mm
Collar OD (in)	2.23 in
Outer Race Width (in)	0.875 in
Inner Ring OD (in)	1.594 in
Centerline to Front Face (in)	0.938 in
Outer Race OD (in)	2.4409 in
Length Through Bore (in)	1.56 in
Outer Race Width (mm)	22.2 mm

Technical Specifications

Measure Units	Inch
Seal Type	Cut Down Felt Labyrinth
Housing Type	Insert (ER Style)
Insert Material	52100 Bearing Steel
Rolling Element	Ball Bearing
Bore Shape	Straight
Torx Cap Screw	10-24 UNC
Internal Clearance	Standard
Expansion	No
Misalignment	None
Misalignment Type	Static Only
Platform	Gold Line Ball Bearing
End Cap	No
Bearing Insert Coating	Black Oxide
Outer Ring Land Profile	Tapered Lands
Options	Low Drag
Cage Material	PPS - Polyphenylene Sulfide
Precision Rating	ABEC 1
Inner Race Profile	Wide Inner Ring
Outer Race Profile	Cylindrical
Ability to Relubricate	Yes
Vibration Frequency Inner Ring Defect	0.0905 cps
Maximum Operating Temperature (F)	220 °F
Vibration Frequency Fundamental Train	0.0066 cps
Setscrew Torque (in-lbs)	100 in/lbs
Size Code	2-13
Inner Race Heat Treat Method	Zone-Hardened
Duty/Status	Standard
Series	Unmounted Replacement Bearings
Vibration Frequency Outer Ring Defect	0.0595 cps
Lubrication Type	Lithium NLGI 2 Low Torque Grease
Maximum Speed (rpm)	4300 rpm
Inner Ring Fillet Radius (in)	0.04 in
Vibration Frequency Roller Spin	0.0385 cps
Locking Type	Concentric
Static Load Rating (lb)	2,567 lb
Dynamic Load Rating (lb)	4,381 lb
Cage Type	Land Riding Retainer

General Specifications

UPC	662461258828
Weight	1.20 LB
Packaged Length	2.75 IN
Packaged Width	1.56 IN
Packaged Height	2.75 IN
HTC	8482.10.5052
Country of Origin	Mexico
