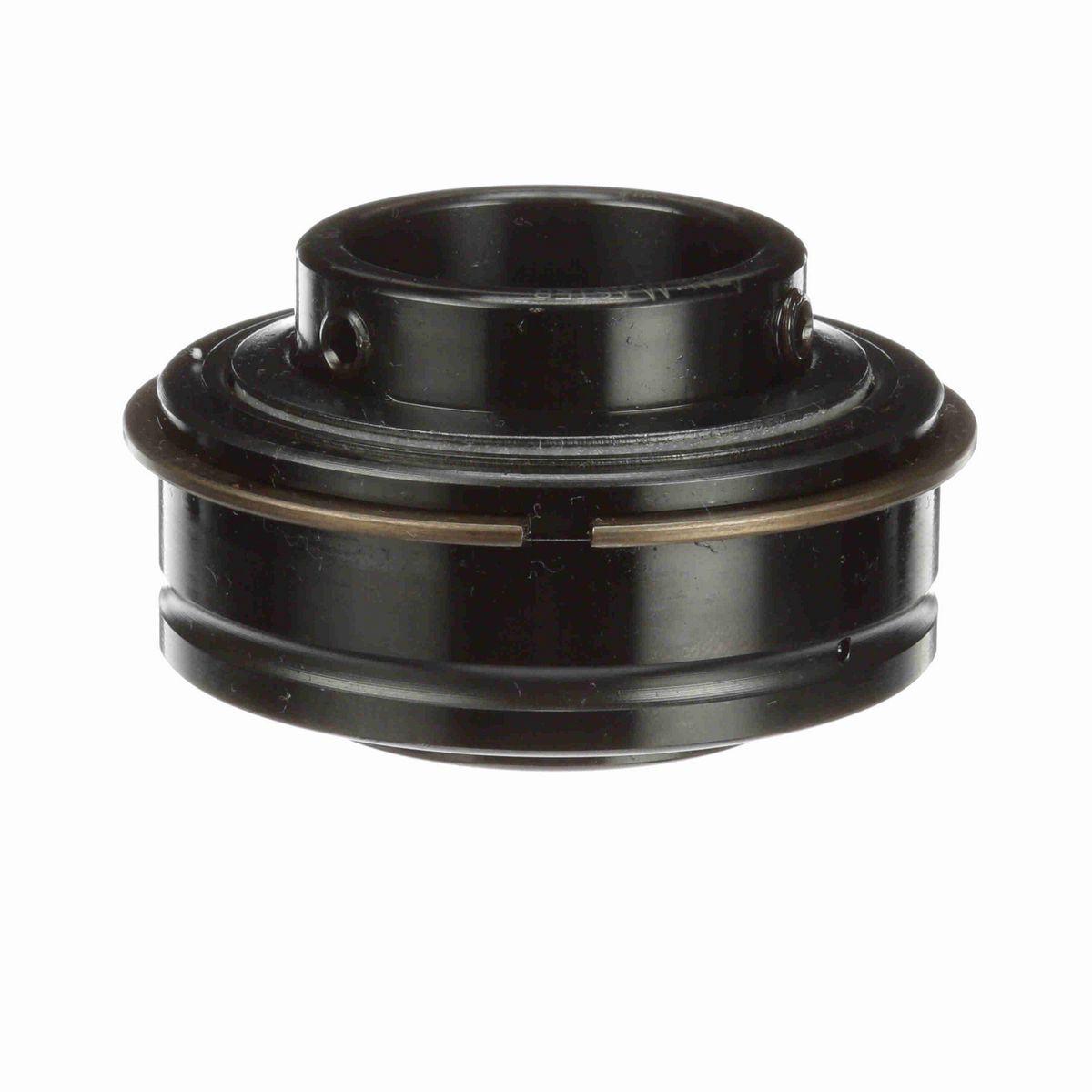

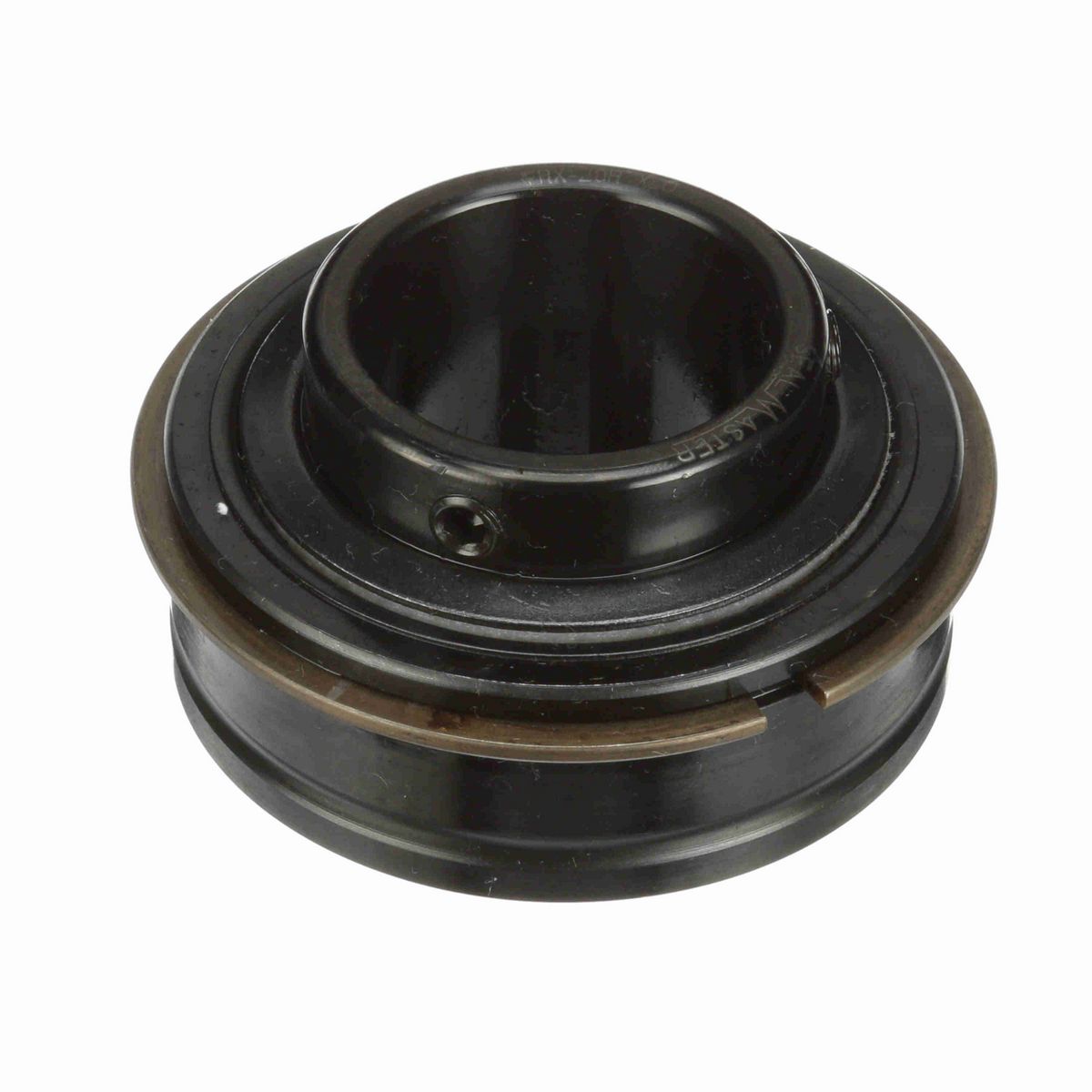

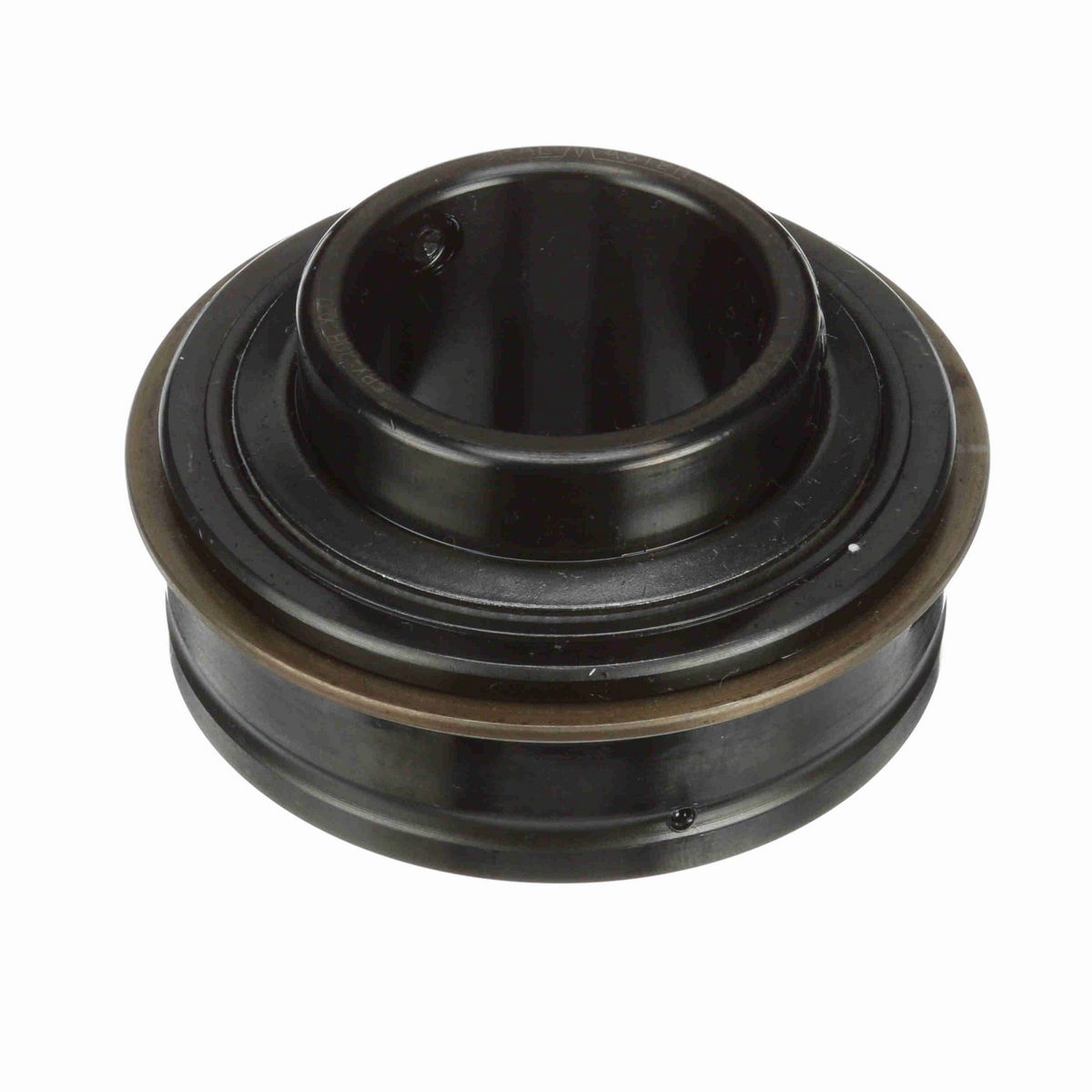

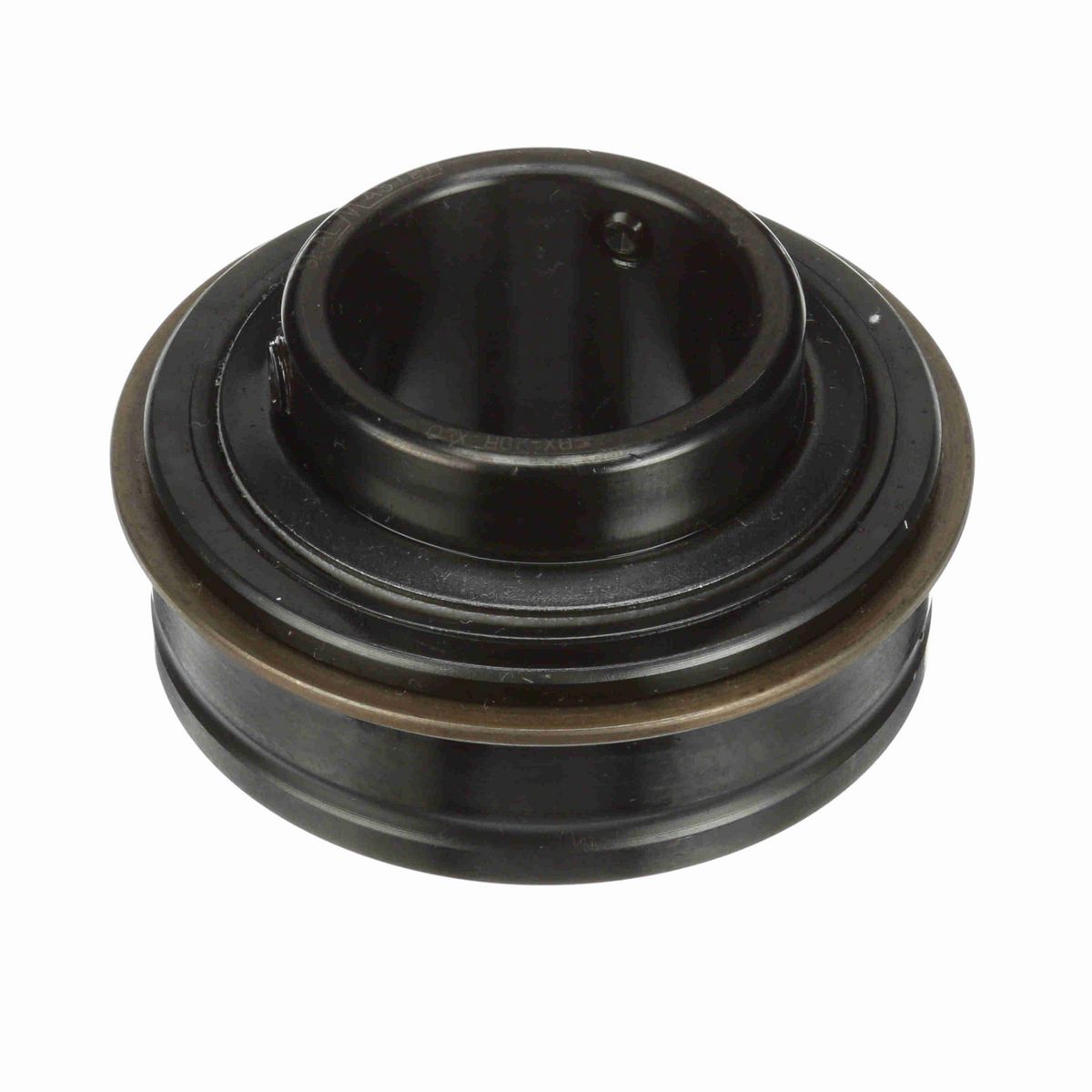

• ER style cylindrical OD bearing with snap and with black oxided bearing rings
• Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
• Extra low drag seal cut down felt labyrinth seal and flinger
• Oil lubricated for reduced internal friction
• Nylon retainer to reduce overall drag

Dimensions

Overall Width (in)	1.5 in
Bore Size (in)	1.25 in
Outer Race OD (mm)	62 mm
Outer Race Width (in)	0.875 in
Inner Ring OD (in)	1.594 in
Centerline to Front Face (in)	0.875 in
Outer Race OD (in)	2.4409 in
Length Through Bore (in)	1.5 in
Outer Race Width (mm)	22.2 mm

Technical Specifications

Insert Material	52100 Bearing Steel
Bore Shape	Straight
Rolling Element	Ball Bearing
Measure Units	Inch
Seal Type	Cut Down Felt Labyrinth
Set Screw Thread	1/4-28 UNF
Housing Type	Insert (ER Style)
Misalignment	None
Expansion	No
Internal Clearance	Standard
Bearing Insert Coating	Black Oxide
Outer Ring Land Profile	Tapered Lands
End Cap	No
Options	Extra Low Drag
Platform	Gold Line Ball Bearing
Misalignment Type	Static Only
Precision Rating	ABEC 1
Cage Material	PPS - Polyphenylene Sulfide
Outer Race Profile	Cylindrical
Inner Race Profile	Wide Inner Ring
Inner Ring Fillet Radius (in)	0.04 in
Duty/Status	Standard
Maximum Speed (rpm)	2150 rpm
Size Code	2-13
Vibration Frequency Inner Ring Defect	0.0905 cps
Series	Unmounted Replacement Bearings
Ability to Relubricate	Yes
Locking Type	Set Screw
Vibration Frequency Roller Spin	0.0385 cps
Maximum Operating Temperature (F)	220 °F
Setscrew Torque (in-lbs)	65-85 in/lbs
Lubrication Type	Oil Coated Only - No Factory Grease Fill
Vibration Frequency Outer Ring Defect	0.0595 cps
Inner Race Heat Treat Method	Zone-Hardened
Vibration Frequency Fundamental Train	0.0066 cps
Dynamic Load Rating (lb)	4,381 lb
Static Load Rating (lb)	2,567 lb
Cage Type	Land Riding Retainer

General Specifications

UPC	662461259146
Weight	0.78 LB
Packaged Length	2.75 IN
Packaged Width	1.56 IN
Packaged Height	2.75 IN
HTC	8482.10.5052
Country of Origin	Mexico
