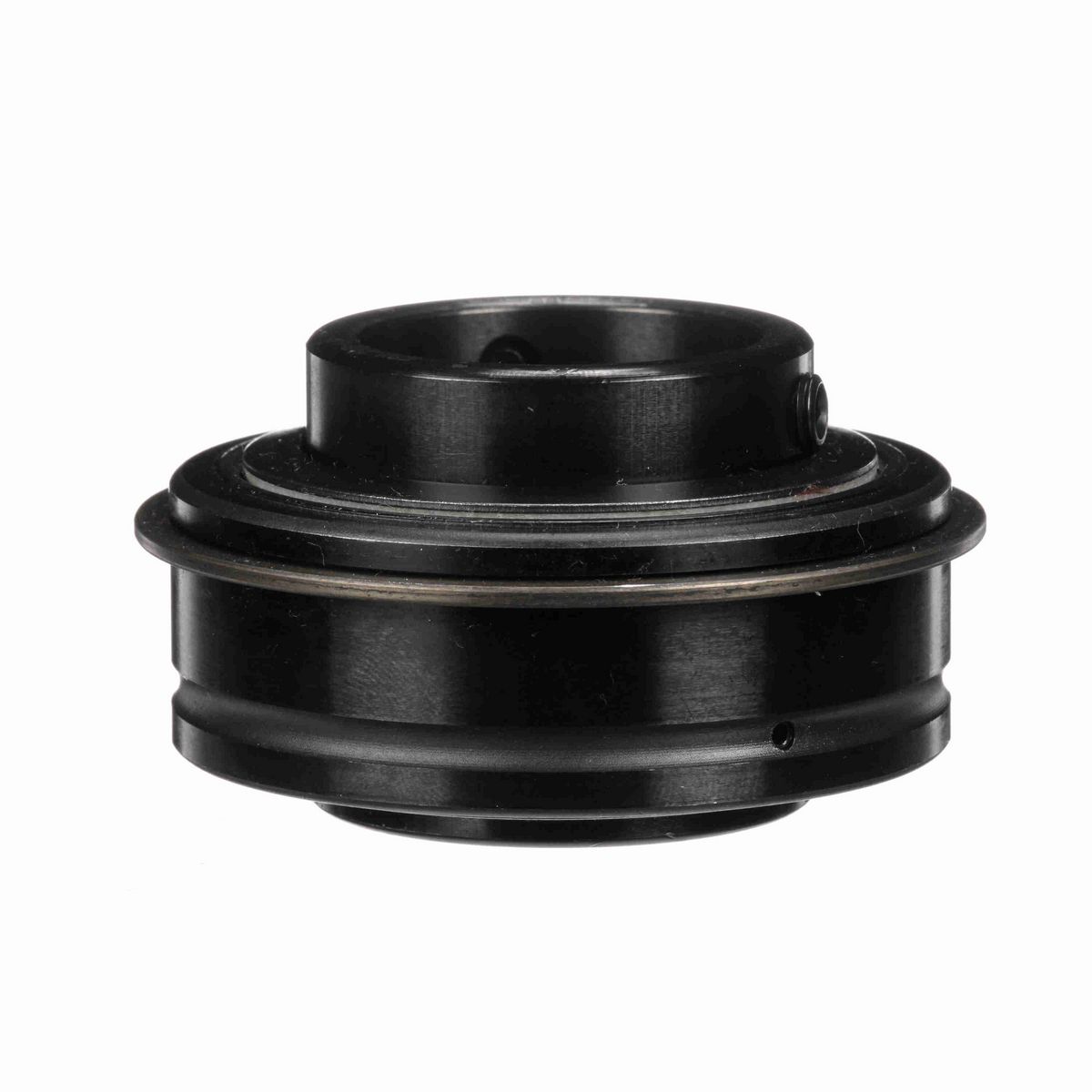

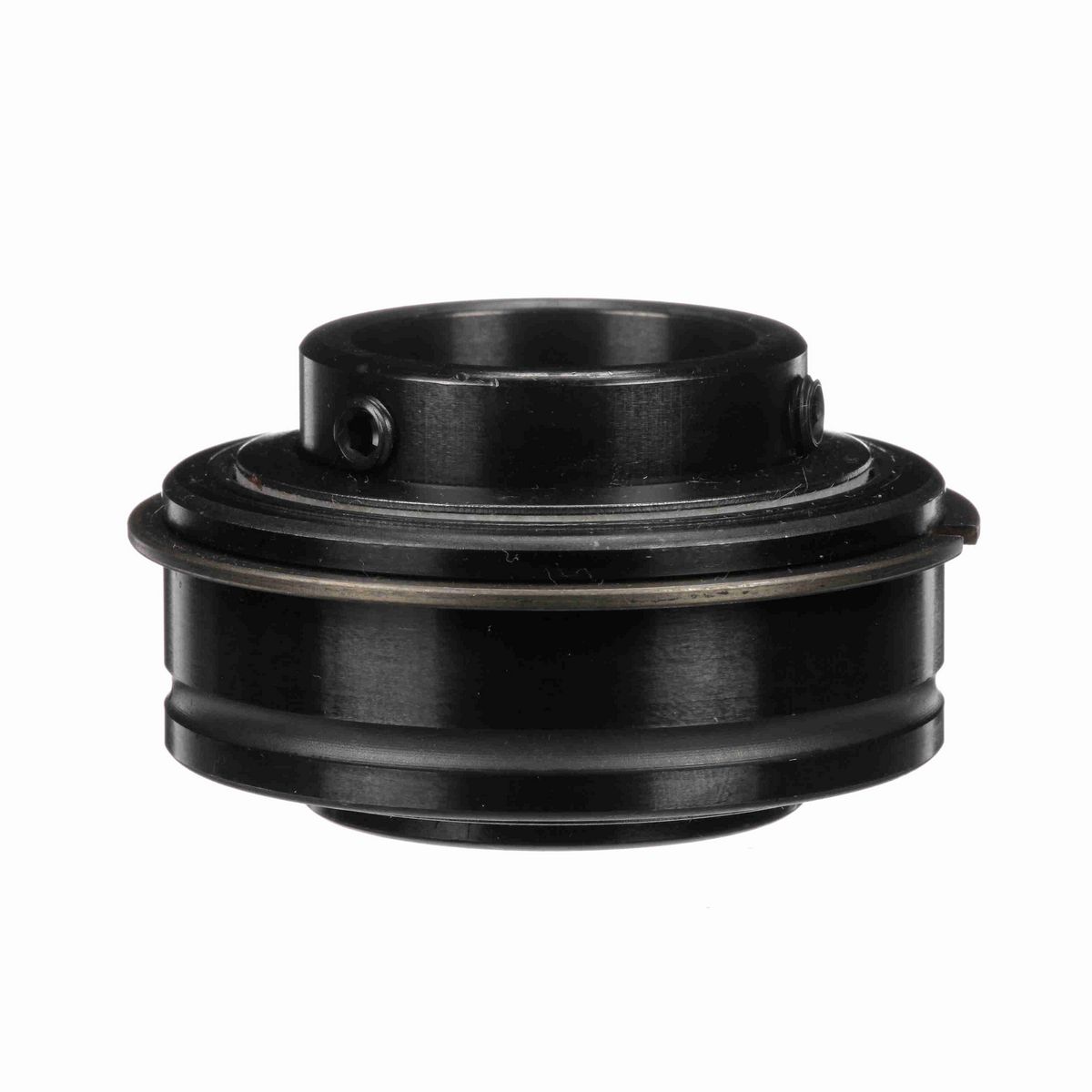

• ER style cylindrical OD bearing with snap and with black oxided bearing rings
• Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
• Extra low drag seal cut down felt labyrinth seal and flinger
• Features a channeling grease that reduces drag while lubricating the bearing
• Nylon retainer to reduce overall drag

Dimensions

Overall Width (in)	1.5 in
Bore Size (in)	1.25 in
Inner Ring OD (in)	1.594 in
Centerline to Front Face (in)	0.875 in
Outer Race OD (mm)	62 mm
Outer Race Width (in)	0.875 in
Outer Race OD (in)	2.4409 in
Length Through Bore (in)	1.5 in
Outer Race Width (mm)	22.2 mm

Technical Specifications

Housing Type	Insert (ER Style)
Measure Units	Inch
Set Screw Thread	1/4-28 UNF
Insert Material	52100 Bearing Steel
Seal Type	Cut Down Felt Labyrinth
Rolling Element	Ball Bearing
Bore Shape	Straight
Expansion	No
Misalignment	None
Internal Clearance	Standard
Options	Low Drag
Platform	Gold Line Ball Bearing
End Cap	No
Outer Ring Land Profile	Tapered Lands
Misalignment Type	Static Only
Bearing Insert Coating	Black Oxide
Cage Material	PPS - Polyphenylene Sulfide
Precision Rating	ABEC 1
Inner Race Profile	Wide Inner Ring
Outer Race Profile	Cylindrical
Inner Ring Fillet Radius (in)	0.04 in
Series	Unmounted Replacement Bearings
Vibration Frequency Outer Ring Defect	0.0595 cps
Setscrew Torque (in-lbs)	65-85 in/lbs
Inner Race Heat Treat Method	Zone-Hardened
Lubrication Type	Lithium NLGI 2 Low Torque Grease
Locking Type	Set Screw
Size Code	2-13
Ability to Relubricate	Yes
Duty/Status	Standard
Vibration Frequency Roller Spin	0.0385 cps
Maximum Speed (rpm)	4300 rpm
Maximum Operating Temperature (F)	220 °F
Vibration Frequency Inner Ring Defect	0.0905 cps
Vibration Frequency Fundamental Train	0.0066 cps
Cage Type	Land Riding Retainer
Static Load Rating (lb)	2,567 lb
Dynamic Load Rating (lb)	4,381 lb

General Specifications

UPC	662461258682
Weight	0.93 LB
Packaged Length	2.75 IN
Packaged Width	1.56 IN
Packaged Height	2.75 IN
HTC	8482.10.5052
Country of Origin	Mexico
