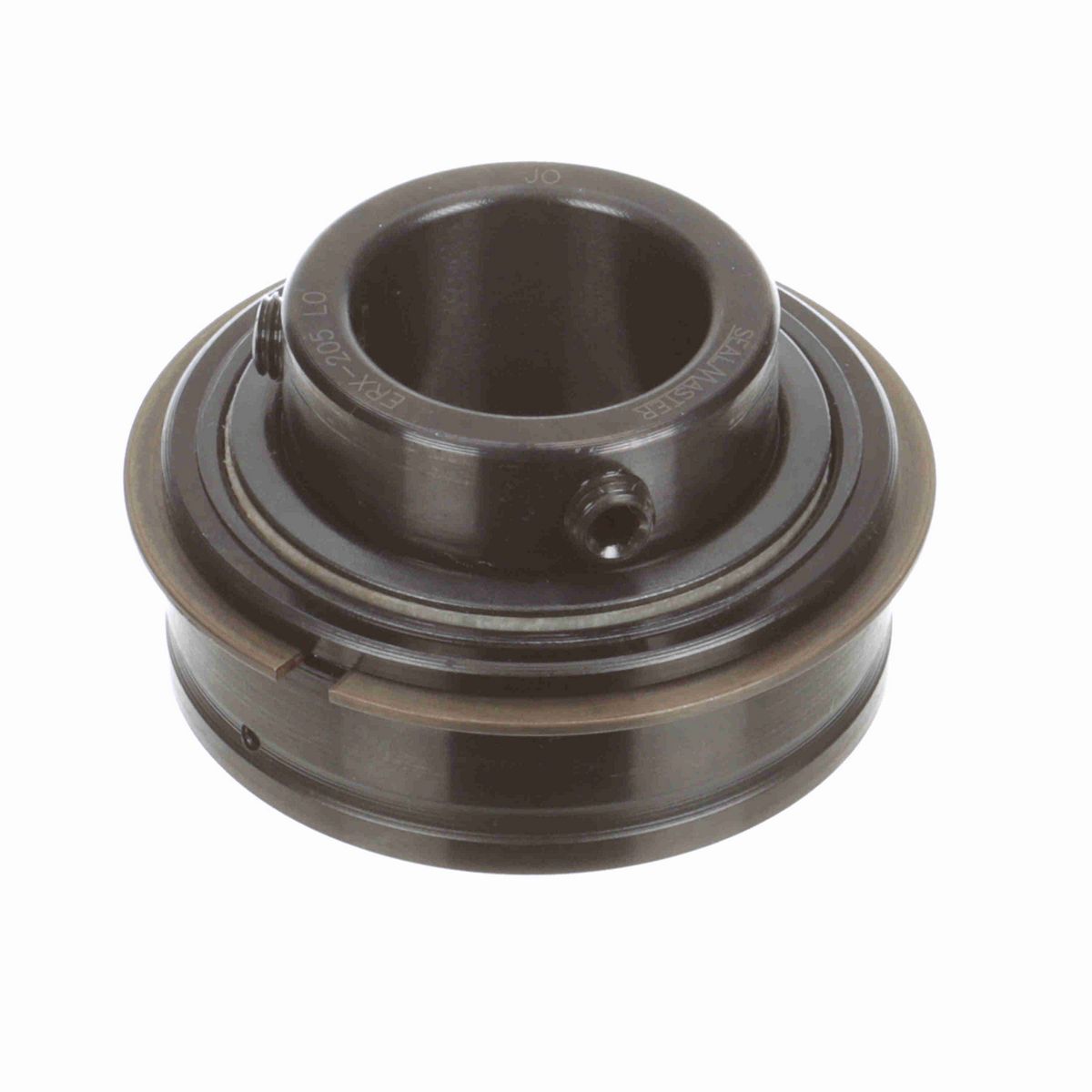

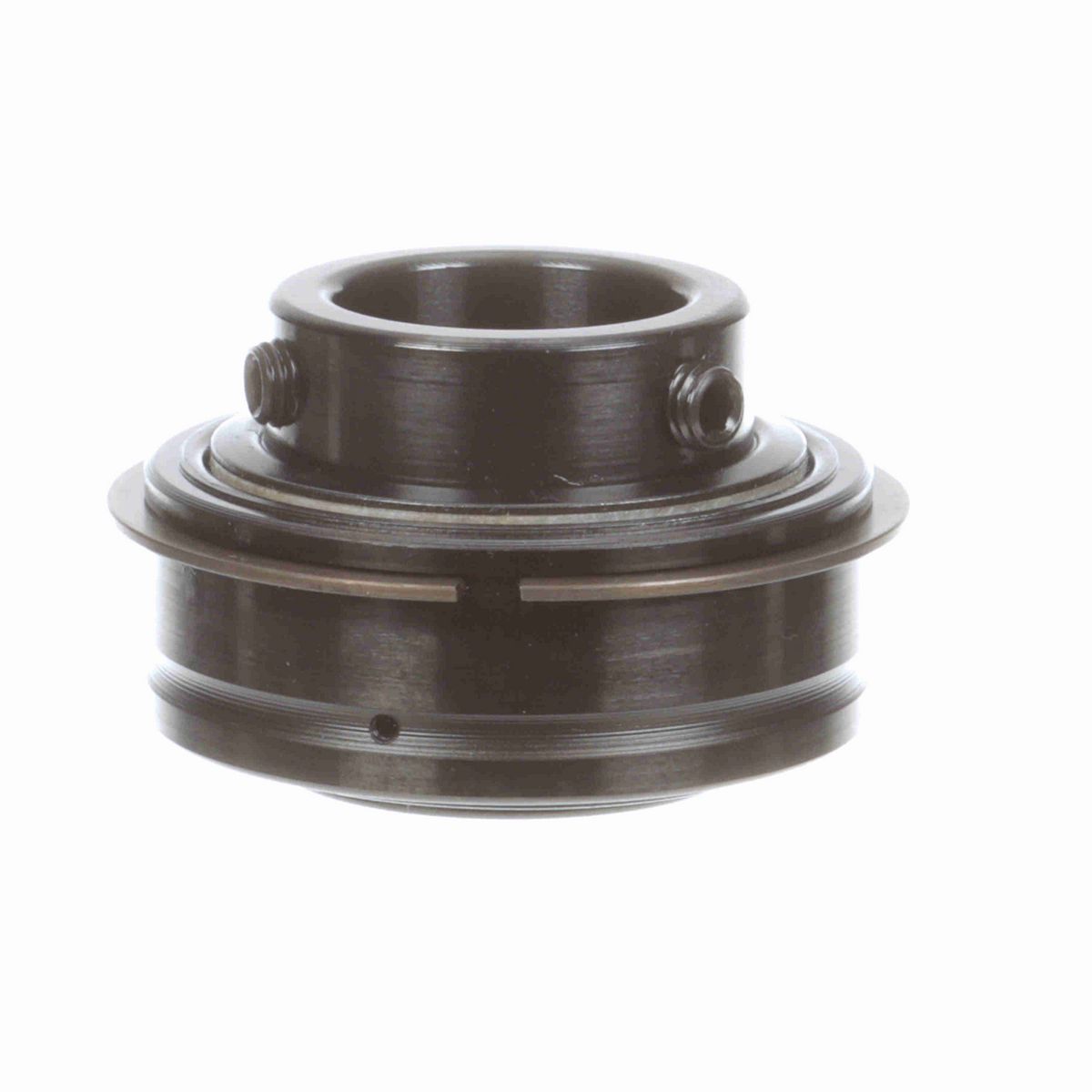

• ER style cylindrical OD bearing with snap and with black oxided bearing rings
• Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
• Extra low drag seal cut down felt labyrinth seal and flinger
• Features a channeling grease that reduces drag while lubricating the bearing
• Nylon retainer to reduce overall drag

Dimensions

Overall Width (in)	1.38 in
Bore Size (mm)	25 mm
Centerline to Front Face (in)	0.859 in
Inner Ring OD (in)	1.375 in
Outer Race OD (mm)	52 mm
Outer Race OD (in)	2.0472 in
Outer Race Width (in)	0.75 in
Length Through Bore (in)	1.375 in
Outer Race Width (mm)	19.1 mm

Technical Specifications

Rolling Element	Ball Bearing
Measure Units	Metric
Seal Type	Cut Down Felt Labyrinth
Bore Shape	Straight
Set Screw Thread	1/4-28 UNF
Insert Material	52100 Bearing Steel
Housing Type	Insert (ER Style)
Internal Clearance	Standard
Misalignment	None
Expansion	No
Bearing Insert Coating	Black Oxide
Platform	Gold Line Ball Bearing
Options	Low Drag
Misalignment Type	Static Only
Outer Ring Land Profile	Tapered Lands
End Cap	No
Precision Rating	ABEC 1
Cage Material	PPS - Polyphenylene Sulfide
Inner Race Profile	Wide Inner Ring
Outer Race Profile	Cylindrical
Size Code	2-015
Vibration Frequency Inner Ring Defect	0.0985 cps
Setscrew Torque (in-lbs)	65-85 in/lbs
Locking Type	Set Screw
Duty/Status	Standard
Vibration Frequency Roller Spin	0.0442 cps
Maximum Speed (rpm)	5000 rpm
Series	Unmounted Replacement Bearings
Ability to Relubricate	Yes
Inner Ring Fillet Radius (in)	0.04 in
Vibration Frequency Outer Ring Defect	0.0682 cps
Vibration Frequency Fundamental Train	0.0068 cps
Inner Race Heat Treat Method	Zone-Hardened
Maximum Operating Temperature (F)	220 °F
Lubrication Type	Lithium NLGI 2 Low Torque Grease
Static Load Rating (lb)	1,651 lb
Dynamic Load Rating (lb)	2,801 lb
Cage Type	Land Riding Retainer

General Specifications

UPC	662461299210
Weight	0.68 LB
Packaged Length	2.38 IN
Packaged Width	1.44 IN
Packaged Height	2.38 IN
HTC	8482.10.5048
Country of Origin	Mexico
