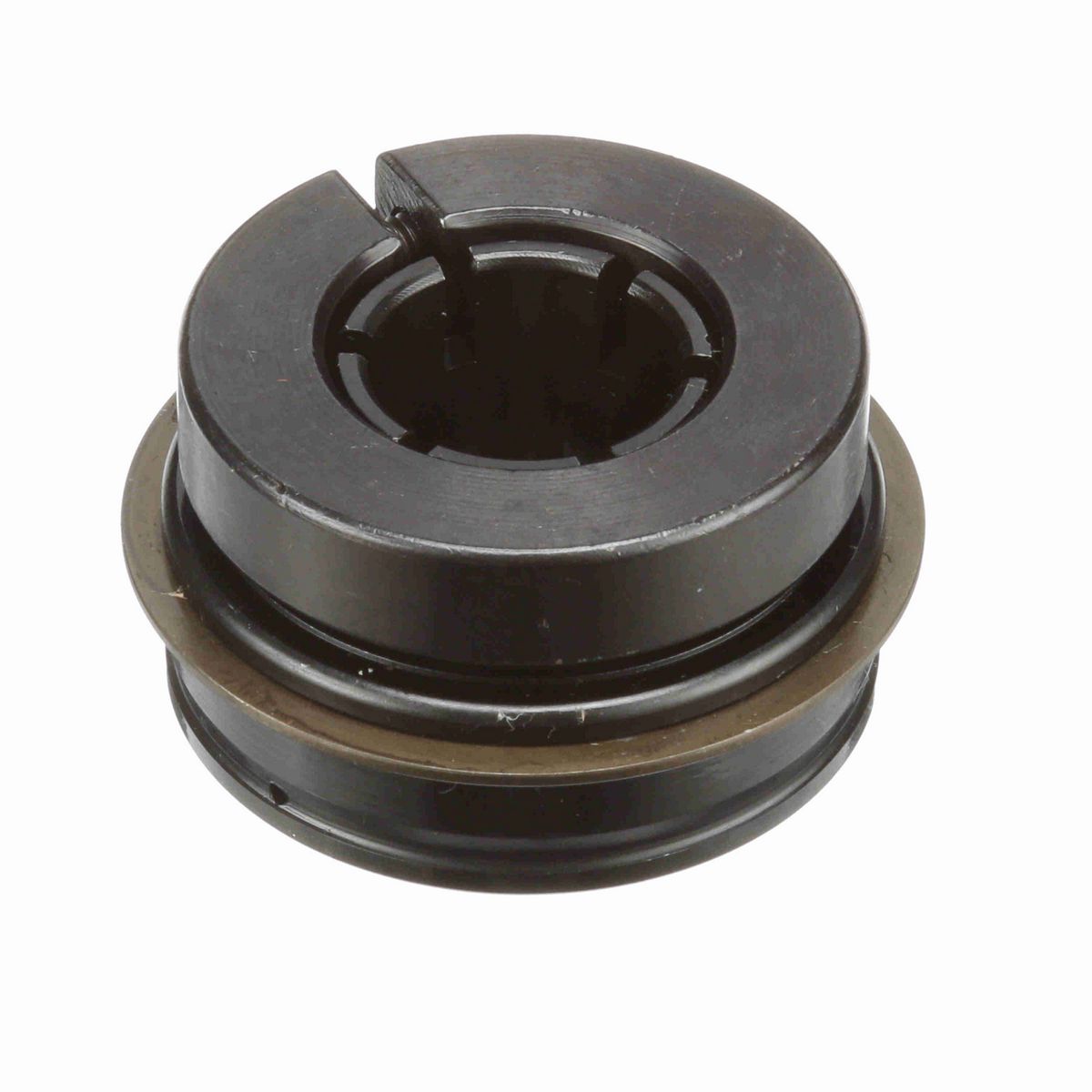

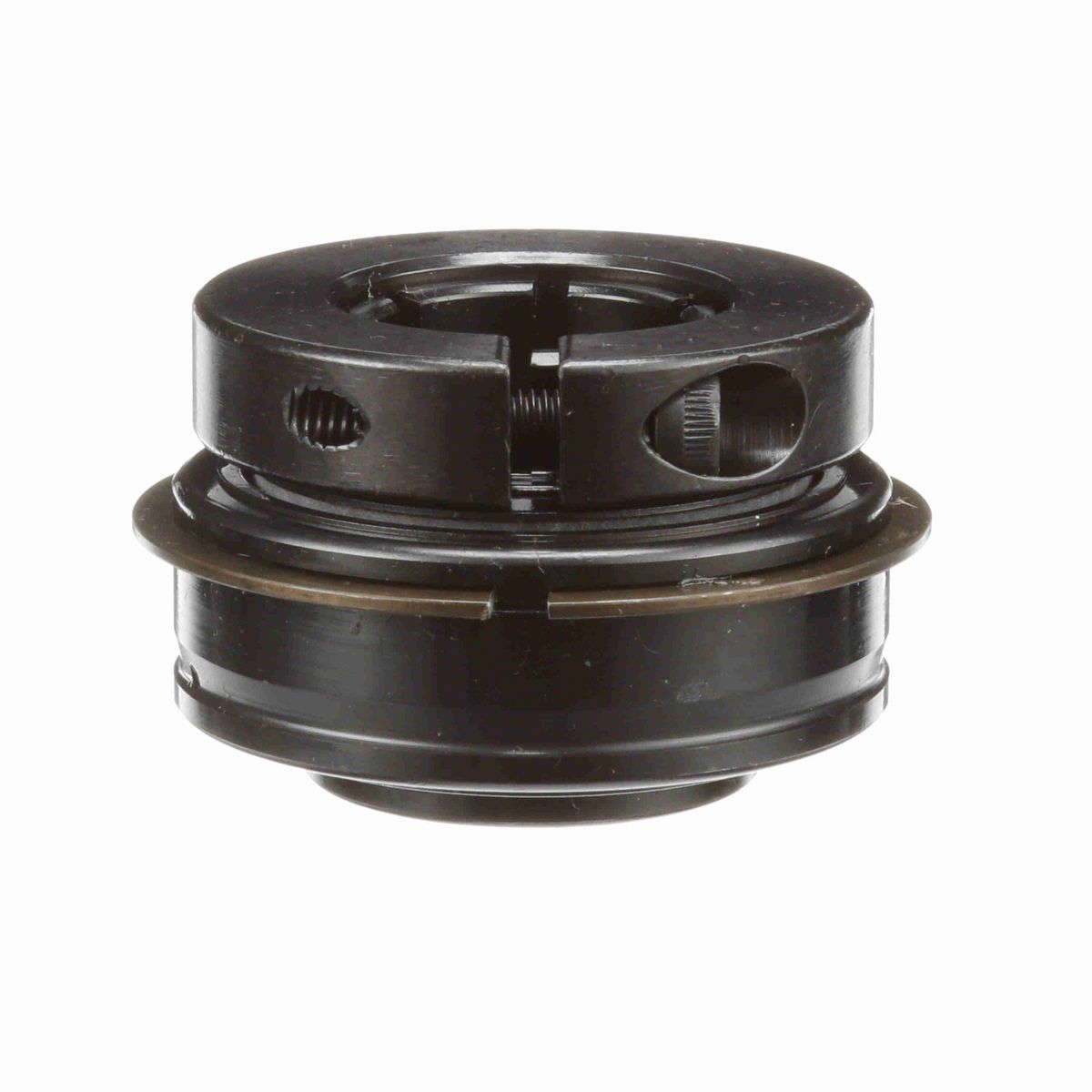

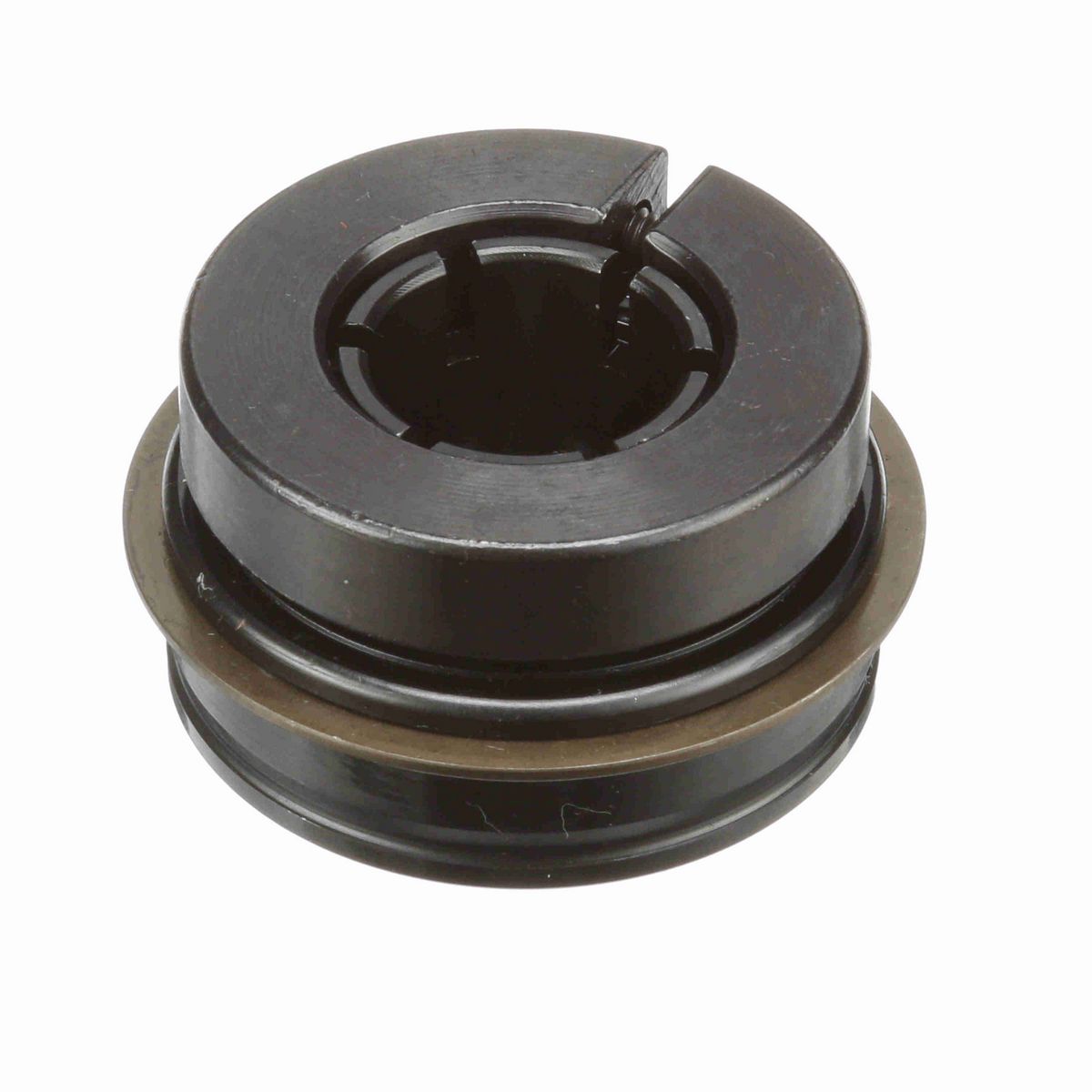

• ER style cylindrical OD bearing with snap and with black oxided bearing rings
• Skwezloc® concentric locking for near perfect concentricity
• Extra low drag seal cut down felt labyrinth seal and flinger
• Oil lubricated for reduced internal friction
• Nylon retainer to reduce overall drag

Dimensions

Overall Width (in)	1.28 in
Bore Size (mm)	20 mm
Inner Ring OD (in)	1.188 in
Centerline to Front Face (in)	0.813 in
Collar OD (in)	1.8 in
Outer Race OD (in)	1.8504 in
Outer Race OD (mm)	47 mm
Outer Race Width (in)	0.625 in
Length Through Bore (in)	1.28 in
Outer Race Width (mm)	15.9 mm

Technical Specifications

Insert Material	52100 Bearing Steel
Seal Type	Cut Down Felt Labyrinth
Measure Units	Metric
Set Screw Thread	10-24 UNC
Rolling Element	Ball Bearing
Torx Cap Screw	10-24 UNC
Bore Shape	Straight
Housing Type	Insert (ER Style)
Misalignment	None
Expansion	No
Internal Clearance	Standard
End Cap	No
Platform	Gold Line Ball Bearing
Outer Ring Land Profile	Tapered Lands
Options	Extra Low Drag
Misalignment Type	Static Only
Bearing Insert Coating	Black Oxide
Cage Material	PPS - Polyphenylene Sulfide
Precision Rating	ABEC 1
Outer Race Profile	Cylindrical
Inner Race Profile	Wide Inner Ring
Size Code	2-012
Vibration Frequency Outer Ring Defect	0.0593 cps
Locking Type	Concentric
Maximum Operating Temperature (F)	220 °F
Ability to Relubricate	Yes
Vibration Frequency Fundamental Train	0.0066 cps
Inner Ring Fillet Radius (in)	0.04 in
Duty/Status	Standard
Inner Race Heat Treat Method	Zone-Hardened
Vibration Frequency Inner Ring Defect	0.0907 cps
Vibration Frequency Roller Spin	0.0381 cps
Lubrication Type	Oil Coated Only - No Factory Grease Fill
Setscrew Torque (in-lbs)	70 in/lbs
Series	Unmounted Replacement Bearings
Maximum Speed (rpm)	2900 rpm
Dynamic Load Rating (lb)	11,614 lb
Cage Type	Land Riding Retainer
Static Load Rating (lb)	1,444 lb

General Specifications

UPC	662461270097
Weight	0.56 LB
Packaged Length	2.38 IN
Packaged Width	1.44 IN
Packaged Height	2.38 IN
HTC	8482.10.5048
Country of Origin	Mexico
