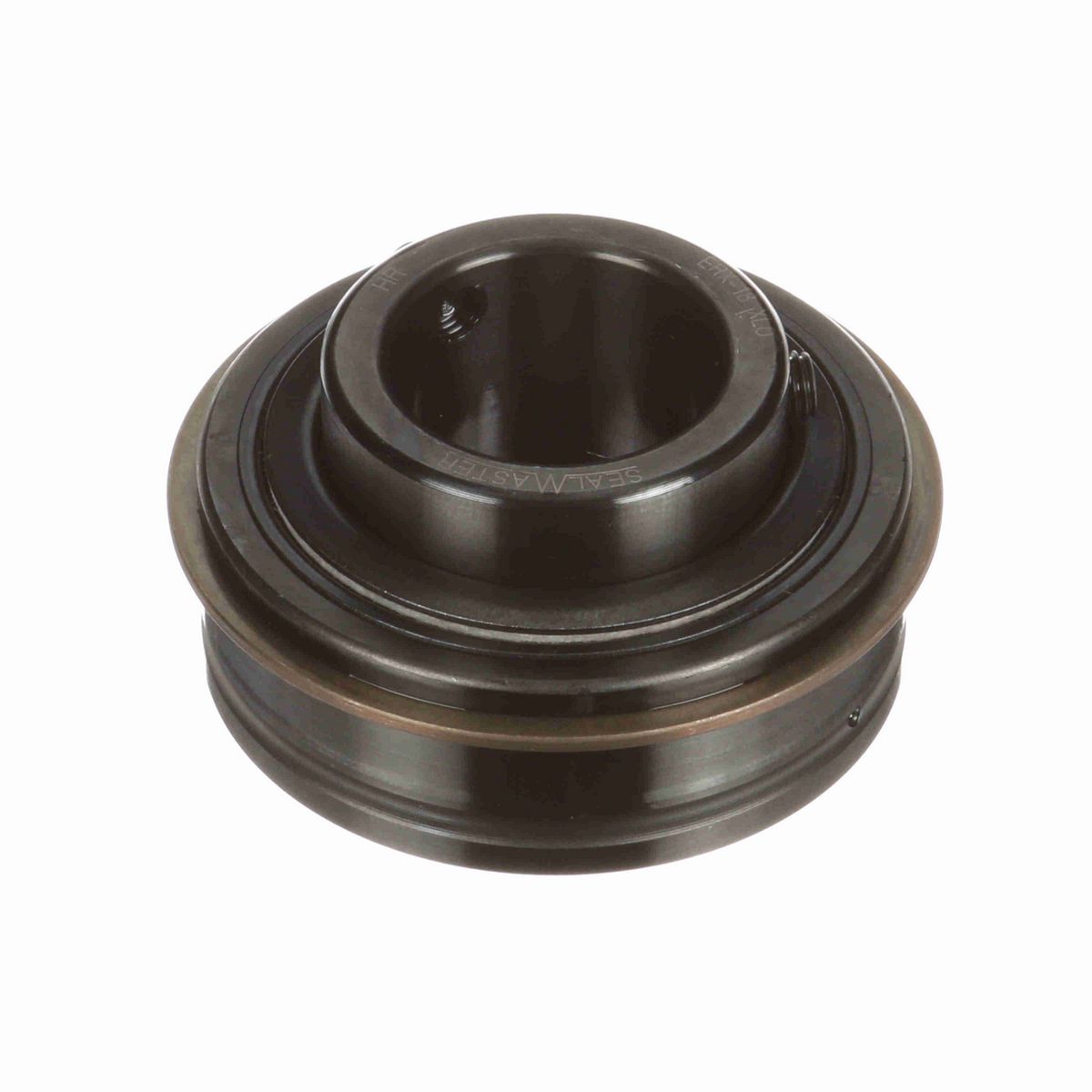

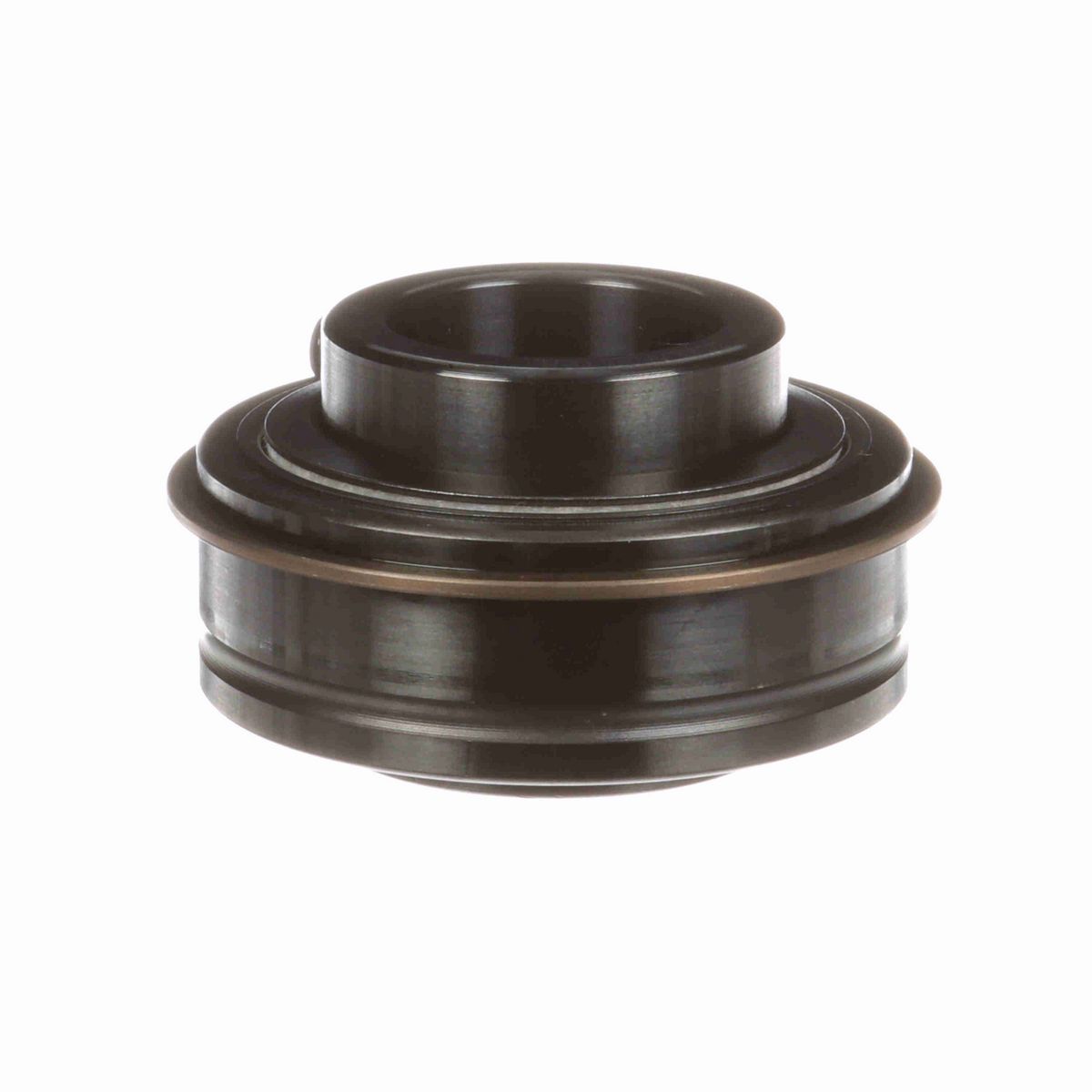

• ER style cylindrical OD bearing with snap and with black oxided bearing rings
• Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
• Extra low drag seal cut down felt labyrinth seal and flinger
• Oil lubricated for reduced internal friction
• Nylon retainer to reduce overall drag

Dimensions

Overall Width (in)	1.5 in
Bore Size (in)	1.125 in
Centerline to Front Face (in)	0.875 in
Outer Race Width (in)	0.875 in
Outer Race OD (in)	2.4409 in
Inner Ring OD (in)	1.594 in
Outer Race OD (mm)	62 mm
Length Through Bore (in)	1.5 in
Outer Race Width (mm)	22.2 mm

Technical Specifications

Seal Type	Cut Down Felt Labyrinth
Insert Material	52100 Bearing Steel
Housing Type	Insert (ER Style)
Bore Shape	Straight
Set Screw Thread	1/4-28 UNF
Rolling Element	Ball Bearing
Measure Units	Inch
Misalignment	None
Expansion	No
Internal Clearance	Standard
Bearing Insert Coating	Black Oxide
Platform	Gold Line Ball Bearing
Options	Extra Low Drag
Misalignment Type	Static Only
Outer Ring Land Profile	Tapered Lands
End Cap	No
Cage Material	PPS - Polyphenylene Sulfide
Precision Rating	ABEC 1
Outer Race Profile	Cylindrical
Inner Race Profile	Wide Inner Ring
Setscrew Torque (in-lbs)	65-85 in/lbs
Vibration Frequency Outer Ring Defect	0.0595 cps
Vibration Frequency Fundamental Train	0.0066 cps
Duty/Status	Standard
Inner Ring Fillet Radius (in)	0.04 in
Lubrication Type	Oil Coated Only - No Factory Grease Fill
Maximum Operating Temperature (F)	220 °F
Locking Type	Set Screw
Ability to Relubricate	Yes
Size Code	2-13
Inner Race Heat Treat Method	Zone-Hardened
Vibration Frequency Inner Ring Defect	0.0905 cps
Series	Unmounted Replacement Bearings
Maximum Speed (rpm)	2150 rpm
Vibration Frequency Roller Spin	0.0385 cps
Cage Type	Land Riding Retainer
Static Load Rating (lb)	2,567 lb
Dynamic Load Rating (lb)	4,381 lb

General Specifications

UPC	662461259115
Weight	0.93 LB
Packaged Length	2.75 IN
Packaged Width	1.56 IN
Packaged Height	2.75 IN
HTC	8482.10.5052
Country of Origin	Mexico
