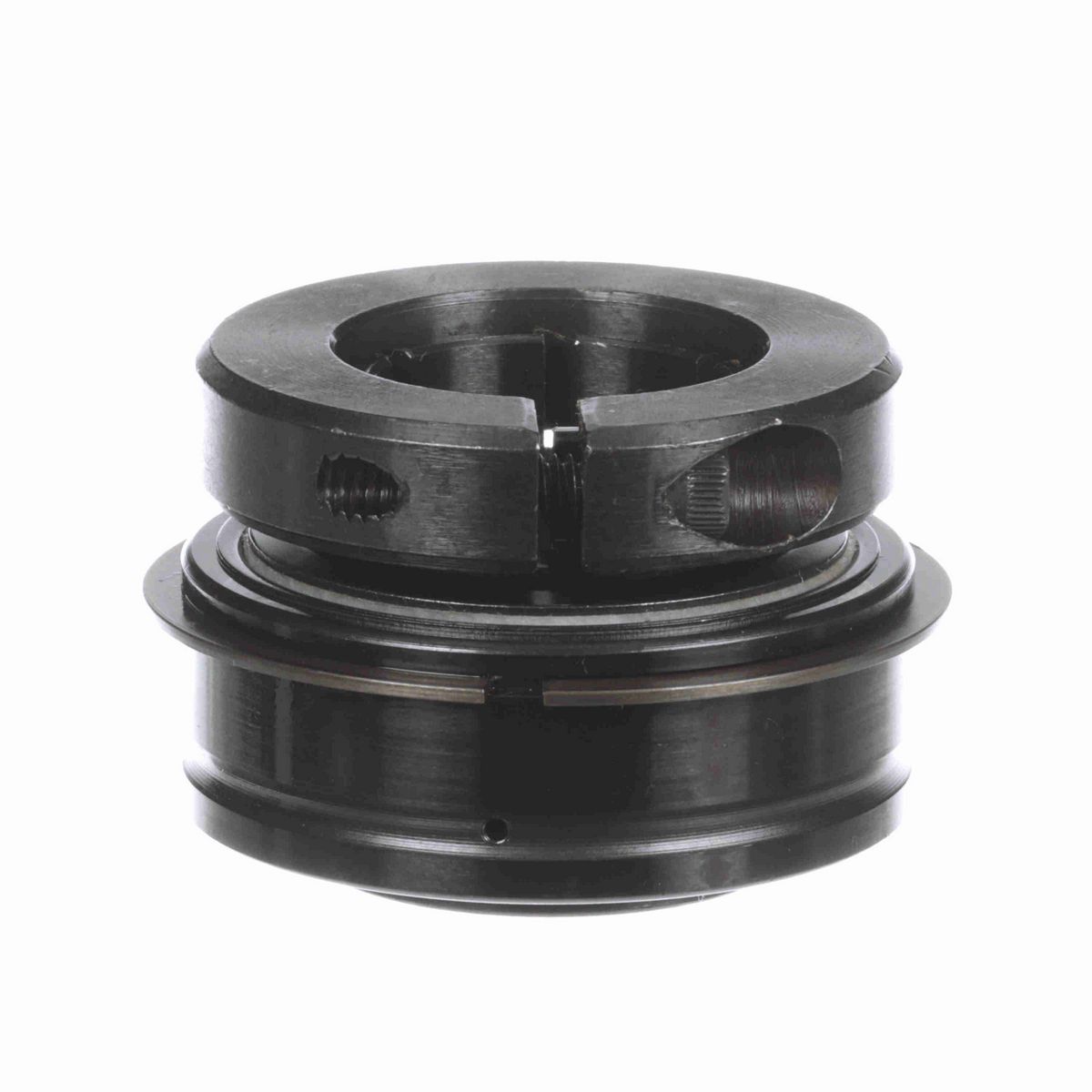

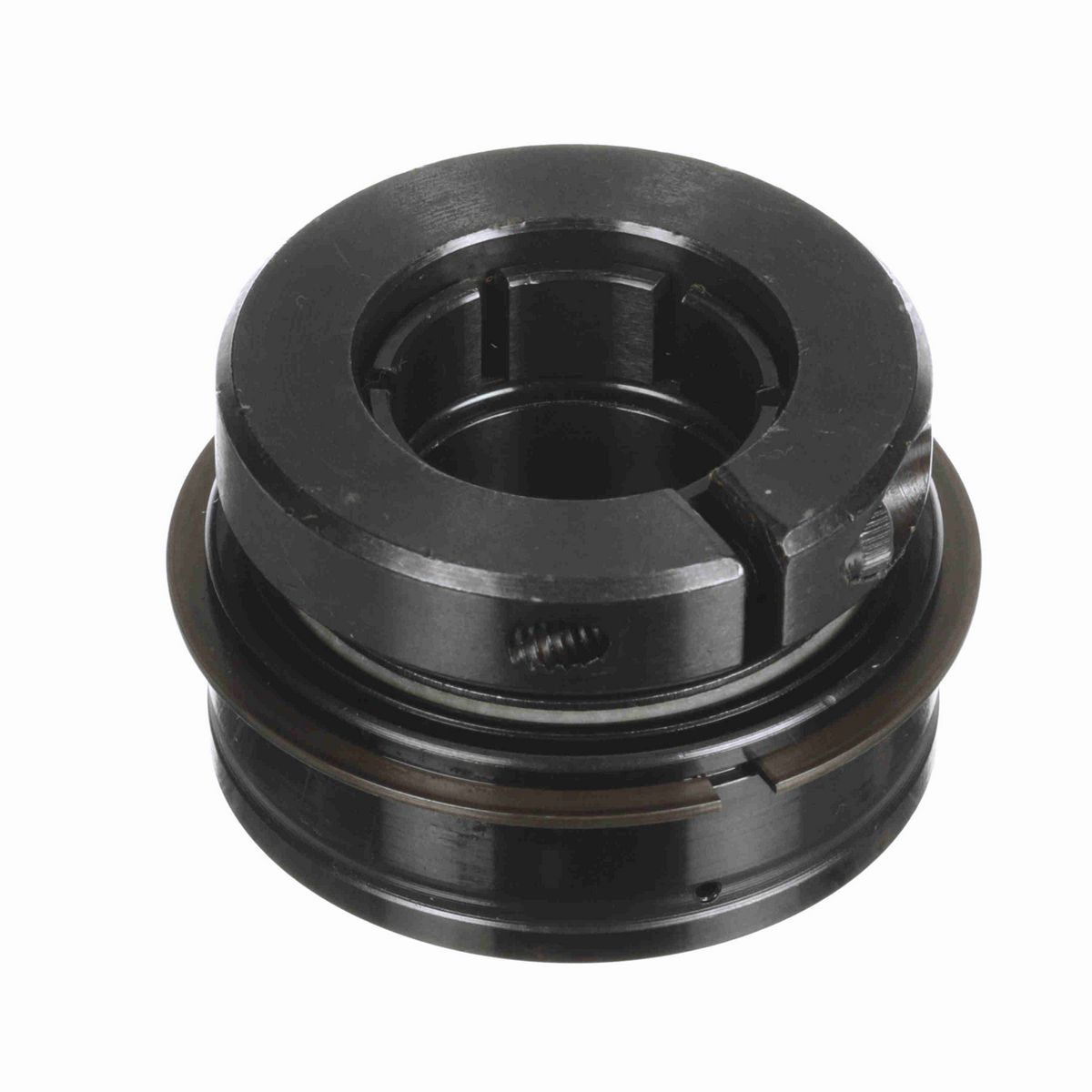

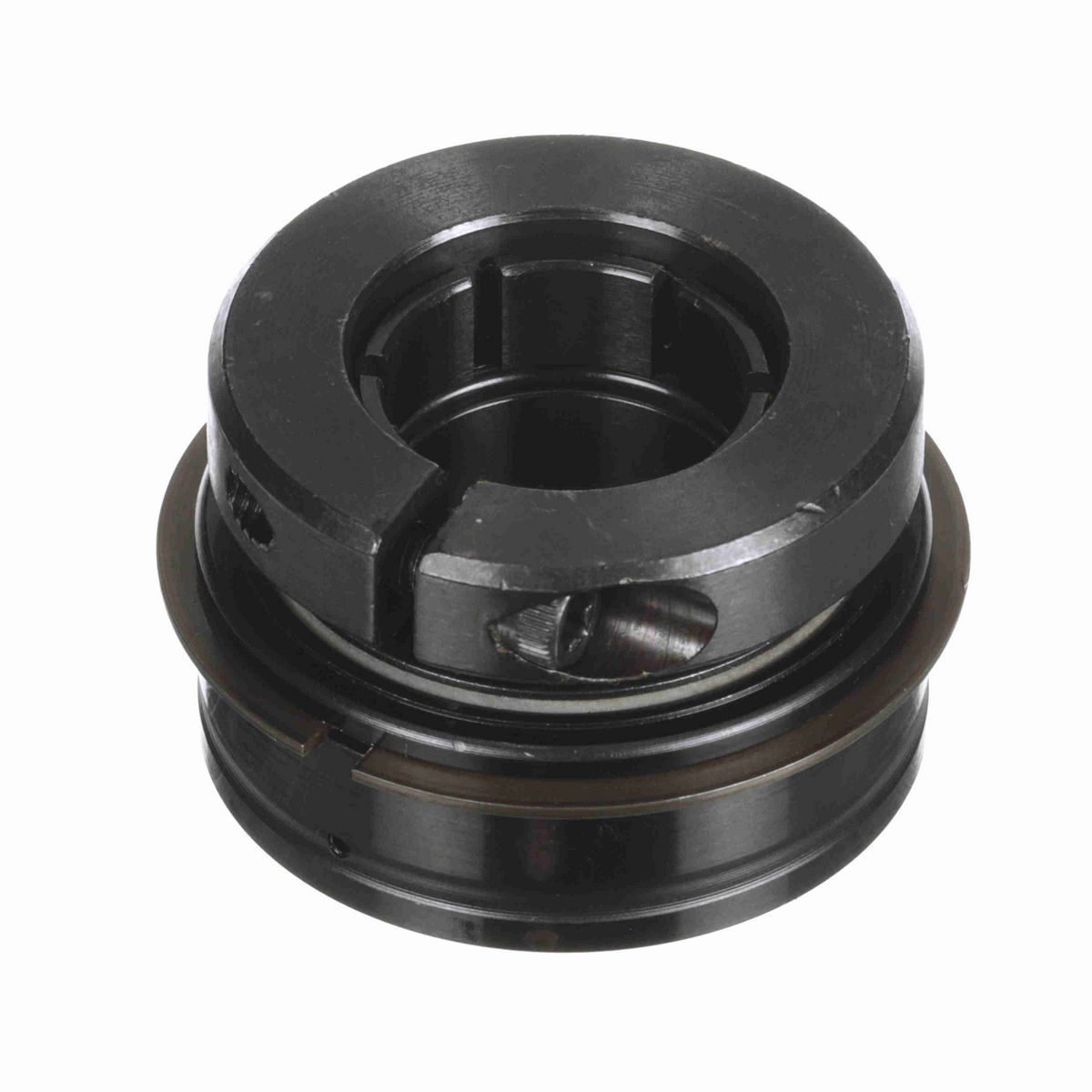

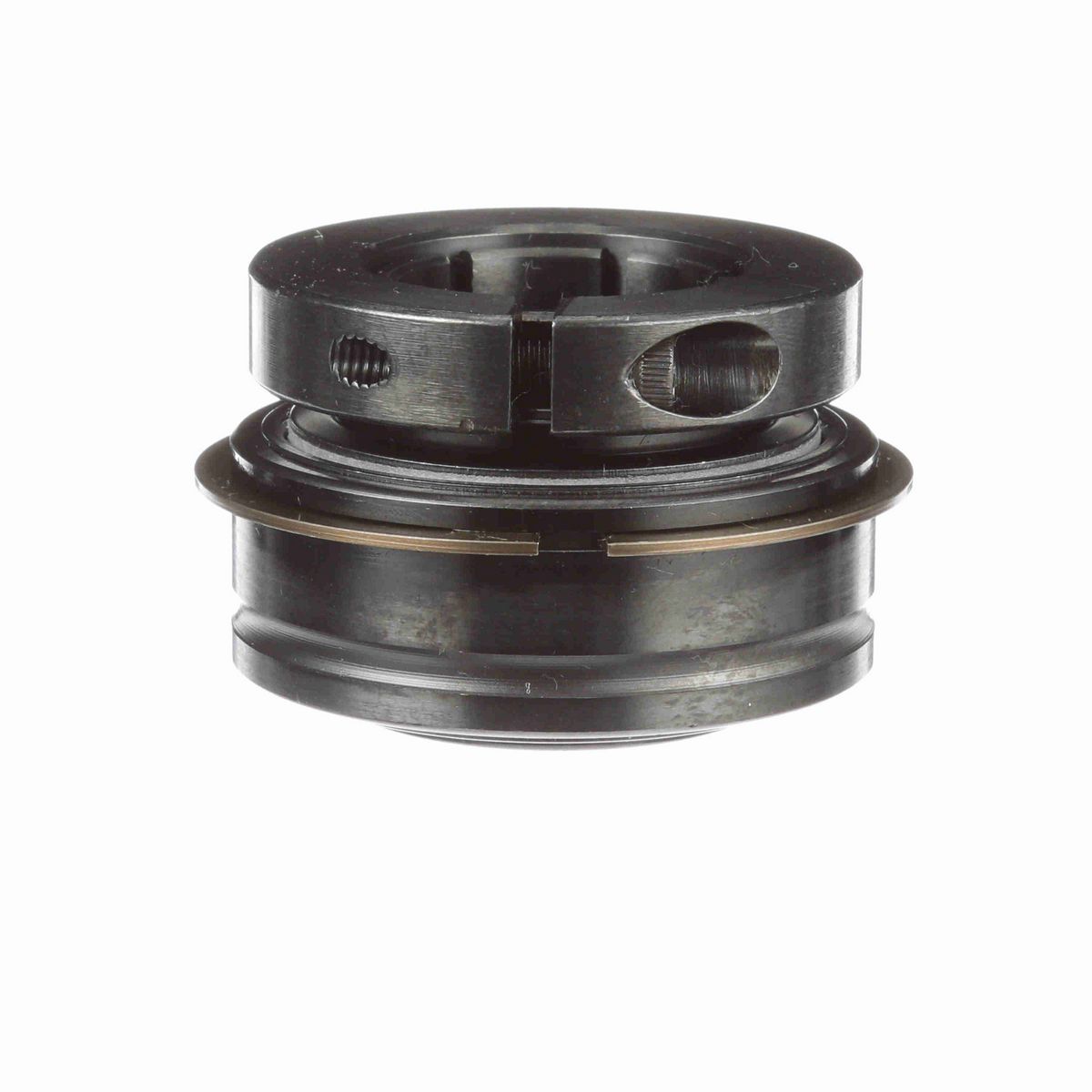

• ER style cylindrical OD bearing with snap and with black oxided bearing rings
• Skwezloc® concentric locking for near perfect concentricity
• Extra low drag seal cut down felt labyrinth seal and flinger
• Oil lubricated for reduced internal friction
• Nylon retainer to reduce overall drag

Dimensions

Overall Width (in)	1.44 in
Bore Size (in)	1 in
Outer Race Width (in)	0.75 in
Centerline to Front Face (in)	0.922 in
Outer Race OD (in)	2.0472 in
Collar OD (in)	1.98 in
Inner Ring OD (in)	1.375 in
Outer Race OD (mm)	52 mm
Length Through Bore (in)	1.44 in
Outer Race Width (mm)	19.1 mm

Technical Specifications

Measure Units	Inch
Insert Material	52100 Bearing Steel
Rolling Element	Ball Bearing
Seal Type	Cut Down Felt Labyrinth
Torx Cap Screw	10-24 UNC
Bore Shape	Straight
Housing Type	Insert (ER Style)
Set Screw Thread	10-24 UNC
Internal Clearance	Standard
Misalignment	None
Expansion	No
End Cap	No
Options	Extra Low Drag
Platform	Gold Line Ball Bearing
Misalignment Type	Static Only
Bearing Insert Coating	Black Oxide
Outer Ring Land Profile	Tapered Lands
Precision Rating	ABEC 1
Cage Material	PPS - Polyphenylene Sulfide
Outer Race Profile	Cylindrical
Inner Race Profile	Wide Inner Ring
Inner Race Heat Treat Method	Zone-Hardened
Duty/Status	Standard
Vibration Frequency Inner Ring Defect	0.0985 cps
Size Code	2-015
Maximum Operating Temperature (F)	220 °F
Inner Ring Fillet Radius (in)	0.04 in
Series	Unmounted Replacement Bearings
Vibration Frequency Outer Ring Defect	0.0682 cps
Vibration Frequency Roller Spin	0.0442 cps
Locking Type	Concentric
Vibration Frequency Fundamental Train	0.0068 cps
Lubrication Type	Oil Coated Only - No Factory Grease Fill
Setscrew Torque (in-lbs)	70 in/lbs
Maximum Speed (rpm)	2500 rpm
Ability to Relubricate	Yes
Dynamic Load Rating (lb)	2,801 lb
Cage Type	Land Riding Retainer
Static Load Rating (lb)	1,651 lb

General Specifications

UPC	662461259269
Weight	0.70 LB
Packaged Length	2.38 IN
Packaged Width	1.44 IN
Packaged Height	2.38 IN
HTC	8482.10.5048
Country of Origin	Mexico
