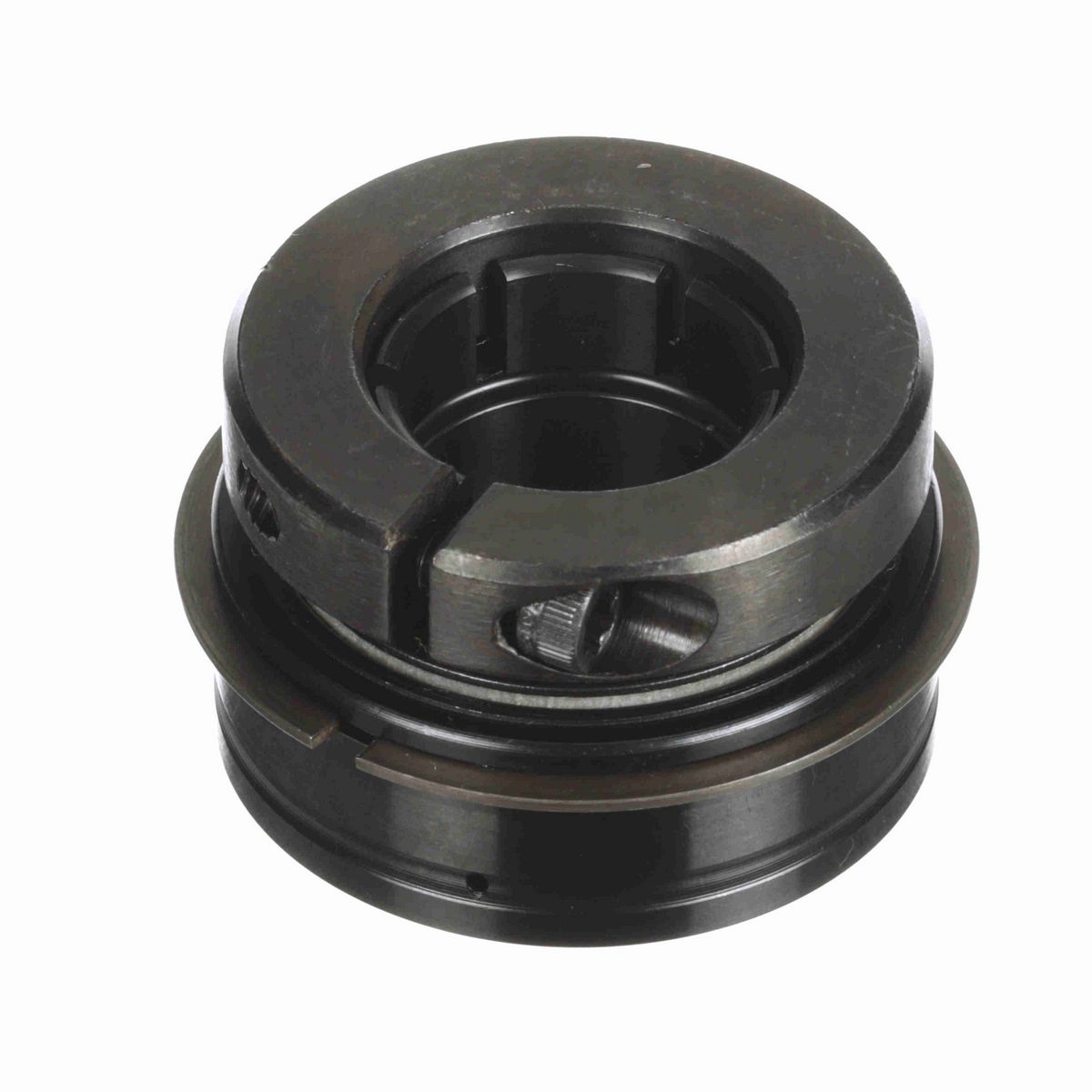

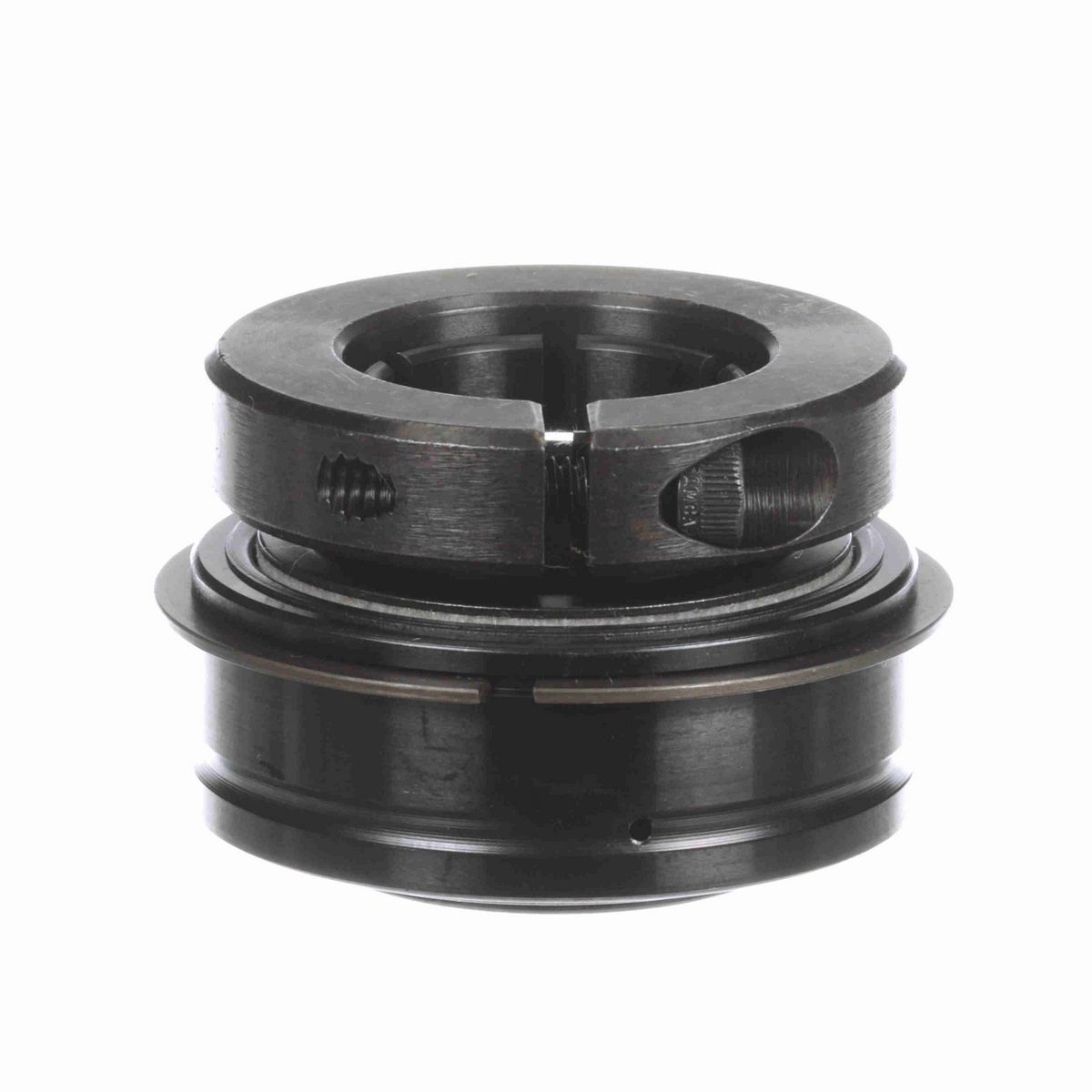

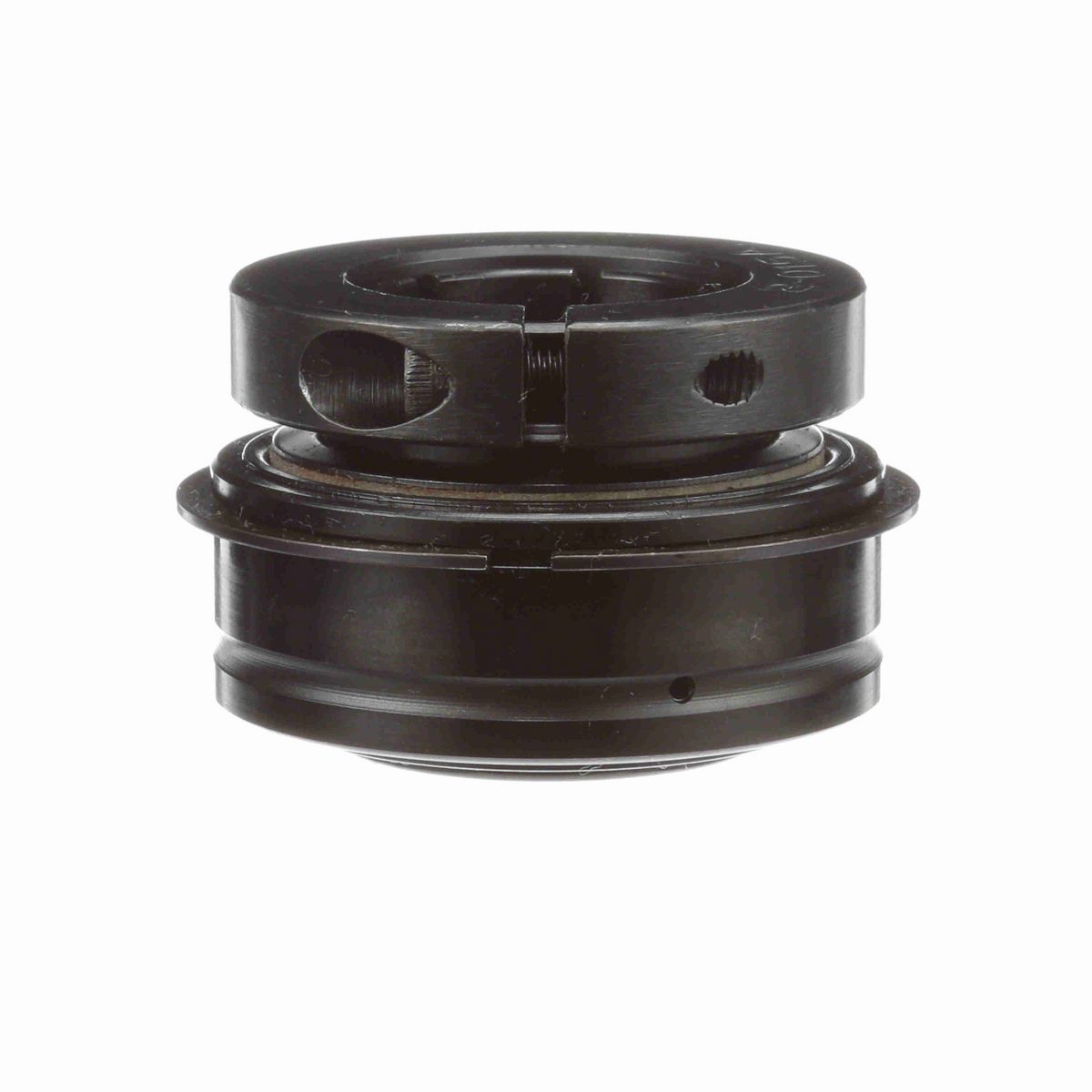

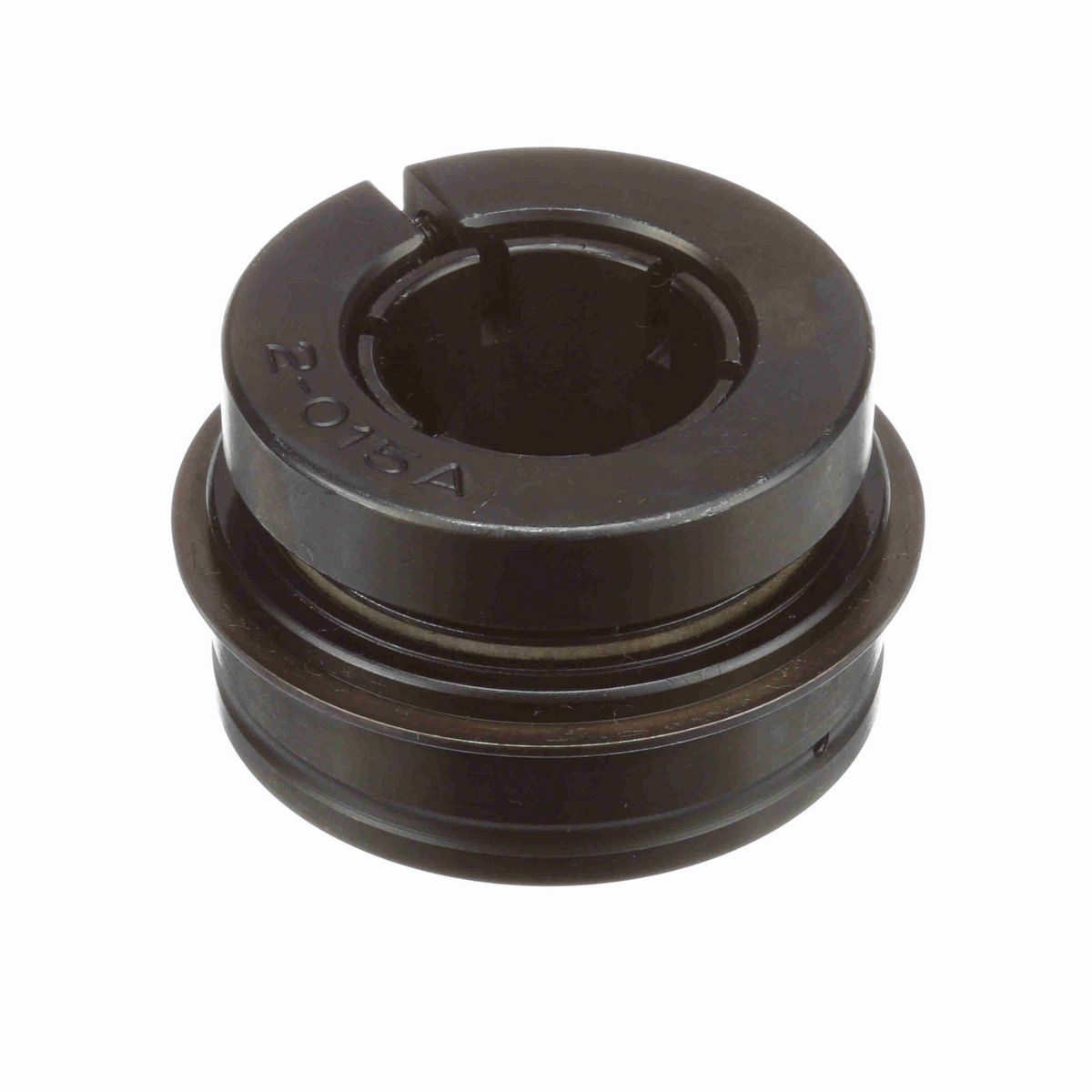

• ER style cylindrical OD bearing with snap and with black oxided bearing rings
• Skwezloc® concentric locking for near perfect concentricity
• Extra low drag seal cut down felt labyrinth seal and flinger
• Features a channeling grease that reduces drag while lubricating the bearing
• Nylon retainer to reduce overall drag

Dimensions

Overall Width (in)	1.44 in
Bore Size (in)	1 in
Outer Race OD (mm)	52 mm
Collar OD (in)	1.98 in
Outer Race OD (in)	2.0472 in
Inner Ring OD (in)	1.375 in
Centerline to Front Face (in)	0.922 in
Outer Race Width (in)	0.75 in
Length Through Bore (in)	1.44 in
Outer Race Width (mm)	19.1 mm

Technical Specifications

Housing Type	Insert (ER Style)
Measure Units	Inch
Bore Shape	Straight
Torx Cap Screw	10-24 UNC
Rolling Element	Ball Bearing
Seal Type	Cut Down Felt Labyrinth
Set Screw Thread	10-24 UNC
Insert Material	52100 Bearing Steel
Misalignment	None
Internal Clearance	Standard
Expansion	No
Outer Ring Land Profile	Tapered Lands
Platform	Gold Line Ball Bearing
Misalignment Type	Static Only
Bearing Insert Coating	Black Oxide
Options	Low Drag
End Cap	No
Precision Rating	ABEC 1
Cage Material	PPS - Polyphenylene Sulfide
Inner Race Profile	Wide Inner Ring
Outer Race Profile	Cylindrical
Vibration Frequency Roller Spin	0.0442 cps
Locking Type	Concentric
Size Code	2-015
Maximum Speed (rpm)	5000 rpm
Setscrew Torque (in-lbs)	70 in/lbs
Inner Ring Fillet Radius (in)	0.04 in
Inner Race Heat Treat Method	Zone-Hardened
Maximum Operating Temperature (F)	220 °F
Vibration Frequency Inner Ring Defect	0.0985 cps
Series	Unmounted Replacement Bearings
Vibration Frequency Outer Ring Defect	0.0682 cps
Vibration Frequency Fundamental Train	0.0068 cps
Ability to Relubricate	Yes
Duty/Status	Standard
Lubrication Type	Lithium NLGI 2 Low Torque Grease
Dynamic Load Rating (lb)	2,801 lb
Static Load Rating (lb)	1,651 lb
Cage Type	Land Riding Retainer

General Specifications

UPC	662461258804
Weight	1.10 LB
Packaged Length	2.38 IN
Packaged Width	1.44 IN
Packaged Height	2.38 IN
HTC	8482.10.5048
Country of Origin	Mexico
