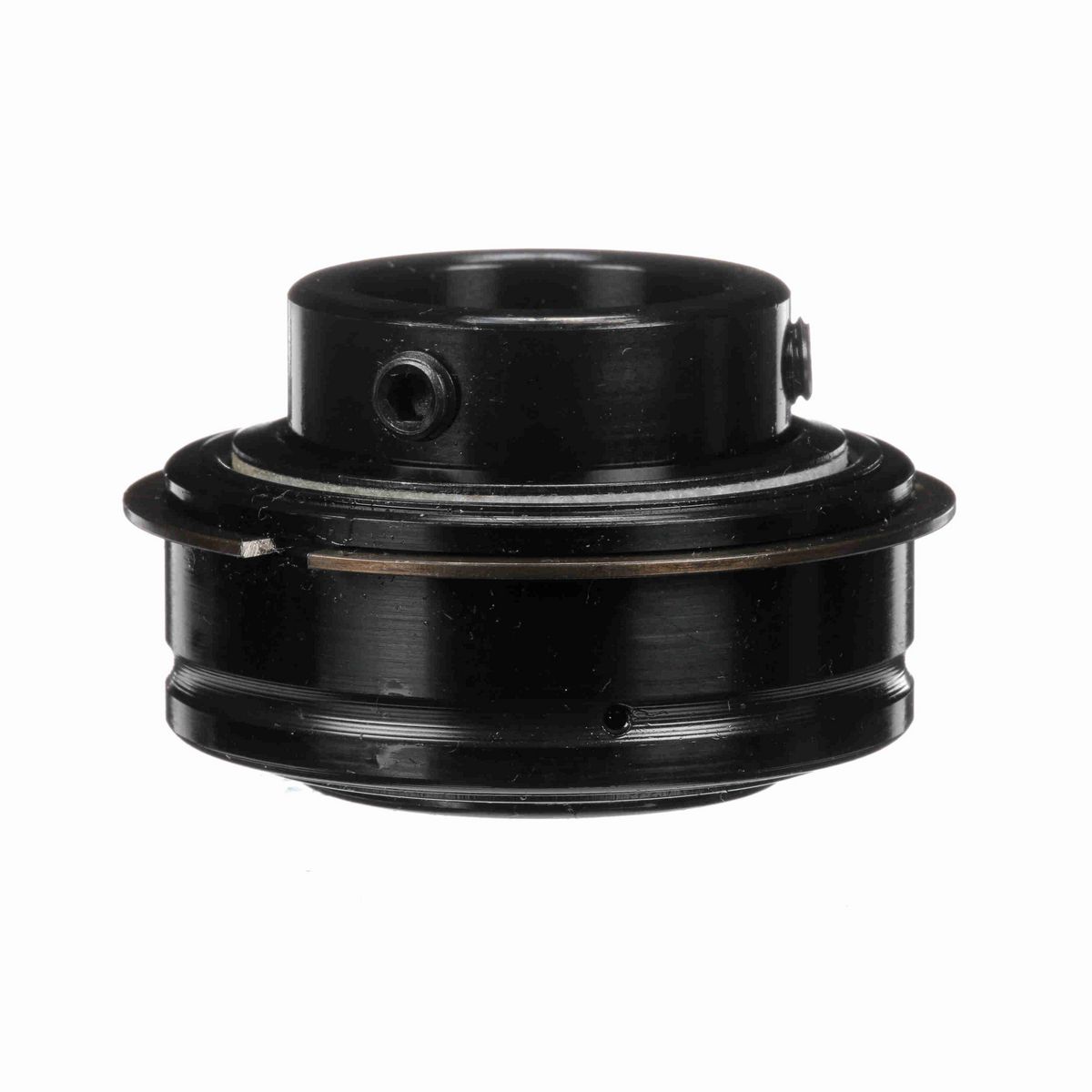

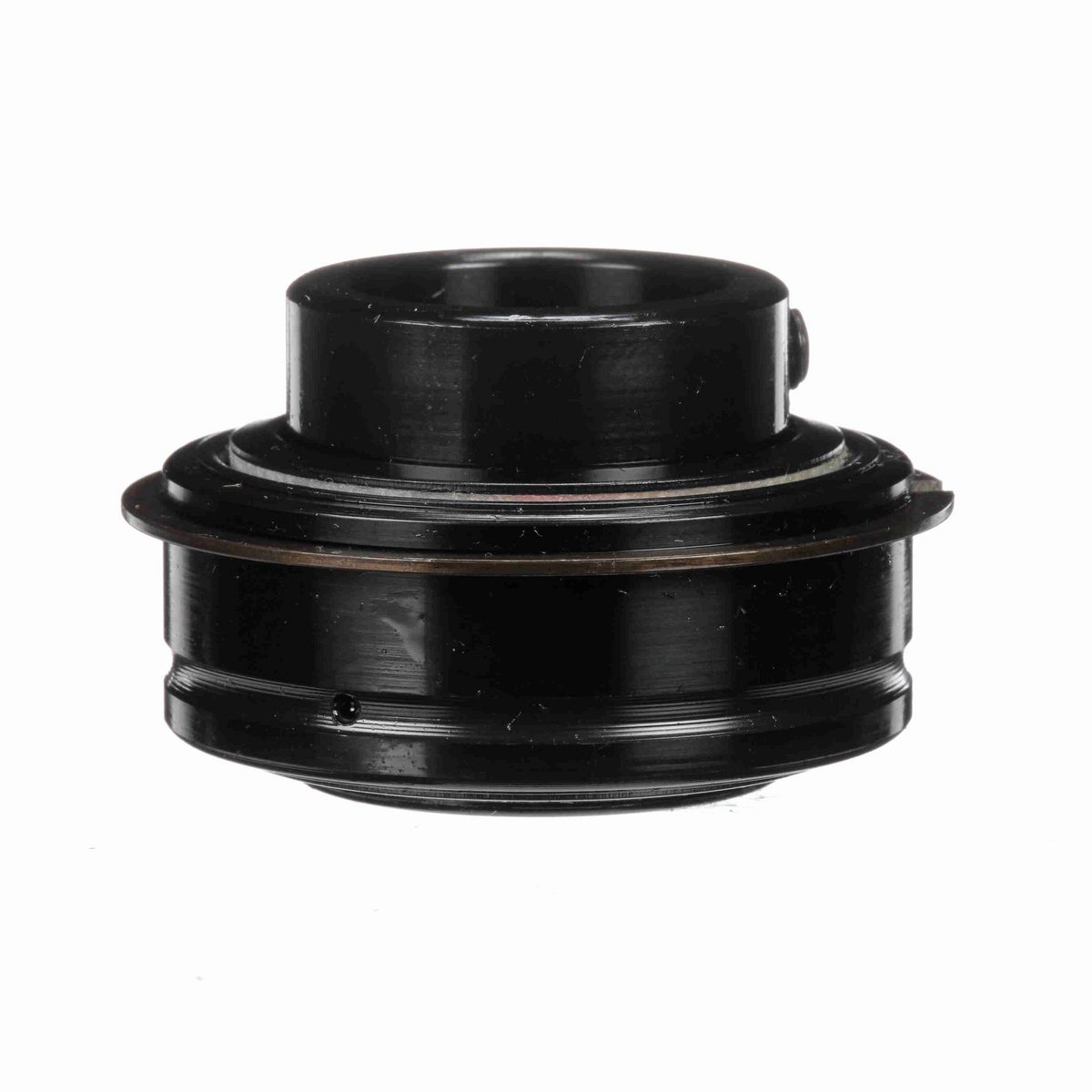

• ER style cylindrical OD bearing with snap and with black oxided bearing rings
• Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
• Extra low drag seal cut down felt labyrinth seal and flinger
• Oil lubricated for reduced internal friction
• Nylon retainer to reduce overall drag

Dimensions

Overall Width (in)	1.38 in
Bore Size (in)	1 in
Outer Race OD (mm)	52 mm
Outer Race Width (in)	0.75 in
Outer Race OD (in)	2.0472 in
Centerline to Front Face (in)	0.859 in
Inner Ring OD (in)	1.375 in
Length Through Bore (in)	1.375 in
Outer Race Width (mm)	19.1 mm

Technical Specifications

Seal Type	Cut Down Felt Labyrinth
Set Screw Thread	1/4-28 UNF
Bore Shape	Straight
Measure Units	Inch
Rolling Element	Ball Bearing
Insert Material	52100 Bearing Steel
Housing Type	Insert (ER Style)
Expansion	No
Internal Clearance	Standard
Misalignment	None
Platform	Gold Line Ball Bearing
Outer Ring Land Profile	Tapered Lands
Bearing Insert Coating	Black Oxide
End Cap	No
Misalignment Type	Static Only
Options	Extra Low Drag
Cage Material	PPS - Polyphenylene Sulfide
Precision Rating	ABEC 1
Inner Race Profile	Wide Inner Ring
Outer Race Profile	Cylindrical
Inner Race Heat Treat Method	Zone-Hardened
Series	Unmounted Replacement Bearings
Ability to Relubricate	Yes
Maximum Operating Temperature (F)	220 °F
Vibration Frequency Outer Ring Defect	0.0682 cps
Inner Ring Fillet Radius (in)	0.04 in
Duty/Status	Standard
Size Code	2-015
Setscrew Torque (in-lbs)	65-85 in/lbs
Vibration Frequency Inner Ring Defect	0.0985 cps
Lubrication Type	Oil Coated Only - No Factory Grease Fill
Vibration Frequency Fundamental Train	0.0068 cps
Locking Type	Set Screw
Maximum Speed (rpm)	2500 rpm
Vibration Frequency Roller Spin	0.0442 cps
Cage Type	Land Riding Retainer
Dynamic Load Rating (lb)	2,801 lb
Static Load Rating (lb)	1,651 lb

General Specifications

UPC	662461259108
Weight	0.55 LB
Packaged Length	2.38 IN
Packaged Width	1.44 IN
Packaged Height	2.38 IN
HTC	8482.10.5048
Country of Origin	Mexico
