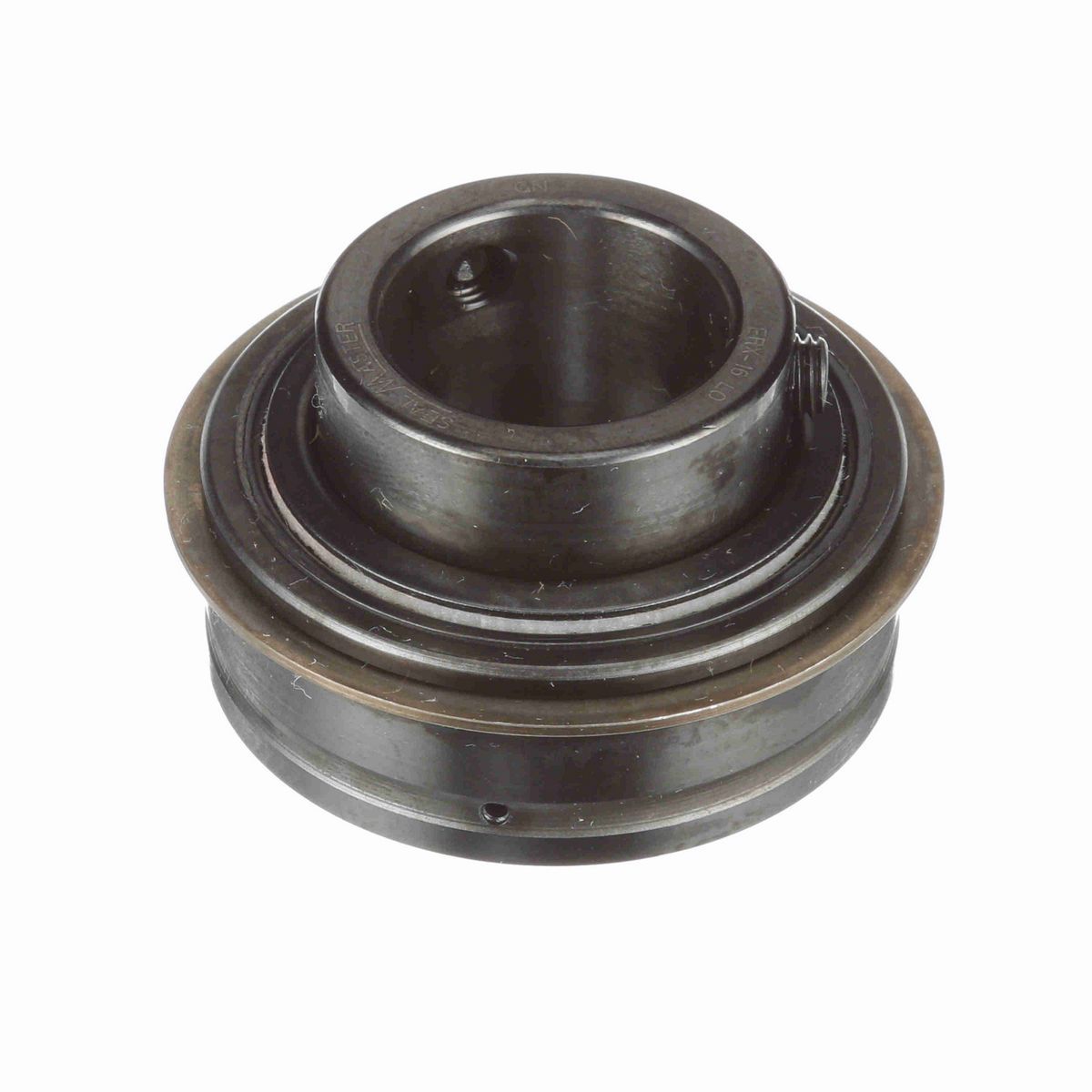

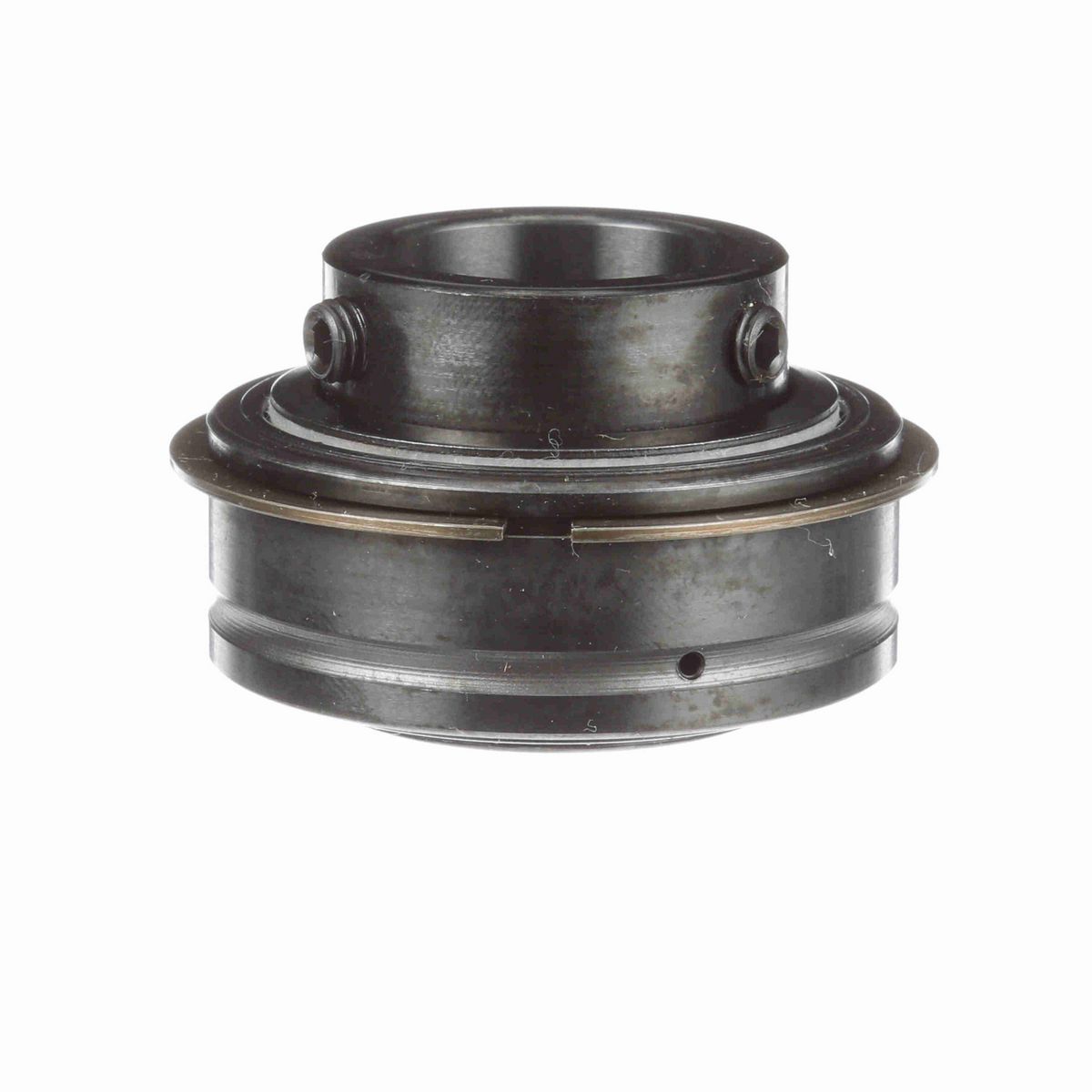

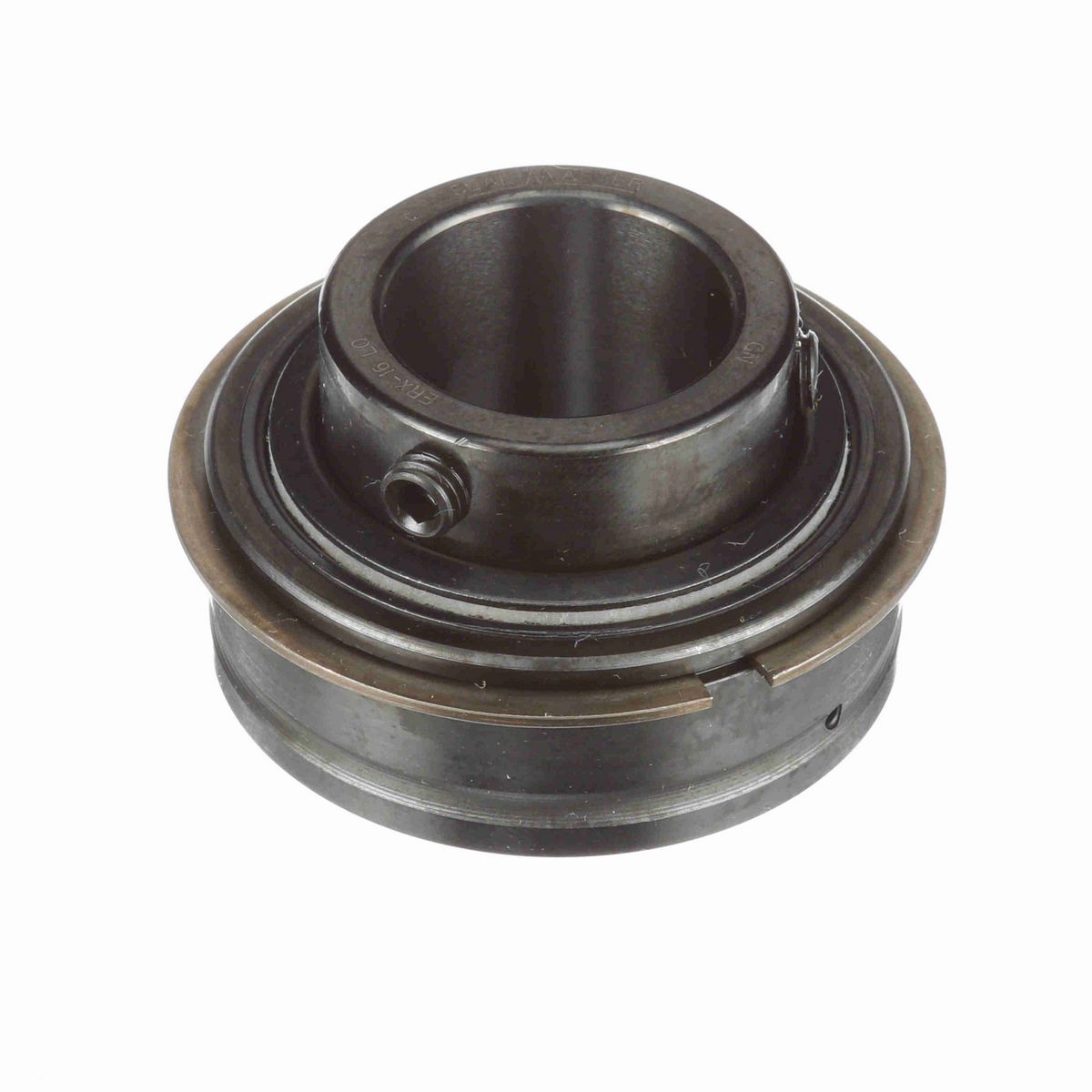

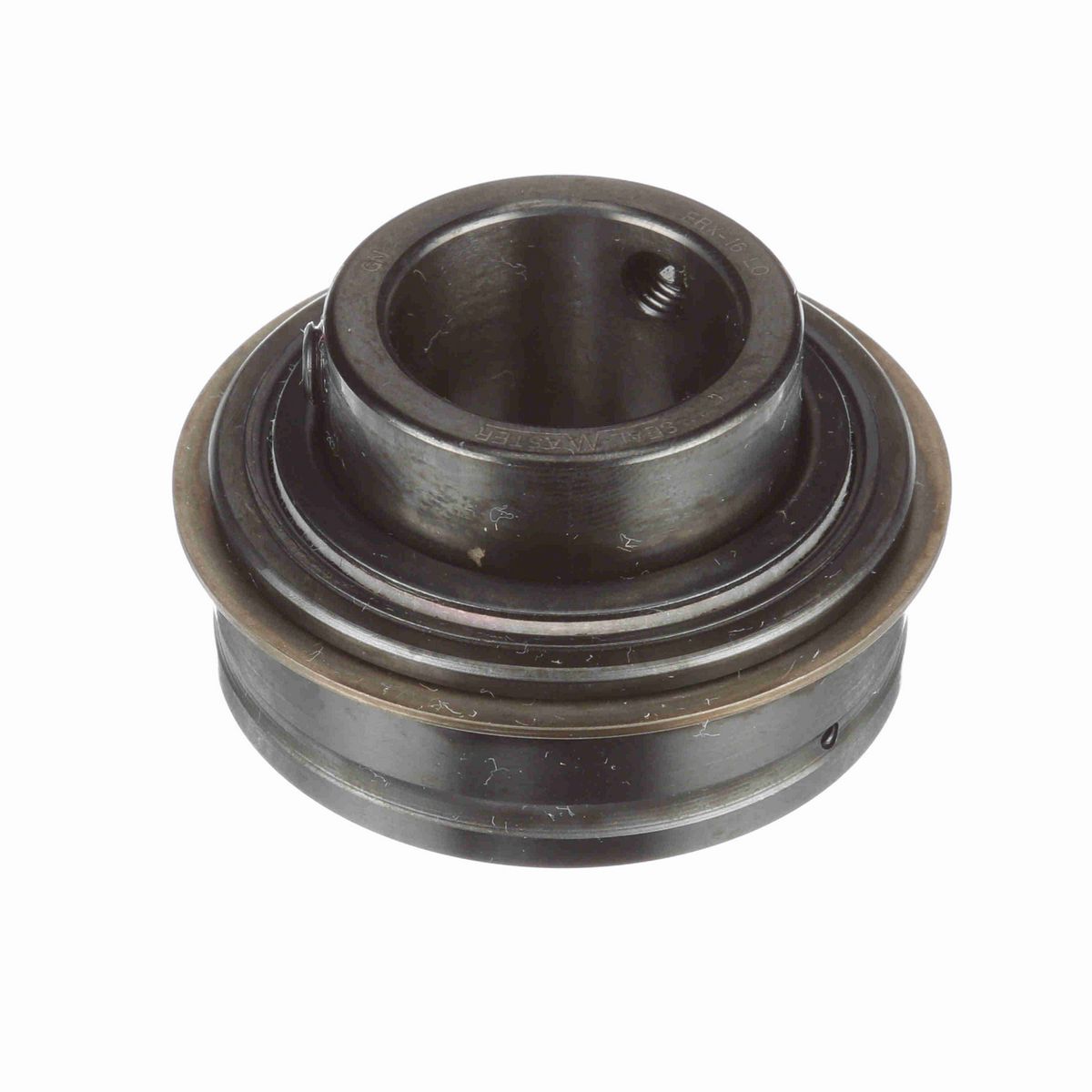

• ER style cylindrical OD bearing with snap and with black oxided bearing rings
• Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
• Extra low drag seal cut down felt labyrinth seal and flinger
• Features a channeling grease that reduces drag while lubricating the bearing
• Nylon retainer to reduce overall drag

Dimensions

Overall Width (in)	1.38 in
Bore Size (in)	1 in
Inner Ring OD (in)	1.375 in
Outer Race OD (in)	2.0472 in
Outer Race Width (in)	0.75 in
Outer Race OD (mm)	52 mm
Centerline to Front Face (in)	0.859 in
Length Through Bore (in)	1.375 in
Outer Race Width (mm)	19.1 mm

Technical Specifications

Insert Material	52100 Bearing Steel
Seal Type	Cut Down Felt Labyrinth
Housing Type	Insert (ER Style)
Measure Units	Inch
Rolling Element	Ball Bearing
Set Screw Thread	1/4-28 UNF
Bore Shape	Straight
Internal Clearance	Standard
Expansion	No
Misalignment	None
End Cap	No
Outer Ring Land Profile	Tapered Lands
Options	Low Drag
Misalignment Type	Static Only
Platform	Gold Line Ball Bearing
Bearing Insert Coating	Black Oxide
Precision Rating	ABEC 1
Cage Material	PPS - Polyphenylene Sulfide
Outer Race Profile	Cylindrical
Inner Race Profile	Wide Inner Ring
Duty/Status	Standard
Setscrew Torque (in-lbs)	65-85 in/lbs
Size Code	2-015
Vibration Frequency Roller Spin	0.0442 cps
Inner Race Heat Treat Method	Zone-Hardened
Maximum Operating Temperature (F)	220 °F
Locking Type	Set Screw
Lubrication Type	Lithium NLGI 2 Low Torque Grease
Vibration Frequency Fundamental Train	0.0068 cps
Ability to Relubricate	Yes
Inner Ring Fillet Radius (in)	0.04 in
Vibration Frequency Outer Ring Defect	0.0682 cps
Series	Unmounted Replacement Bearings
Maximum Speed (rpm)	5000 rpm
Vibration Frequency Inner Ring Defect	0.0985 cps
Static Load Rating (lb)	1,651 lb
Dynamic Load Rating (lb)	2,801 lb
Cage Type	Land Riding Retainer

General Specifications

UPC	662461258644
Weight	0.54 LB
Packaged Length	2.38 IN
Packaged Width	1.44 IN
Packaged Height	2.38 IN
HTC	8482.10.5048
Country of Origin	Mexico
