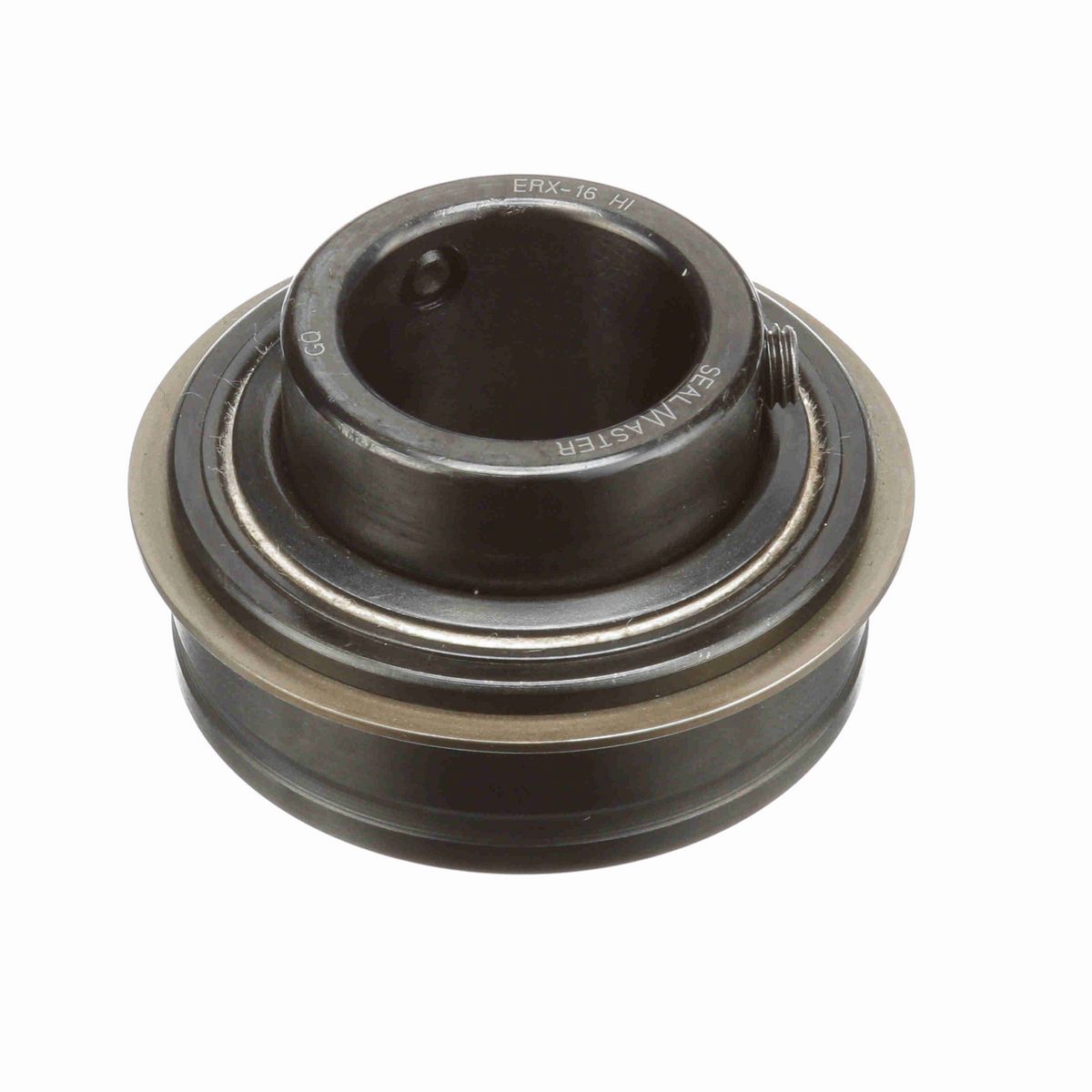

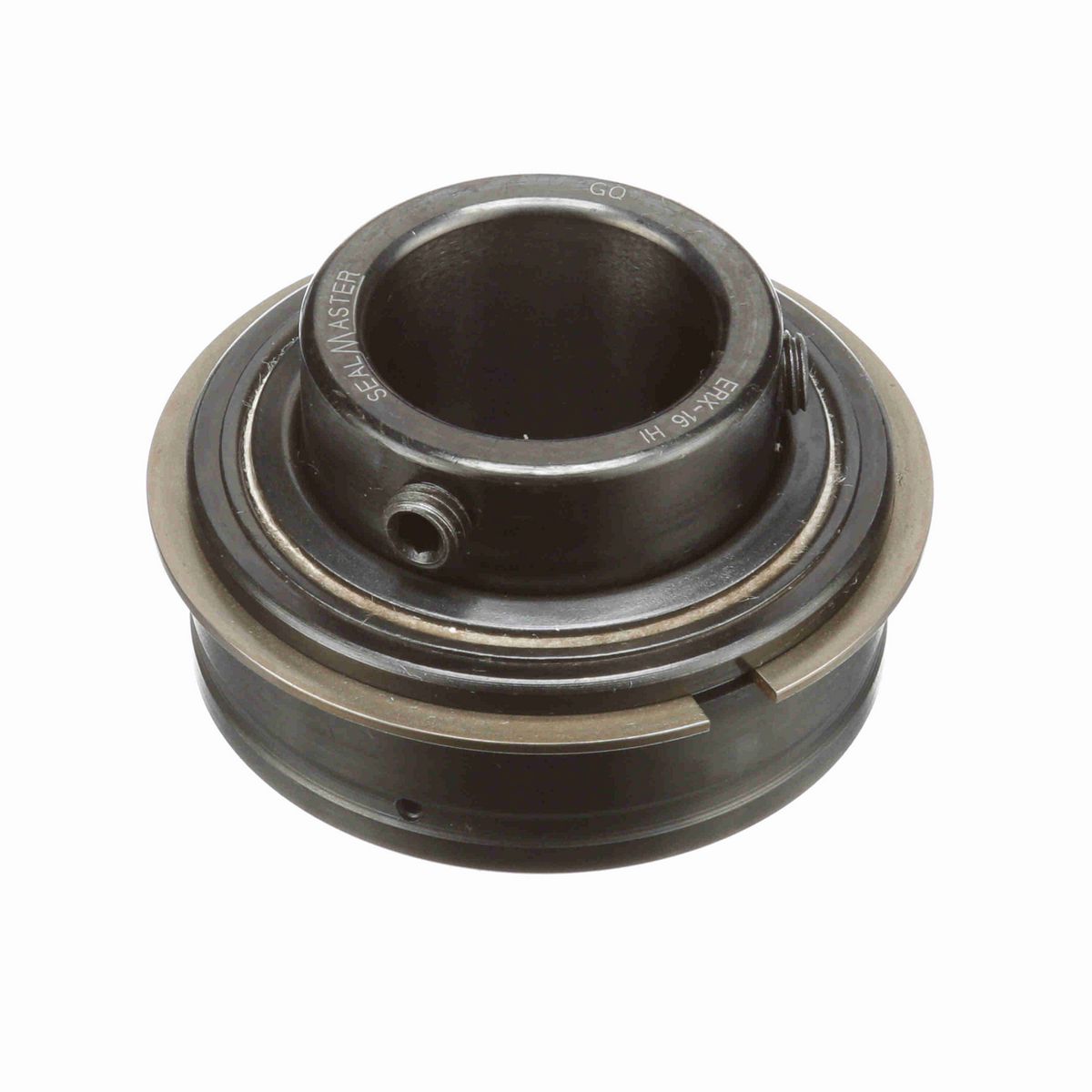

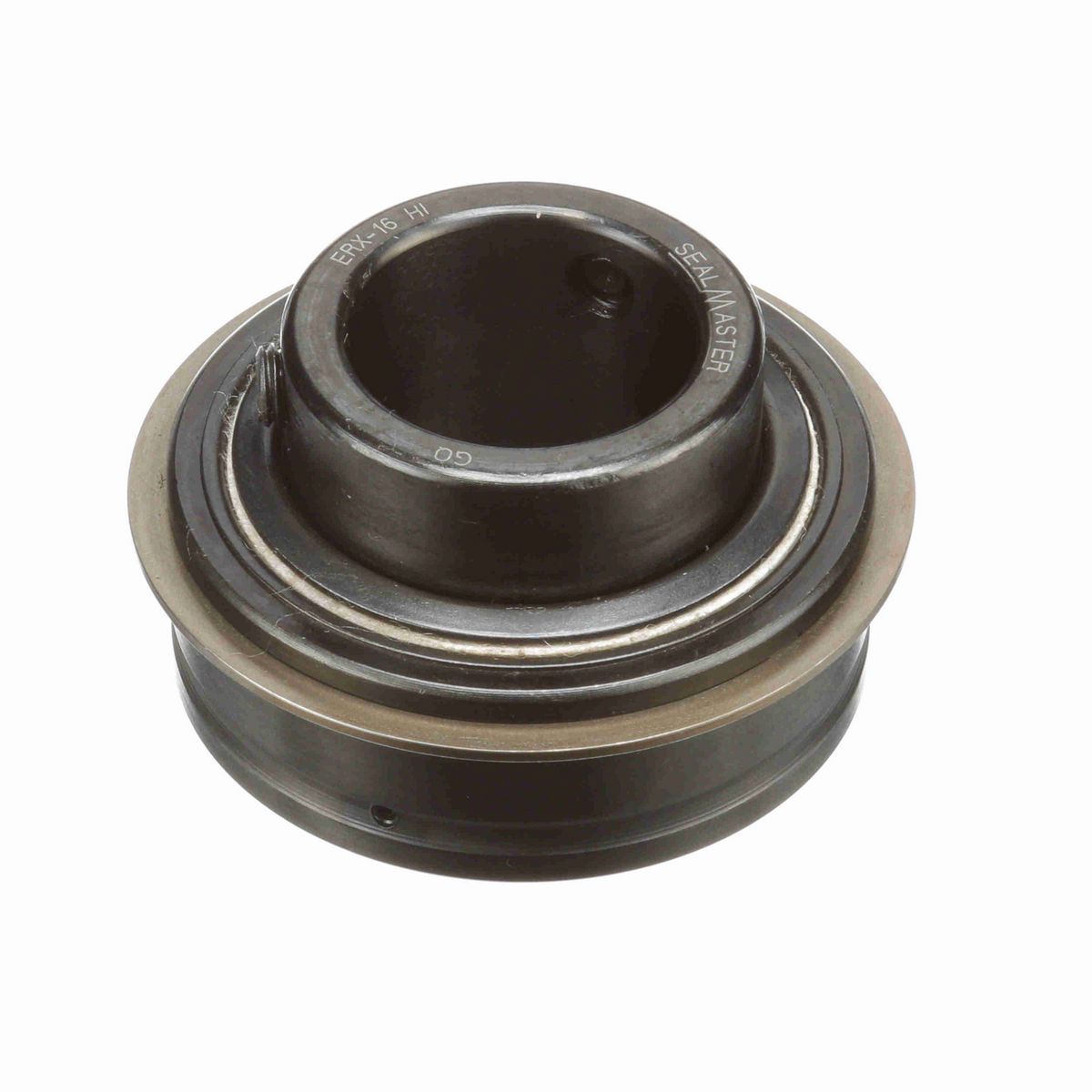

• ER style cylindrical OD bearing with snap and with black oxided bearing rings
• Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
• High temperature felt labyrinth seal and flinger
• Increased internal clearance
• Krytox® high temperature grease

Dimensions

Overall Width (in)	1.38 in
Bore Size (in)	1 in
Centerline to Front Face (in)	0.859 in
Outer Race OD (in)	2.0472 in
Outer Race Width (in)	0.75 in
Outer Race OD (mm)	52 mm
Inner Ring OD (in)	1.375 in
Length Through Bore (in)	1.375 in
Outer Race Width (mm)	19.1 mm

Technical Specifications

Housing Type	Insert (ER Style)
Bore Shape	Straight
Measure Units	Inch
Set Screw Thread	1/4-28 UNF
Rolling Element	Ball Bearing
Insert Material	52100 Bearing Steel
Seal Type	High Temp Labyrinth
Internal Clearance	Increased
Expansion	No
Misalignment	None
Outer Ring Land Profile	Tapered Lands
Bearing Insert Coating	Black Oxide
Misalignment Type	Static Only
Platform	Gold Line Ball Bearing
Options	High Temperature
End Cap	No
Cage Material	PPS - Polyphenylene Sulfide
Precision Rating	ABEC 1
Outer Race Profile	Cylindrical
Inner Race Profile	Wide Inner Ring
Maximum Speed (rpm)	2750 rpm
Series	Unmounted Replacement Bearings
Vibration Frequency Outer Ring Defect	0.0682 cps
Lubrication Type	PTFE thickened Grease
Inner Race Heat Treat Method	Zone-Hardened
Locking Type	Set Screw
Duty/Status	Standard
Maximum Operating Temperature (F)	400 °F
Vibration Frequency Inner Ring Defect	0.0985 cps
Inner Ring Fillet Radius (in)	0.04 in
Vibration Frequency Roller Spin	0.0442 cps
Vibration Frequency Fundamental Train	0.0068 cps
Setscrew Torque (in-lbs)	65-85 in/lbs
Ability to Relubricate	Yes
Size Code	2-015
Cage Type	Land Riding Retainer
Dynamic Load Rating (lb)	2,801 lb
Maximum Operating Temperature (C)	204 °C
Static Load Rating (lb)	1,651 lb

General Specifications

UPC	662461258972
Weight	0.60 LB
Packaged Length	2.38 IN
Packaged Width	1.44 IN
Packaged Height	2.38 IN
HTC	8482.10.5048
Country of Origin	Mexico
