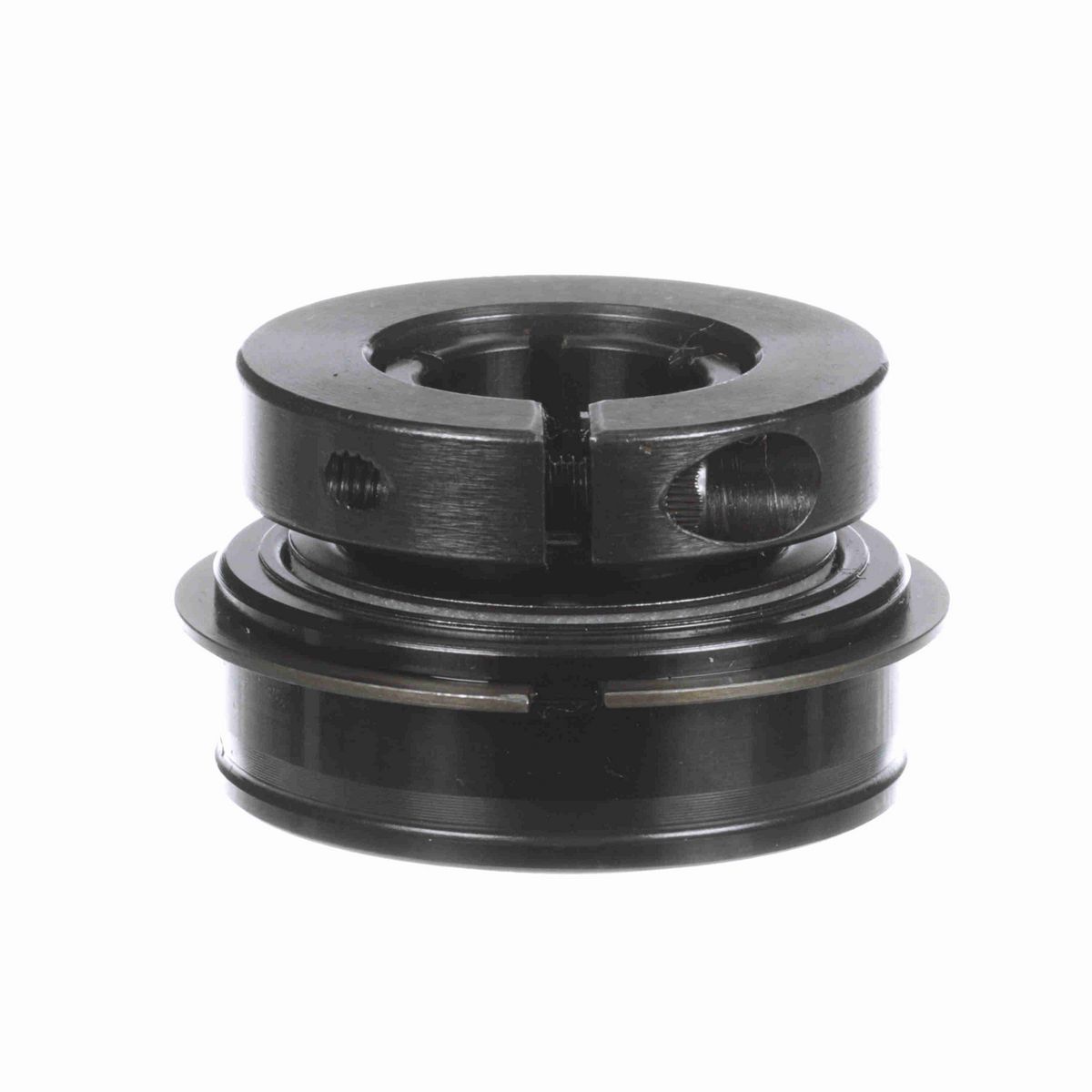

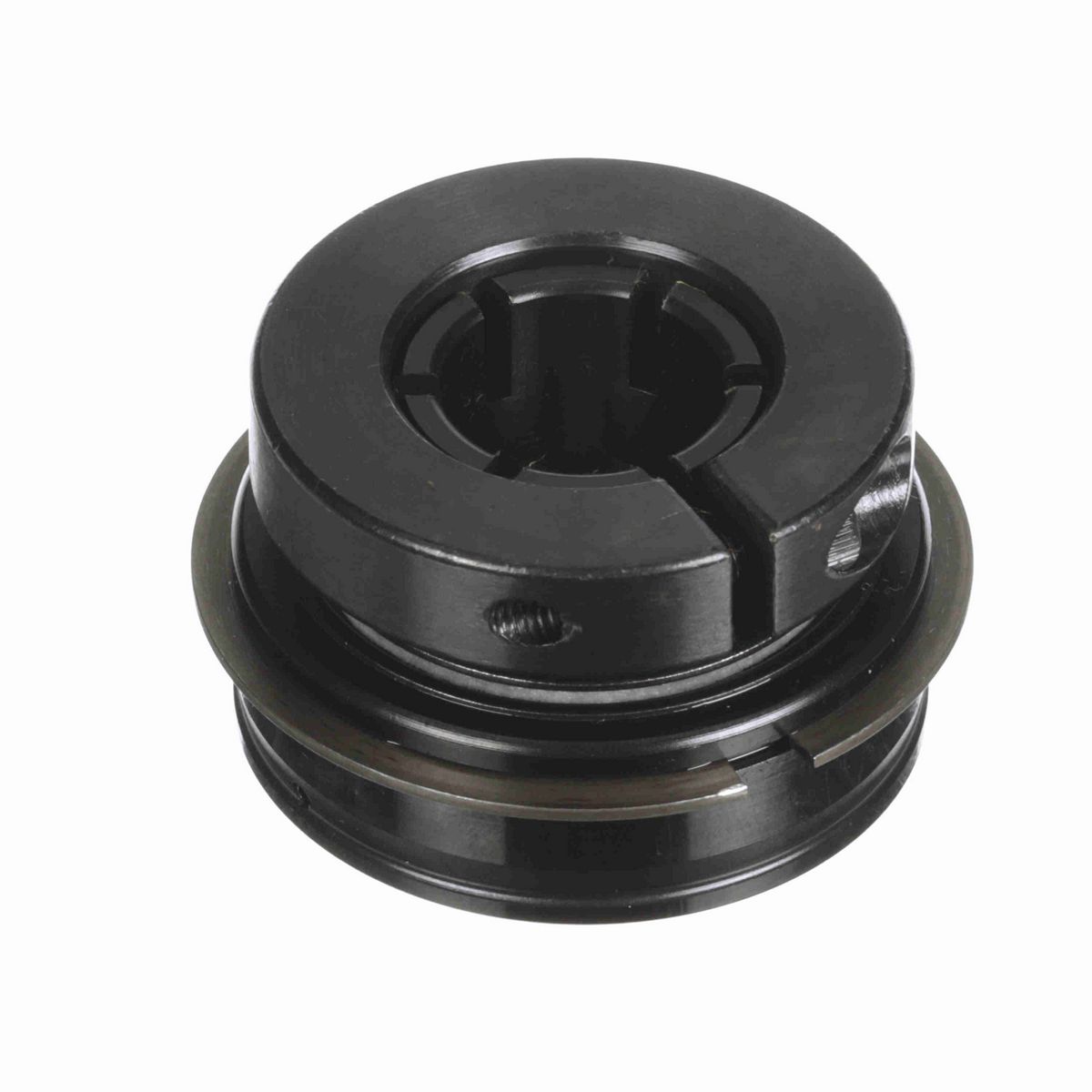

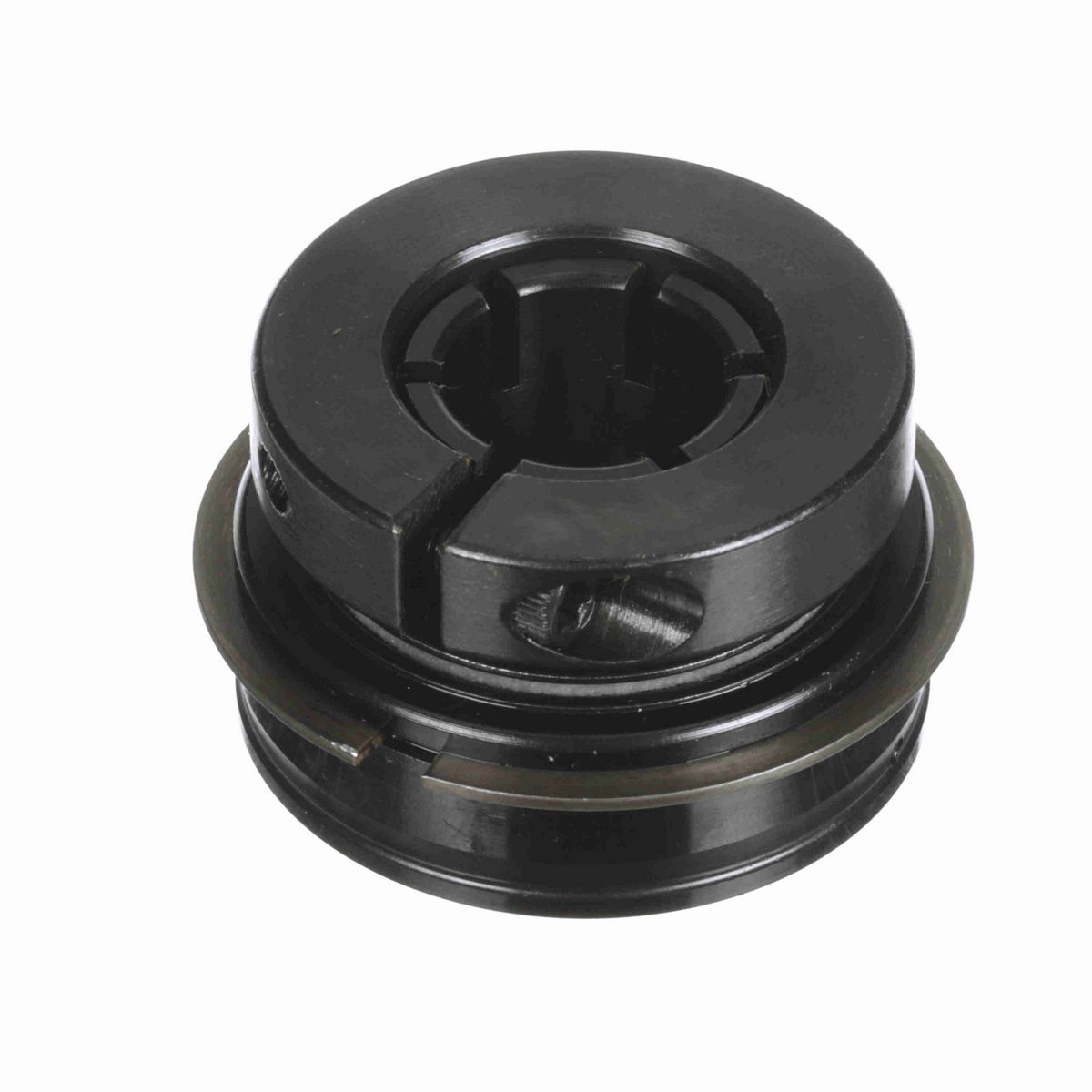

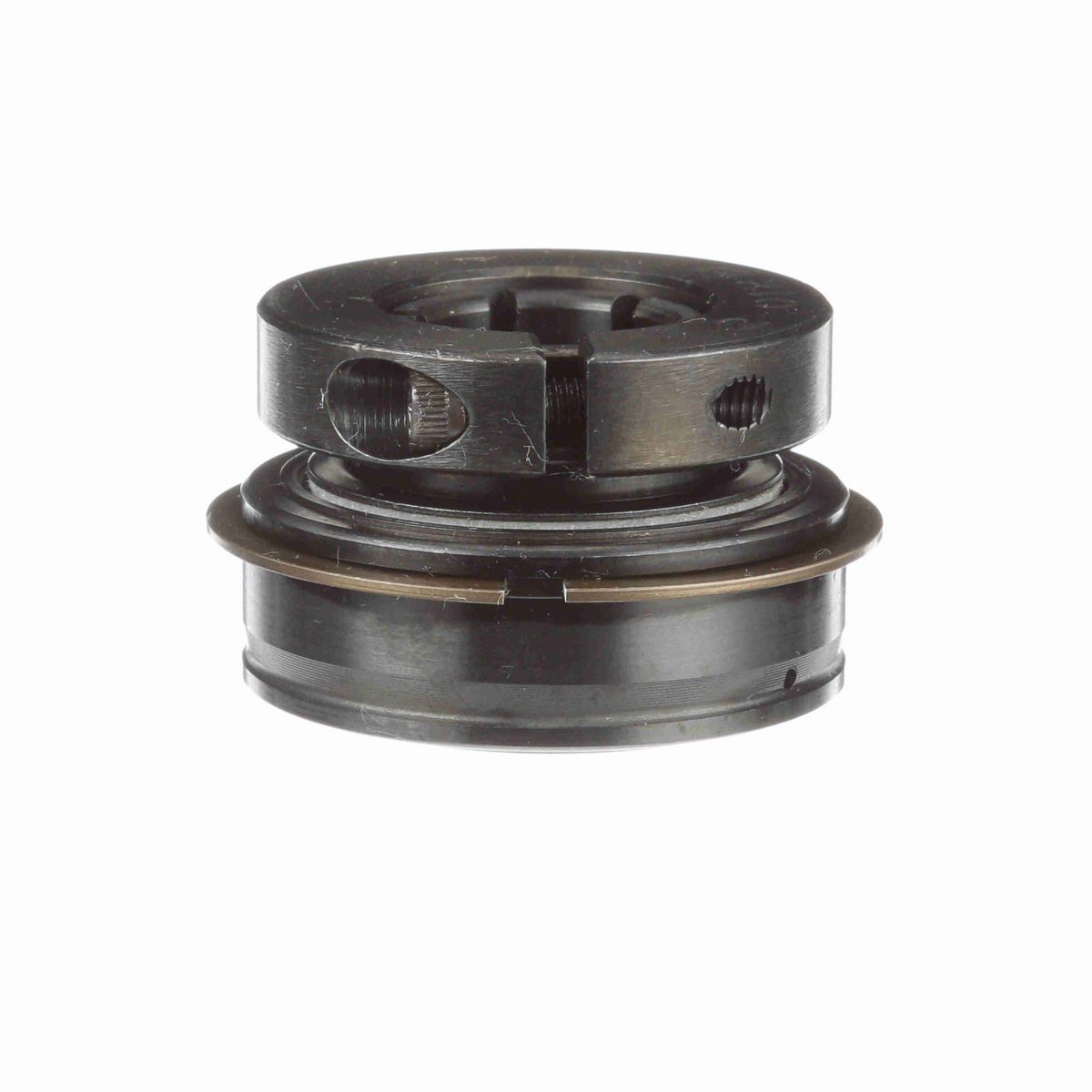

• ER style cylindrical OD bearing with snap and with black oxided bearing rings
• Skwezloc® concentric locking for near perfect concentricity
• Extra low drag seal cut down felt labyrinth seal and flinger
• Oil lubricated for reduced internal friction
• Nylon retainer to reduce overall drag

Dimensions

Overall Width (in)	1.28 in
Bore Size (in)	0.75 in
Centerline to Front Face (in)	0.813 in
Inner Ring OD (in)	1.188 in
Outer Race OD (mm)	47 mm
Outer Race OD (in)	1.8504 in
Collar OD (in)	1.8 in
Outer Race Width (in)	0.625 in
Length Through Bore (in)	1.28 in
Outer Race Width (mm)	15.9 mm

Technical Specifications

Set Screw Thread	10-24 UNC
Rolling Element	Ball Bearing
Insert Material	52100 Bearing Steel
Torx Cap Screw	10-24 UNC
Seal Type	Cut Down Felt Labyrinth
Measure Units	Inch
Bore Shape	Straight
Housing Type	Insert (ER Style)
Expansion	No
Misalignment	None
Internal Clearance	Standard
Outer Ring Land Profile	Tapered Lands
Options	Extra Low Drag
Platform	Gold Line Ball Bearing
End Cap	No
Misalignment Type	Static Only
Bearing Insert Coating	Black Oxide
Cage Material	PPS - Polyphenylene Sulfide
Precision Rating	ABEC 1
Outer Race Profile	Cylindrical
Inner Race Profile	Wide Inner Ring
Vibration Frequency Outer Ring Defect	0.0593 cps
Maximum Operating Temperature (F)	220 °F
Size Code	2-012
Inner Ring Fillet Radius (in)	0.04 in
Maximum Speed (rpm)	2900 rpm
Duty/Status	Standard
Vibration Frequency Inner Ring Defect	0.0907 cps
Ability to Relubricate	Yes
Series	Unmounted Replacement Bearings
Setscrew Torque (in-lbs)	70 in/lbs
Vibration Frequency Roller Spin	0.0381 cps
Inner Race Heat Treat Method	Zone-Hardened
Vibration Frequency Fundamental Train	0.0066 cps
Locking Type	Concentric
Lubrication Type	Oil Coated Only - No Factory Grease Fill
Static Load Rating (lb)	1,444 lb
Dynamic Load Rating (lb)	2,611 lb
Cage Type	Land Riding Retainer

General Specifications

UPC	662461259252
Weight	0.58 LB
Packaged Length	2.38 IN
Packaged Width	1.44 IN
Packaged Height	2.38 IN
HTC	8482.10.5048
Country of Origin	Mexico
