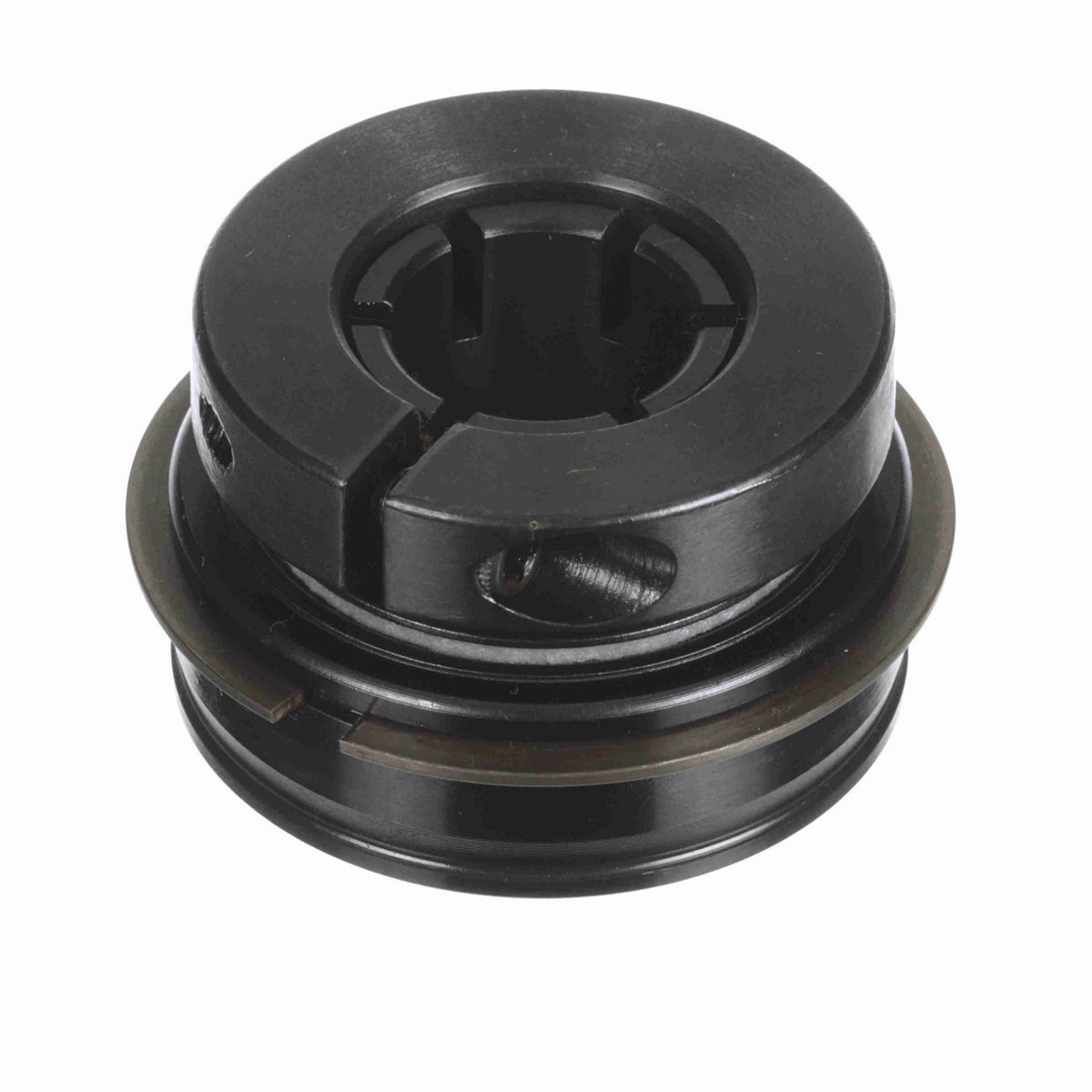

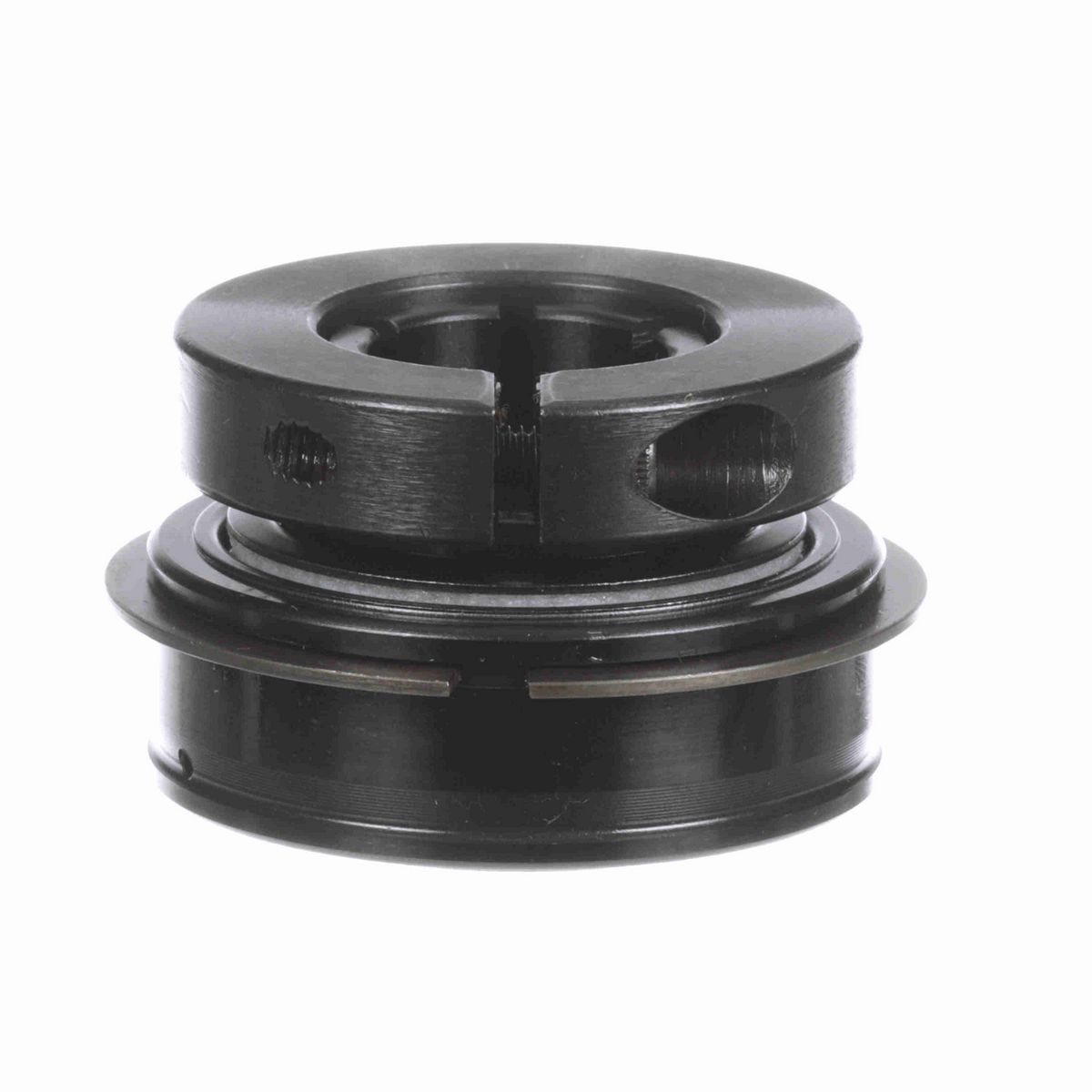

• ER style cylindrical OD bearing with snap and with black oxided bearing rings
• Skwezloc® concentric locking for near perfect concentricity
• Extra low drag seal cut down felt labyrinth seal and flinger
• Features a channeling grease that reduces drag while lubricating the bearing
• Nylon retainer to reduce overall drag

Dimensions

Overall Width (in)	1.28 in
Bore Size (in)	0.75 in
Collar OD (in)	1.8 in
Outer Race Width (in)	0.625 in
Outer Race OD (in)	1.8504 in
Centerline to Front Face (in)	0.813 in
Outer Race OD (mm)	47 mm
Inner Ring OD (in)	1.188 in
Length Through Bore (in)	1.28 in
Outer Race Width (mm)	15.9 mm

Technical Specifications

Insert Material	52100 Bearing Steel
Rolling Element	Ball Bearing
Seal Type	Cut Down Felt Labyrinth
Measure Units	Inch
Housing Type	Insert (ER Style)
Bore Shape	Straight
Set Screw Thread	10-24 UNC
Torx Cap Screw	10-24 UNC
Expansion	No
Internal Clearance	Standard
Misalignment	None
End Cap	No
Platform	Gold Line Ball Bearing
Bearing Insert Coating	Black Oxide
Outer Ring Land Profile	Tapered Lands
Options	Low Drag
Misalignment Type	Static Only
Precision Rating	ABEC 1
Cage Material	PPS - Polyphenylene Sulfide
Outer Race Profile	Cylindrical
Inner Race Profile	Wide Inner Ring
Ability to Relubricate	Yes
Series	Unmounted Replacement Bearings
Locking Type	Concentric
Inner Ring Fillet Radius (in)	0.04 in
Lubrication Type	Lithium NLGI 2 Low Torque Grease
Maximum Speed (rpm)	5800 rpm
Vibration Frequency Inner Ring Defect	0.0907 cps
Inner Race Heat Treat Method	Zone-Hardened
Vibration Frequency Roller Spin	0.0381 cps
Vibration Frequency Fundamental Train	0.0066 cps
Size Code	2-012
Setscrew Torque (in-lbs)	70 in/lbs
Duty/Status	Standard
Vibration Frequency Outer Ring Defect	0.0593 cps
Maximum Operating Temperature (F)	220 °F
Dynamic Load Rating (lb)	2,611 lb
Static Load Rating (lb)	1,444 lb
Cage Type	Land Riding Retainer

General Specifications

UPC	662461258798
Weight	0.55 LB
Packaged Length	2.38 IN
Packaged Width	1.44 IN
Packaged Height	2.38 IN
HTC	8482.10.5048
Country of Origin	Mexico
