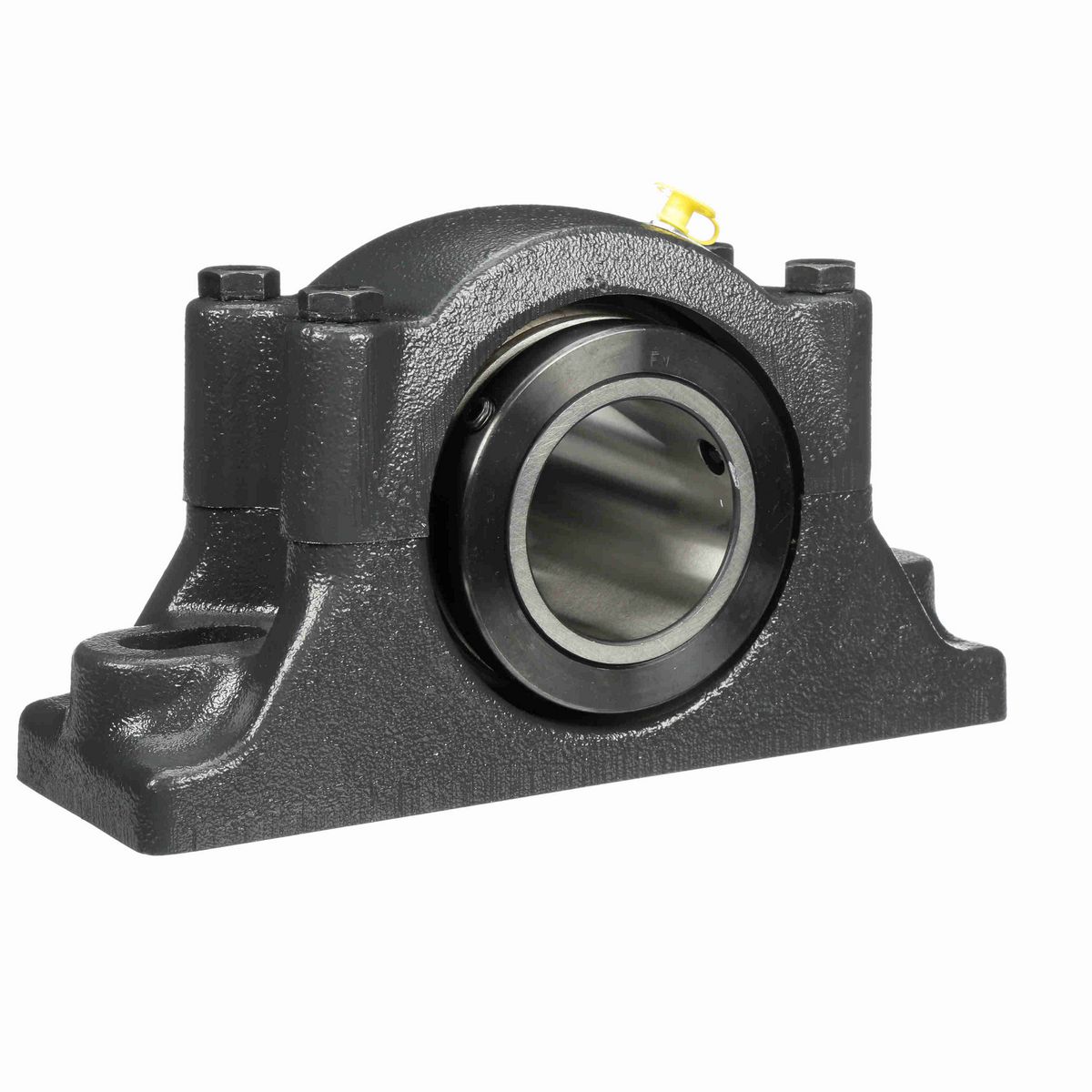

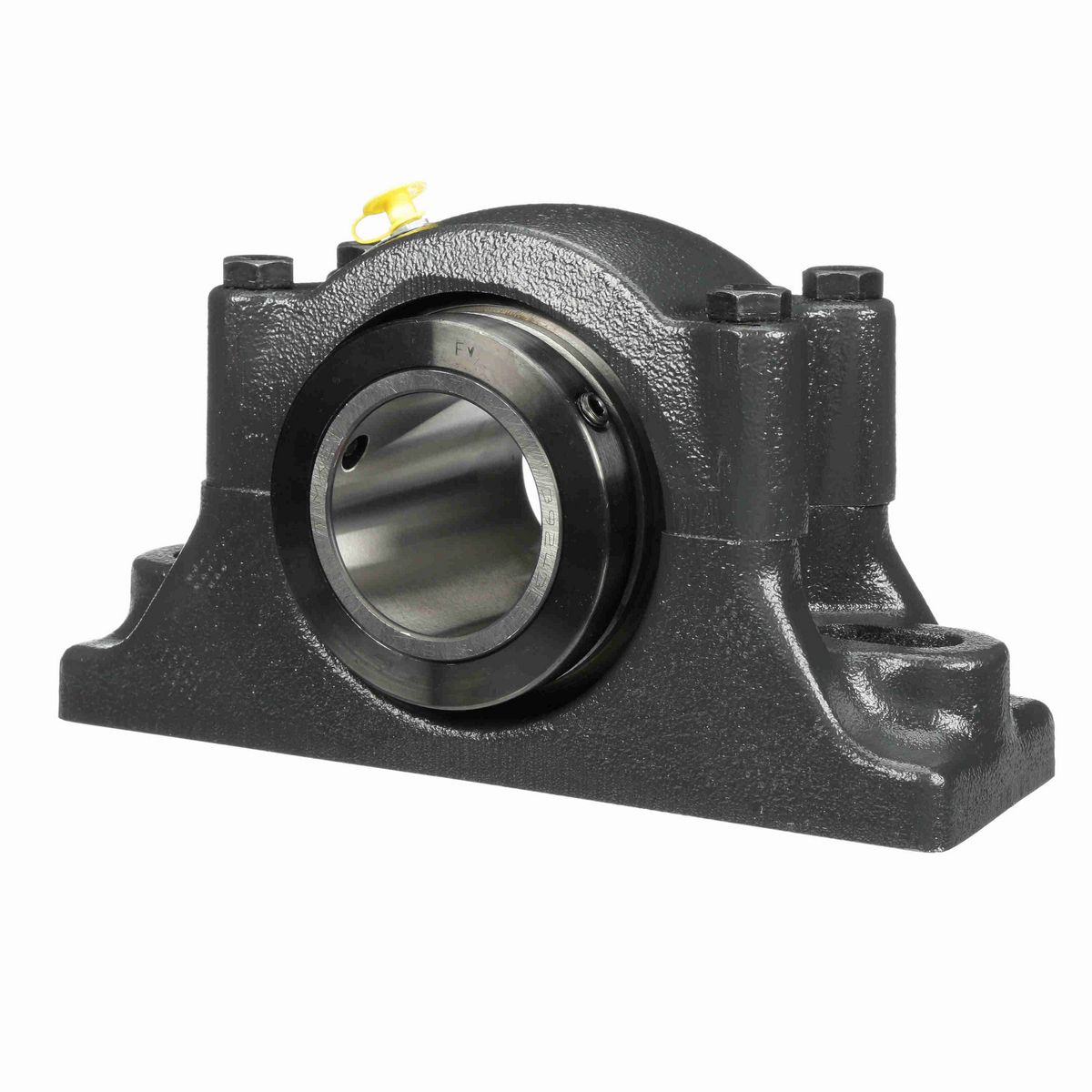

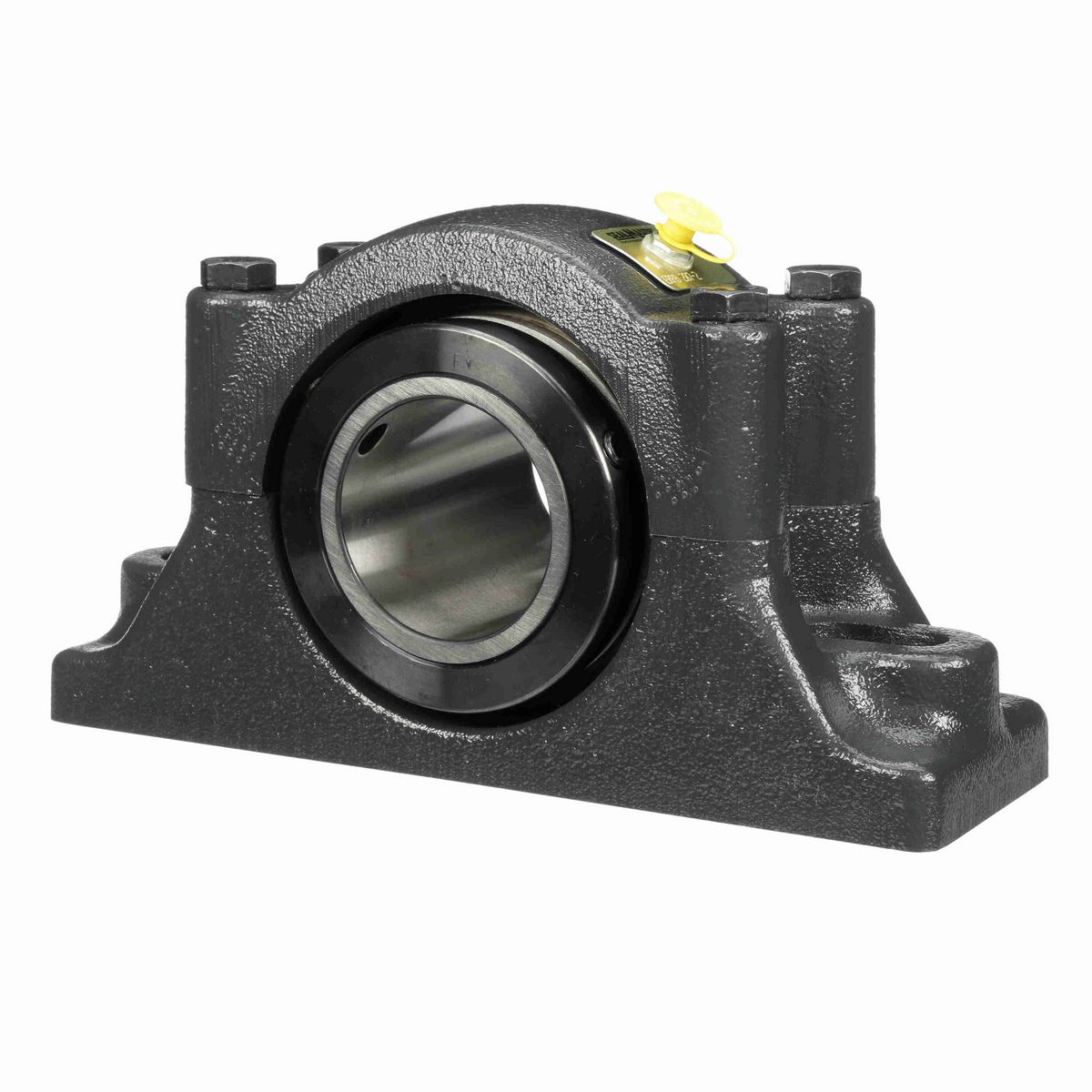

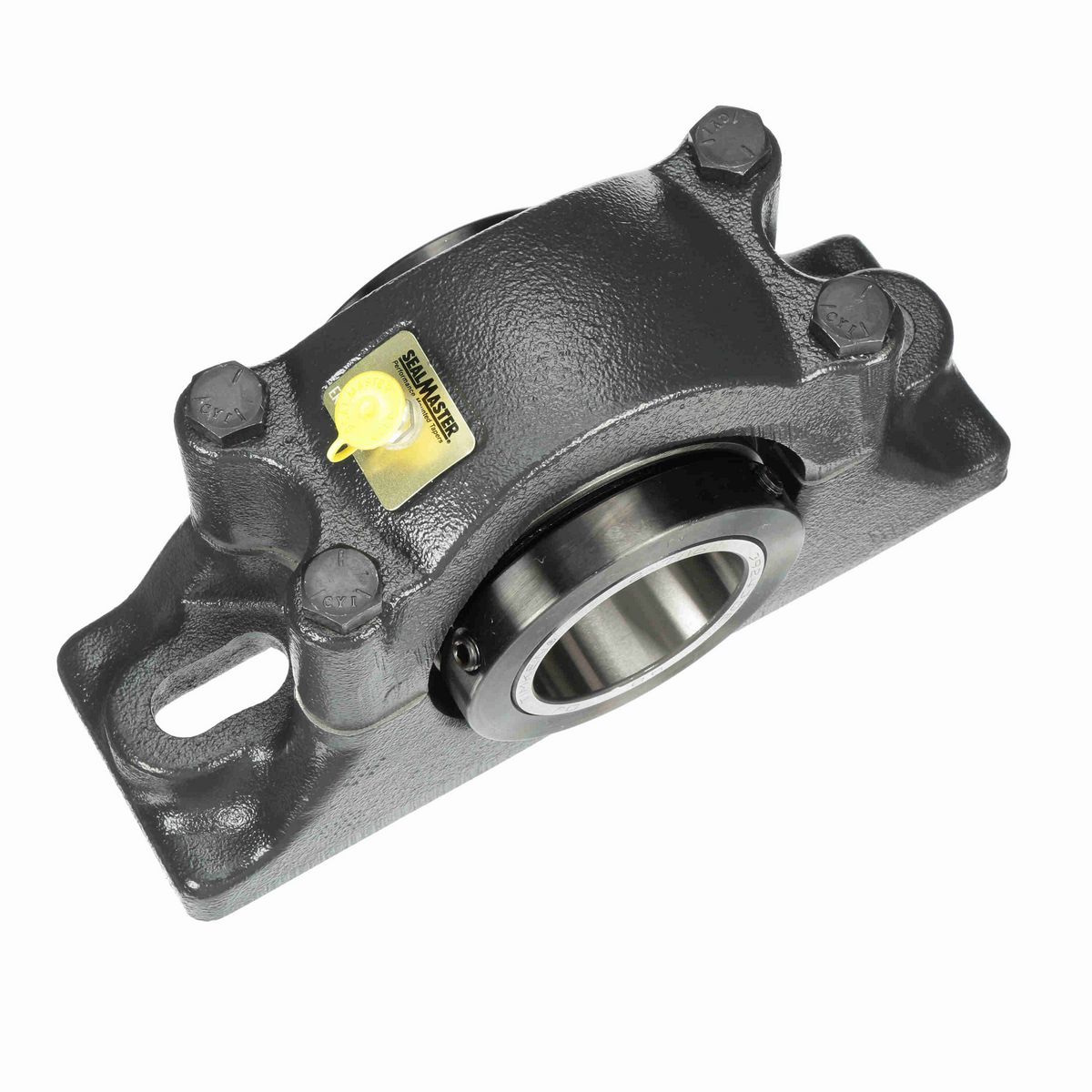

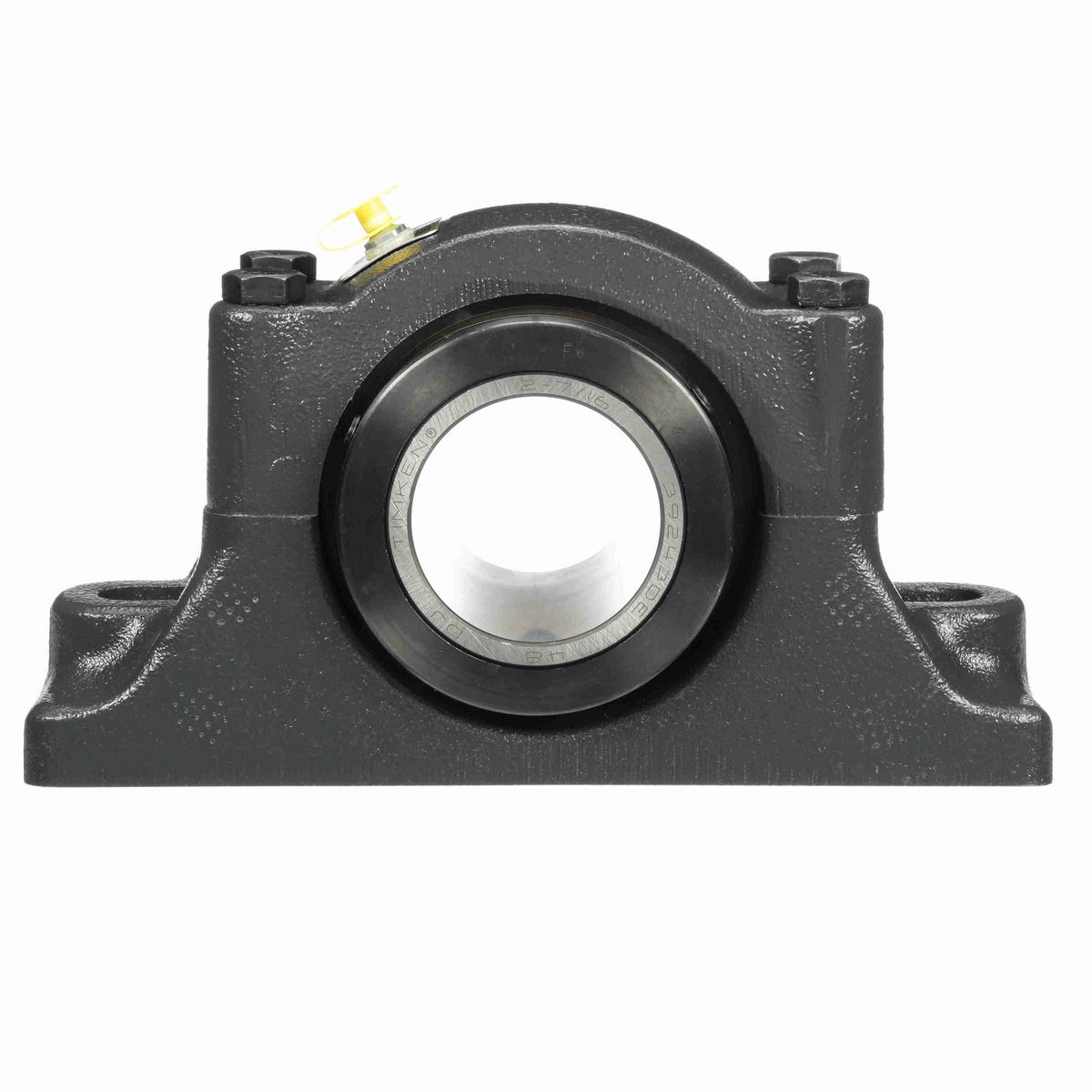

• Heavy duty tapered roller bearings with steel cage for radial, thrust and combined loading
• Race-mounted felt-lined flinger seal
• Double-collar interlock with 120° spacing setscrew lock, diamond faceted setscrews
• Powder coat epoxy 2-bolt split cast iron housing

Dimensions

Overall Length (in)	10.375 in
Overall Height (in)	5.75 in
Base Width (in)	3.406 in
Overall Width (in)	4 in
Bolt Size (in)	0.625 in
Bore Size (in)	2.4375 in
Bolt Center Max (in)	8.688 in
Base to Center Height (in)	2.75 in
Centerline to Front Face (in)	2 in
Inner Race Length (in)	4 in
Foot Height (in)	1.625 in
Bolt Center Min (in)	6.938 in
Collar Outer Diameter (in)	3.938 in

Technical Specifications

Insert Material	52100 Bearing Steel
Measure Units	Inch
Rolling Element	Tapered Roller
Expansion	Yes
Housing Type	Pillow Block, Two Bolt
Housing Material	Cast Iron
Seal Type	Felt Labyrinth Seal
Housing Base	Solid
Housing Construction	Split Two Piece
Radial Dynamic Load Capacity (lb)	9,030 lb
Bore Shape	Straight
Locking Type	Double Collar Mount
Misalignment	±3.0° Misalignment - Static Only
Speed (Max)	2000
Internal Clearance	Standard
Outer Ring Land Profile	Standard
Replaceable Insert	Yes
Housing Color	Gray
Misalignment Type	Static Only
Platform	RPB Series
Retainer Material	Steel
End Cap	No
Bearing Insert Coating	Uncoated
Series	ERPB
Grease Fitting Thread Size	1/8 NPT
Insert Number	ERCI-207
Duty/Series	Standard
Maximum Operating Temperature (F)	220 °F
Inner Race Heat Treat Method	Case Carburized Inner Ring
Housing Style	Pillow Block
Ability to Relubricate	Yes
Lubrication Type	Lithium; EP; NLGI#2

General Specifications

UPC	662288481133
Weight	24.95 LB
Packaged Length	10.50 IN
Packaged Width	5.88 IN
Packaged Height	4.13 IN
HTC	8483.20.8080
Country of Origin	United States of America
