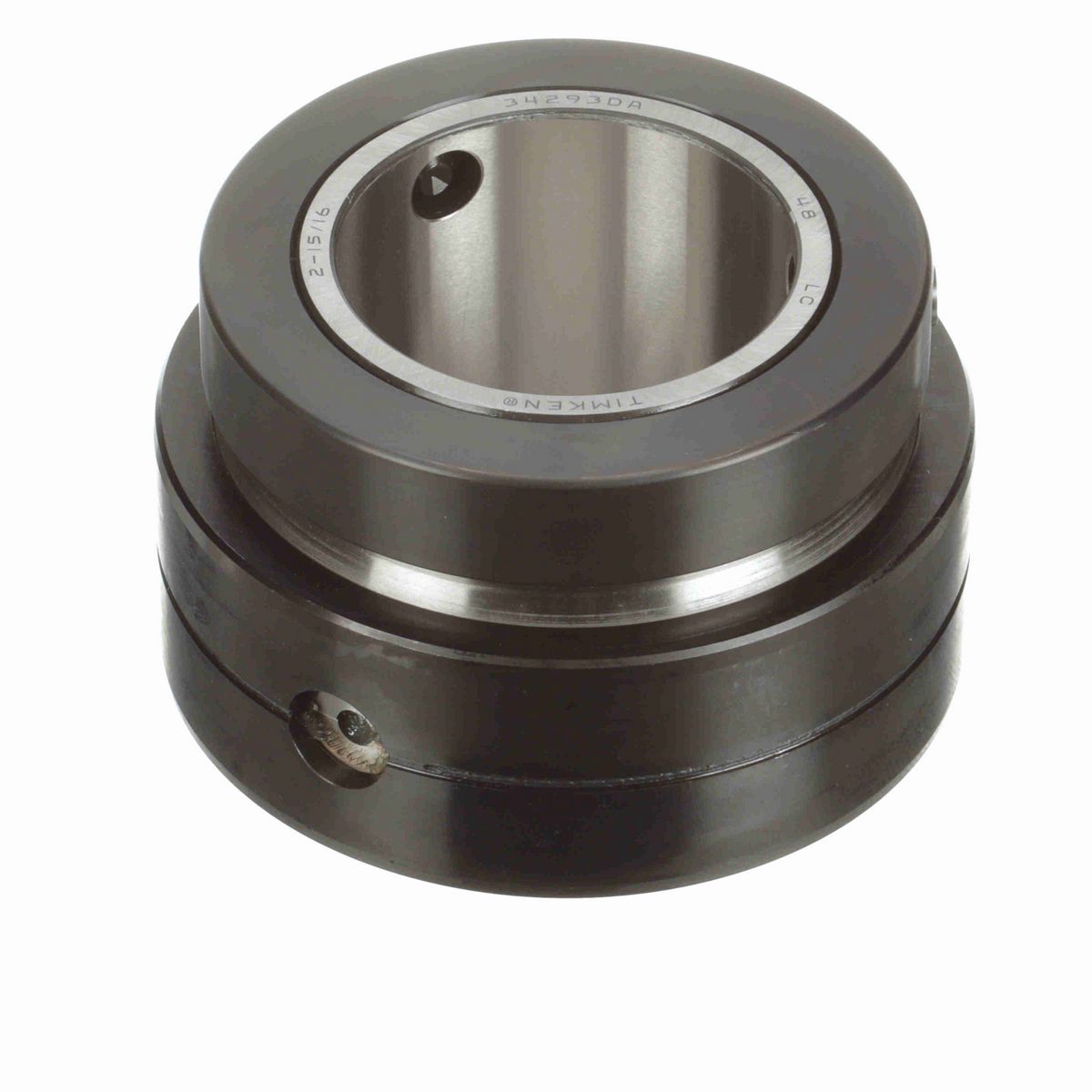

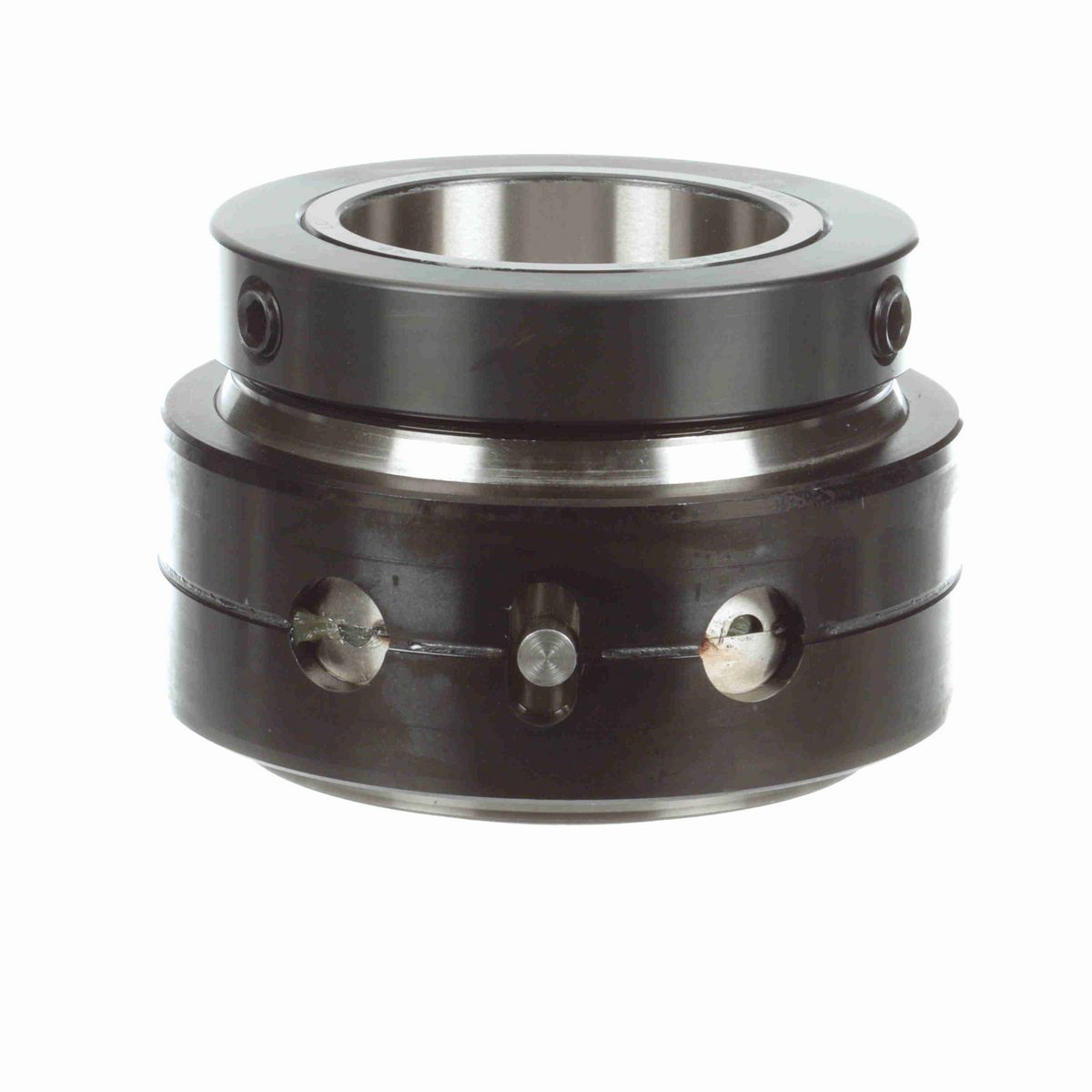

• Heavy duty tapered roller bearings with steel cage for radial, thrust and combined loading
• Race-mounted felt-lined flinger seal
• Single-collar interlock with 120° spacing setscrew lock, diamond faceted setscrews

Dimensions

Overall Width (in)	3.69 in
Bore Size (in)	2.9375 in
Collar OD (in)	4.75 in
Outer Race Width (in)	2.5 in
Outer Race OD (in)	5.376 in

Technical Specifications

Housing Type	Insert Only
Insert Material	52100 Bearing Steel
Measure Units	Inch
Rolling Element	Tapered Roller
Bore Shape	Straight
Radial Dynamic Load Capacity (lb)	9,630 lb
Speed (Max) (RPM)	1750 rpm
Internal Clearance	Standard
Misalignment	±3.0° Misalignment - Static Only
Outer Ring Land Profile	Standard
End Cap	No
Bearing Insert Coating	Uncoated
Retainer Material	Steel
Misalignment Type	Static Only
Platform	RPB Series
Outer Race Profile	Cylindrical
Inner Race Profile	Wide Inner Ring
Inner Race Heat Treat Method	Case Carburized Inner Ring
Fixed vs. Expansion	No
Ability to Relubricate	Yes
Maximum Operating Temperature (F)	220 °F
Locking Type	Collar Mount
Duty/Series	Standard
Type of Seal	Felt Labyrinth Seal
Lubrication Type	Lithium; EP; NLGI#2

General Specifications

UPC	662288575467
Weight	11.58 LB
Packaged Length	7.25 IN
Packaged Width	7.25 IN
Packaged Height	5.50 IN
HTC	8482.20.0061
Country of Origin	United States of America
