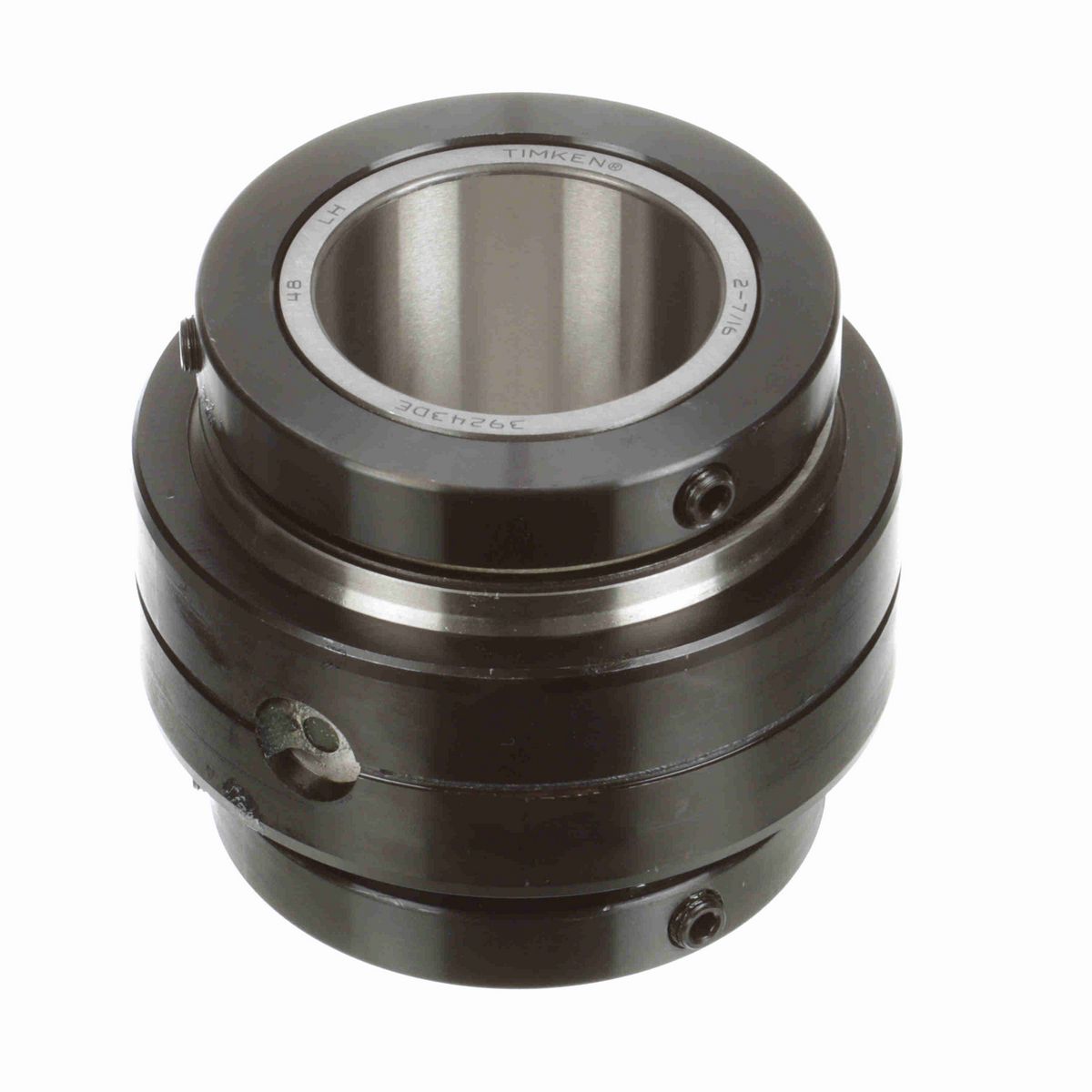

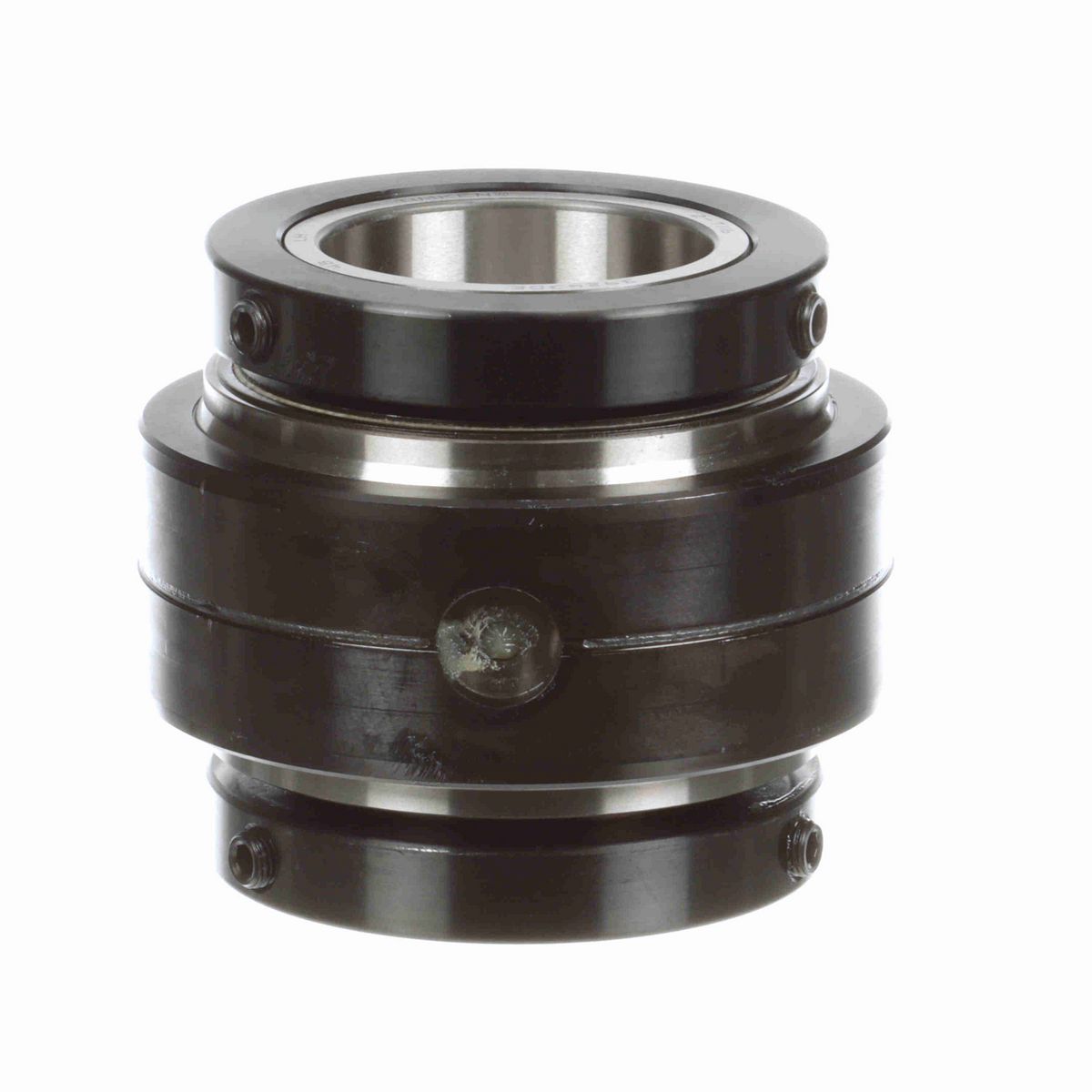

• Heavy duty tapered roller bearings with steel cage for radial, thrust and combined loading
• Race-mounted felt-lined flinger seal
• Double-collar interlock with 120° spacing setscrew lock, diamond faceted setscrews

Dimensions

Overall Width (in)	4 in
Bore Size (in)	2.4375 in
Collar OD (in)	3.94 in
Outer Race OD (in)	4.782 in
Outer Race Width (in)	2.38 in

Technical Specifications

Bore Shape	Straight
Insert Material	52100 Bearing Steel
Rolling Element	Tapered Roller
Housing Type	Insert Only
Measure Units	Inch
Radial Dynamic Load Capacity (lb)	9,030 lb
Speed (Max) (RPM)	2000 rpm
Misalignment	±3.0° Misalignment - Static Only
Internal Clearance	Standard
Bearing Insert Coating	Uncoated
Misalignment Type	Static Only
Platform	RPB Series
Outer Ring Land Profile	Standard
Retainer Material	Steel
End Cap	No
Outer Race Profile	Cylindrical
Inner Race Profile	Wide Inner Ring
Locking Type	Double Collar Mount
Inner Race Heat Treat Method	Case Carburized Inner Ring
Duty/Series	Standard
Maximum Operating Temperature (F)	220 °F
Fixed vs. Expansion	No
Ability to Relubricate	Yes
Lubrication Type	Lithium; EP; NLGI#2
Type of Seal	Felt Labyrinth Seal

General Specifications

UPC	662288479765
Weight	10.00 LB
Packaged Length	7.25 IN
Packaged Width	7.25 IN
Packaged Height	5.50 IN
HTC	8482.20.0061
Country of Origin	United States of America
