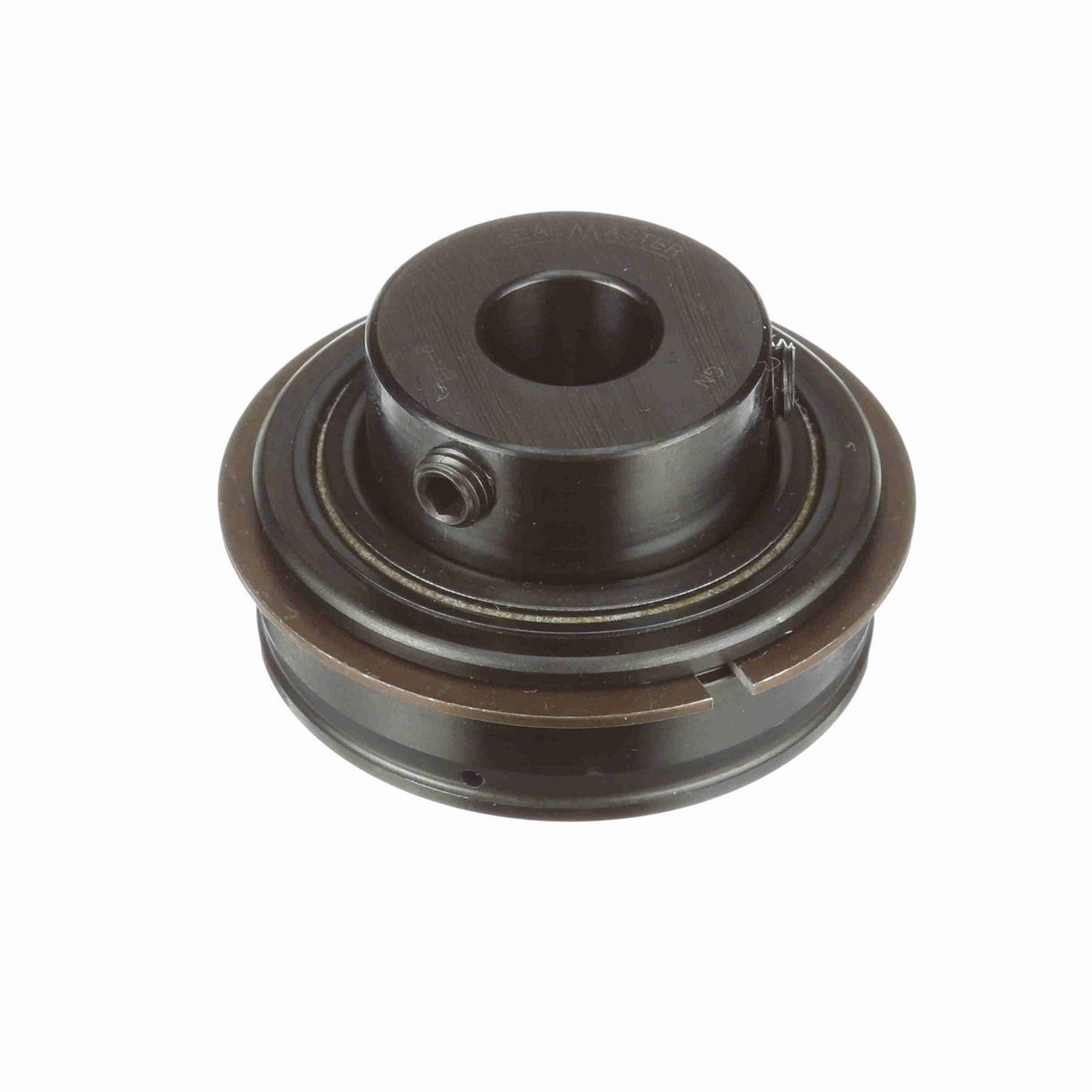

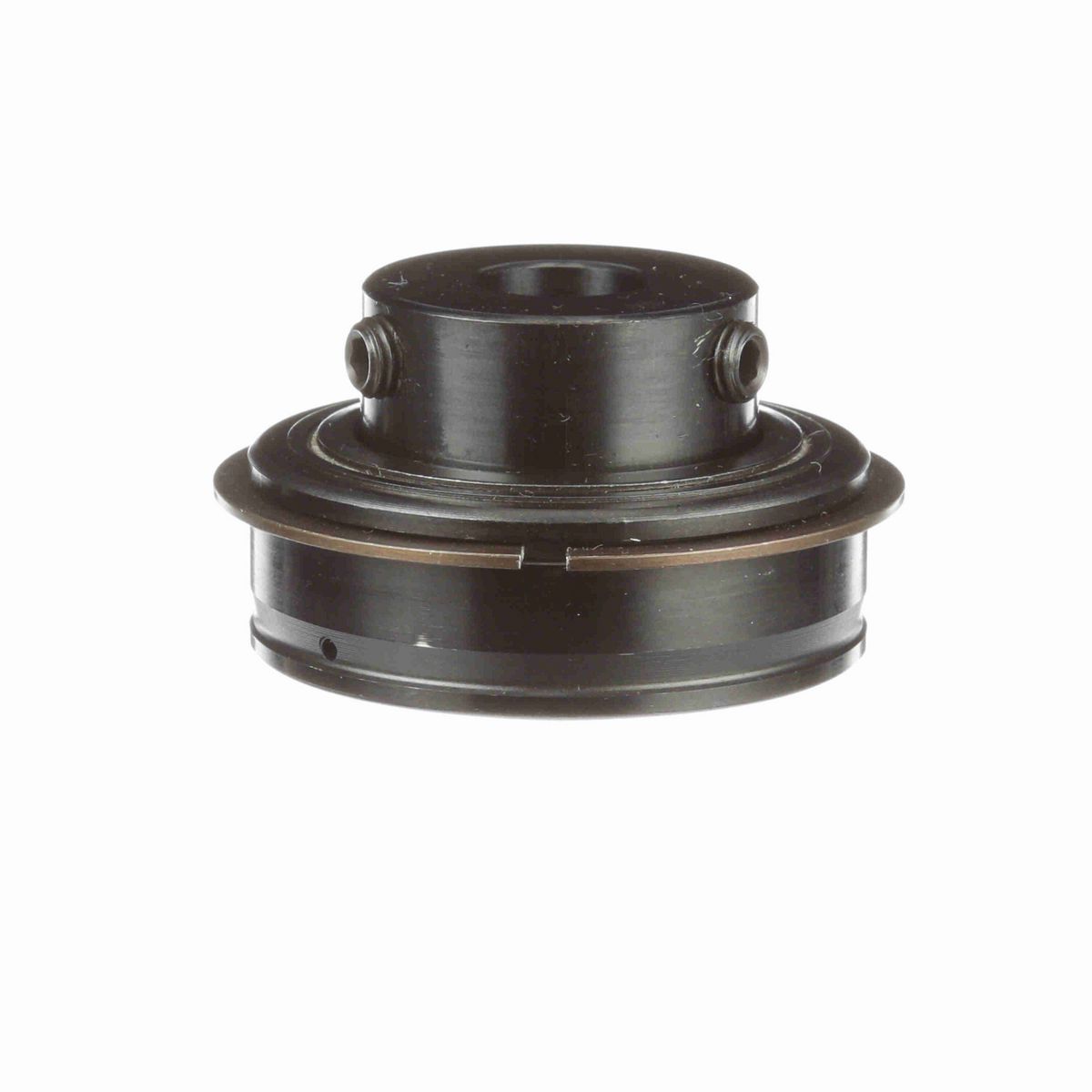

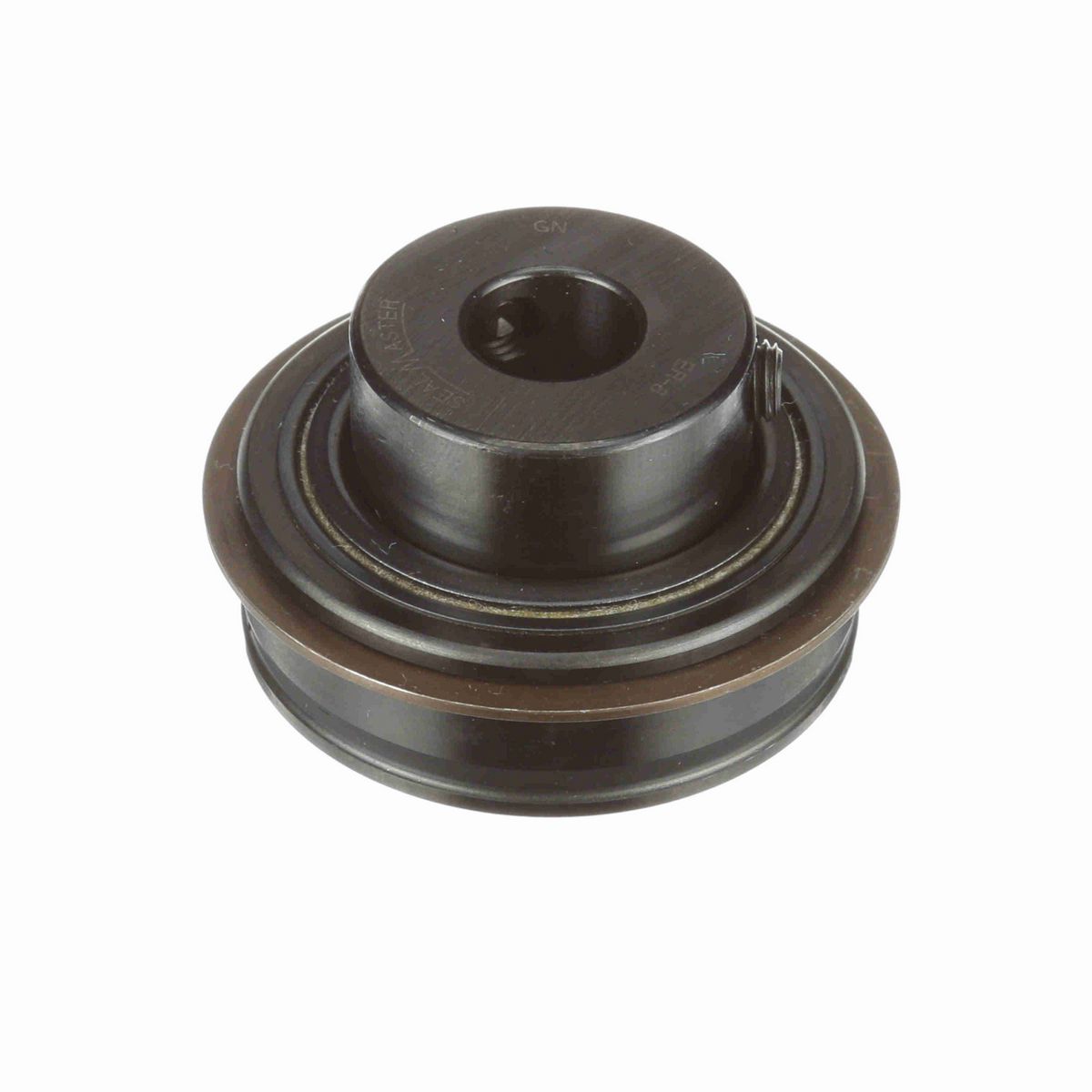

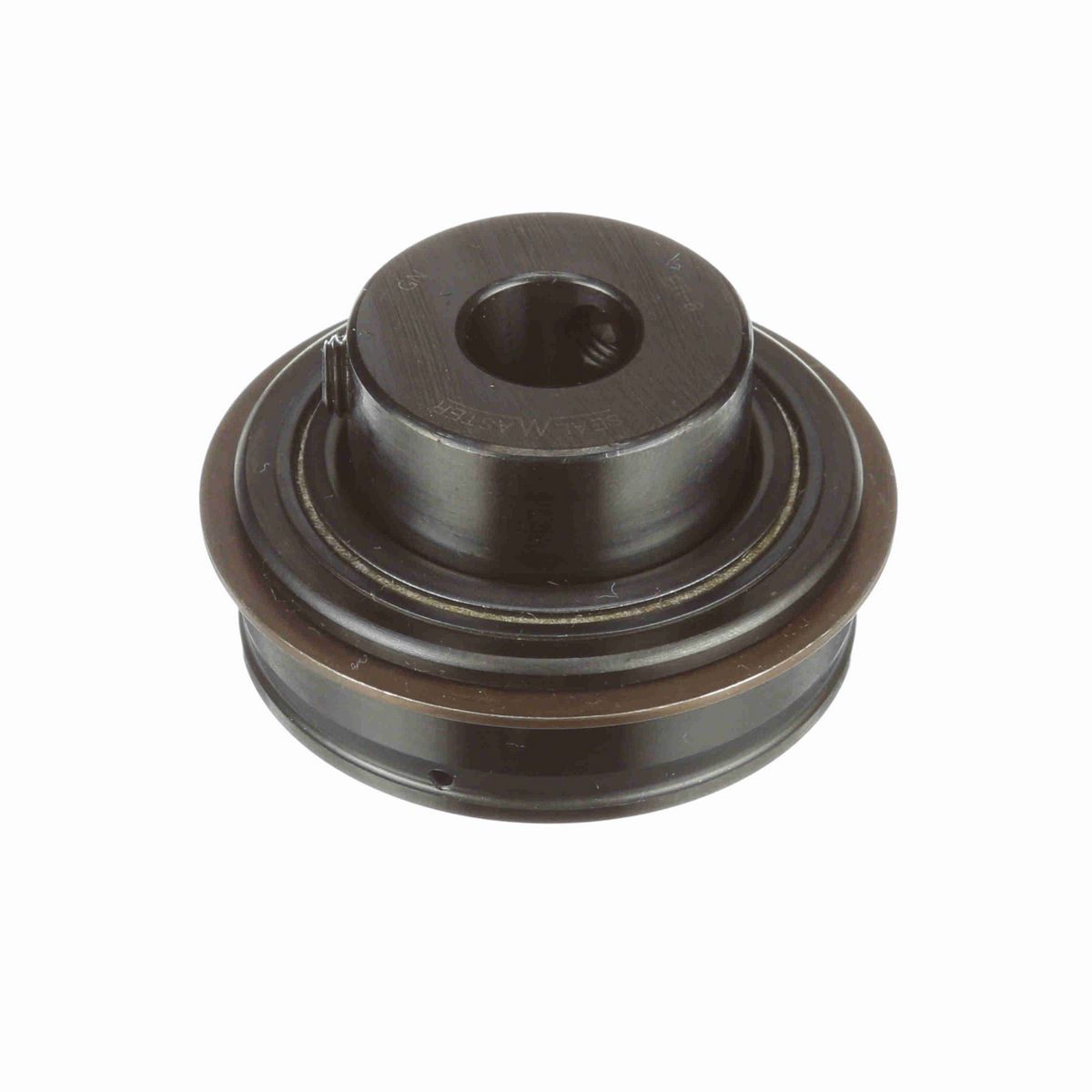

• ER style cylindrical OD bearing with snap and with black oxided bearing rings
• Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Overall Width (in)	1.22 in
Bore Size (in)	0.5 in
Inner Ring OD (in)	1.188 in
Centerline to Front Face (in)	0.813 in
Outer Race OD (in)	1.8504 in
Outer Race OD (mm)	47 mm
Outer Race Width (in)	0.625 in
Length Through Bore (in)	1.219 in
Outer Race Width (mm)	15.9 mm

Technical Specifications

Insert Material	52100 Bearing Steel
Set Screw Thread	1/4-28 UNF
Seal Type	Felt Labyrinth Seal
Rolling Element	Ball Bearing
Bore Shape	Straight
Measure Units	Inch
Housing Type	Insert (ER Style)
Misalignment	None
Expansion	No
Internal Clearance	Standard
Misalignment Type	Static Only
Outer Ring Land Profile	Tapered Lands
End Cap	No
Bearing Insert Coating	Black Oxide
Platform	Gold Line Ball Bearing
Precision Rating	ABEC 1
Cage Material	PPS - Polyphenylene Sulfide
Outer Race Profile	Cylindrical
Inner Race Profile	Wide Inner Ring
Maximum Operating Temperature (F)	220 °F
Size Code	2-012
Duty/Status	Standard
Locking Type	Set Screw
Inner Race Heat Treat Method	Zone-Hardened
Inner Ring Fillet Radius (in)	0.04 in
Vibration Frequency Fundamental Train	0.0066 cps
Maximum Speed (rpm)	7300 rpm
Setscrew Torque (in-lbs)	65-85 in/lbs
Vibration Frequency Roller Spin	0.0381 cps
Ability to Relubricate	Yes
Vibration Frequency Inner Ring Defect	0.0907 cps
Lubrication Type	Lithium Complex NLGI 2 Grease
Series	Unmounted Replacement Bearings
Vibration Frequency Outer Ring Defect	0.0593 cps
Cage Type	Land Riding Retainer
Dynamic Load Rating (lb)	2,611 lb
Static Load Rating (lb)	1,444 lb

General Specifications

UPC	662461008478
Weight	0.55 LB
Packaged Length	2.38 IN
Packaged Width	1.44 IN
Packaged Height	2.38 IN
HTC	8482.10.5048
Country of Origin	Mexico
