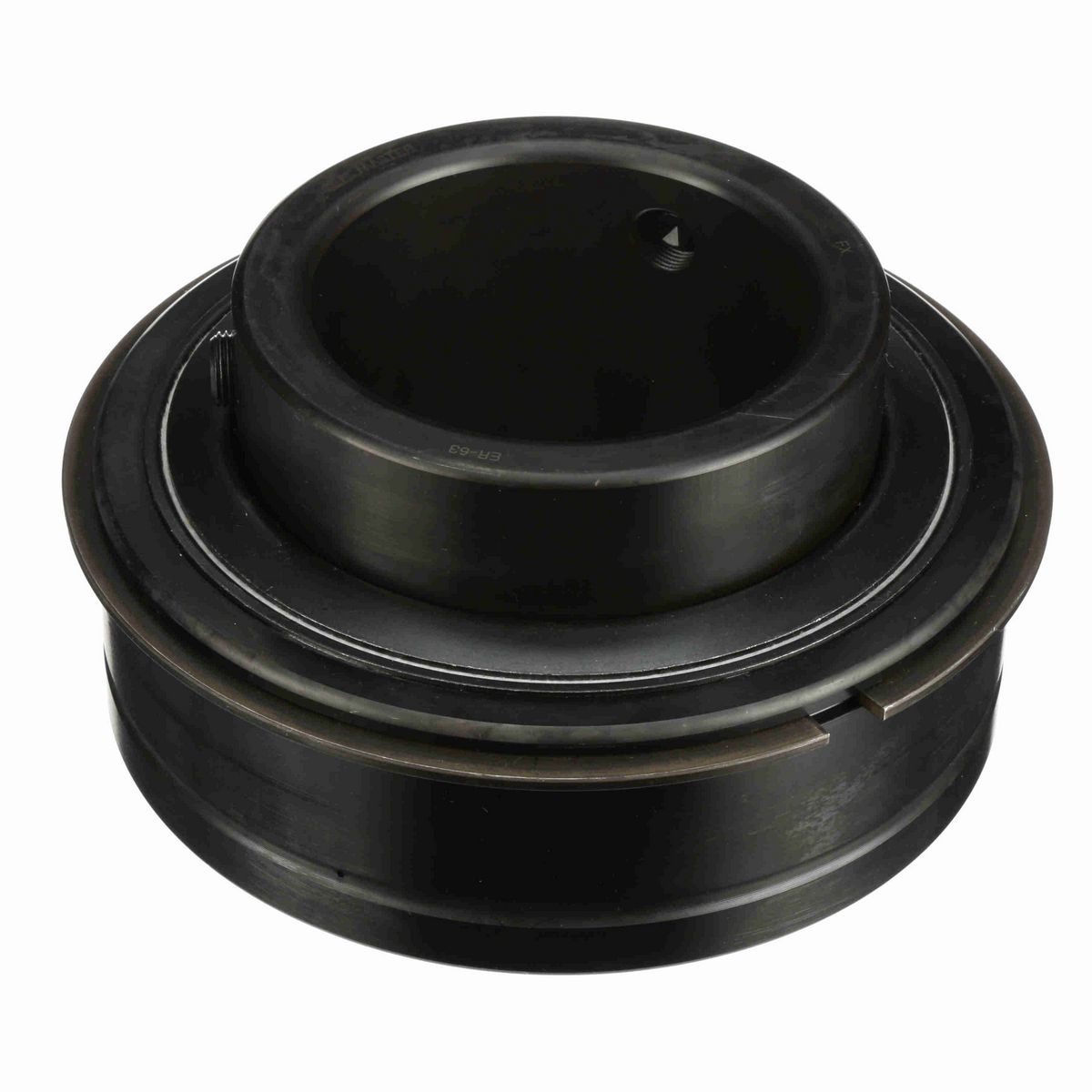

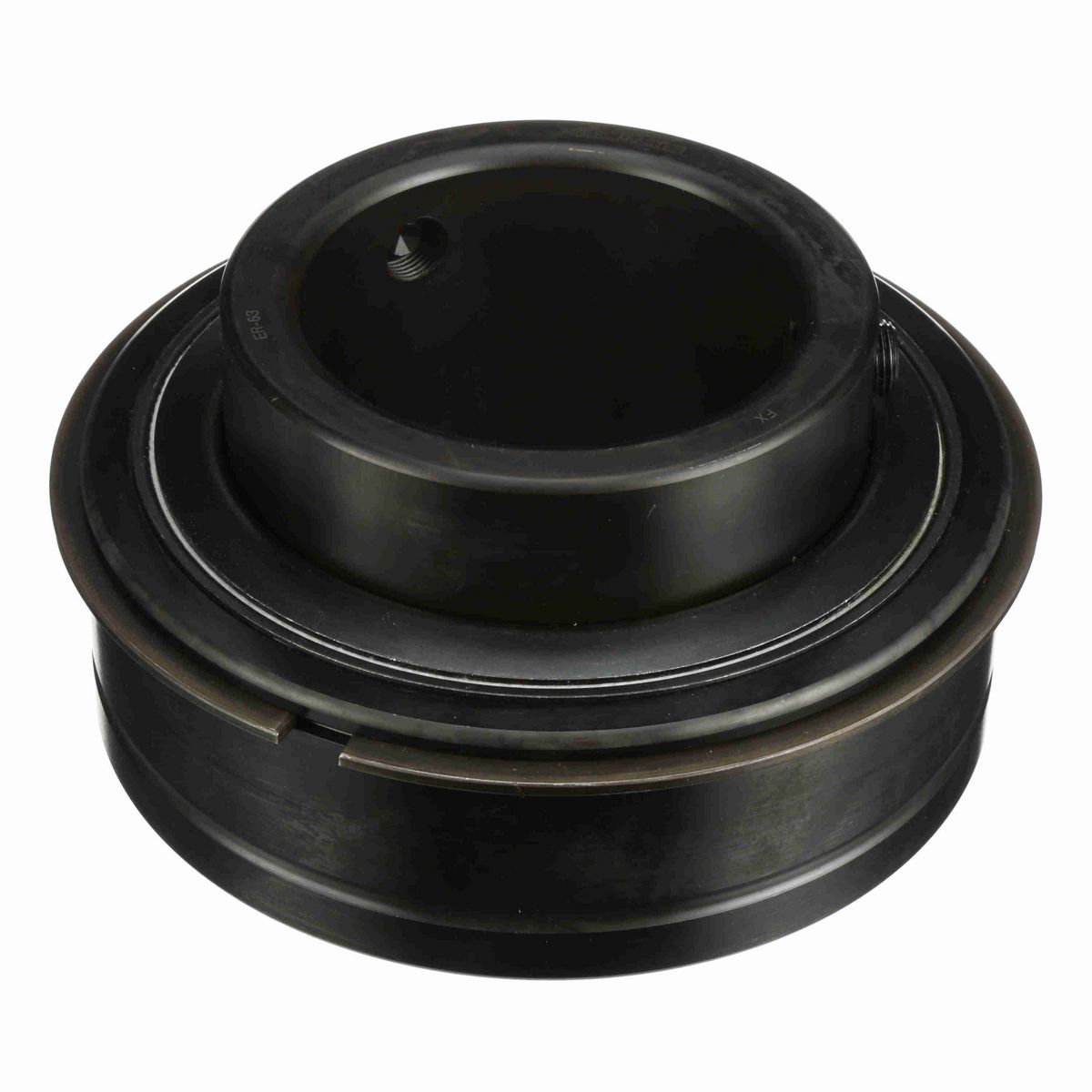

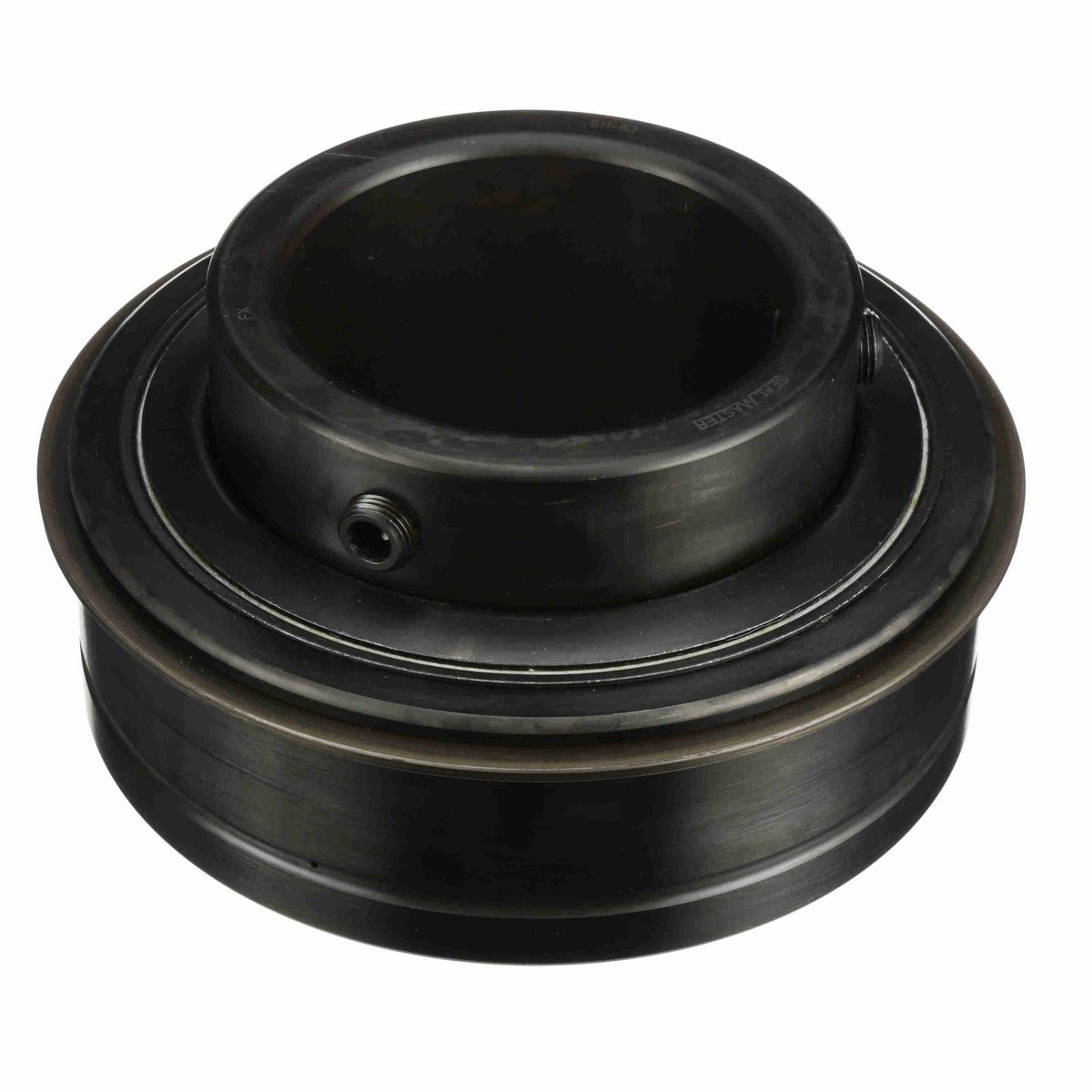

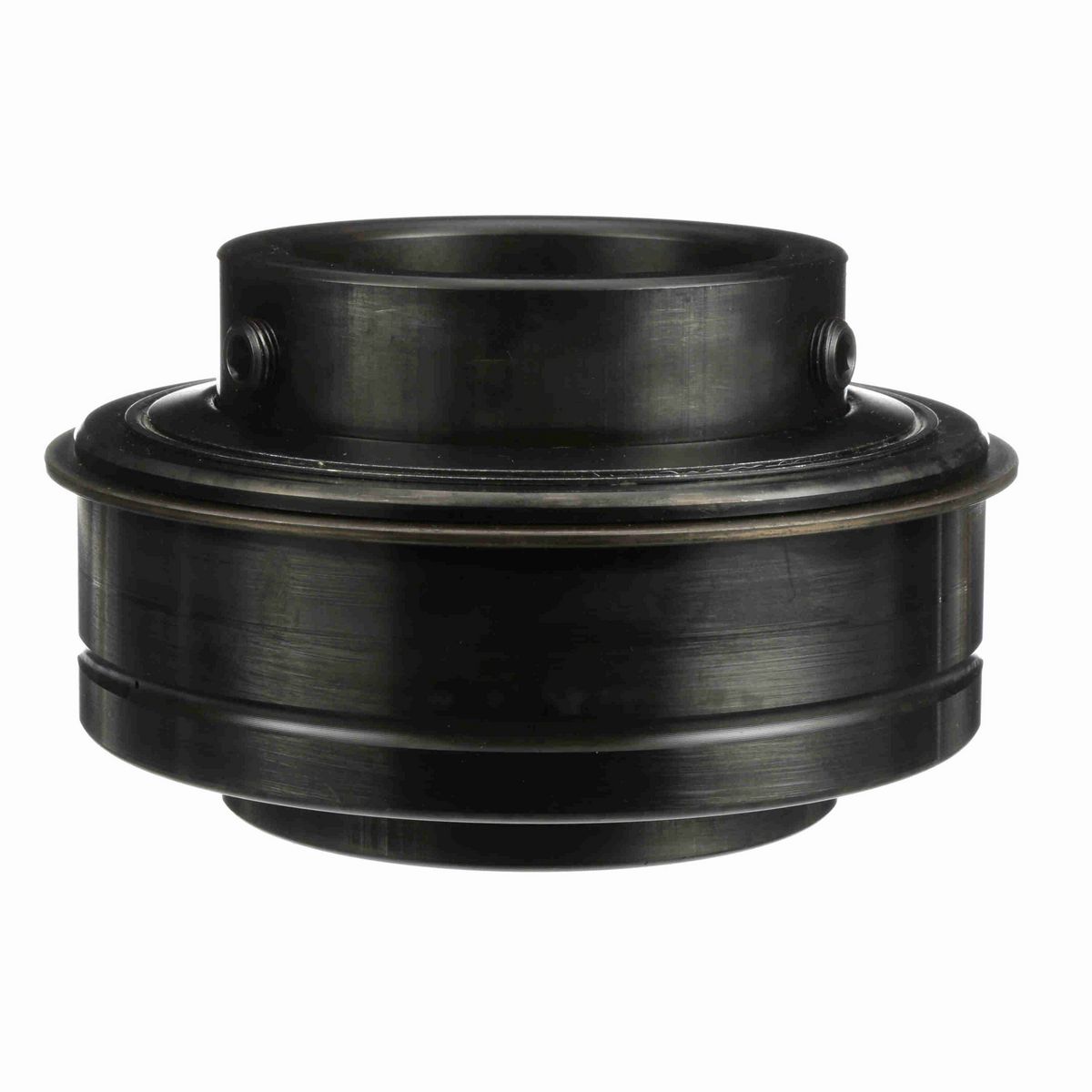

• ER style cylindrical OD bearing with snap and with black oxided bearing rings
• Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Overall Width (in)	4.63 in
Bore Size (in)	3.9375 in
Outer Race OD (mm)	190 mm
Outer Race Width (in)	2.5 in
Inner Ring OD (in)	5.172 in
Outer Race OD (in)	7.4803 in
Centerline to Front Face (in)	2.688 in
Length Through Bore (in)	4.625 in
Outer Race Width (mm)	63.5 mm

Technical Specifications

Bore Shape	Straight
Housing Type	Insert (ER Style)
Set Screw Thread	5/8-18 UNF
Insert Material	52100 Bearing Steel
Rolling Element	Ball Bearing
Measure Units	Inch
Seal Type	Felt Labyrinth Seal
Expansion	No
Internal Clearance	Standard
Misalignment	None
End Cap	No
Misalignment Type	Static Only
Outer Ring Land Profile	Standard
Bearing Insert Coating	Black Oxide
Platform	Gold Line Ball Bearing
Precision Rating	ABEC 1
Cage Material	Brass
Outer Race Profile	Cylindrical
Inner Race Profile	Wide Inner Ring
Series	Unmounted Replacement Bearings
Vibration Frequency Inner Ring Defect	0.0986 cps
Inner Ring Fillet Radius (in)	0.12 in
Duty/Status	Standard
Lubrication Type	Lithium Complex NLGI 2 Grease
Vibration Frequency Roller Spin	0.044 cps
Vibration Frequency Outer Ring Defect	0.0681 cps
Maximum Speed (rpm)	1700 rpm
Locking Type	Set Screw
Ability to Relubricate	Yes
Setscrew Torque (in-lbs)	1100-1400 in/lbs
Size Code	2-43
Maximum Operating Temperature (F)	220 °F
Inner Race Heat Treat Method	Zone-Hardened
Vibration Frequency Fundamental Train	0.0068 cps
Static Load Rating (lb)	23,553 lb
Dynamic Load Rating (lb)	29,905 lb
Cage Type	Land Riding Retainer

General Specifications

UPC	662461008959
Weight	22.30 LB
Packaged Length	7.88 IN
Packaged Width	7.75 IN
Packaged Height	4.69 IN
HTC	8482.10.5056
Country of Origin	United States of America
