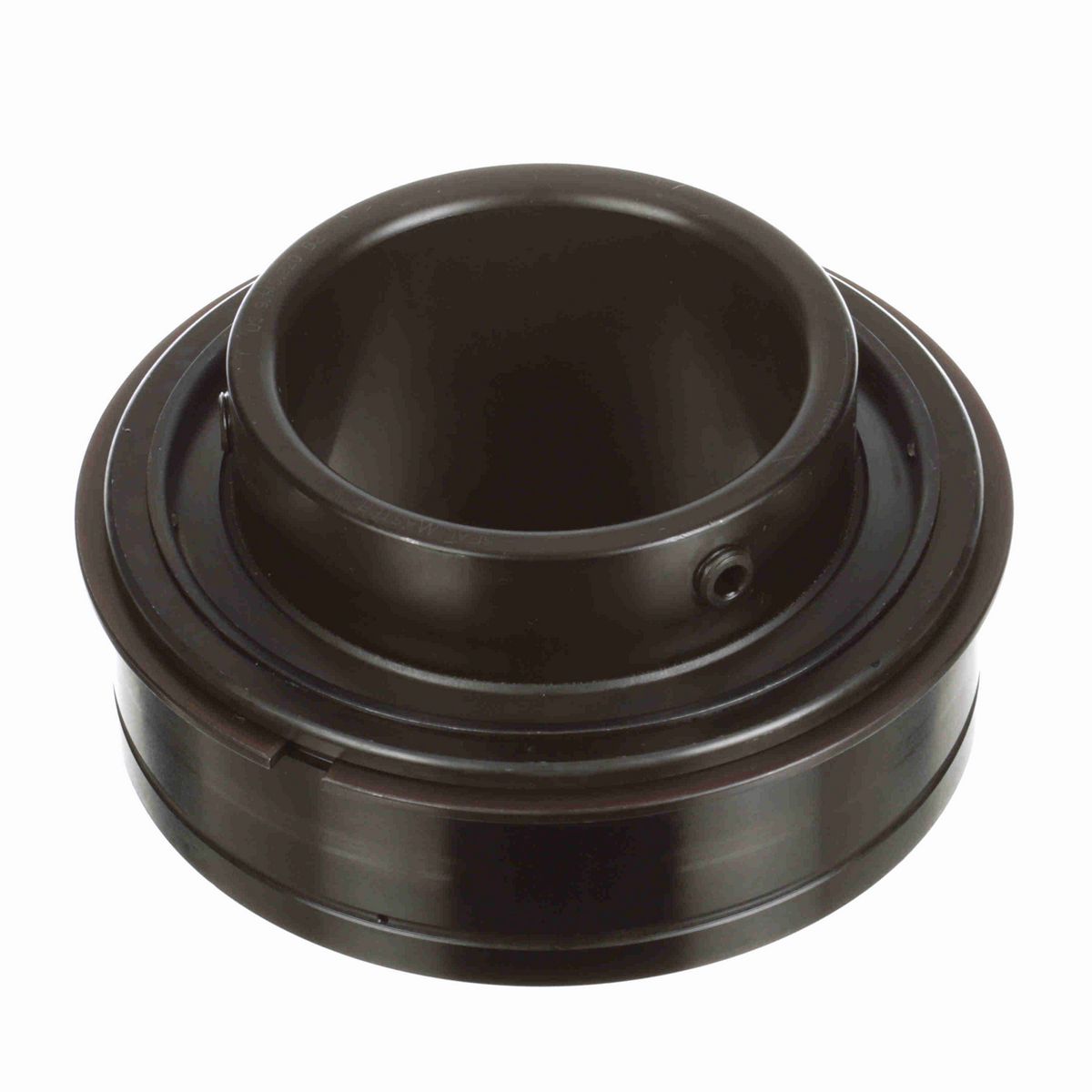

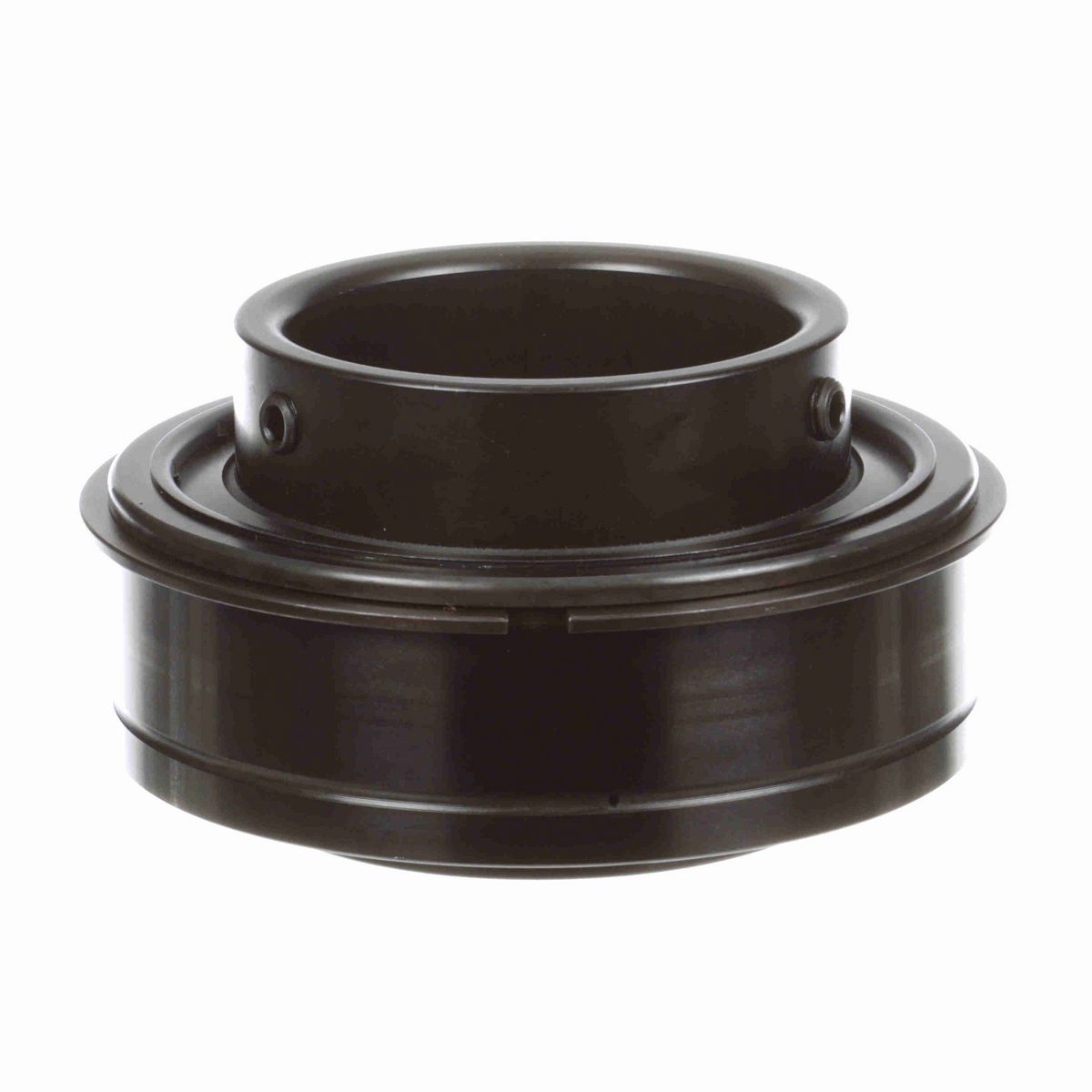

• ER style cylindrical OD bearing with snap and with black oxided bearing rings
• Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Overall Width (in)	3.38 in
Bore Size (in)	3.4375 in
Outer Race OD (in)	5.9055 in
Inner Ring OD (in)	4.156 in
Outer Race OD (mm)	150 mm
Centerline to Front Face (in)	2.031 in
Outer Race Width (in)	1.938 in
Length Through Bore (in)	3.375 in
Outer Race Width (mm)	49.2 mm

Technical Specifications

Rolling Element	Ball Bearing
Insert Material	52100 Bearing Steel
Bore Shape	Straight
Seal Type	Single Lip Contact Seal
Measure Units	Inch
Set Screw Thread	7/16-20 UNF
Housing Type	Insert (ER Style)
Misalignment	None
Expansion	No
Internal Clearance	Standard
End Cap	No
Outer Ring Land Profile	Standard
Platform	Gold Line Ball Bearing
Misalignment Type	Static Only
Bearing Insert Coating	Black Oxide
Cage Material	Brass
Precision Rating	ABEC 1
Outer Race Profile	Cylindrical
Inner Race Profile	Wide Inner Ring
Lubrication Type	Lithium Complex NLGI 2 Grease
Maximum Speed (rpm)	1850 rpm
Maximum Operating Temperature (F)	220 °F
Inner Race Heat Treat Method	Zone-Hardened
Vibration Frequency Outer Ring Defect	0.0762 cps
Vibration Frequency Inner Ring Defect	0.1071 cps
Size Code	2-37
Inner Ring Fillet Radius (in)	0.12 in
Vibration Frequency Roller Spin	0.0479 cps
Vibration Frequency Fundamental Train	0.0069 cps
Series	Unmounted Replacement Bearings
Duty/Status	Standard
Ability to Relubricate	Yes
Locking Type	Set Screw
Setscrew Torque (in-lbs)	350-450 in/lbs
Dynamic Load Rating (lb)	18,681 lb
Static Load Rating (lb)	14,496 lb
Cage Type	Land Riding Retainer

General Specifications

UPC	662461025116
Weight	9.50 LB
Packaged Length	6.00 IN
Packaged Width	6.00 IN
Packaged Height	4.00 IN
HTC	8482.10.5056
Country of Origin	United States of America
