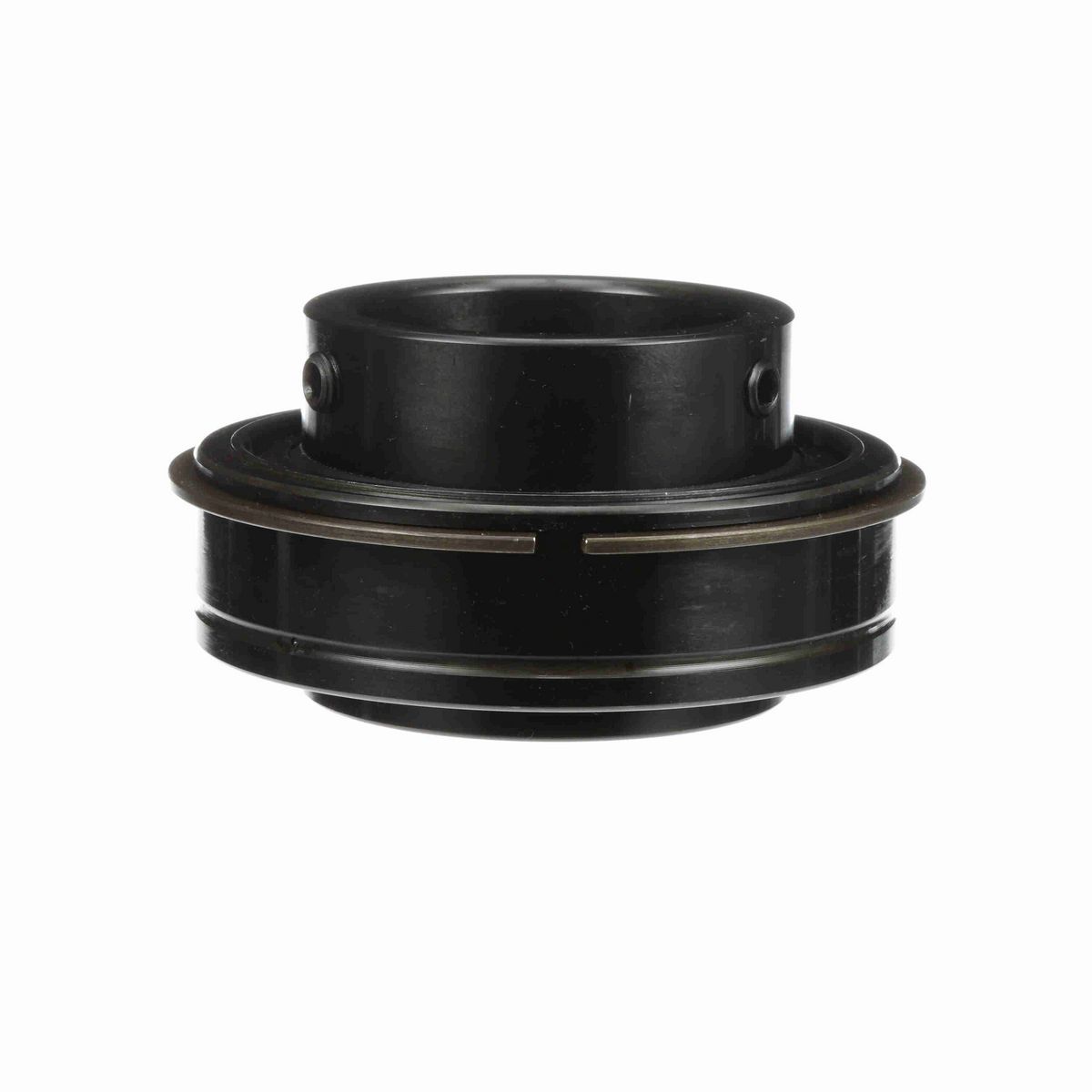

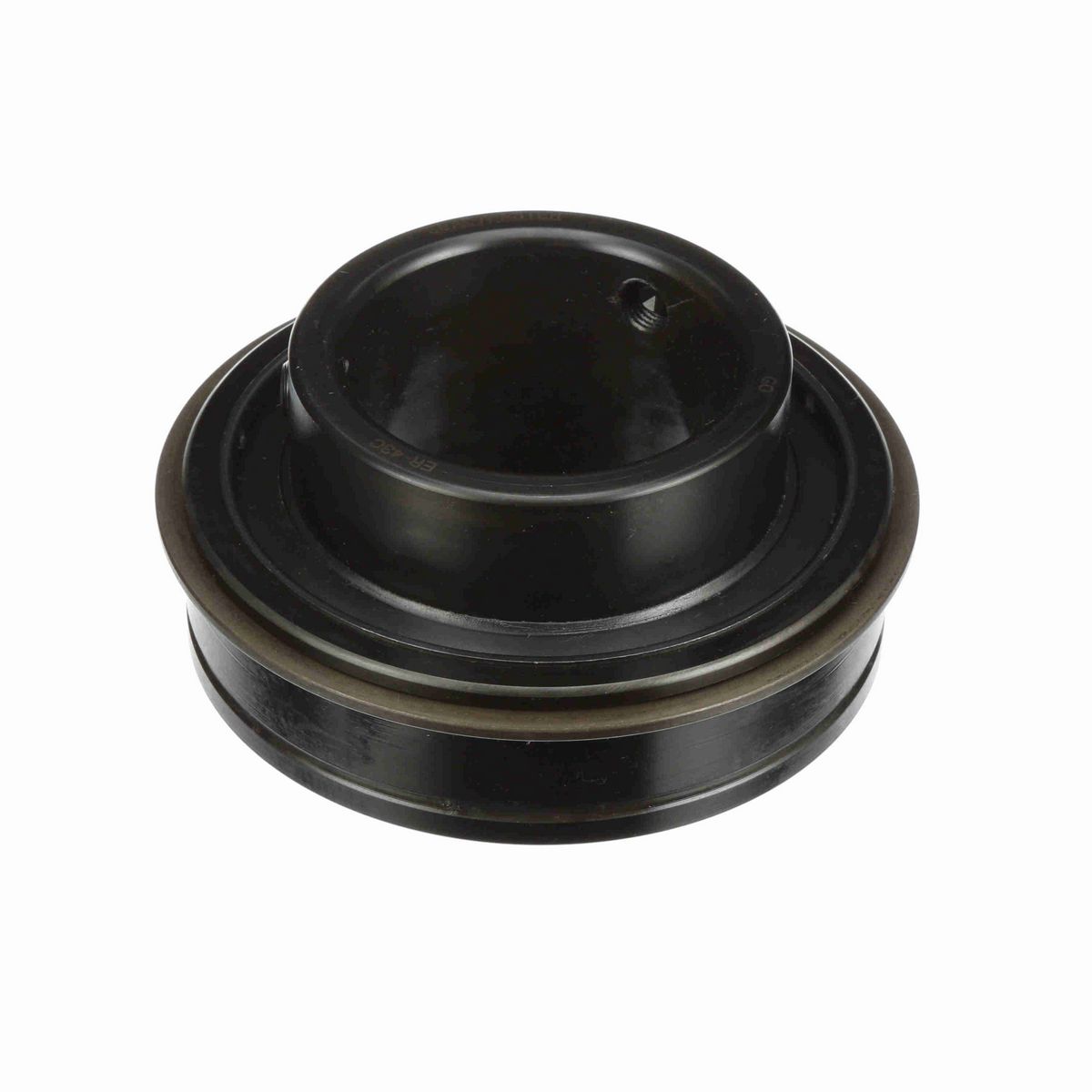

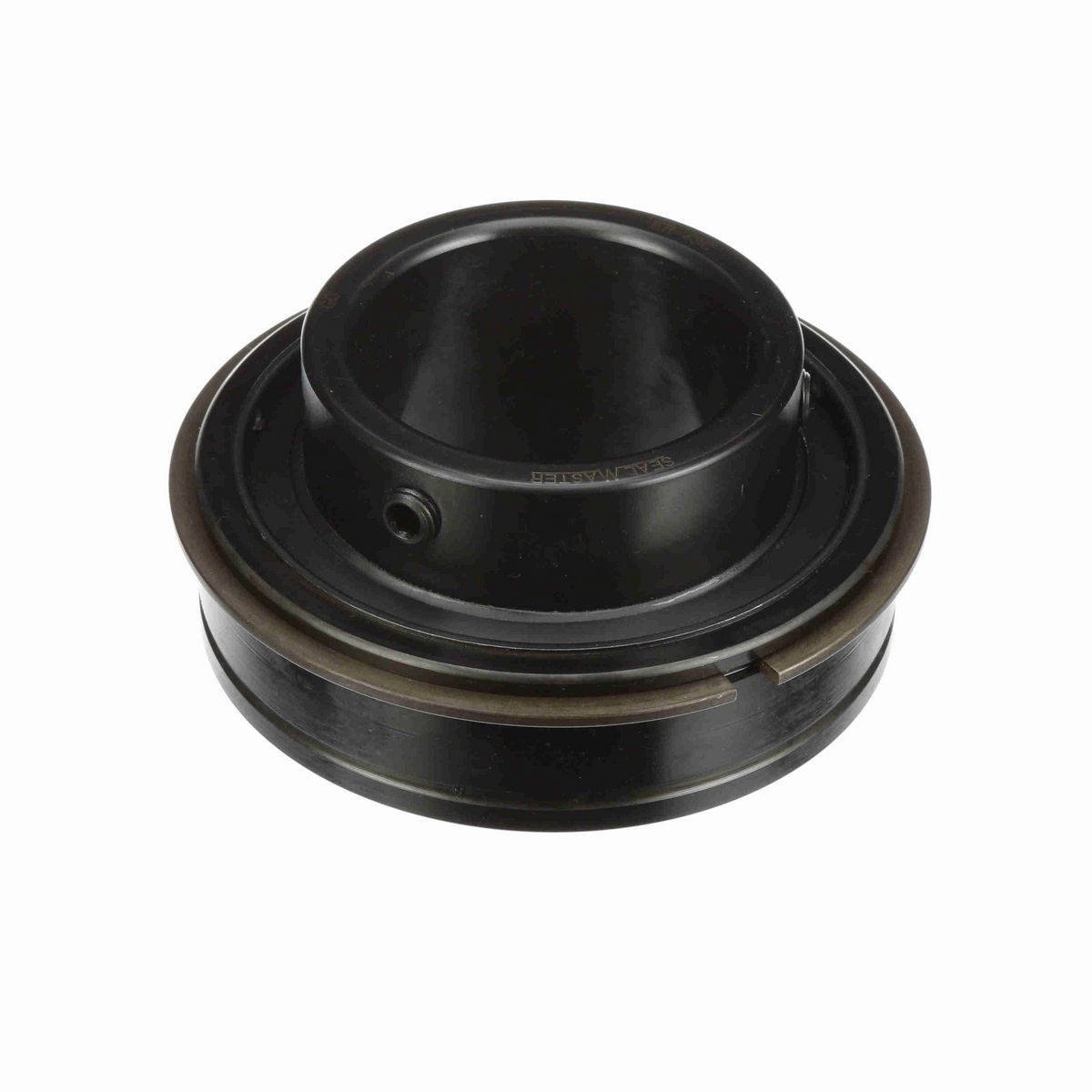

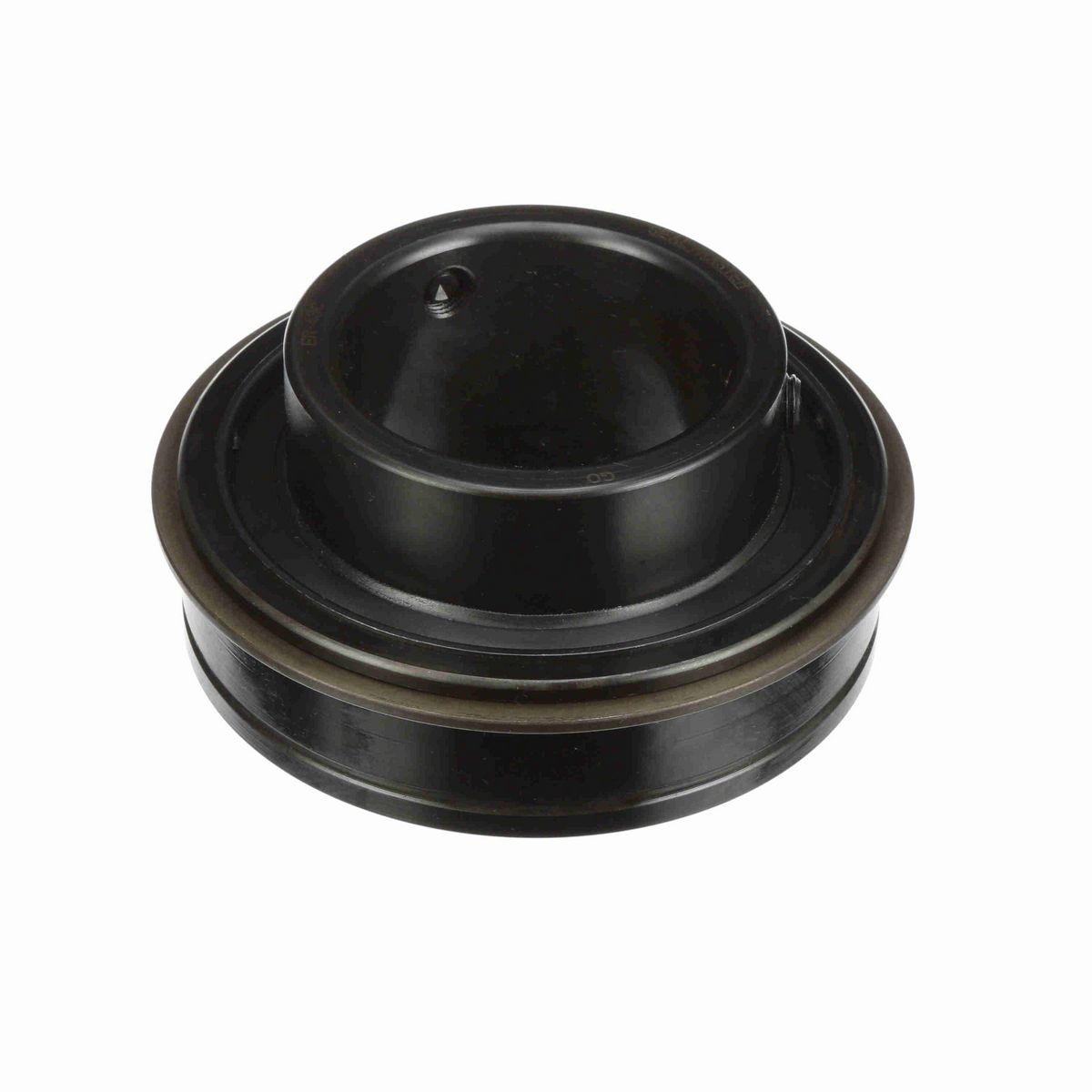

• ER style cylindrical OD bearing with snap and with black oxided bearing rings
• Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Overall Width (in)	2.75 in
Bore Size (in)	2.6875 in
Inner Ring OD (in)	3.438 in
Centerline to Front Face (in)	1.688 in
Outer Race Width (in)	1.375 in
Outer Race OD (mm)	125 mm
Outer Race OD (in)	4.9213 in
Length Through Bore (in)	2.75 in
Outer Race Width (mm)	34.9 mm

Technical Specifications

Set Screw Thread	7/16-20 UNF
Seal Type	Single Lip Contact Seal
Rolling Element	Ball Bearing
Housing Type	Insert (ER Style)
Bore Shape	Straight
Insert Material	52100 Bearing Steel
Measure Units	Inch
Misalignment	None
Expansion	No
Internal Clearance	Standard
Bearing Insert Coating	Black Oxide
Misalignment Type	Static Only
Platform	Gold Line Ball Bearing
End Cap	No
Outer Ring Land Profile	Standard
Precision Rating	ABEC 1
Cage Material	Brass
Outer Race Profile	Cylindrical
Inner Race Profile	Wide Inner Ring
Vibration Frequency Inner Ring Defect	0.0982 cps
Vibration Frequency Fundamental Train	0.0068 cps
Vibration Frequency Roller Spin	0.0451 cps
Maximum Speed (rpm)	2225 rpm
Maximum Operating Temperature (F)	220 °F
Lubrication Type	Lithium Complex NLGI 2 Grease
Inner Race Heat Treat Method	Zone-Hardened
Vibration Frequency Outer Ring Defect	0.0684 cps
Setscrew Torque (in-lbs)	350-450 in/lbs
Locking Type	Set Screw
Size Code	2-211
Inner Ring Fillet Radius (in)	0.08 in
Ability to Relubricate	Yes
Series	Unmounted Replacement Bearings
Duty/Status	Standard
Static Load Rating (lb)	10,063 lb
Dynamic Load Rating (lb)	13,971 lb
Cage Type	Land Riding Retainer

General Specifications

UPC	662461025048
Weight	5.46 LB
Packaged Length	5.50 IN
Packaged Width	3.13 IN
Packaged Height	5.56 IN
HTC	8482.10.5056
Country of Origin	United States of America
