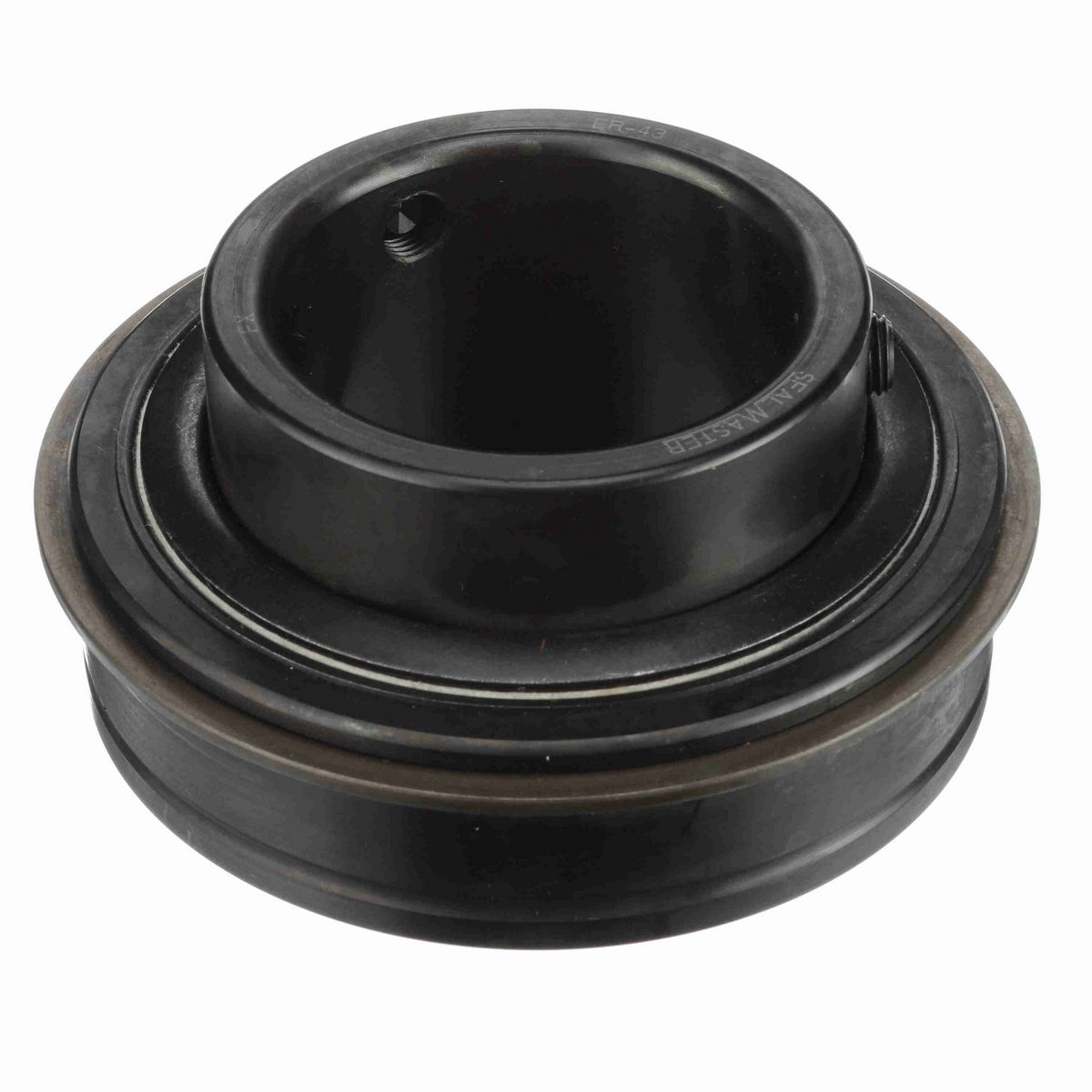

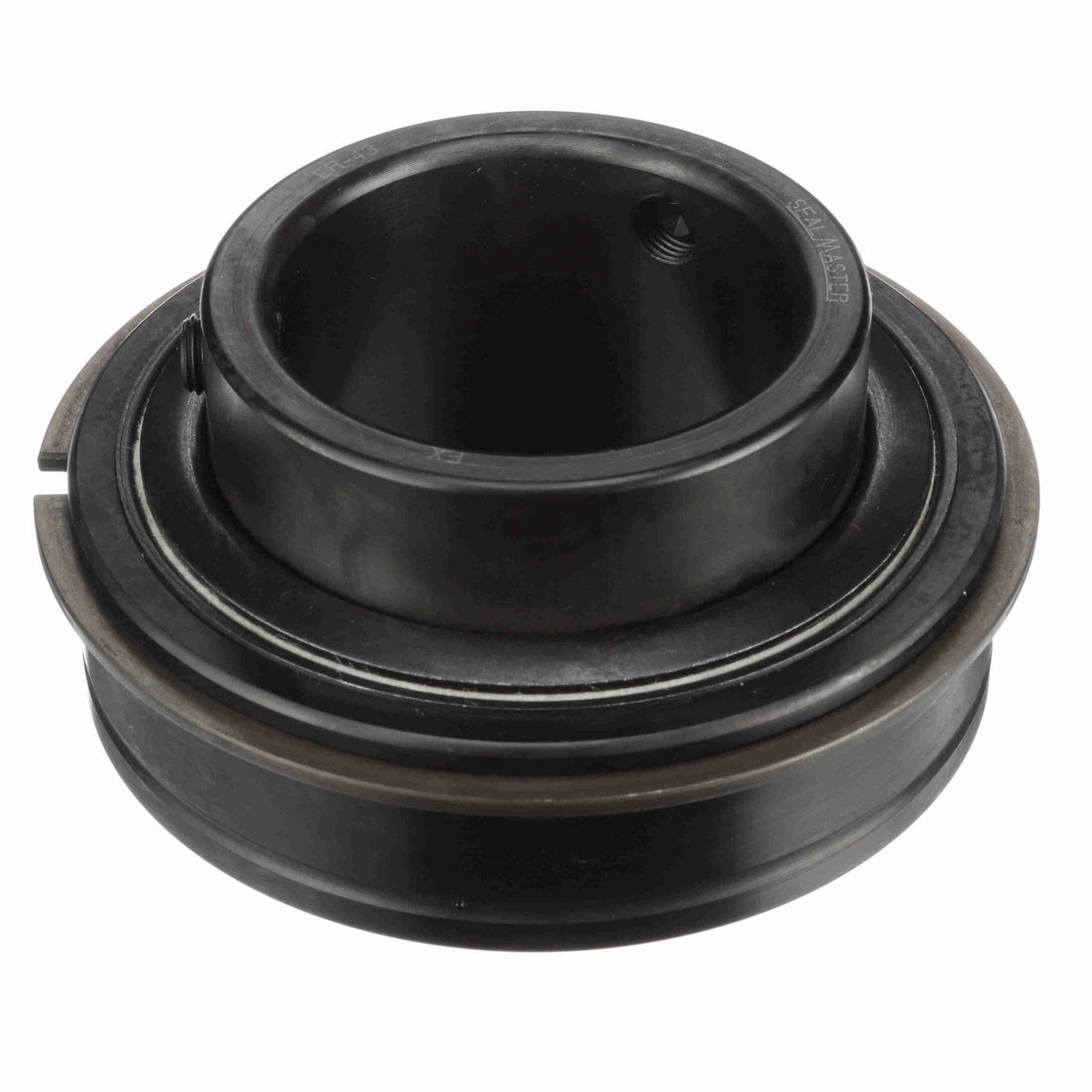

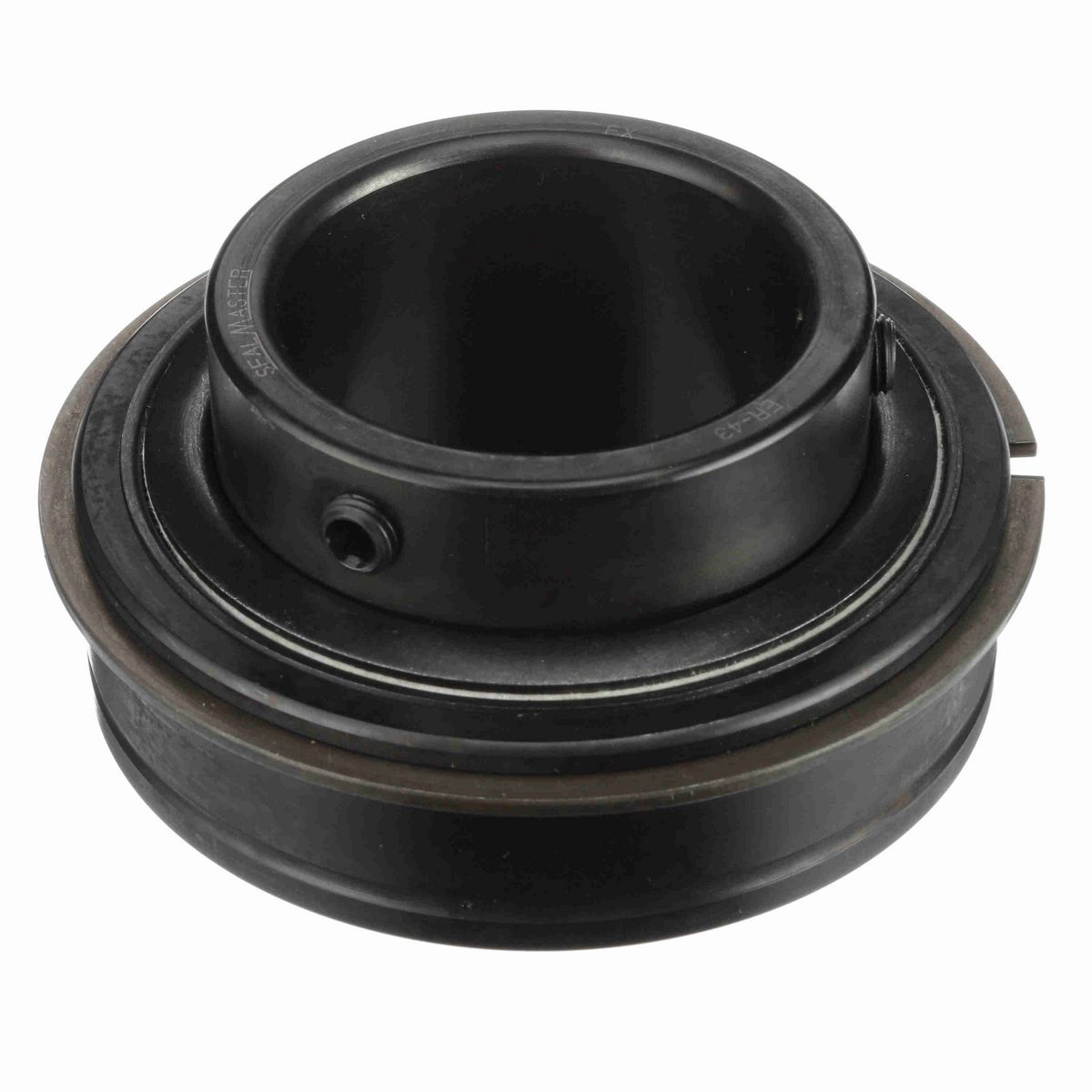

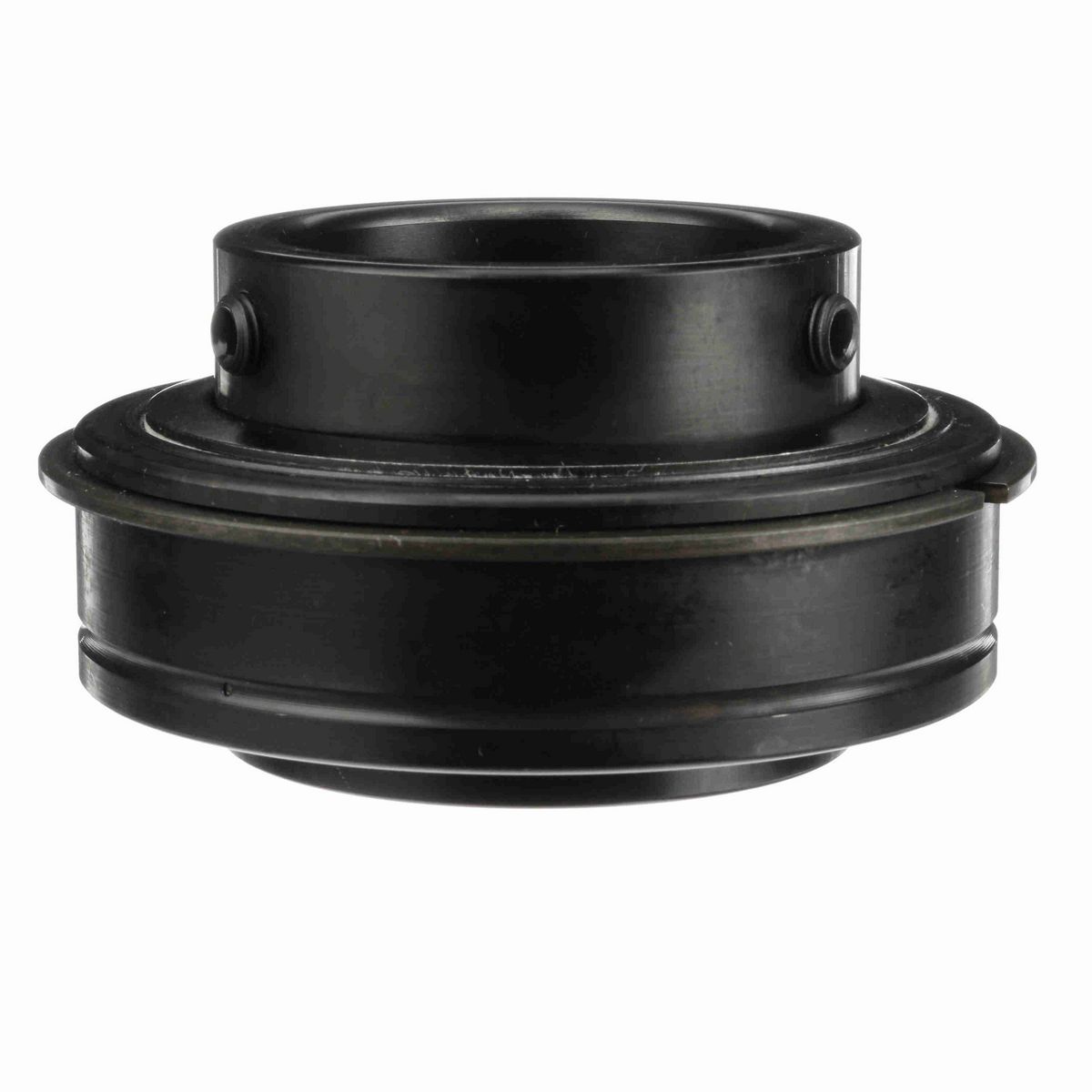

Sealmaster Mounted Insert Only Ball Bearing - 52100 Bearing Steel, Black Oxided - Setscrew Lock - ER-43
(0) |
0 руб.
- ER style cylindrical OD bearing with snap and with black oxided bearing rings
- Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
- Felt labyrinth seal and flinger for dry and dusty environment
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
| Overall Width (in) | 2.75 in |
| Bore Size (in) | 2.6875 in |
| Outer Race Width (in) | 1.375 in |
| Outer Race OD (in) | 4.9213 in |
| Centerline to Front Face (in) | 1.688 in |
| Inner Ring OD (in) | 3.438 in |
| Outer Race OD (mm) | 125 mm |
| Length Through Bore (in) | 2.75 in |
| Outer Race Width (mm) | 34.9 mm |
| Set Screw Thread | 7/16-20 UNF |
| Measure Units | Inch |
| Bore Shape | Straight |
| Insert Material | 52100 Bearing Steel |
| Housing Type | Insert (ER Style) |
| Seal Type | Felt Labyrinth Seal |
| Rolling Element | Ball Bearing |
| Misalignment | None |
| Internal Clearance | Standard |
| Expansion | No |
| Outer Ring Land Profile | Standard |
| Platform | Gold Line Ball Bearing |
| Misalignment Type | Static Only |
| Bearing Insert Coating | Black Oxide |
| End Cap | No |
| Precision Rating | ABEC 1 |
| Cage Material | Brass |
| Outer Race Profile | Cylindrical |
| Inner Race Profile | Wide Inner Ring |
| Inner Race Heat Treat Method | Zone-Hardened |
| Size Code | 2-211 |
| Duty/Status | Standard |
| Series | Unmounted Replacement Bearings |
| Vibration Frequency Outer Ring Defect | 0.0684 cps |
| Vibration Frequency Roller Spin | 0.0451 cps |
| Maximum Operating Temperature (F) | 220 °F |
| Locking Type | Set Screw |
| Setscrew Torque (in-lbs) | 350-450 in/lbs |
| Inner Ring Fillet Radius (in) | 0.08 in |
| Maximum Speed (rpm) | 2500 rpm |
| Vibration Frequency Fundamental Train | 0.0068 cps |
| Ability to Relubricate | Yes |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Vibration Frequency Inner Ring Defect | 0.0982 cps |
| Dynamic Load Rating (lb) | 13,971 lb |
| Cage Type | Land Riding Retainer |
| Static Load Rating (lb) | 10,063 lb |
| UPC | 662461008867 |
| Weight | 5.57 LB |
| Packaged Length | 3.13 IN |
| Packaged Width | 5.50 IN |
| Packaged Height | 5.56 IN |
| HTC | 8482.10.5056 |
| Country of Origin | United States of America |
