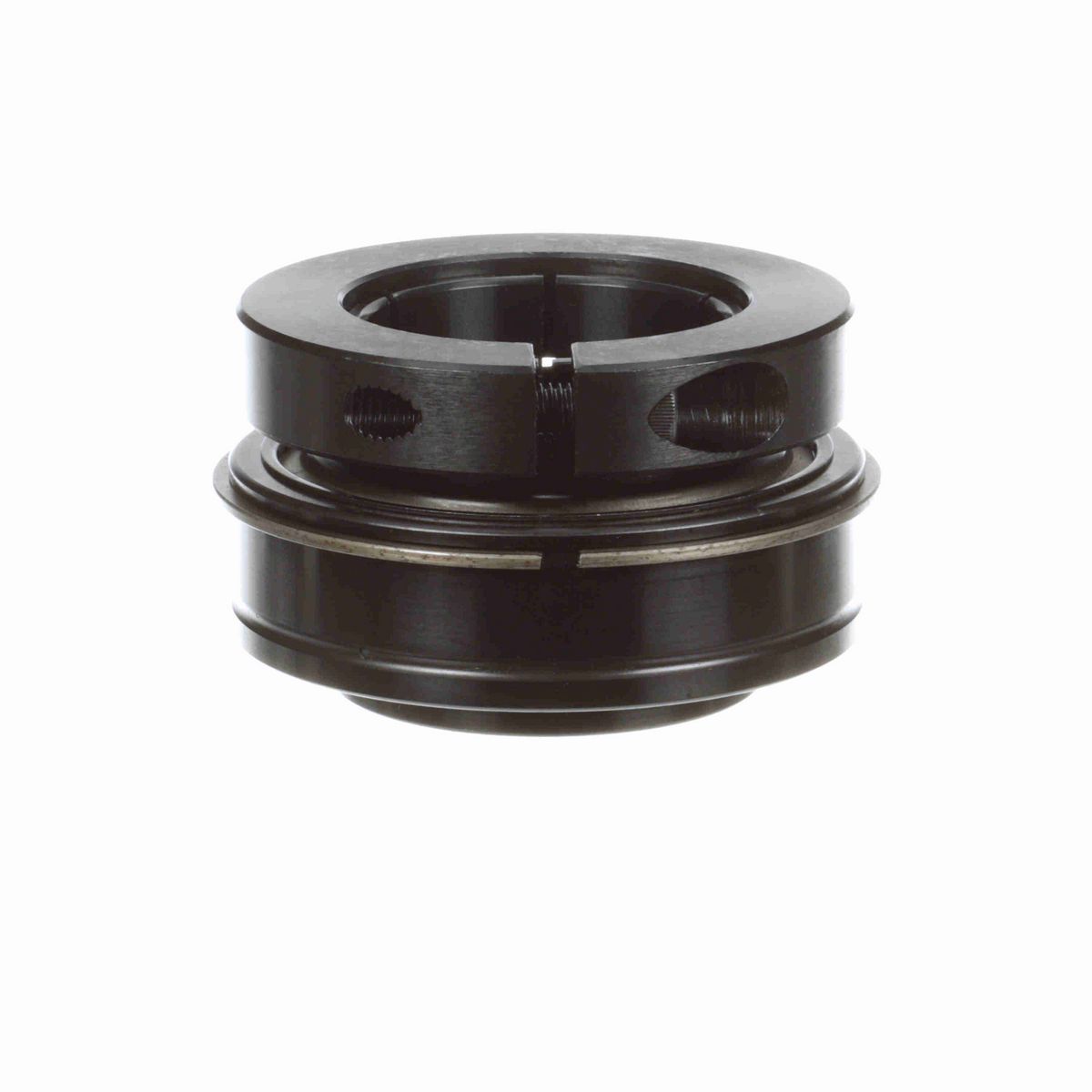

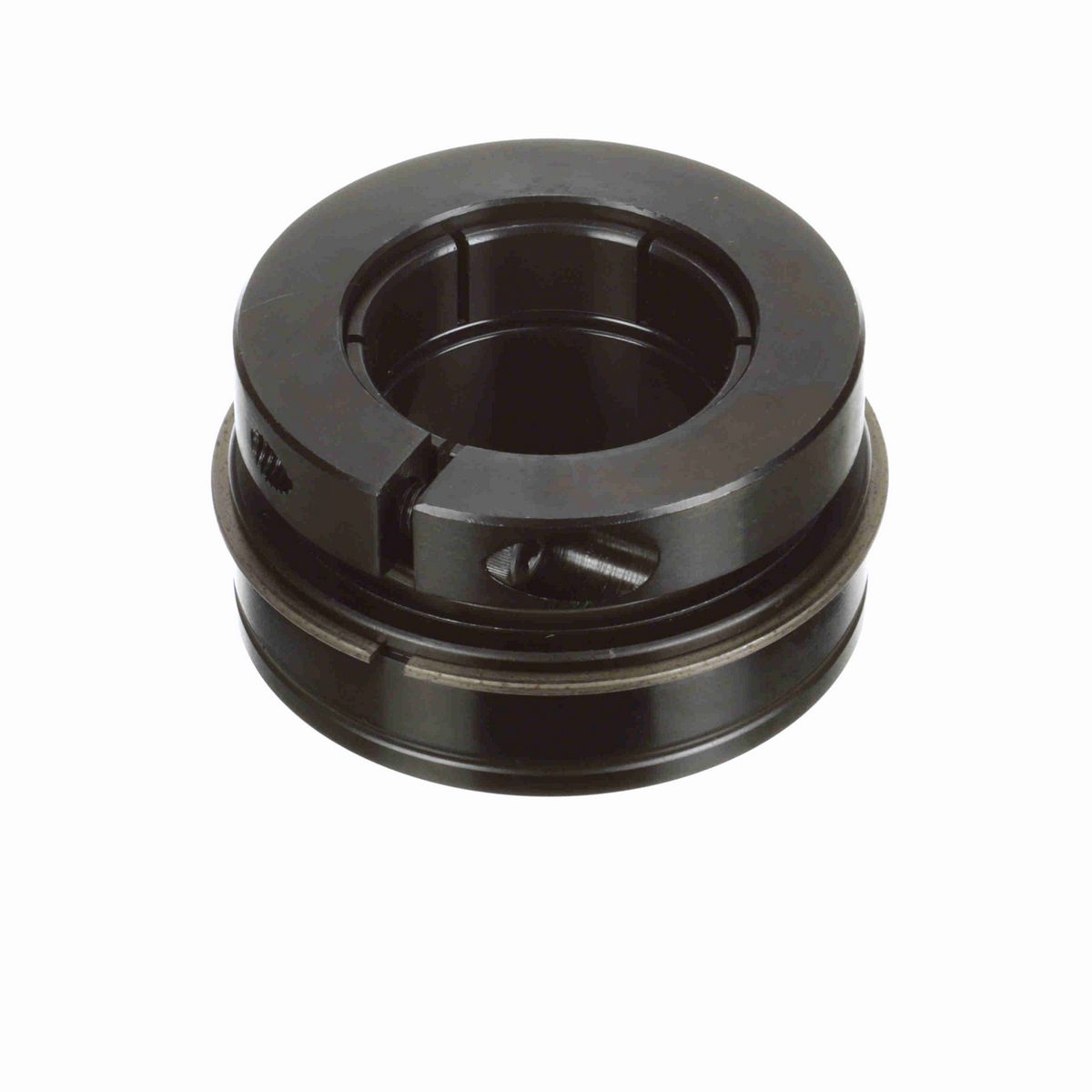

• ER style cylindrical OD bearing with snap and with black oxided bearing rings
• Skwezloc® concentric locking for near perfect concentricity
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Overall Width (in)	2.63 in
Bore Size (in)	2.4375 in
Centerline to Front Face (in)	1.625 in
Collar OD (in)	4.22 in
Outer Race OD (in)	4.3307 in
Outer Race Width (in)	1.25 in
Outer Race OD (mm)	110 mm
Inner Ring OD (in)	2.984 in
Length Through Bore (in)	2.63 in
Outer Race Width (mm)	31.8 mm

Technical Specifications

Rolling Element	Ball Bearing
Measure Units	Inch
Torx Cap Screw	3/8-16 UNC
Bore Shape	Straight
Seal Type	Single Lip Contact Seal
Insert Material	52100 Bearing Steel
Housing Type	Insert (ER Style)
Internal Clearance	Standard
Expansion	No
Misalignment	None
End Cap	No
Misalignment Type	Static Only
Platform	Gold Line Ball Bearing
Outer Ring Land Profile	Tapered Lands
Bearing Insert Coating	Black Oxide
Precision Rating	ABEC 1
Cage Material	PPS - Polyphenylene Sulfide
Inner Race Profile	Wide Inner Ring
Outer Race Profile	Cylindrical
Series	Unmounted Replacement Bearings
Lubrication Type	Lithium Complex NLGI 2 Grease
Vibration Frequency Fundamental Train	0.0068 cps
Vibration Frequency Outer Ring Defect	0.0678 cps
Size Code	2-27
Inner Ring Fillet Radius (in)	0.08 in
Ability to Relubricate	Yes
Maximum Operating Temperature (F)	220 °F
Vibration Frequency Inner Ring Defect	0.0989 cps
Vibration Frequency Roller Spin	0.0432 cps
Maximum Speed (rpm)	2550 rpm
Locking Type	Concentric
Duty/Status	Standard
Inner Race Heat Treat Method	Zone-Hardened
Cage Type	Land Riding Retainer
Static Load Rating (lb)	8,150 lb
Dynamic Load Rating (lb)	11,789 lb

General Specifications

UPC	662461034293
Weight	4.90 LB
Packaged Length	4.75 IN
Packaged Width	2.63 IN
Packaged Height	4.81 IN
HTC	8482.10.5056
Country of Origin	Mexico
