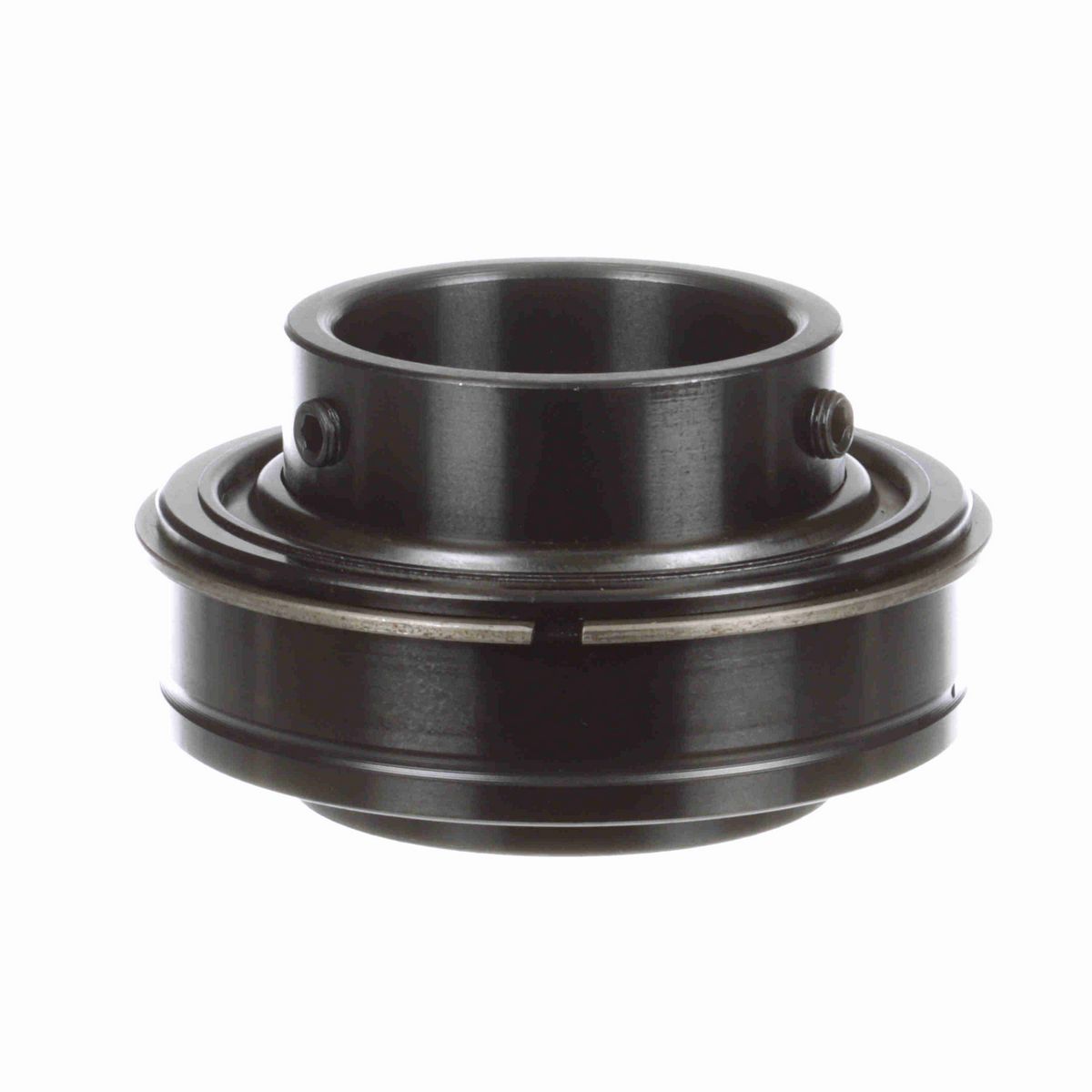

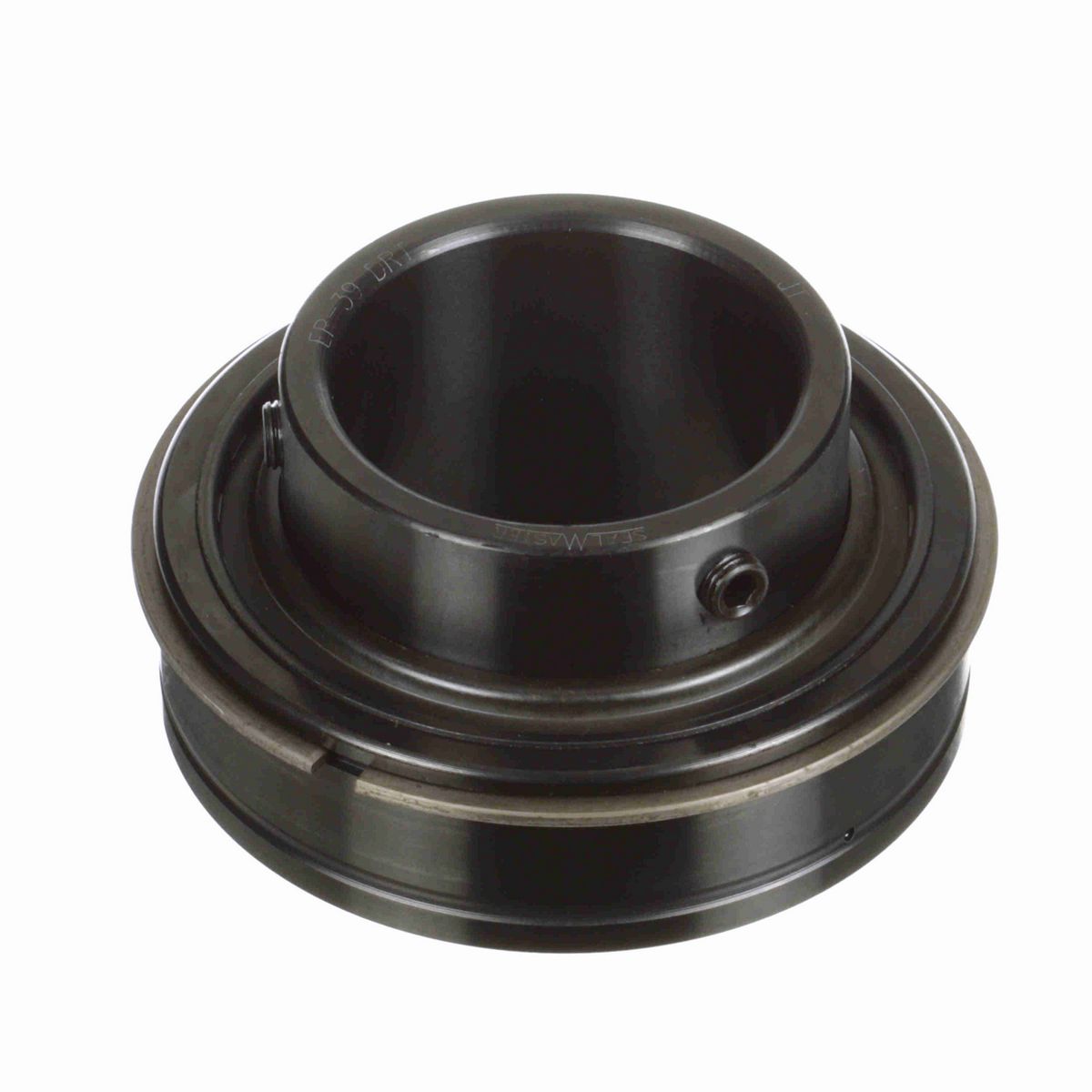

• ER style cylindrical OD bearing with snap and with black oxided bearing rings
• Zone hardened inner ring with 120° spacing setscrew with diamond faceted setscrews
• Multiple seal and 100% grease fill for harsh environments
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Overall Width (in)	2.56 in
Bore Size (in)	2.4375 in
Outer Race Width (in)	1.25 in
Outer Race OD (in)	4.3307 in
Outer Race OD (mm)	110 mm
Centerline to Front Face (in)	1.563 in
Inner Ring OD (in)	2.984 in
Length Through Bore (in)	2.563 in
Outer Race Width (mm)	31.8 mm

Technical Specifications

Insert Material	52100 Bearing Steel
Set Screw Thread	3/8-24 UNF
Seal Type	Multi-Lip Contact Seal
Measure Units	Inch
Housing Type	Insert (ER Style)
Rolling Element	Ball Bearing
Bore Shape	Straight
Expansion	No
Internal Clearance	Standard
Misalignment	None
Bearing Insert Coating	Black Oxide
Platform	Gold Line Ball Bearing
Options	High Contamination
Misalignment Type	Static Only
Outer Ring Land Profile	Tapered Lands
End Cap	No
Precision Rating	ABEC 1
Cage Material	PPS - Polyphenylene Sulfide
Outer Race Profile	Cylindrical
Inner Race Profile	Wide Inner Ring
Duty/Status	Standard
Maximum Speed (rpm)	650 rpm
Size Code	2-27
Lubrication Type	Lithium Complex NLGI 2 Grease
Vibration Frequency Fundamental Train	0.0068 cps
Ability to Relubricate	Yes
Vibration Frequency Inner Ring Defect	0.0989 cps
Series	Unmounted Replacement Bearings
Setscrew Torque (in-lbs)	230-300 in/lbs
Inner Ring Fillet Radius (in)	0.08 in
Inner Race Heat Treat Method	Zone-Hardened
Locking Type	Set Screw
Maximum Operating Temperature (F)	220 °F
Vibration Frequency Roller Spin	0.0432 cps
Vibration Frequency Outer Ring Defect	0.0678 cps
Cage Type	Land Riding Retainer
Dynamic Load Rating (lb)	11,789 lb
Static Load Rating (lb)	8,150 lb

General Specifications

UPC	662461334867
Weight	4.00 LB
Packaged Length	4.75 IN
Packaged Width	2.63 IN
Packaged Height	4.81 IN
HTC	8482.10.5056
Country of Origin	Mexico
