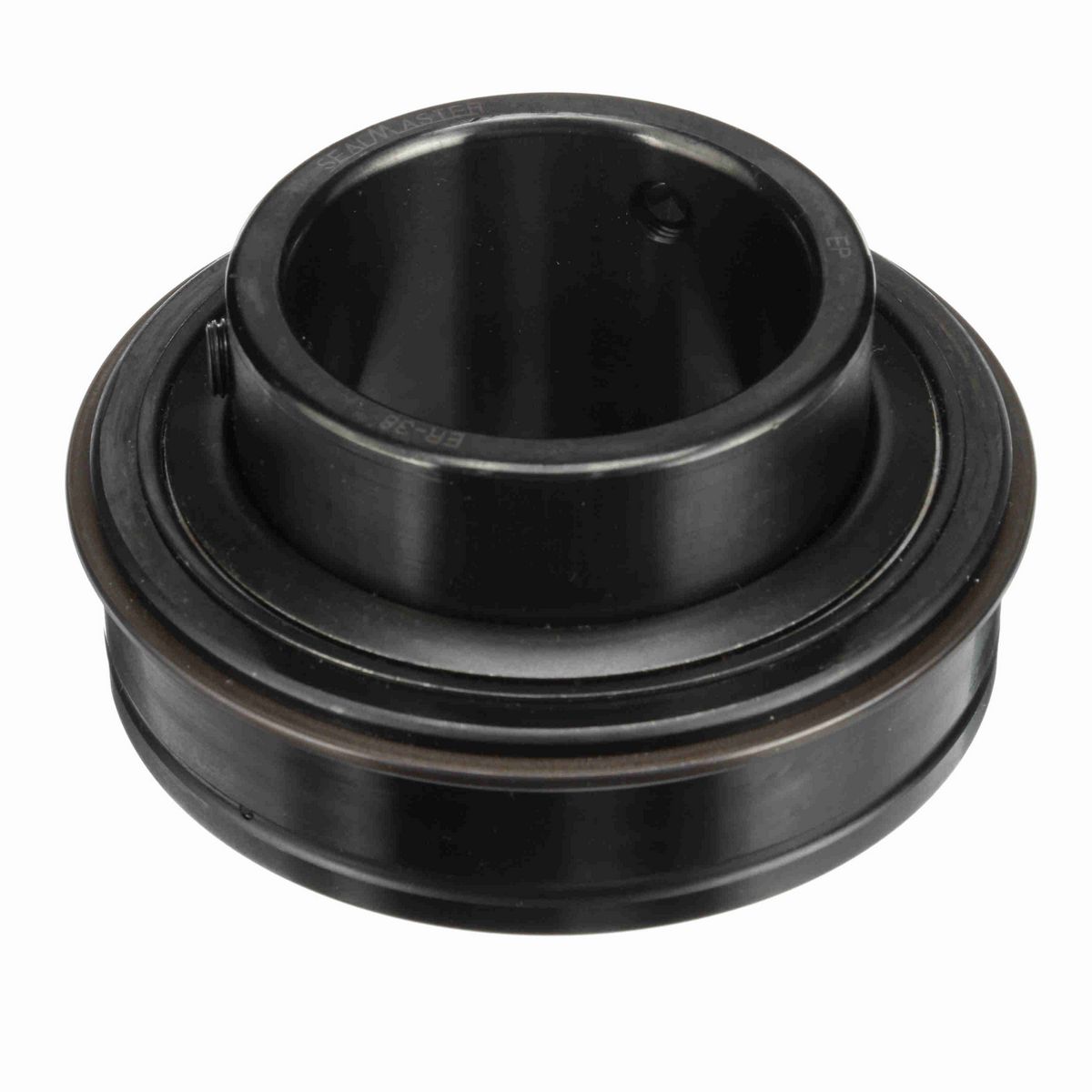

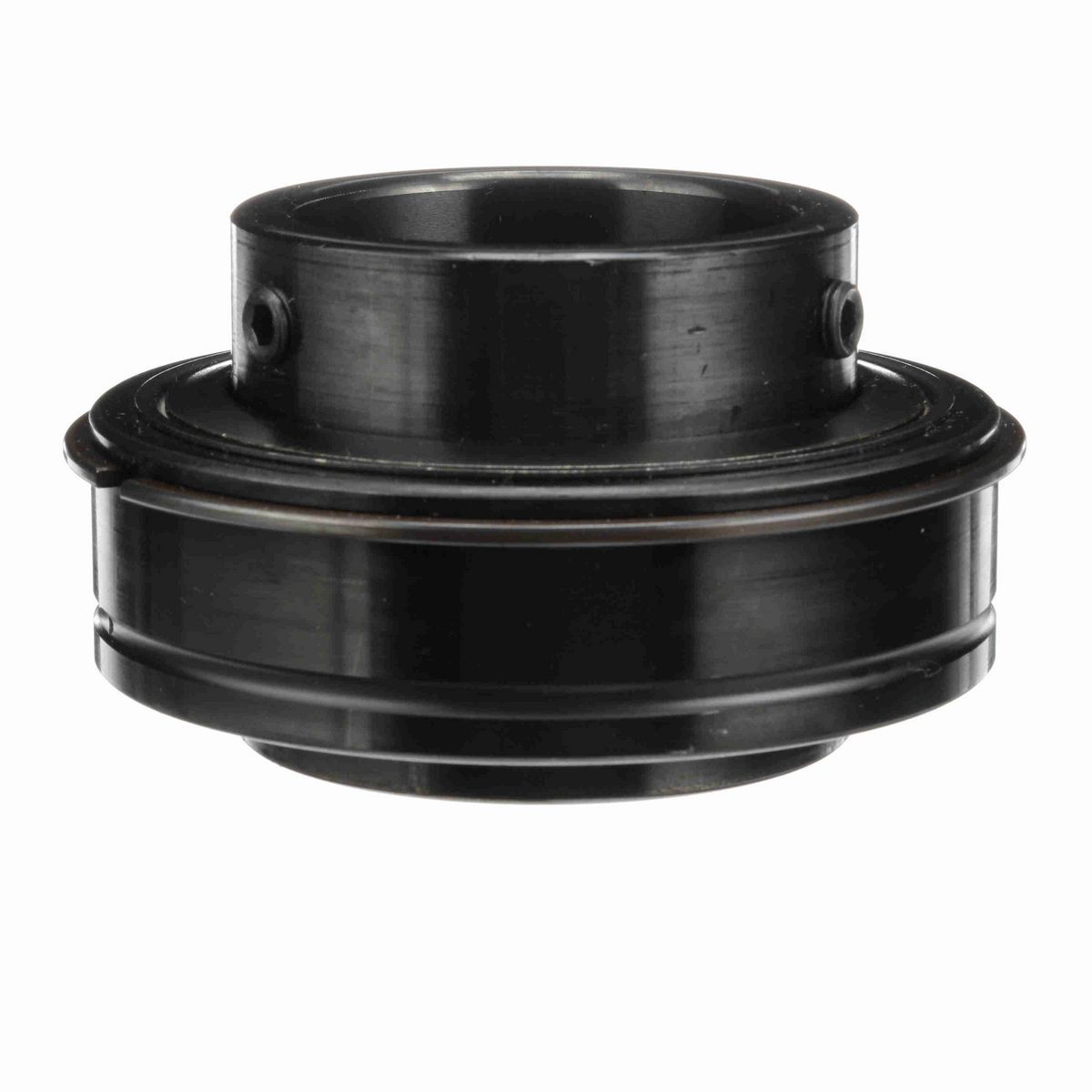

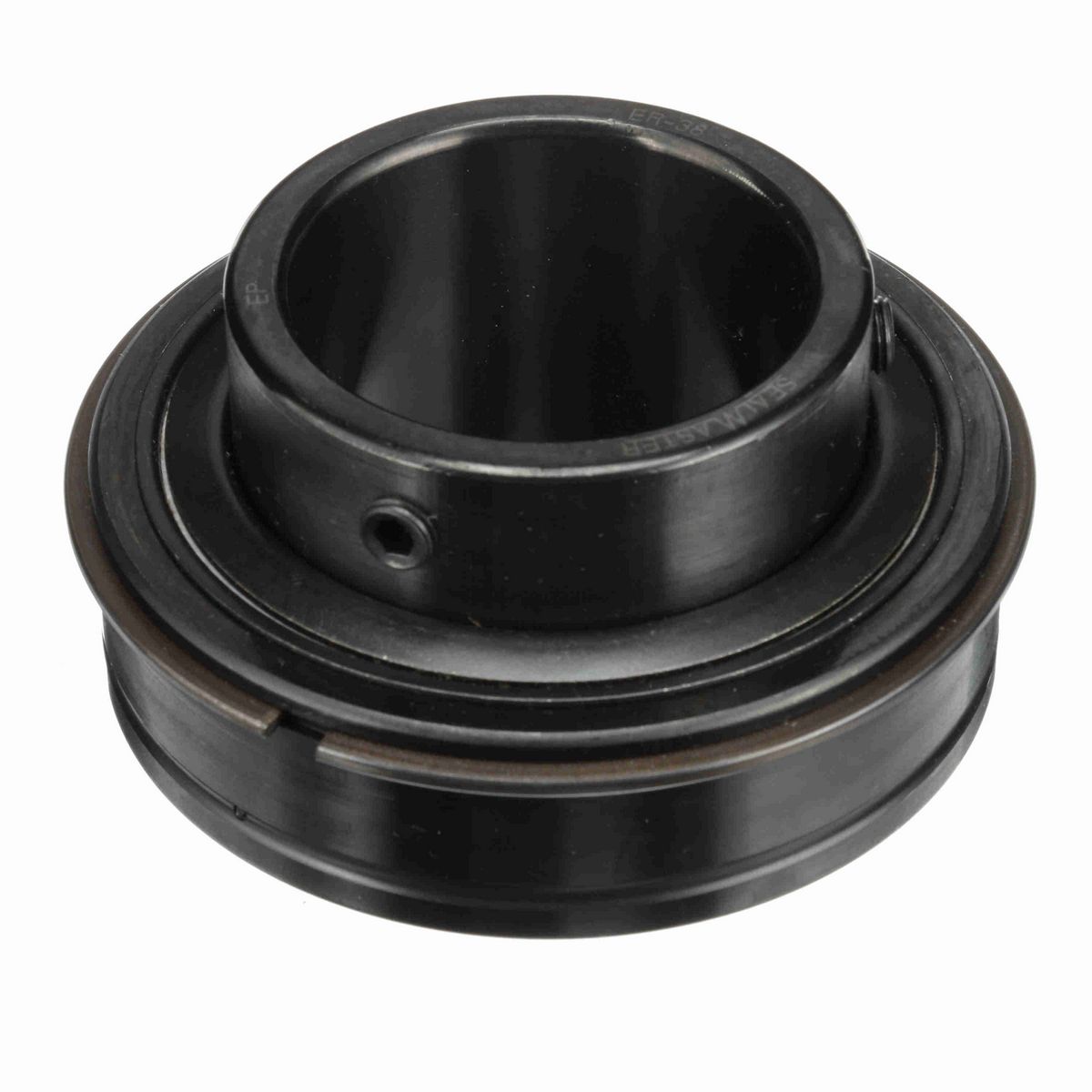

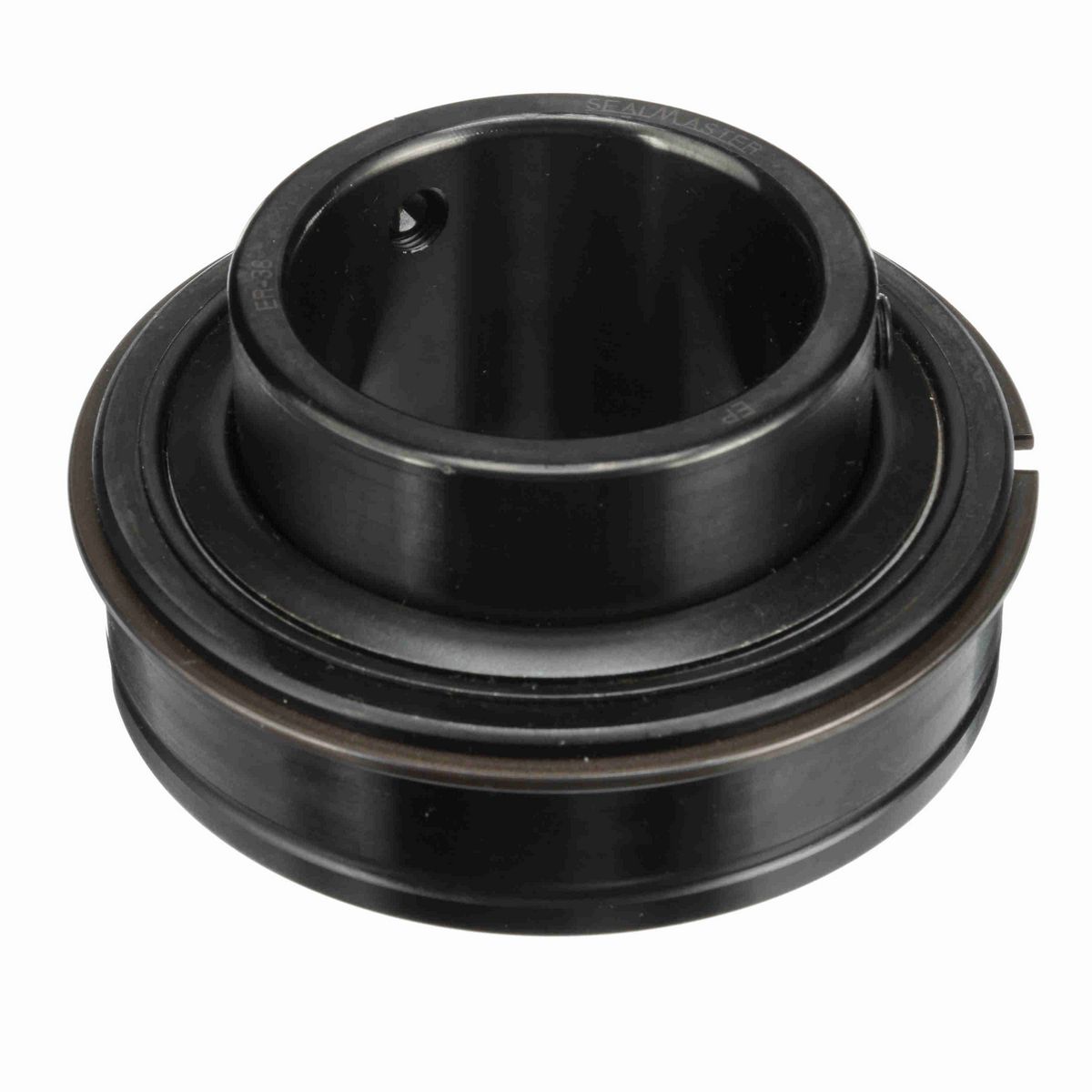

• ER style cylindrical OD bearing with snap and with black oxided bearing rings
• Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Overall Width (in)	2.56 in
Bore Size (in)	2.375 in
Outer Race Width (in)	1.25 in
Inner Ring OD (in)	2.984 in
Centerline to Front Face (in)	1.563 in
Outer Race OD (in)	4.3307 in
Outer Race OD (mm)	110 mm
Length Through Bore (in)	2.563 in
Outer Race Width (mm)	31.8 mm

Technical Specifications

Housing Type	Insert (ER Style)
Set Screw Thread	3/8-24 UNF
Bore Shape	Straight
Seal Type	Felt Labyrinth Seal
Rolling Element	Ball Bearing
Measure Units	Inch
Insert Material	52100 Bearing Steel
Misalignment	None
Expansion	No
Internal Clearance	Standard
End Cap	No
Misalignment Type	Static Only
Bearing Insert Coating	Black Oxide
Platform	Gold Line Ball Bearing
Outer Ring Land Profile	Tapered Lands
Cage Material	PPS - Polyphenylene Sulfide
Precision Rating	ABEC 1
Inner Race Profile	Wide Inner Ring
Outer Race Profile	Cylindrical
Vibration Frequency Inner Ring Defect	0.0989 cps
Duty/Status	Standard
Size Code	2-27
Series	Unmounted Replacement Bearings
Locking Type	Set Screw
Vibration Frequency Outer Ring Defect	0.0678 cps
Lubrication Type	Lithium Complex NLGI 2 Grease
Maximum Speed (rpm)	3000 rpm
Inner Race Heat Treat Method	Zone-Hardened
Ability to Relubricate	Yes
Vibration Frequency Fundamental Train	0.0068 cps
Vibration Frequency Roller Spin	0.0432 cps
Setscrew Torque (in-lbs)	230-300 in/lbs
Inner Ring Fillet Radius (in)	0.08 in
Maximum Operating Temperature (F)	220 °F
Dynamic Load Rating (lb)	11,789 lb
Static Load Rating (lb)	8,150 lb
Cage Type	Land Riding Retainer

General Specifications

UPC	662461008836
Weight	3.85 LB
Packaged Length	4.75 IN
Packaged Width	2.63 IN
Packaged Height	4.81 IN
HTC	8482.10.5056
Country of Origin	Mexico
