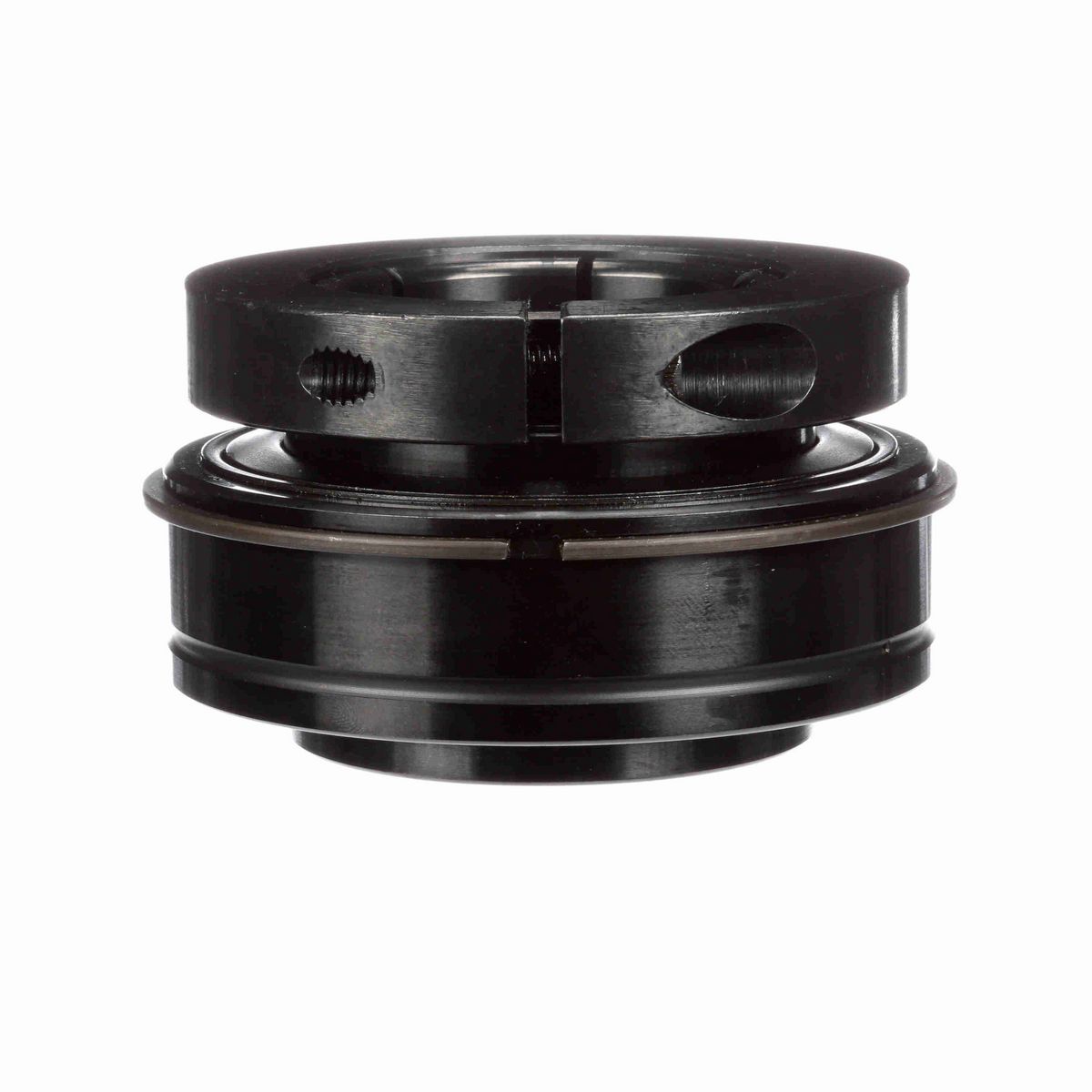

• ER style cylindrical OD bearing with snap and with black oxided bearing rings
• Skwezloc® concentric locking for near perfect concentricity
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Overall Width (in)	2.63 in
Bore Size (in)	2.25 in
Inner Ring OD (in)	2.984 in
Outer Race OD (in)	4.3307 in
Outer Race OD (mm)	110 mm
Centerline to Front Face (in)	1.625 in
Collar OD (in)	4.22 in
Outer Race Width (in)	1.25 in
Length Through Bore (in)	2.63 in
Outer Race Width (mm)	31.8 mm

Technical Specifications

Torx Cap Screw	3/8-16 UNC
Seal Type	Felt Labyrinth Seal
Insert Material	52100 Bearing Steel
Rolling Element	Ball Bearing
Measure Units	Inch
Bore Shape	Straight
Housing Type	Insert (ER Style)
Expansion	No
Internal Clearance	Standard
Misalignment	None
Platform	Gold Line Ball Bearing
Outer Ring Land Profile	Tapered Lands
Misalignment Type	Static Only
End Cap	No
Bearing Insert Coating	Black Oxide
Precision Rating	ABEC 1
Cage Material	PPS - Polyphenylene Sulfide
Outer Race Profile	Cylindrical
Inner Race Profile	Wide Inner Ring
Maximum Speed (rpm)	4100 rpm
Vibration Frequency Outer Ring Defect	0.0678 cps
Ability to Relubricate	Yes
Vibration Frequency Roller Spin	0.0432 cps
Duty/Status	Standard
Lubrication Type	Lithium Complex NLGI 2 Grease
Inner Ring Fillet Radius (in)	0.08 in
Series	Unmounted Replacement Bearings
Maximum Operating Temperature (F)	220 °F
Inner Race Heat Treat Method	Zone-Hardened
Vibration Frequency Inner Ring Defect	0.0989 cps
Size Code	2-27
Vibration Frequency Fundamental Train	0.0068 cps
Locking Type	Concentric
Static Load Rating (lb)	8,150 lb
Dynamic Load Rating (lb)	11,789 lb
Cage Type	Land Riding Retainer

General Specifications

UPC	662461057193
Weight	5.30 LB
Packaged Length	2.63 IN
Packaged Width	4.75 IN
Packaged Height	4.81 IN
HTC	8482.10.5056
Country of Origin	Mexico
