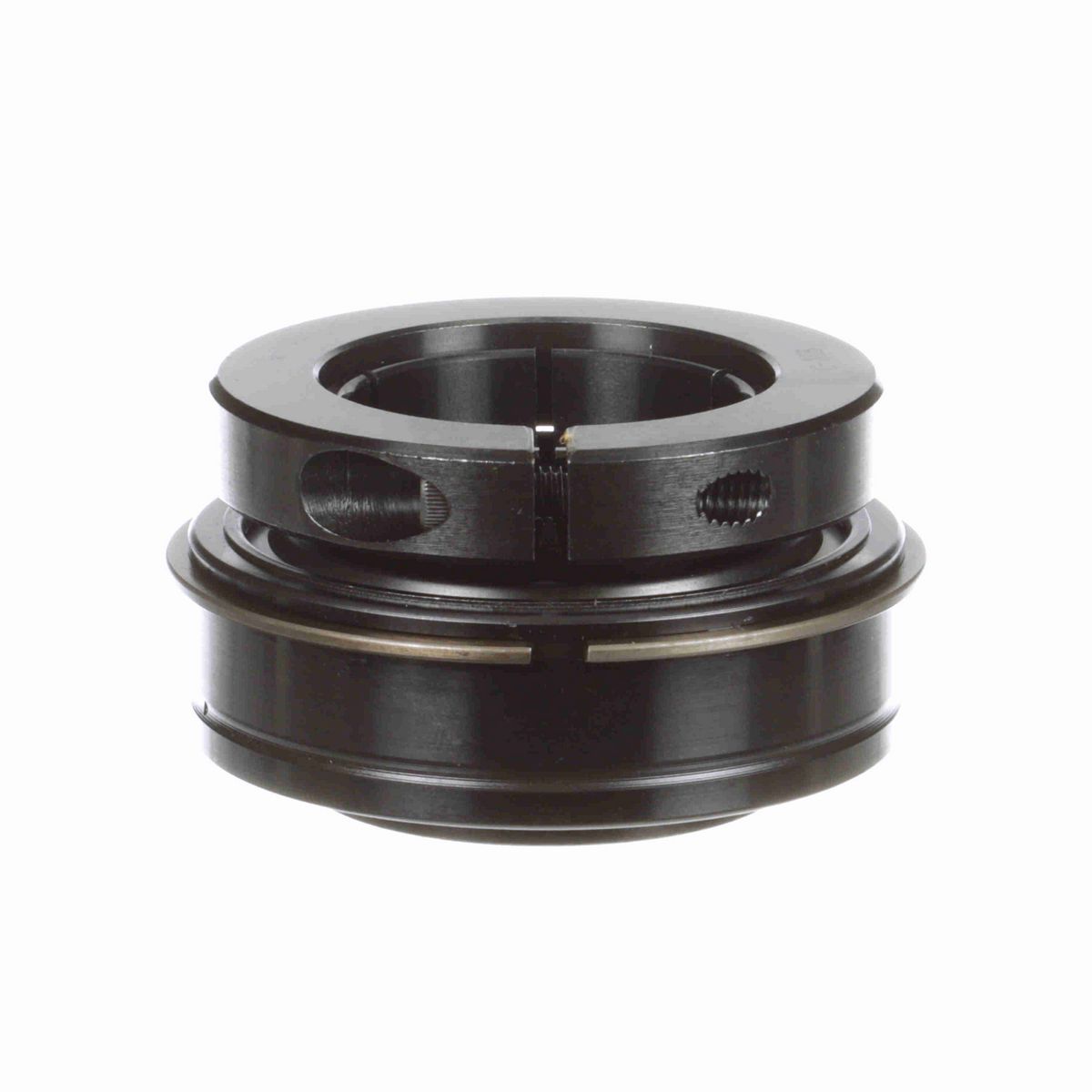

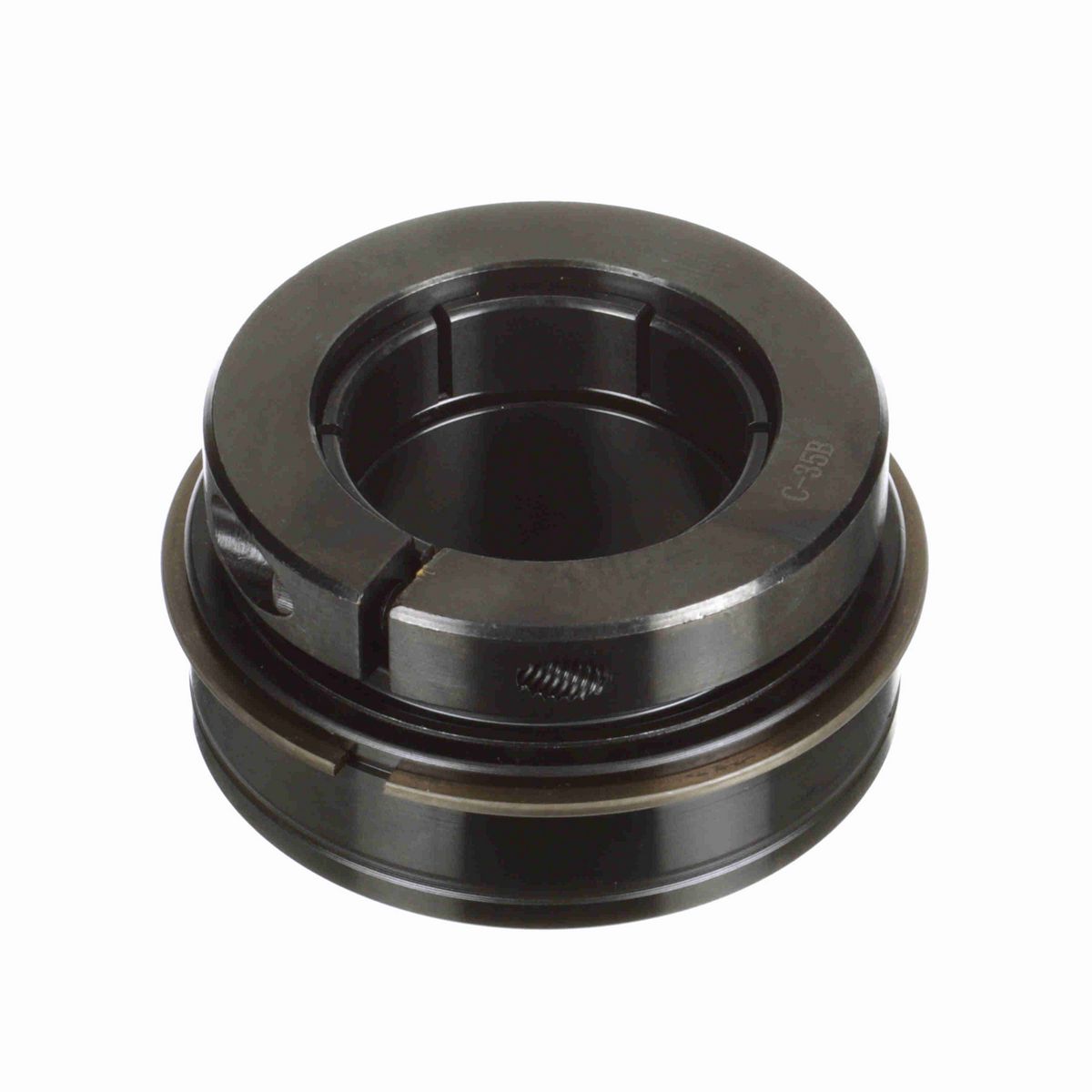

• ER style cylindrical OD bearing with snap and with black oxided bearing rings
• Skwezloc® concentric locking for near perfect concentricity
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Overall Width (in)	2.25 in
Bore Size (in)	2.1875 in
Outer Race OD (mm)	100 mm
Inner Ring OD (in)	2.719 in
Centerline to Front Face (in)	1.375 in
Outer Race OD (in)	3.937 in
Collar OD (in)	3.6 in
Outer Race Width (in)	1.188 in
Length Through Bore (in)	2.25 in
Outer Race Width (mm)	30.2 mm

Technical Specifications

Measure Units	Inch
Bore Shape	Straight
Torx Cap Screw	5/16-18 UNC
Seal Type	Single Lip Contact Seal
Rolling Element	Ball Bearing
Insert Material	52100 Bearing Steel
Housing Type	Insert (ER Style)
Expansion	No
Misalignment	None
Internal Clearance	Standard
Platform	Gold Line Ball Bearing
Bearing Insert Coating	Black Oxide
End Cap	No
Misalignment Type	Static Only
Outer Ring Land Profile	Tapered Lands
Cage Material	PPS - Polyphenylene Sulfide
Precision Rating	ABEC 1
Outer Race Profile	Cylindrical
Inner Race Profile	Wide Inner Ring
Inner Race Heat Treat Method	Zone-Hardened
Maximum Speed (rpm)	3250 rpm
Locking Type	Concentric
Vibration Frequency Outer Ring Defect	0.068 cps
Size Code	2-23
Maximum Operating Temperature (F)	220 °F
Vibration Frequency Roller Spin	0.0437 cps
Setscrew Torque (in-lbs)	495 in/lbs
Inner Ring Fillet Radius (in)	0.08 in
Vibration Frequency Inner Ring Defect	0.0987 cps
Lubrication Type	Lithium Complex NLGI 2 Grease
Series	Unmounted Replacement Bearings
Duty/Status	Standard
Vibration Frequency Fundamental Train	0.0068 cps
Ability to Relubricate	Yes
Static Load Rating (lb)	6,601 lb
Dynamic Load Rating (lb)	9,752 lb
Cage Type	Land Riding Retainer

General Specifications

UPC	662461034286
Weight	3.64 LB
Packaged Length	4.25 IN
Packaged Width	2.25 IN
Packaged Height	4.25 IN
HTC	8482.10.5052
Country of Origin	Mexico
