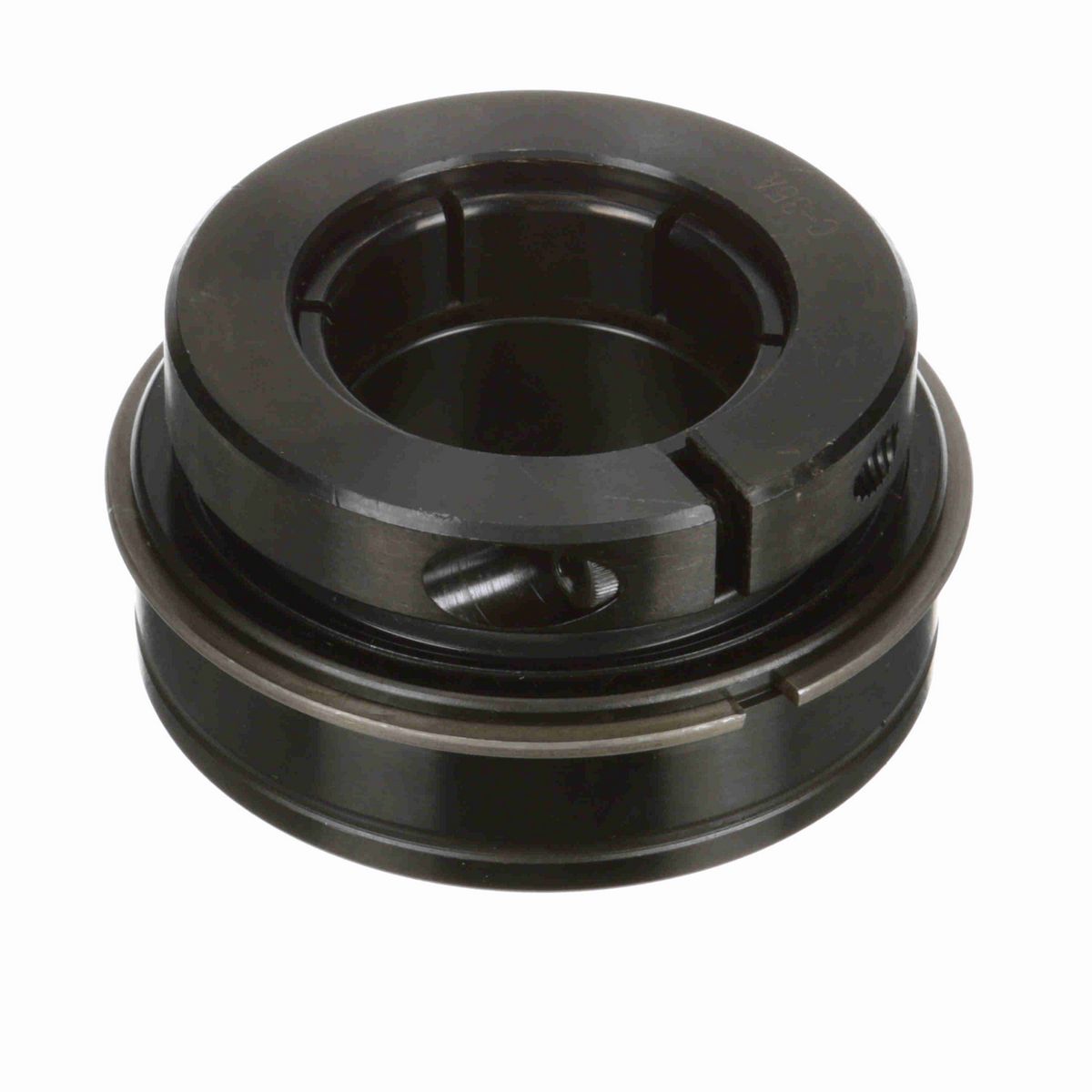

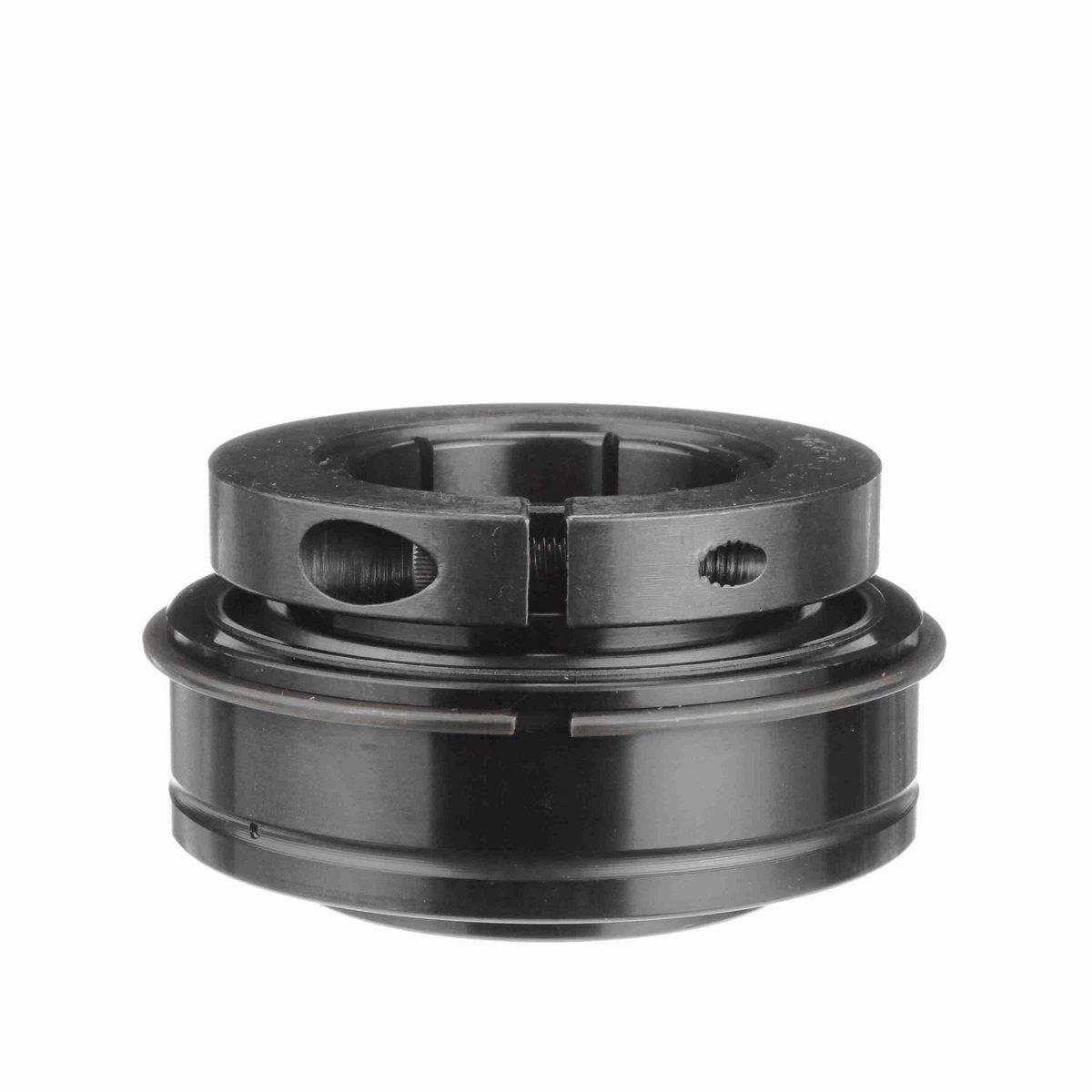

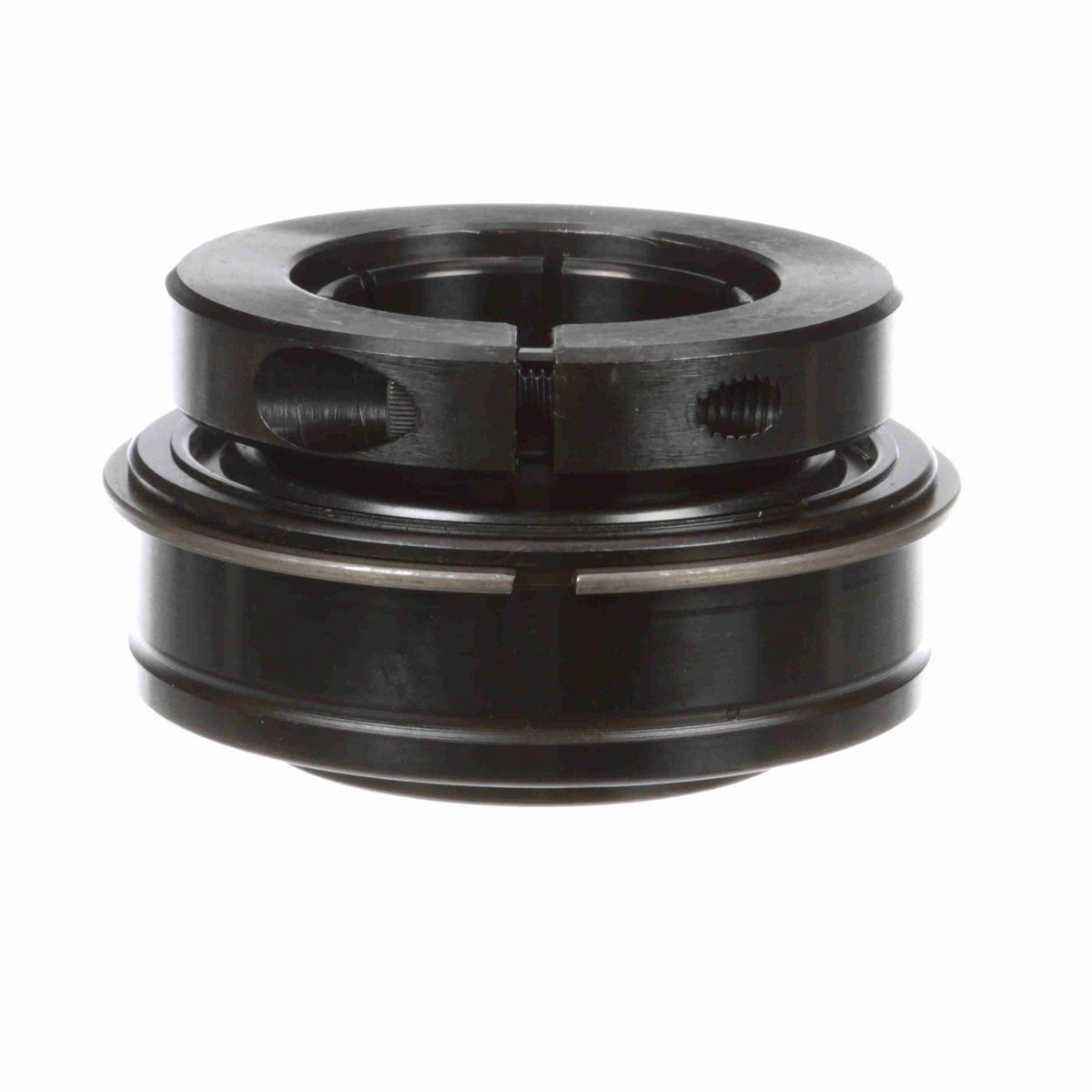

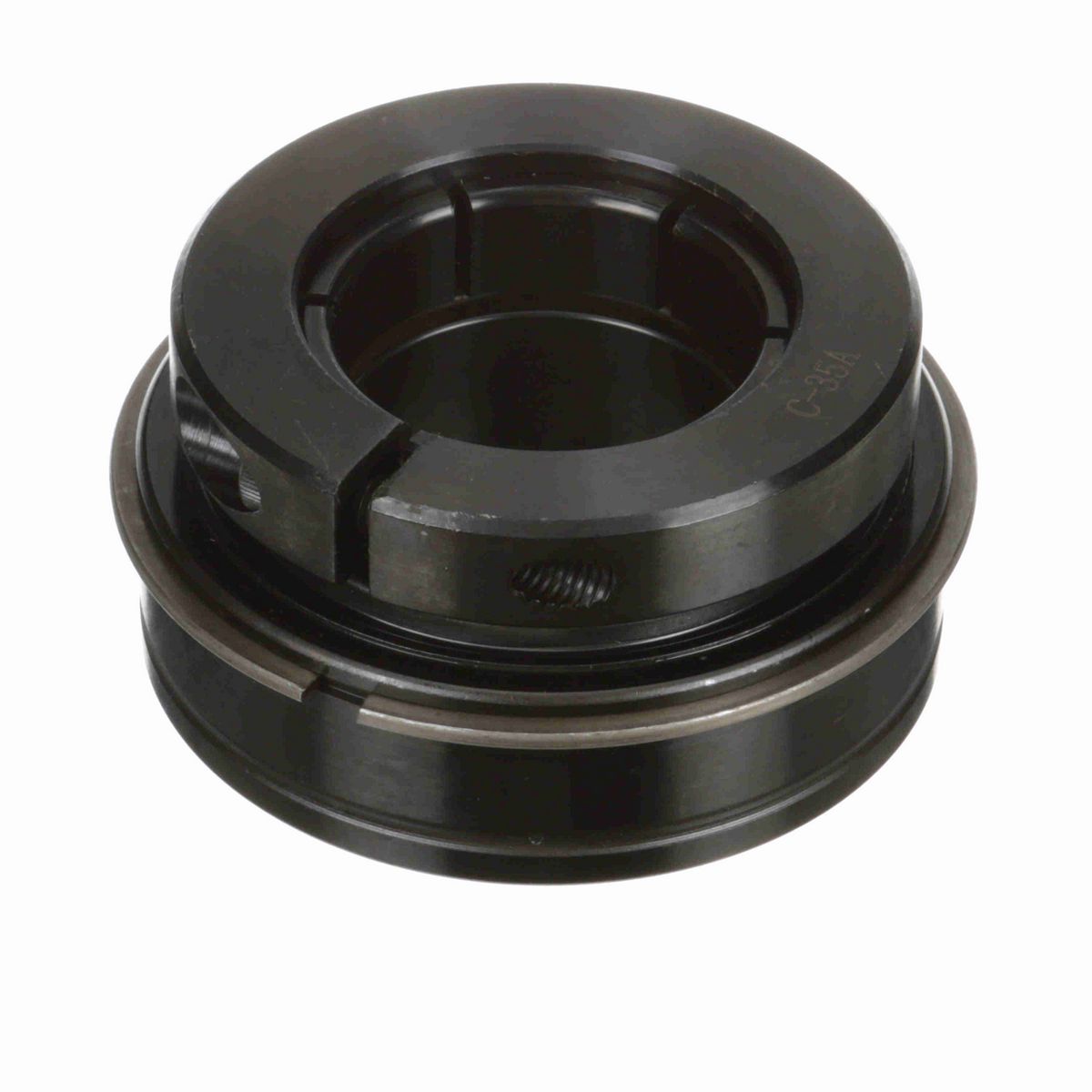

• ER style cylindrical OD bearing with snap and with black oxided bearing rings
• Skwezloc® concentric locking for near perfect concentricity
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Overall Width (in)	2.25 in
Bore Size (in)	2 in
Centerline to Front Face (in)	1.375 in
Inner Ring OD (in)	2.719 in
Outer Race Width (in)	1.188 in
Outer Race OD (mm)	100 mm
Collar OD (in)	3.6 in
Outer Race OD (in)	3.937 in
Length Through Bore (in)	2.25 in
Outer Race Width (mm)	30.2 mm

Technical Specifications

Housing Type	Insert (ER Style)
Bore Shape	Straight
Seal Type	Single Lip Contact Seal
Insert Material	52100 Bearing Steel
Torx Cap Screw	5/16-18 UNC
Measure Units	Inch
Rolling Element	Ball Bearing
Misalignment	None
Internal Clearance	Standard
Expansion	No
End Cap	No
Outer Ring Land Profile	Tapered Lands
Misalignment Type	Static Only
Bearing Insert Coating	Black Oxide
Platform	Gold Line Ball Bearing
Precision Rating	ABEC 1
Cage Material	PPS - Polyphenylene Sulfide
Outer Race Profile	Cylindrical
Inner Race Profile	Wide Inner Ring
Inner Ring Fillet Radius (in)	0.08 in
Maximum Operating Temperature (F)	220 °F
Vibration Frequency Outer Ring Defect	0.068 cps
Setscrew Torque (in-lbs)	495 in/lbs
Series	Unmounted Replacement Bearings
Duty/Status	Standard
Vibration Frequency Roller Spin	0.0437 cps
Lubrication Type	Lithium Complex NLGI 2 Grease
Size Code	2-23
Inner Race Heat Treat Method	Zone-Hardened
Vibration Frequency Fundamental Train	0.0068 cps
Vibration Frequency Inner Ring Defect	0.0987 cps
Ability to Relubricate	Yes
Locking Type	Concentric
Maximum Speed (rpm)	3250 rpm
Static Load Rating (lb)	6,601 lb
Dynamic Load Rating (lb)	9,752 lb
Cage Type	Land Riding Retainer

General Specifications

UPC	662461034279
Weight	3.69 LB
Packaged Length	4.25 IN
Packaged Width	2.25 IN
Packaged Height	4.25 IN
HTC	8482.10.5052
Country of Origin	Mexico
