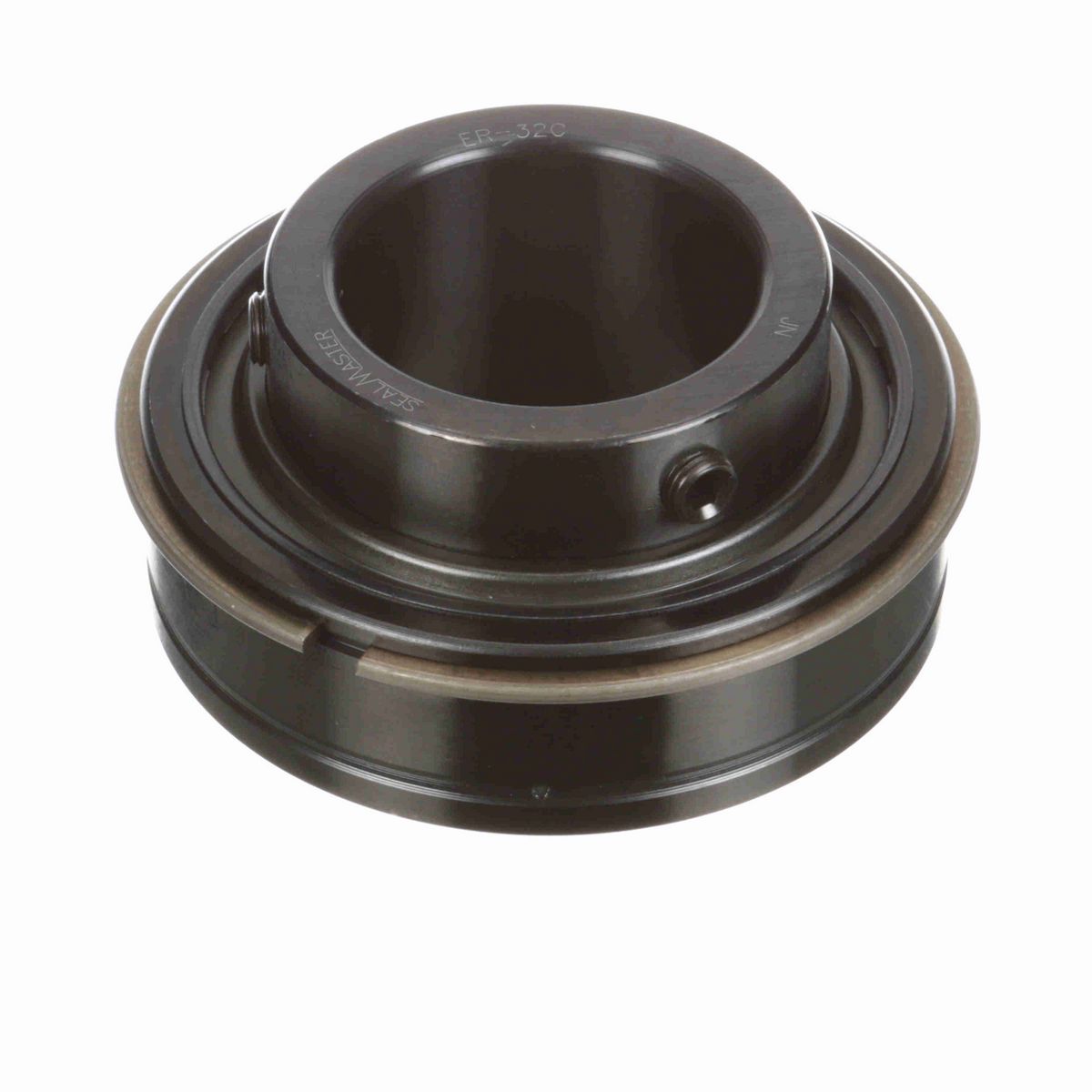

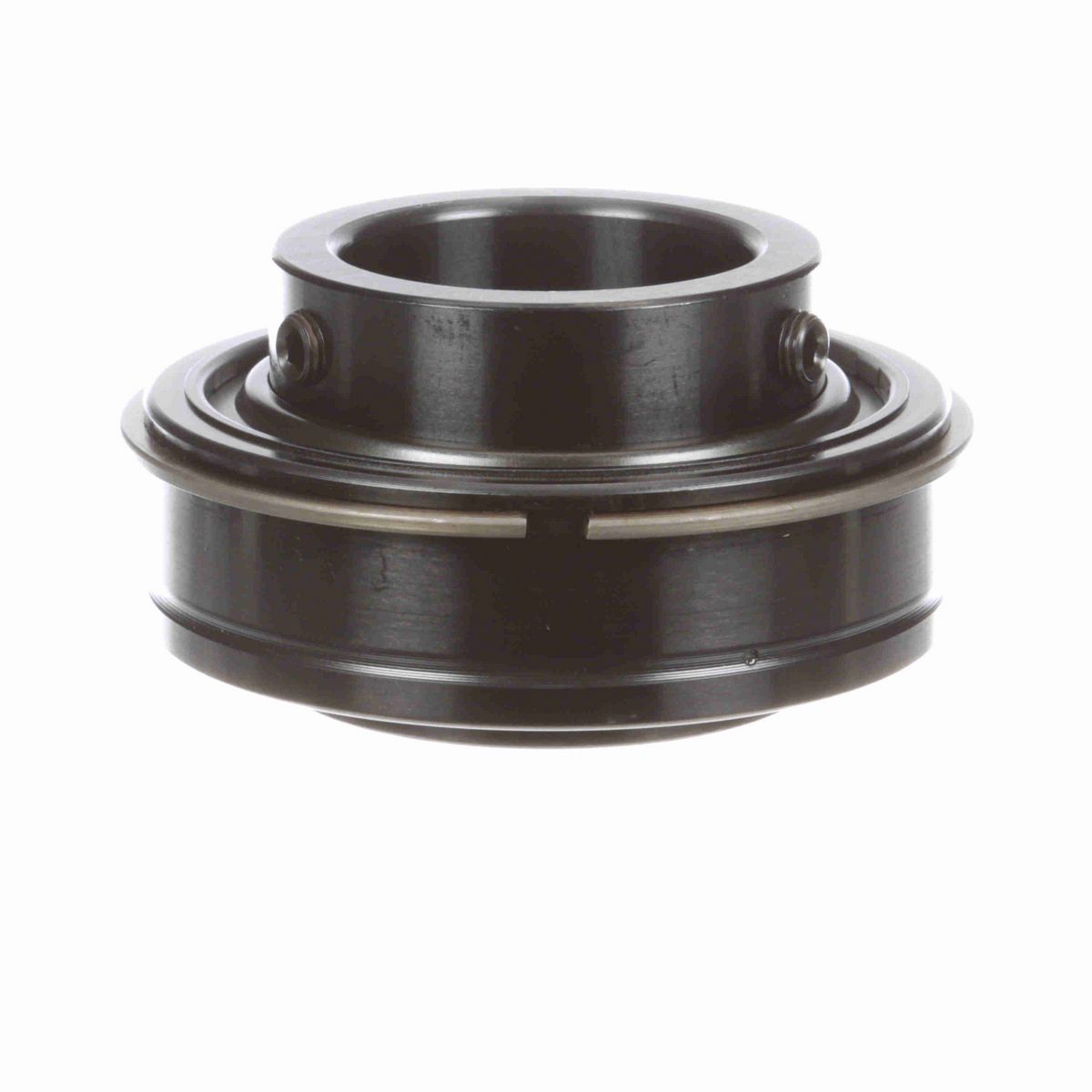

• ER style cylindrical OD bearing with snap and with black oxided bearing rings
• Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Overall Width (in)	2.19 in
Bore Size (in)	2 in
Outer Race Width (in)	1.188 in
Outer Race OD (mm)	100 mm
Inner Ring OD (in)	2.719 in
Outer Race OD (in)	3.937 in
Centerline to Front Face (in)	1.313 in
Length Through Bore (in)	2.188 in
Outer Race Width (mm)	30.2 mm

Technical Specifications

Housing Type	Insert (ER Style)
Bore Shape	Straight
Insert Material	52100 Bearing Steel
Seal Type	Single Lip Contact Seal
Rolling Element	Ball Bearing
Set Screw Thread	3/8-24 UNF
Measure Units	Inch
Expansion	No
Misalignment	None
Internal Clearance	Standard
Bearing Insert Coating	Black Oxide
Misalignment Type	Static Only
Platform	Gold Line Ball Bearing
End Cap	No
Outer Ring Land Profile	Tapered Lands
Cage Material	PPS - Polyphenylene Sulfide
Precision Rating	ABEC 1
Inner Race Profile	Wide Inner Ring
Outer Race Profile	Cylindrical
Inner Race Heat Treat Method	Zone-Hardened
Vibration Frequency Fundamental Train	0.0068 cps
Maximum Speed (rpm)	3250 rpm
Series	Unmounted Replacement Bearings
Locking Type	Set Screw
Vibration Frequency Inner Ring Defect	0.0987 cps
Setscrew Torque (in-lbs)	230-300 in/lbs
Inner Ring Fillet Radius (in)	0.08 in
Maximum Operating Temperature (F)	220 °F
Duty/Status	Standard
Size Code	2-23
Vibration Frequency Roller Spin	0.0437 cps
Ability to Relubricate	Yes
Vibration Frequency Outer Ring Defect	0.068 cps
Lubrication Type	Lithium Complex NLGI 2 Grease
Static Load Rating (lb)	6,601 lb
Cage Type	Land Riding Retainer
Dynamic Load Rating (lb)	9,752 lb

General Specifications

UPC	662461024973
Weight	3.20 LB
Packaged Length	4.25 IN
Packaged Width	2.25 IN
Packaged Height	4.25 IN
HTC	8482.10.5052
Country of Origin	Mexico
