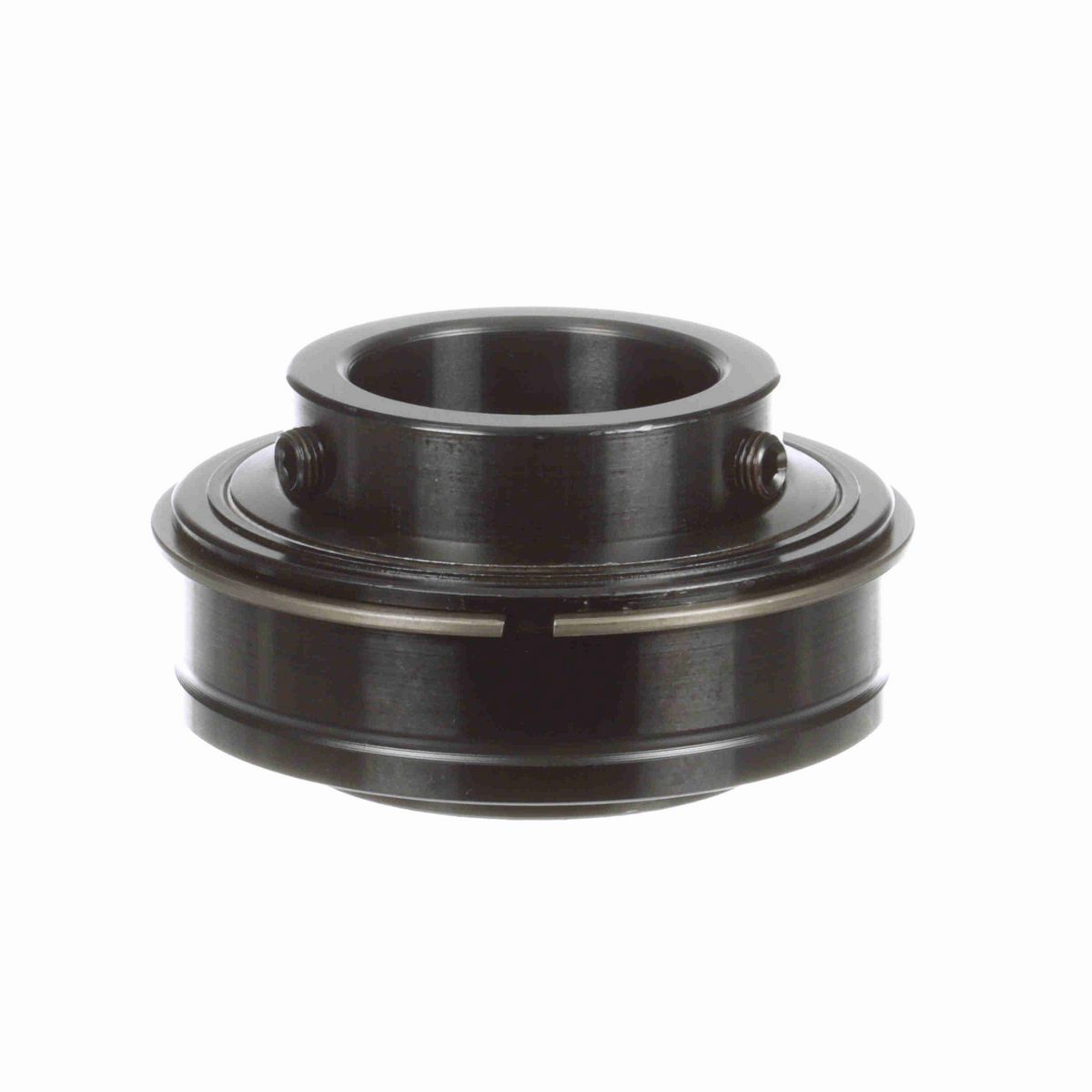

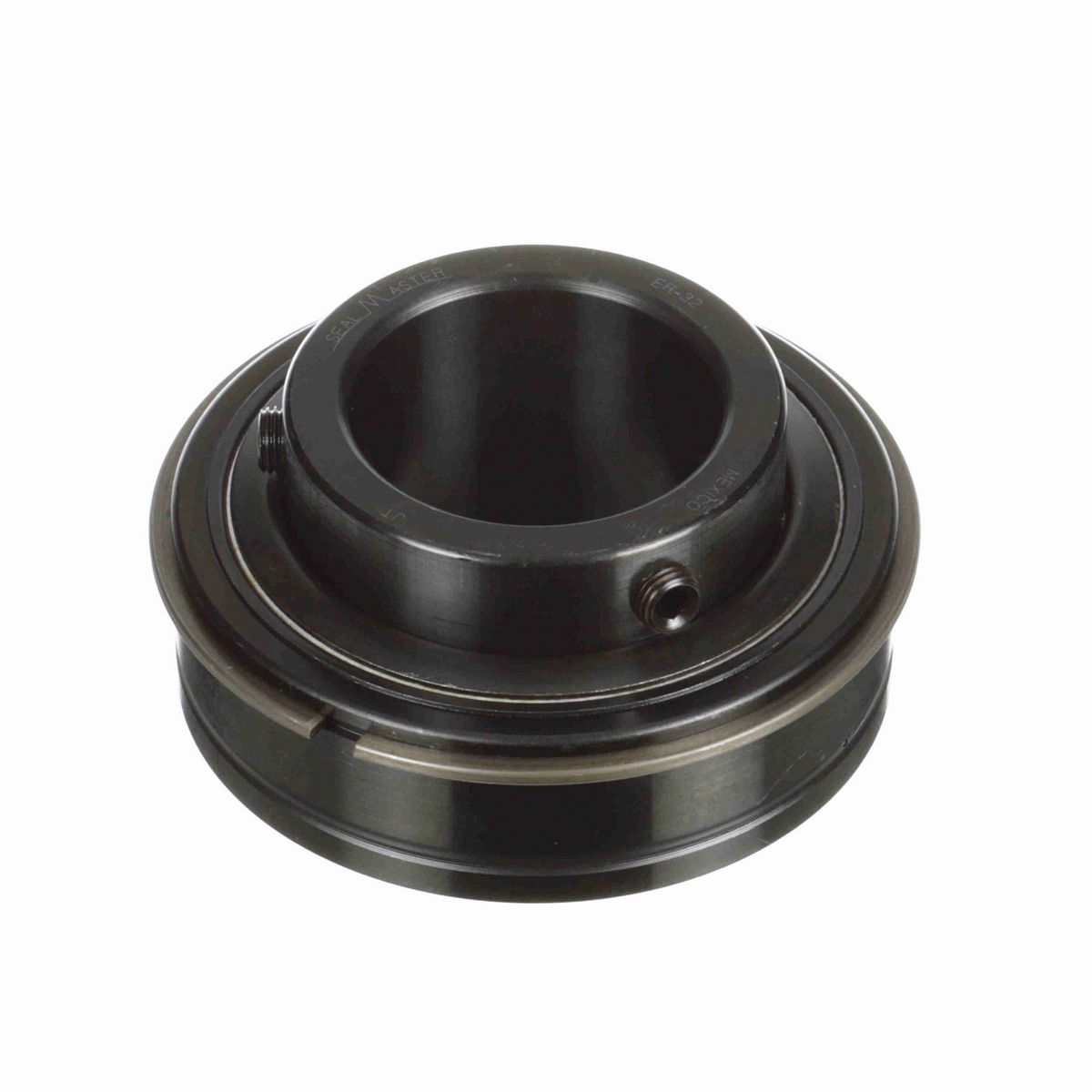

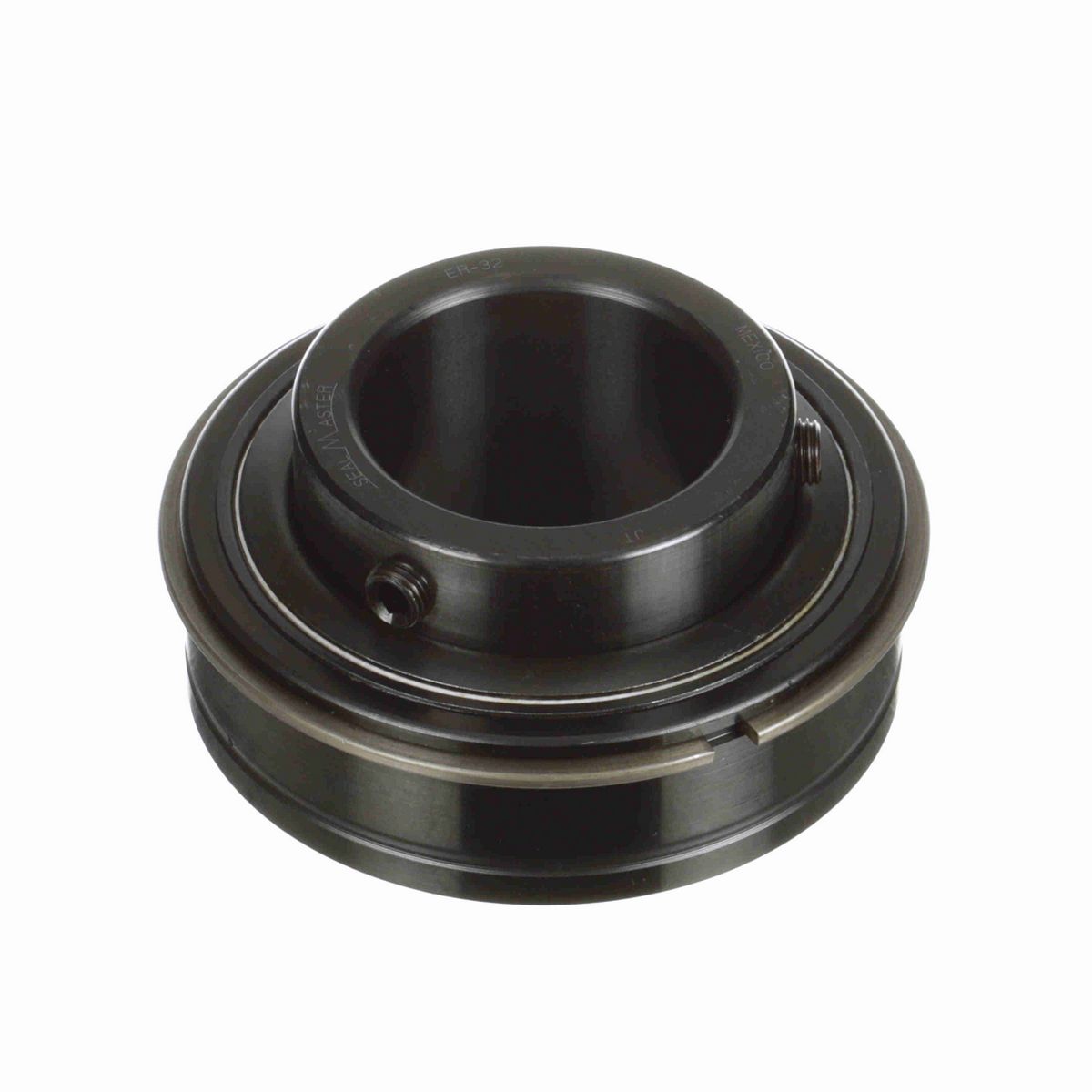

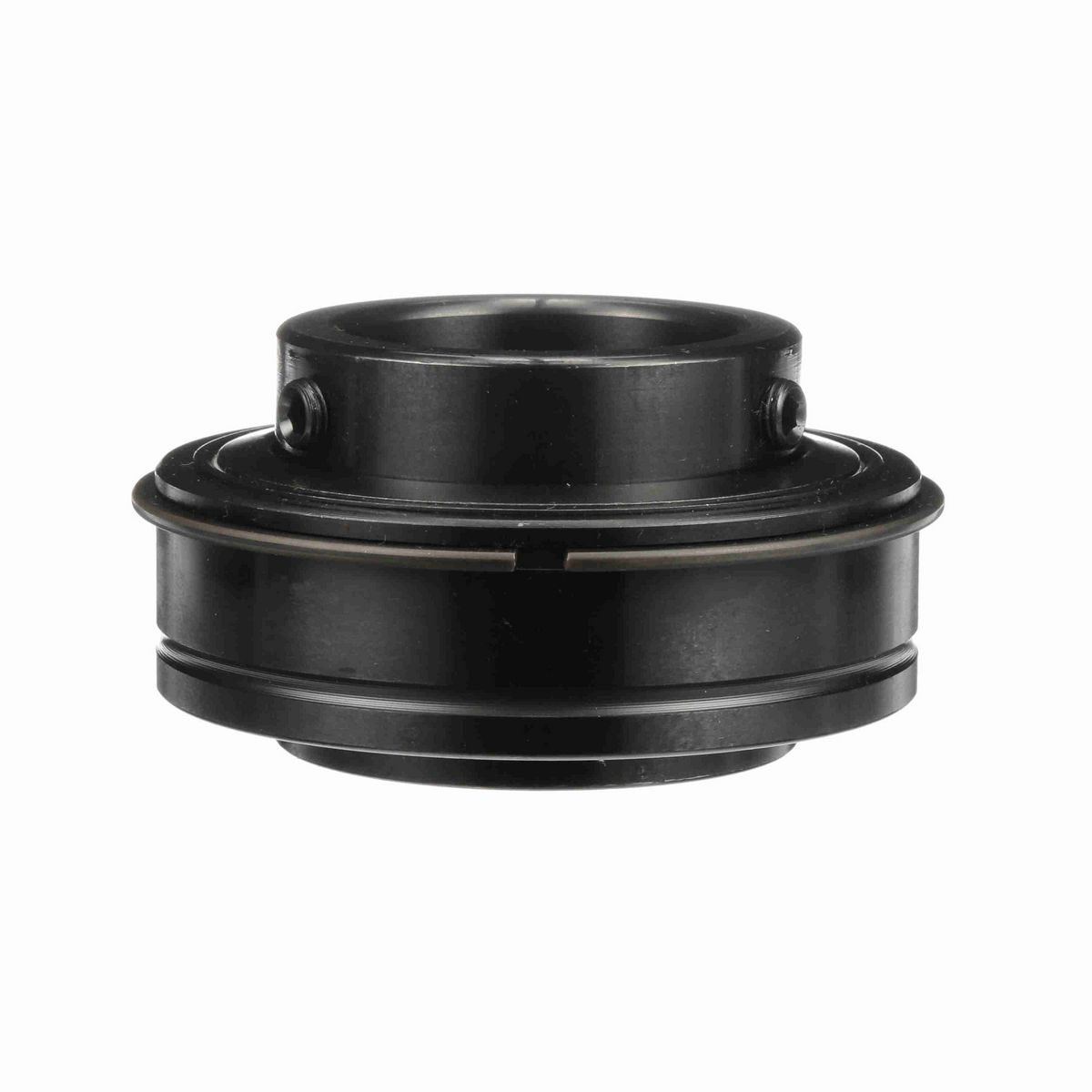

Sealmaster Mounted Insert Only Ball Bearing - 52100 Bearing Steel, Black Oxided - Setscrew Lock - ER-32
(0) |
0 руб.
- ER style cylindrical OD bearing with snap and with black oxided bearing rings
- Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
- Felt labyrinth seal and flinger for dry and dusty environment
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
| Overall Width (in) | 2.19 in |
| Bore Size (in) | 2 in |
| Outer Race OD (mm) | 100 mm |
| Centerline to Front Face (in) | 1.313 in |
| Outer Race Width (in) | 1.188 in |
| Inner Ring OD (in) | 2.719 in |
| Outer Race OD (in) | 3.937 in |
| Length Through Bore (in) | 2.188 in |
| Outer Race Width (mm) | 30.2 mm |
| Housing Type | Insert (ER Style) |
| Measure Units | Inch |
| Bore Shape | Straight |
| Rolling Element | Ball Bearing |
| Set Screw Thread | 3/8-24 UNF |
| Seal Type | Felt Labyrinth Seal |
| Insert Material | 52100 Bearing Steel |
| Misalignment | None |
| Expansion | No |
| Internal Clearance | Standard |
| Outer Ring Land Profile | Tapered Lands |
| Misalignment Type | Static Only |
| Bearing Insert Coating | Black Oxide |
| Platform | Gold Line Ball Bearing |
| End Cap | No |
| Cage Material | PPS - Polyphenylene Sulfide |
| Precision Rating | ABEC 1 |
| Inner Race Profile | Wide Inner Ring |
| Outer Race Profile | Cylindrical |
| Series | Unmounted Replacement Bearings |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Setscrew Torque (in-lbs) | 230-300 in/lbs |
| Maximum Operating Temperature (F) | 220 °F |
| Vibration Frequency Outer Ring Defect | 0.068 cps |
| Duty/Status | Standard |
| Vibration Frequency Fundamental Train | 0.0068 cps |
| Vibration Frequency Inner Ring Defect | 0.0987 cps |
| Size Code | 2-23 |
| Ability to Relubricate | Yes |
| Maximum Speed (rpm) | 3250 rpm |
| Inner Ring Fillet Radius (in) | 0.08 in |
| Locking Type | Set Screw |
| Vibration Frequency Roller Spin | 0.0437 cps |
| Inner Race Heat Treat Method | Zone-Hardened |
| Dynamic Load Rating (lb) | 9,752 lb |
| Static Load Rating (lb) | 6,601 lb |
| Cage Type | Land Riding Retainer |
| UPC | 662461008775 |
| Weight | 3.16 LB |
| Packaged Length | 4.25 IN |
| Packaged Width | 2.25 IN |
| Packaged Height | 4.25 IN |
| HTC | 8482.10.5052 |
| Country of Origin | Mexico |
