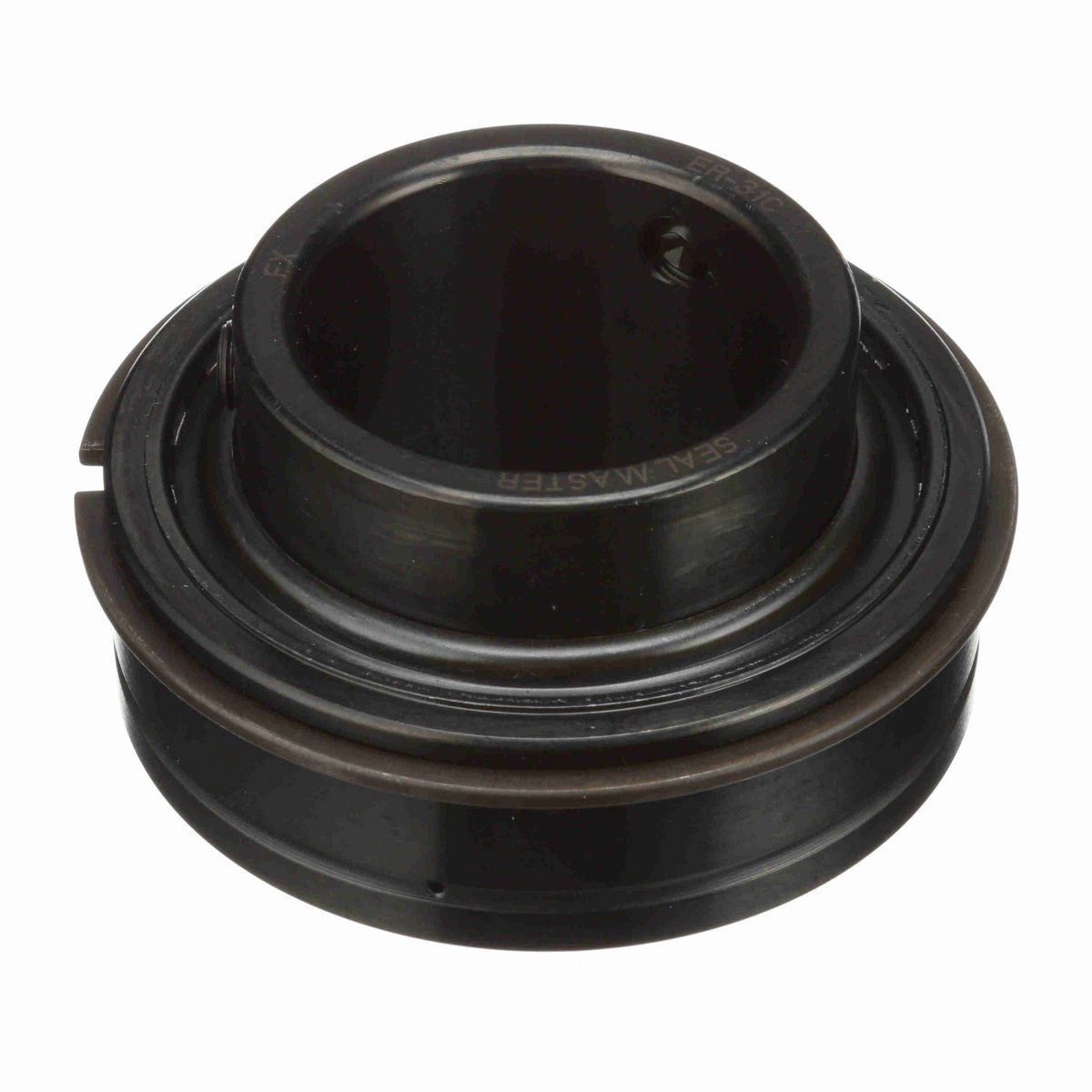

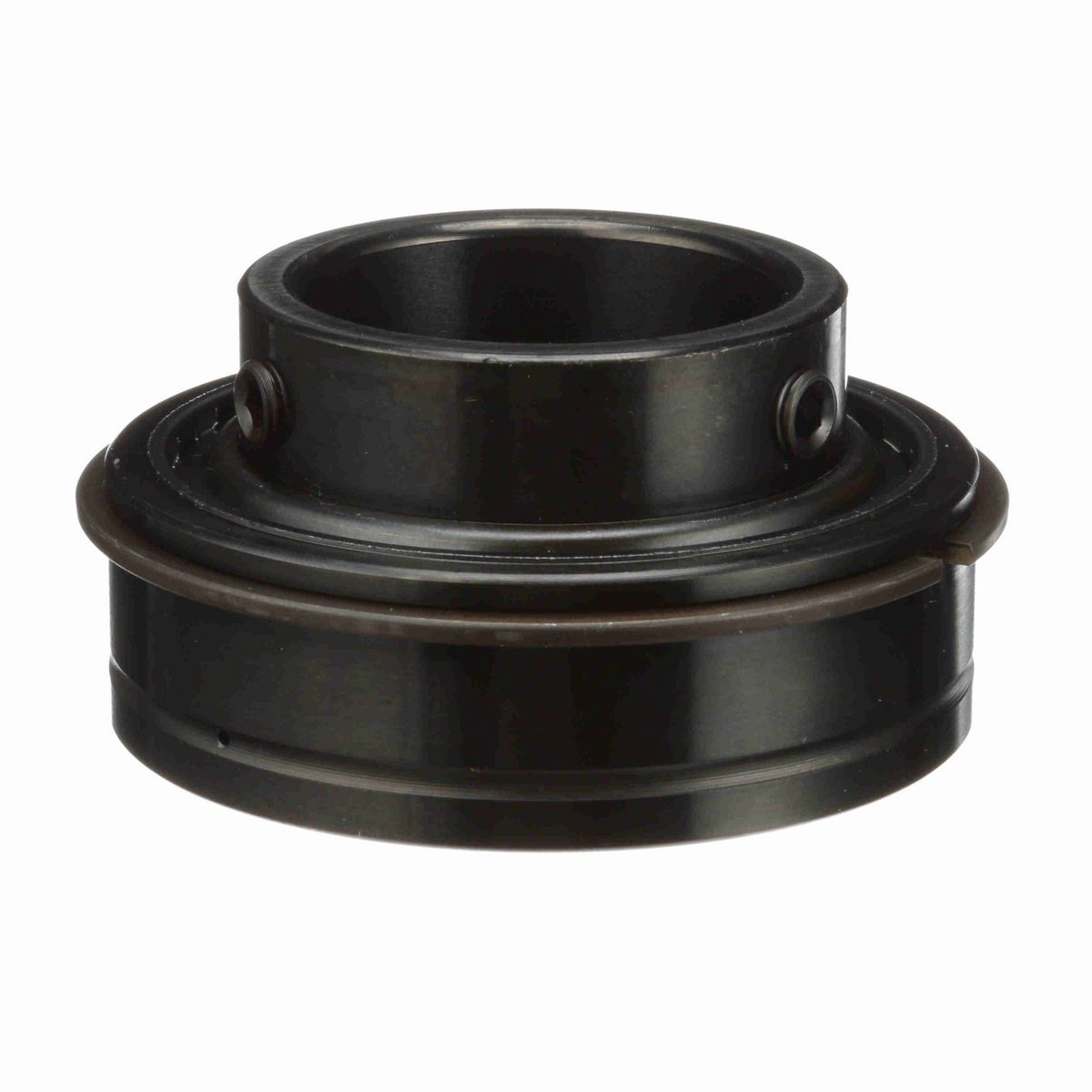

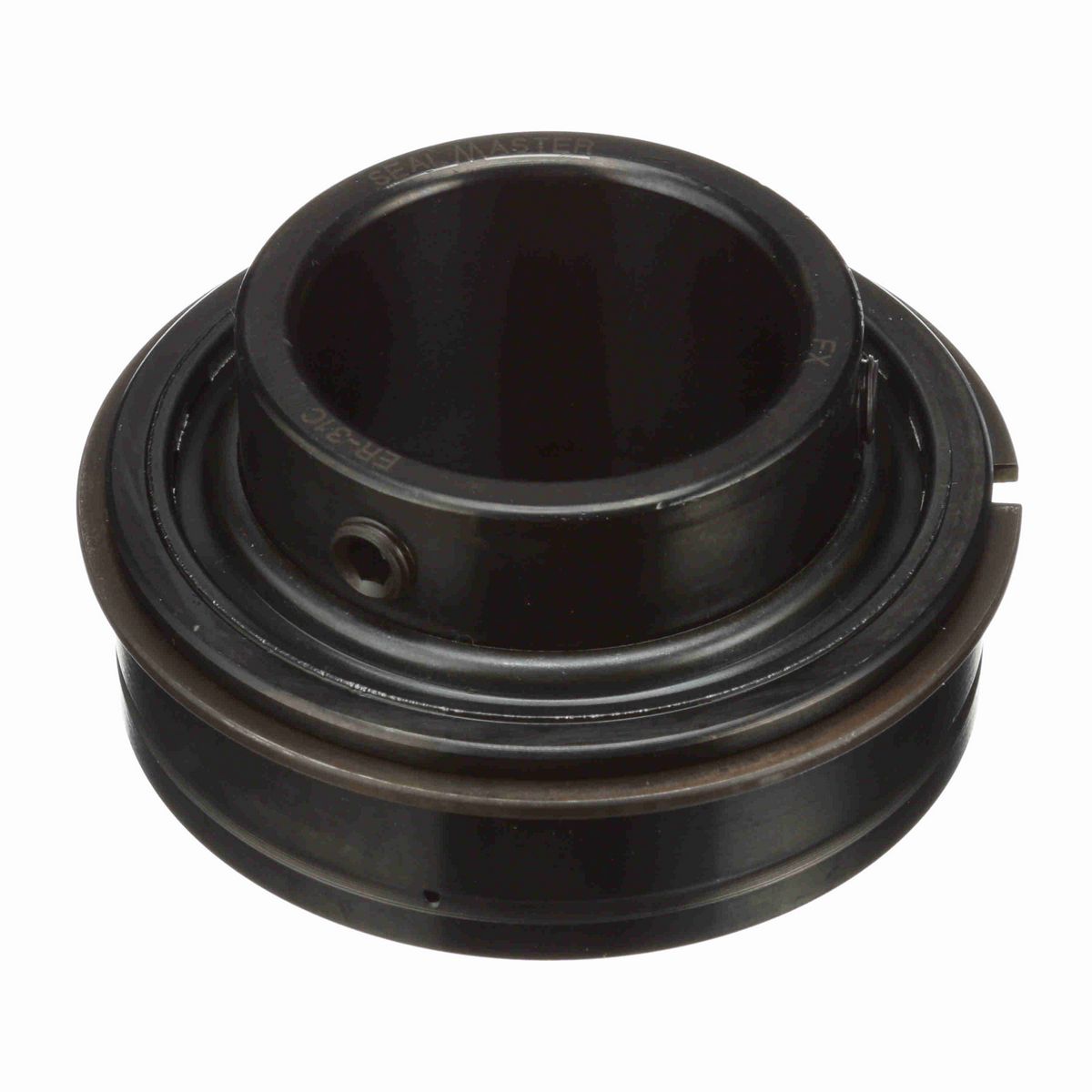

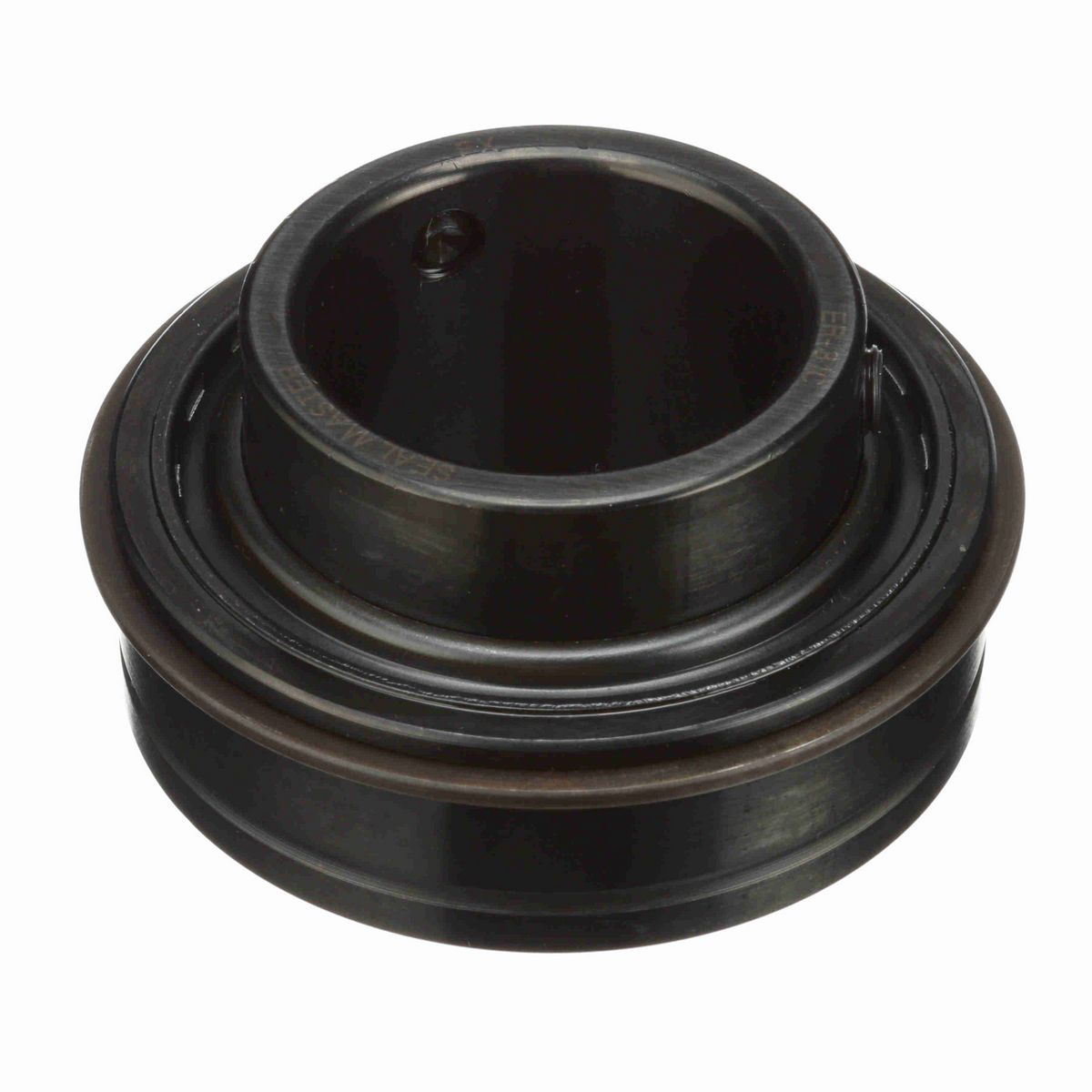

• ER style cylindrical OD bearing with snap and with black oxided bearing rings
• Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Overall Width (in)	2.03 in
Bore Size (in)	1.9375 in
Outer Race OD (in)	3.5433 in
Centerline to Front Face (in)	1.281 in
Outer Race OD (mm)	90 mm
Inner Ring OD (in)	2.469 in
Outer Race Width (in)	1.125 in
Length Through Bore (in)	2.031 in
Outer Race Width (mm)	28.6 mm

Technical Specifications

Set Screw Thread	3/8-24 UNF
Measure Units	Inch
Insert Material	52100 Bearing Steel
Housing Type	Insert (ER Style)
Bore Shape	Straight
Rolling Element	Ball Bearing
Seal Type	Single Lip Contact Seal
Internal Clearance	Standard
Misalignment	None
Expansion	No
Bearing Insert Coating	Black Oxide
Outer Ring Land Profile	Tapered Lands
Misalignment Type	Static Only
End Cap	No
Platform	Gold Line Ball Bearing
Precision Rating	ABEC 1
Cage Material	PPS - Polyphenylene Sulfide
Outer Race Profile	Cylindrical
Inner Race Profile	Wide Inner Ring
Maximum Speed (rpm)	3550 rpm
Lubrication Type	Lithium Complex NLGI 2 Grease
Inner Ring Fillet Radius (in)	0.06 in
Locking Type	Set Screw
Ability to Relubricate	Yes
Vibration Frequency Inner Ring Defect	0.0984 cps
Vibration Frequency Outer Ring Defect	0.0683 cps
Vibration Frequency Roller Spin	0.0445 cps
Series	Unmounted Replacement Bearings
Size Code	2-115
Vibration Frequency Fundamental Train	0.0068 cps
Duty/Status	Standard
Inner Race Heat Treat Method	Zone-Hardened
Setscrew Torque (in-lbs)	230-300 in/lbs
Maximum Operating Temperature (F)	220 °F
Dynamic Load Rating (lb)	7,889 lb
Static Load Rating (lb)	5,216 lb
Cage Type	Land Riding Retainer

General Specifications

UPC	662461024966
Weight	2.20 LB
Packaged Length	4.25 IN
Packaged Width	2.25 IN
Packaged Height	4.25 IN
HTC	8482.10.5052
Country of Origin	Mexico
