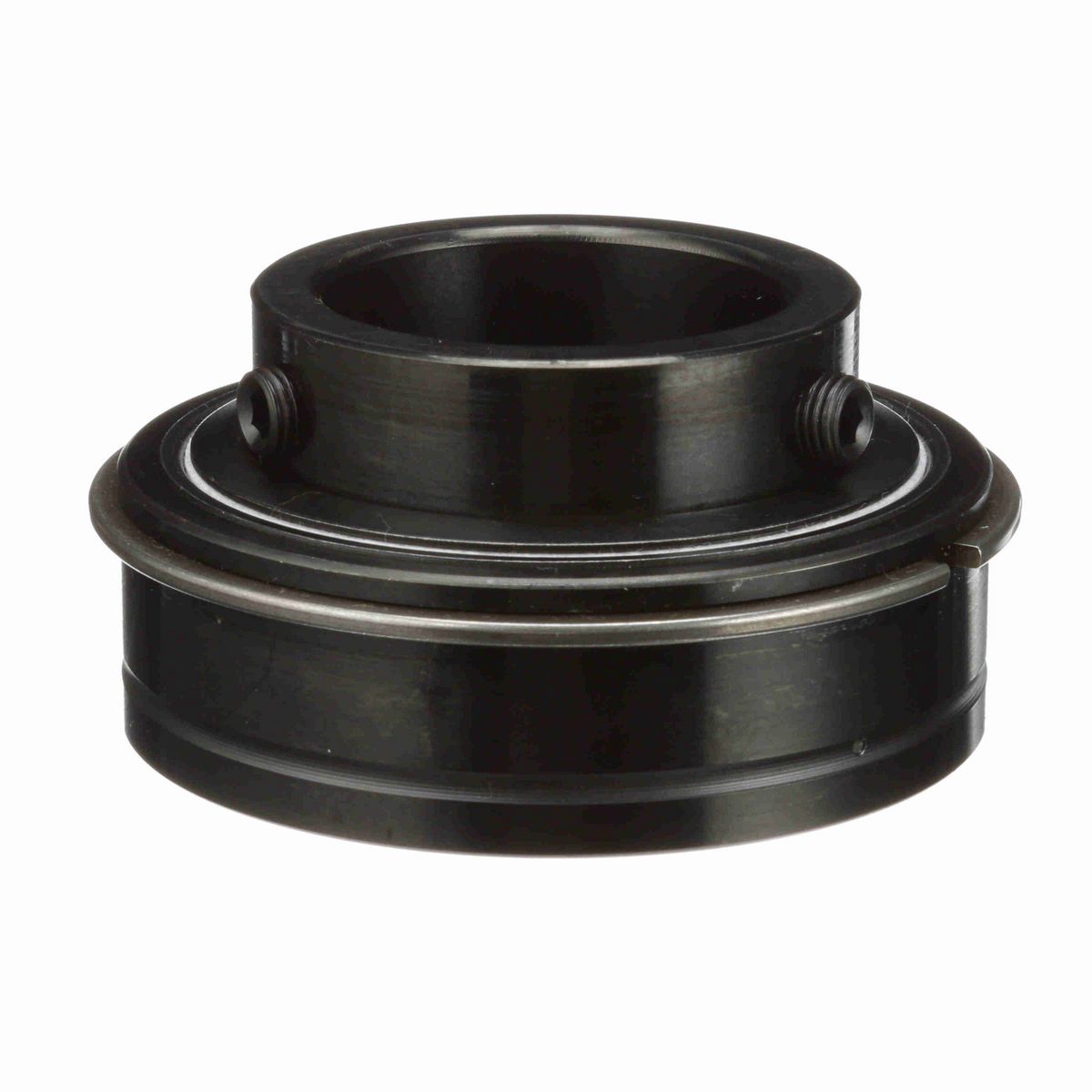

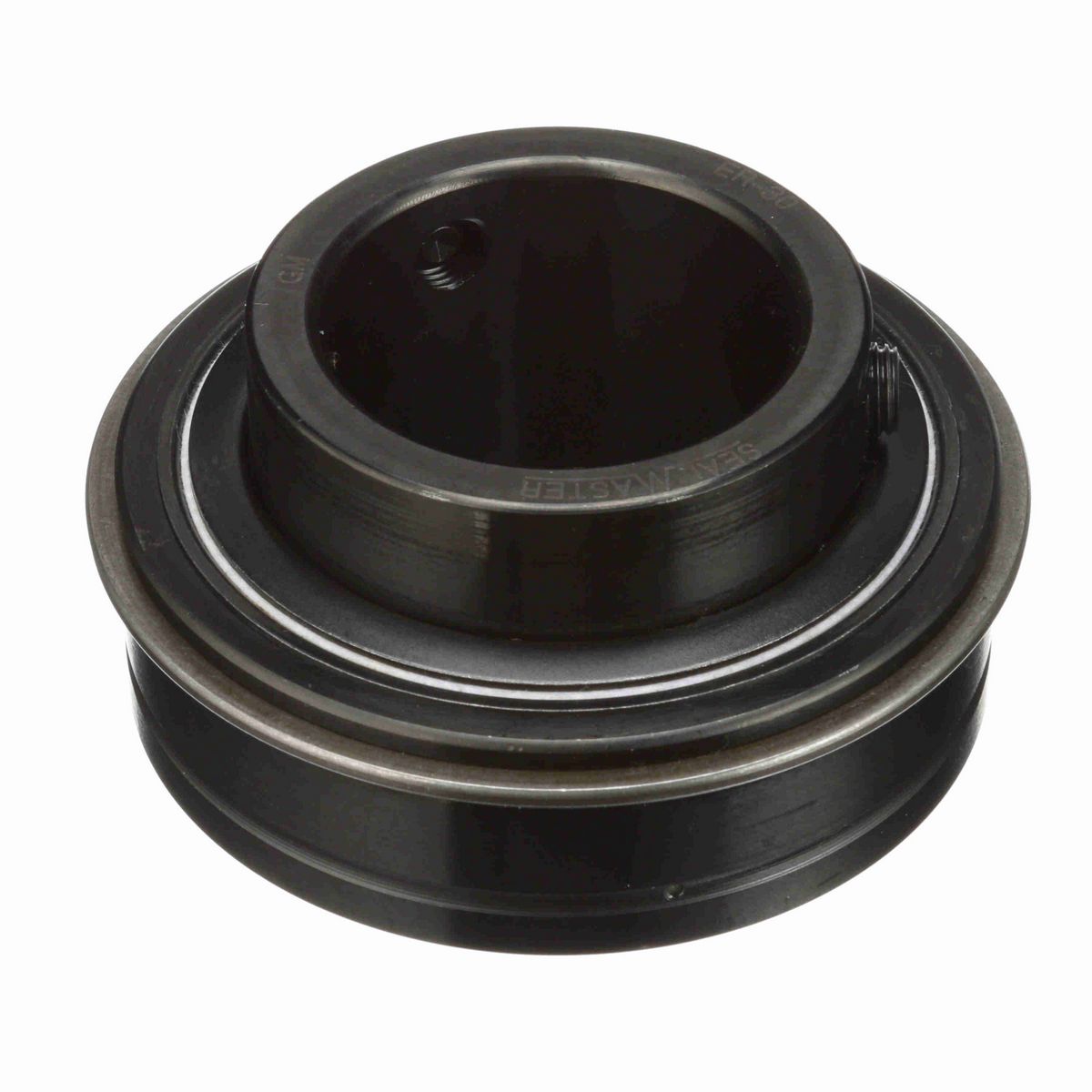

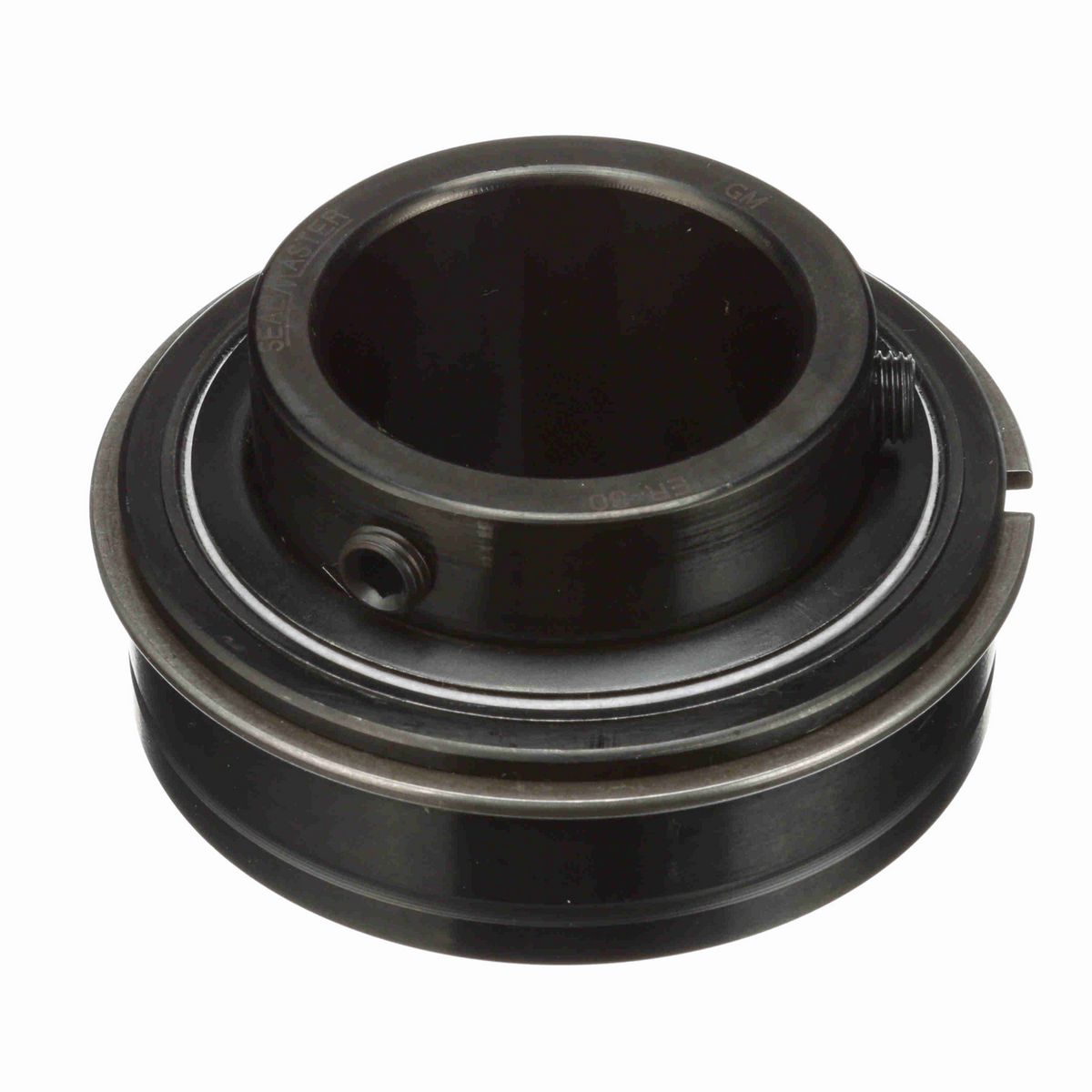

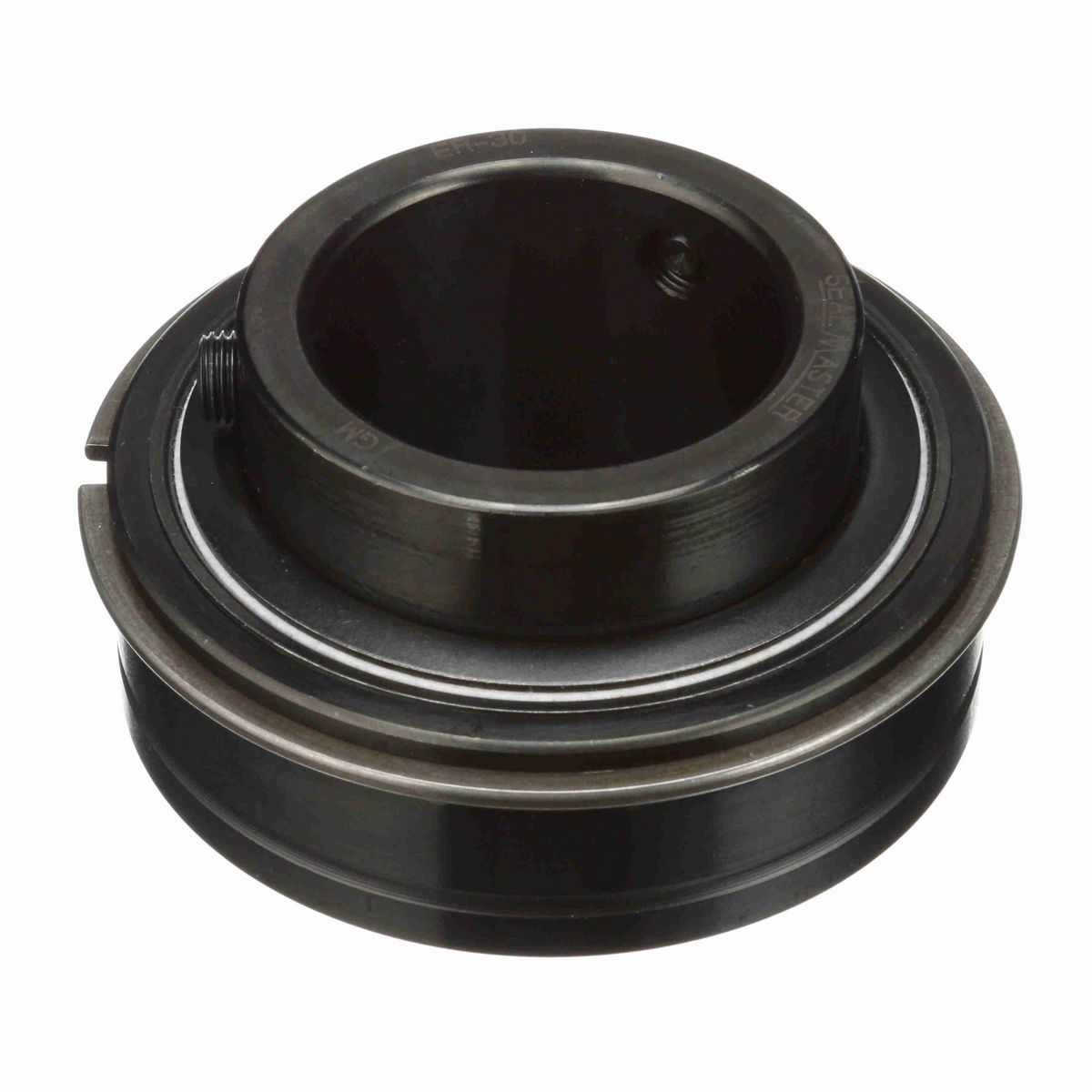

• ER style cylindrical OD bearing with snap and with black oxided bearing rings
• Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Overall Width (in)	2.03 in
Bore Size (in)	1.875 in
Outer Race OD (in)	3.5433 in
Outer Race OD (mm)	90 mm
Centerline to Front Face (in)	1.281 in
Outer Race Width (in)	1.125 in
Inner Ring OD (in)	2.469 in
Length Through Bore (in)	2.031 in
Outer Race Width (mm)	28.6 mm

Technical Specifications

Seal Type	Felt Labyrinth Seal
Housing Type	Insert (ER Style)
Rolling Element	Ball Bearing
Insert Material	52100 Bearing Steel
Set Screw Thread	3/8-24 UNF
Bore Shape	Straight
Measure Units	Inch
Expansion	No
Internal Clearance	Standard
Misalignment	None
Outer Ring Land Profile	Tapered Lands
Bearing Insert Coating	Black Oxide
Platform	Gold Line Ball Bearing
End Cap	No
Misalignment Type	Static Only
Cage Material	PPS - Polyphenylene Sulfide
Precision Rating	ABEC 1
Inner Race Profile	Wide Inner Ring
Outer Race Profile	Cylindrical
Duty/Status	Standard
Ability to Relubricate	Yes
Vibration Frequency Fundamental Train	0.0068 cps
Maximum Speed (rpm)	3550 rpm
Lubrication Type	Lithium Complex NLGI 2 Grease
Vibration Frequency Outer Ring Defect	0.0683 cps
Size Code	2-115
Vibration Frequency Inner Ring Defect	0.0984 cps
Inner Ring Fillet Radius (in)	0.06 in
Setscrew Torque (in-lbs)	230-300 in/lbs
Series	Unmounted Replacement Bearings
Maximum Operating Temperature (F)	220 °F
Locking Type	Set Screw
Inner Race Heat Treat Method	Zone-Hardened
Vibration Frequency Roller Spin	0.0445 cps
Static Load Rating (lb)	5,216 lb
Cage Type	Land Riding Retainer
Dynamic Load Rating (lb)	7,889 lb

General Specifications

UPC	662461008744
Weight	2.31 LB
Packaged Length	4.25 IN
Packaged Width	2.25 IN
Packaged Height	4.25 IN
HTC	8482.10.5052
Country of Origin	Mexico
