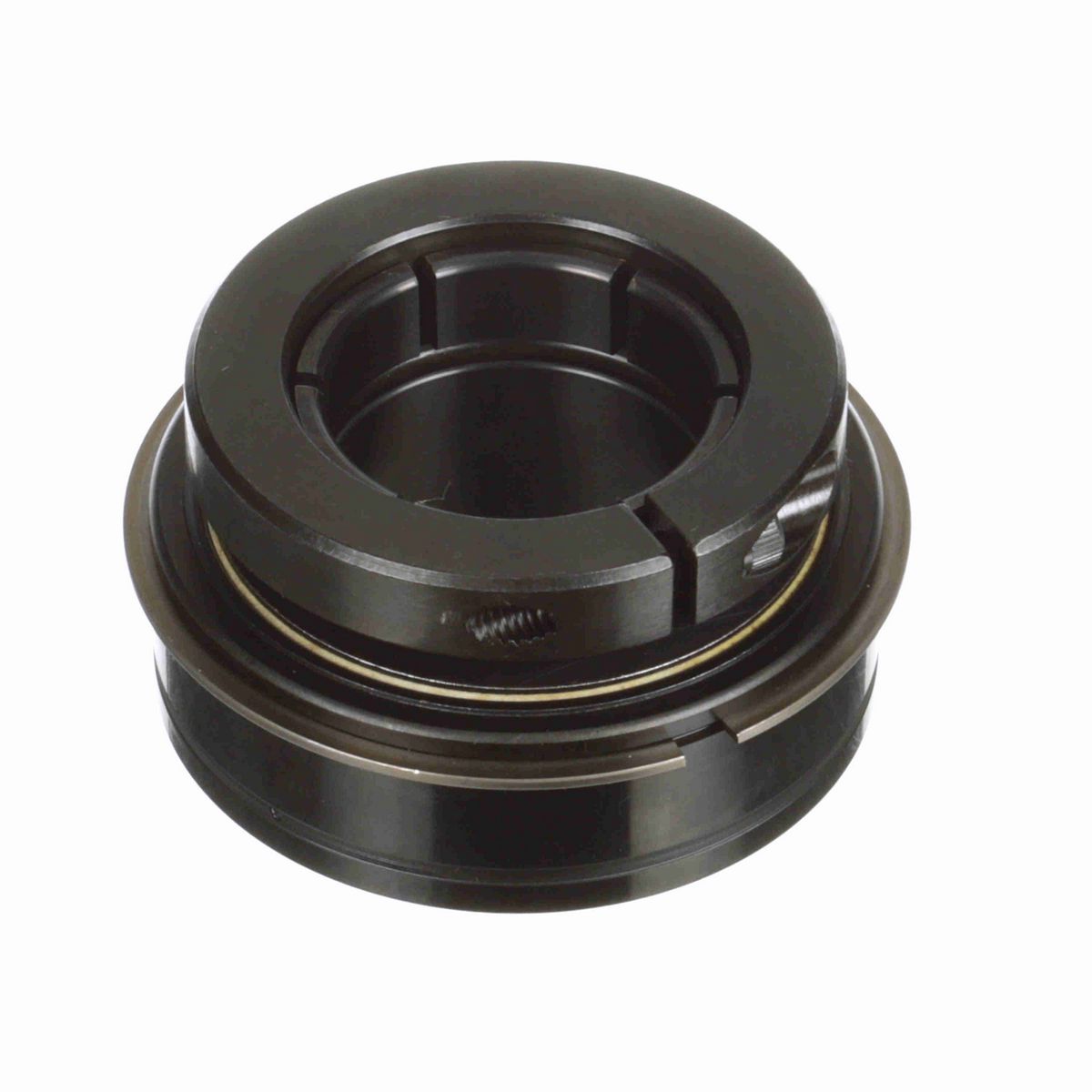

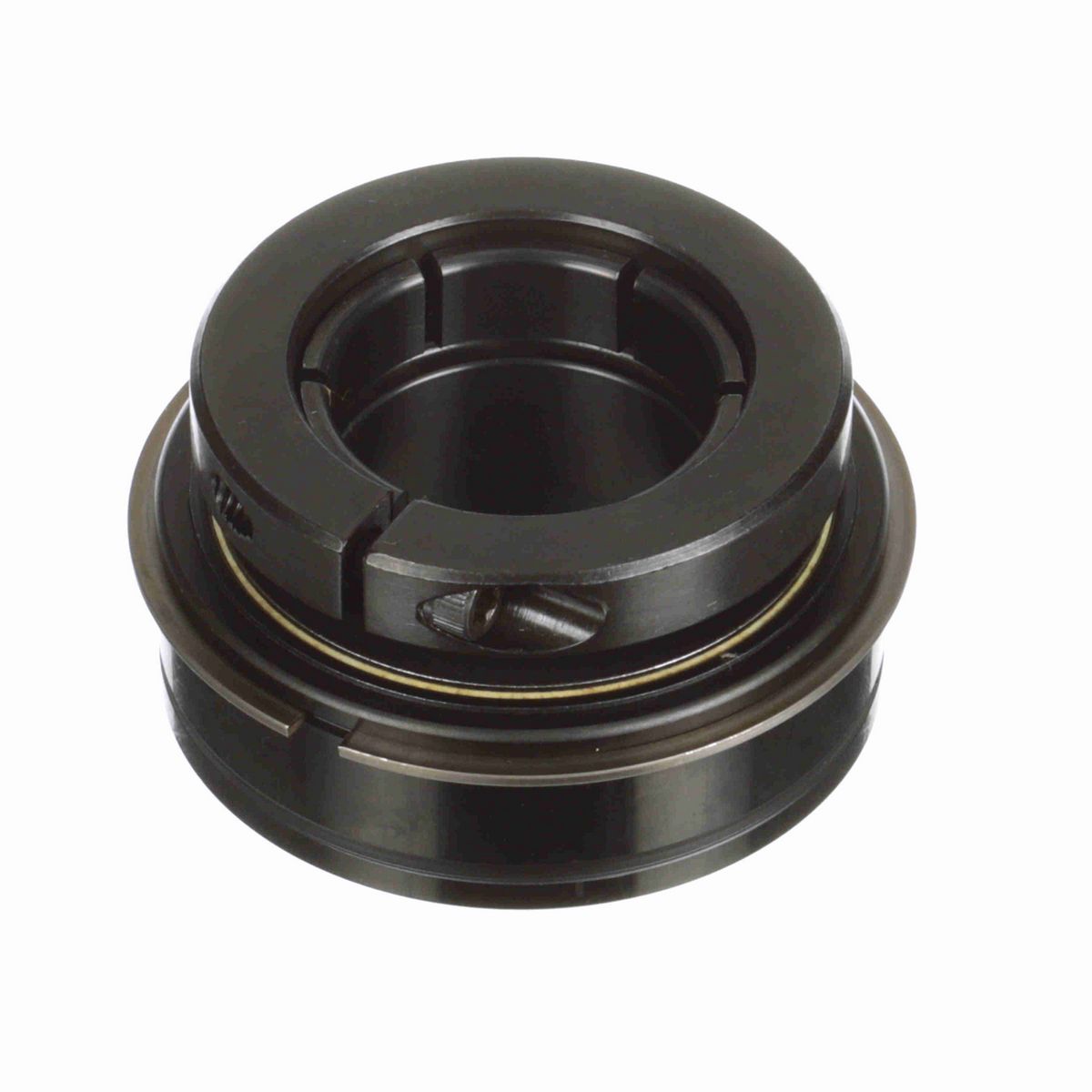

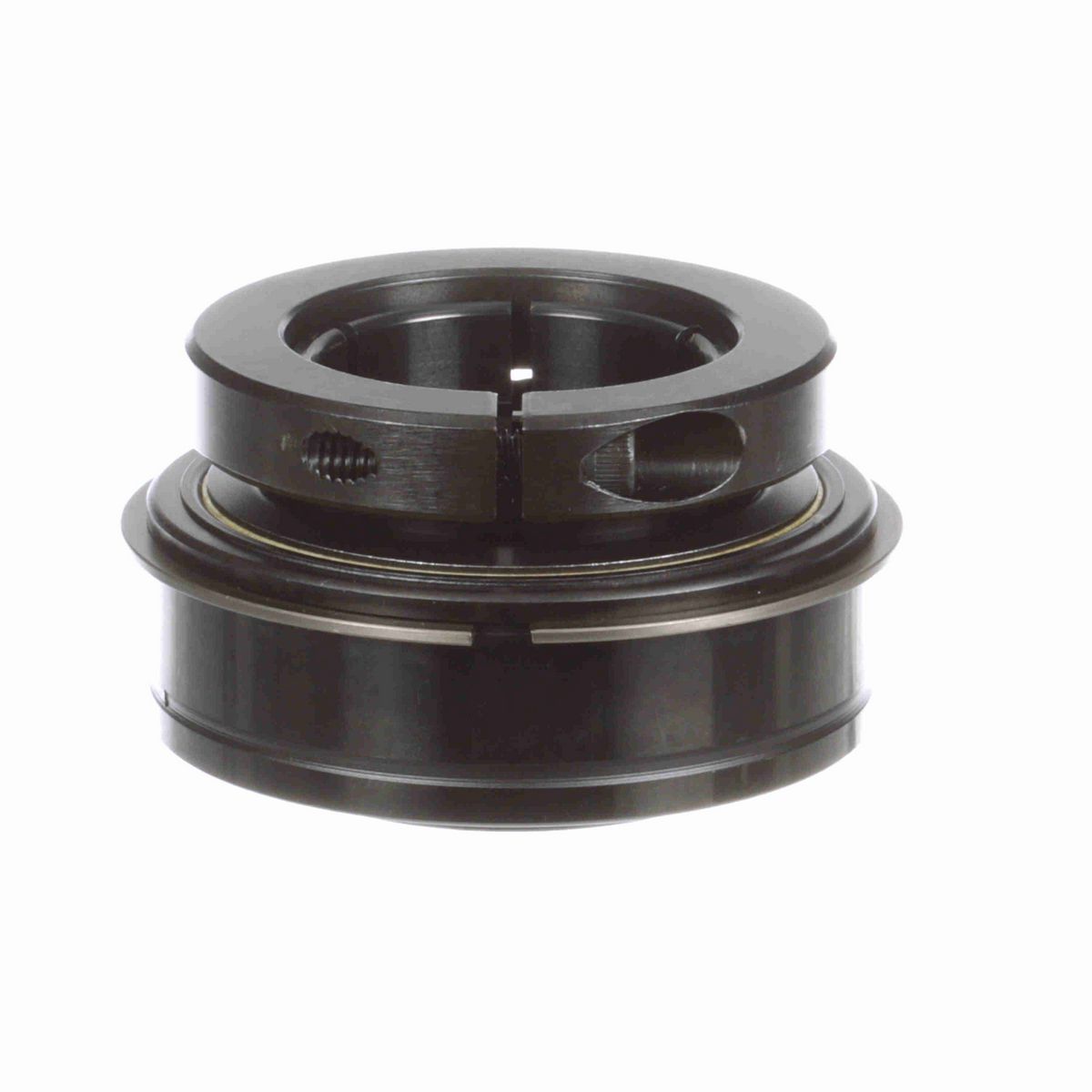

• ER style cylindrical OD bearing with snap and with black oxided bearing rings
• Skwezloc® concentric locking for near perfect concentricity
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Overall Width (in)	2.06 in
Bore Size (in)	1.75 in
Outer Race OD (mm)	85 mm
Inner Ring OD (in)	2.297 in
Centerline to Front Face (in)	1.25 in
Collar OD (in)	3 in
Outer Race OD (in)	3.3465 in
Outer Race Width (in)	1.094 in
Length Through Bore (in)	2.06 in
Outer Race Width (mm)	27.8 mm

Technical Specifications

Seal Type	Felt Labyrinth Seal
Torx Cap Screw	1/4-20 UNC
Housing Type	Insert (ER Style)
Bore Shape	Straight
Rolling Element	Ball Bearing
Insert Material	52100 Bearing Steel
Measure Units	Inch
Internal Clearance	Standard
Misalignment	None
Expansion	No
End Cap	No
Misalignment Type	Static Only
Outer Ring Land Profile	Tapered Lands
Bearing Insert Coating	Black Oxide
Platform	Gold Line Ball Bearing
Precision Rating	ABEC 1
Cage Material	PPS - Polyphenylene Sulfide
Outer Race Profile	Cylindrical
Inner Race Profile	Wide Inner Ring
Lubrication Type	Lithium Complex NLGI 2 Grease
Vibration Frequency Fundamental Train	0.0067 cps
Locking Type	Concentric
Vibration Frequency Inner Ring Defect	0.0994 cps
Setscrew Torque (in-lbs)	240 in/lbs
Size Code	2-111
Maximum Speed (rpm)	5850 rpm
Duty/Status	Standard
Vibration Frequency Outer Ring Defect	0.0673 cps
Series	Unmounted Replacement Bearings
Inner Race Heat Treat Method	Zone-Hardened
Vibration Frequency Roller Spin	0.0417 cps
Ability to Relubricate	Yes
Maximum Operating Temperature (F)	220 °F
Inner Ring Fillet Radius (in)	0.06 in
Static Load Rating (lb)	5,139 lb
Dynamic Load Rating (lb)	7,901 lb
Cage Type	Land Riding Retainer

General Specifications

UPC	662461031278
Weight	2.27 LB
Packaged Length	2.00 IN
Packaged Width	3.63 IN
Packaged Height	3.63 IN
HTC	8482.10.5052
Country of Origin	Mexico
