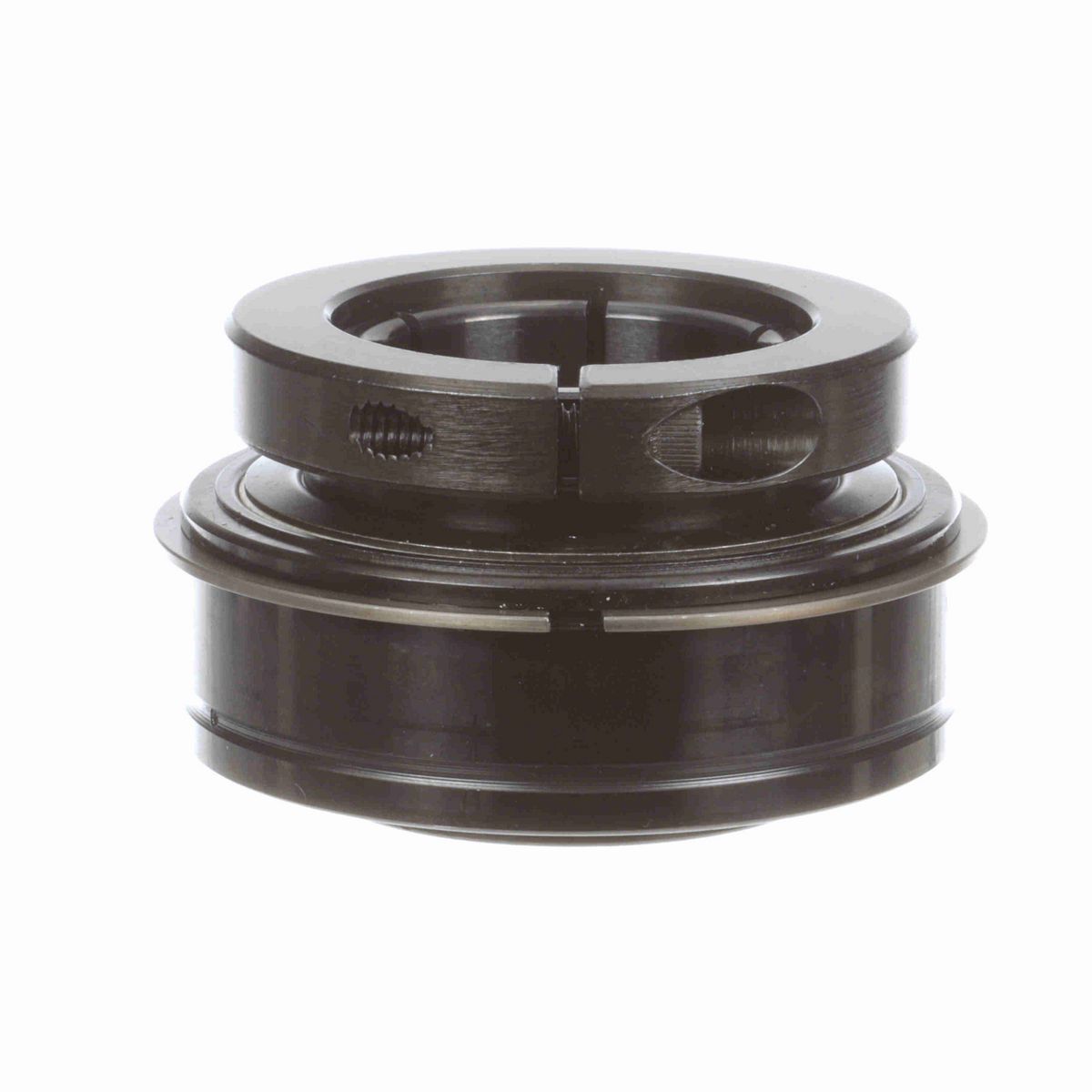

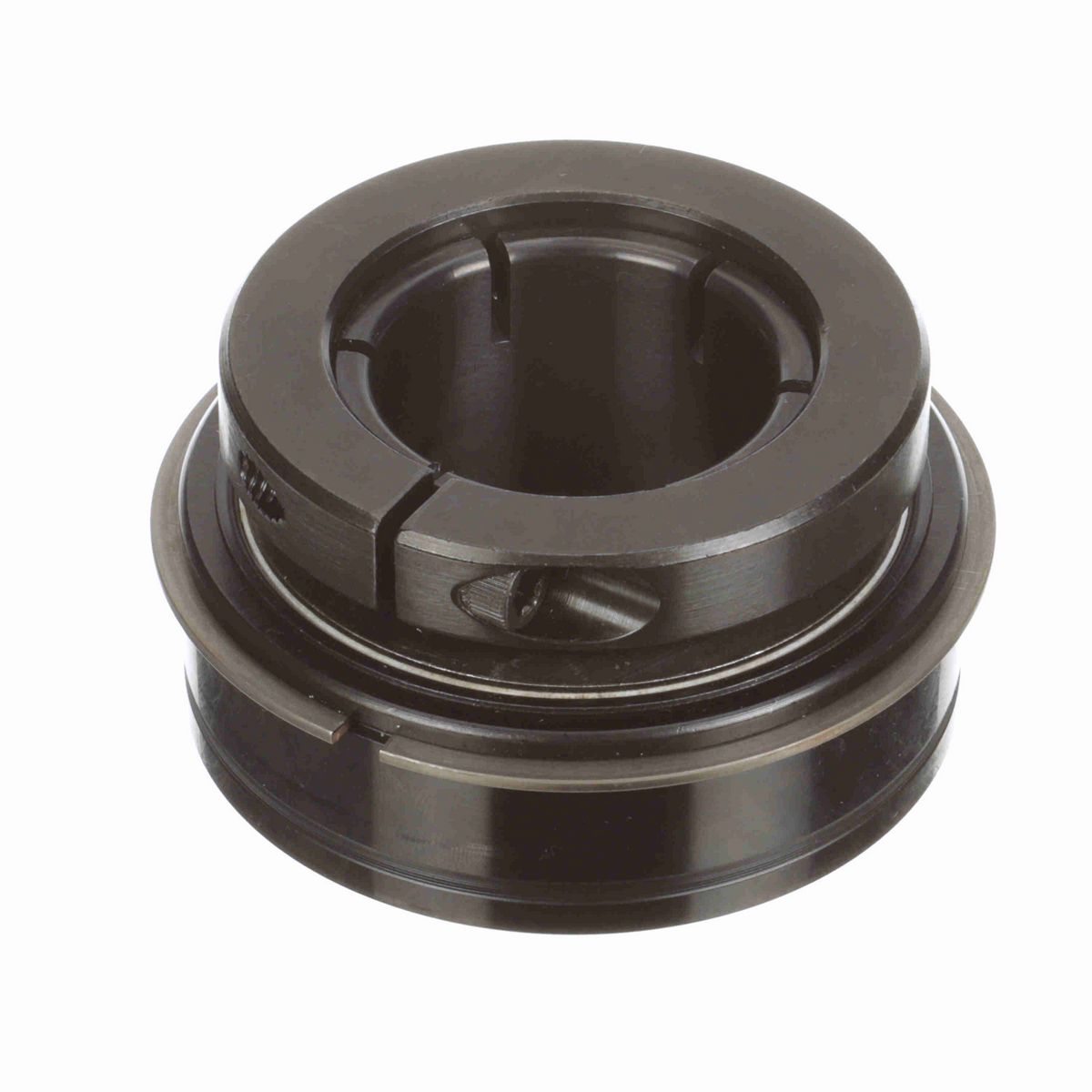

• ER style cylindrical OD bearing with snap and with black oxided bearing rings
• Skwezloc® concentric locking for near perfect concentricity
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Overall Width (in)	2.06 in
Bore Size (in)	1.6875 in
Outer Race OD (mm)	85 mm
Inner Ring OD (in)	2.297 in
Centerline to Front Face (in)	1.25 in
Collar OD (in)	3 in
Outer Race Width (in)	1.094 in
Outer Race OD (in)	3.3465 in
Length Through Bore (in)	2.06 in
Outer Race Width (mm)	27.8 mm

Technical Specifications

Torx Cap Screw	1/4-20 UNC
Measure Units	Inch
Bore Shape	Straight
Insert Material	52100 Bearing Steel
Housing Type	Insert (ER Style)
Seal Type	Felt Labyrinth Seal
Rolling Element	Ball Bearing
Internal Clearance	Standard
Misalignment	None
Expansion	No
Platform	Gold Line Ball Bearing
End Cap	No
Outer Ring Land Profile	Tapered Lands
Misalignment Type	Static Only
Bearing Insert Coating	Black Oxide
Cage Material	PPS - Polyphenylene Sulfide
Precision Rating	ABEC 1
Outer Race Profile	Cylindrical
Inner Race Profile	Wide Inner Ring
Vibration Frequency Roller Spin	0.0417 cps
Setscrew Torque (in-lbs)	240 in/lbs
Vibration Frequency Fundamental Train	0.0067 cps
Size Code	2-111
Duty/Status	Standard
Maximum Speed (rpm)	5850 rpm
Maximum Operating Temperature (F)	220 °F
Inner Race Heat Treat Method	Zone-Hardened
Ability to Relubricate	Yes
Vibration Frequency Inner Ring Defect	0.0994 cps
Lubrication Type	Lithium Complex NLGI 2 Grease
Vibration Frequency Outer Ring Defect	0.0673 cps
Series	Unmounted Replacement Bearings
Inner Ring Fillet Radius (in)	0.06 in
Locking Type	Concentric
Cage Type	Land Riding Retainer
Dynamic Load Rating (lb)	7,901 lb
Static Load Rating (lb)	5,139 lb

General Specifications

UPC	662461031261
Weight	2.40 LB
Packaged Length	3.63 IN
Packaged Width	2.00 IN
Packaged Height	3.63 IN
HTC	8482.10.5052
Country of Origin	Mexico
