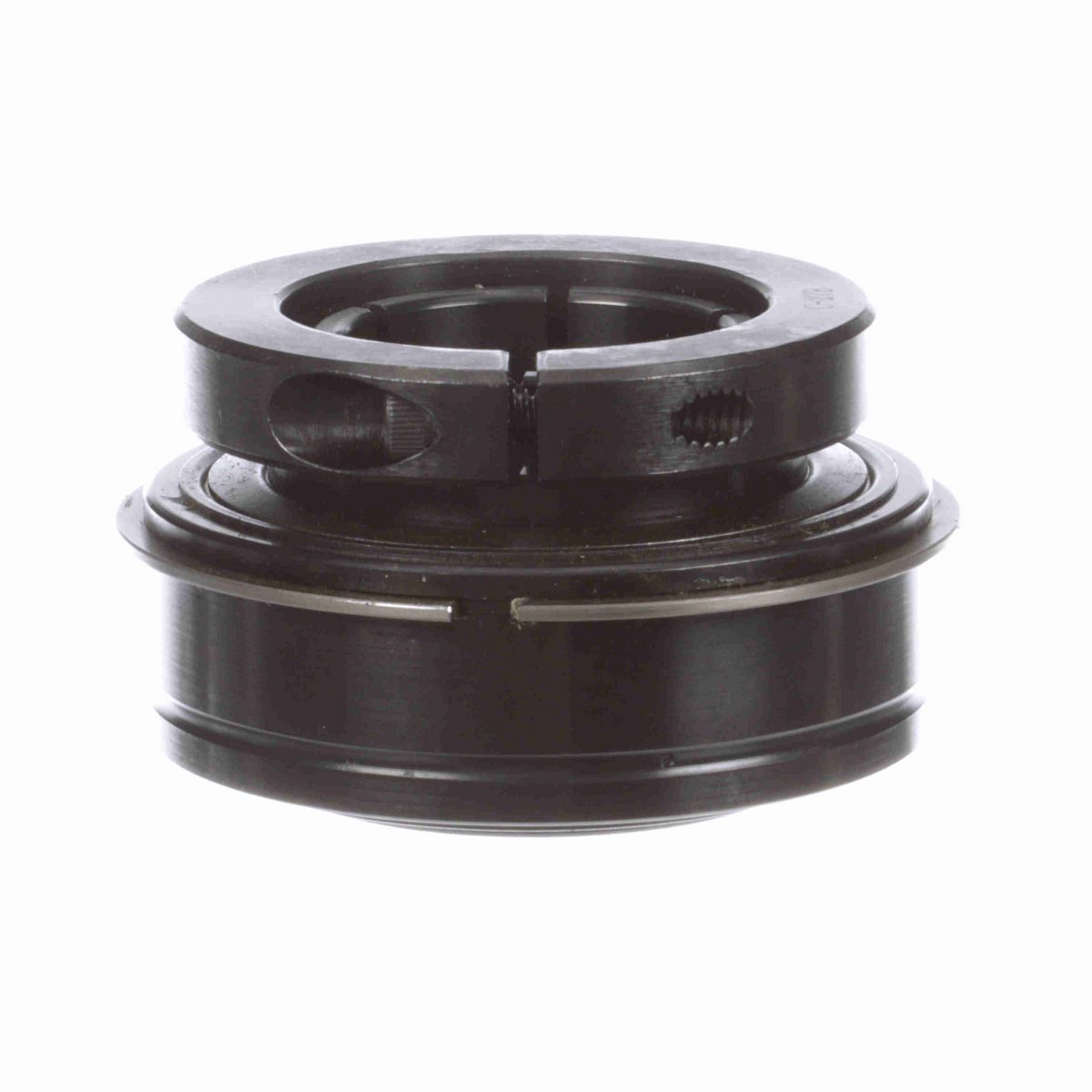

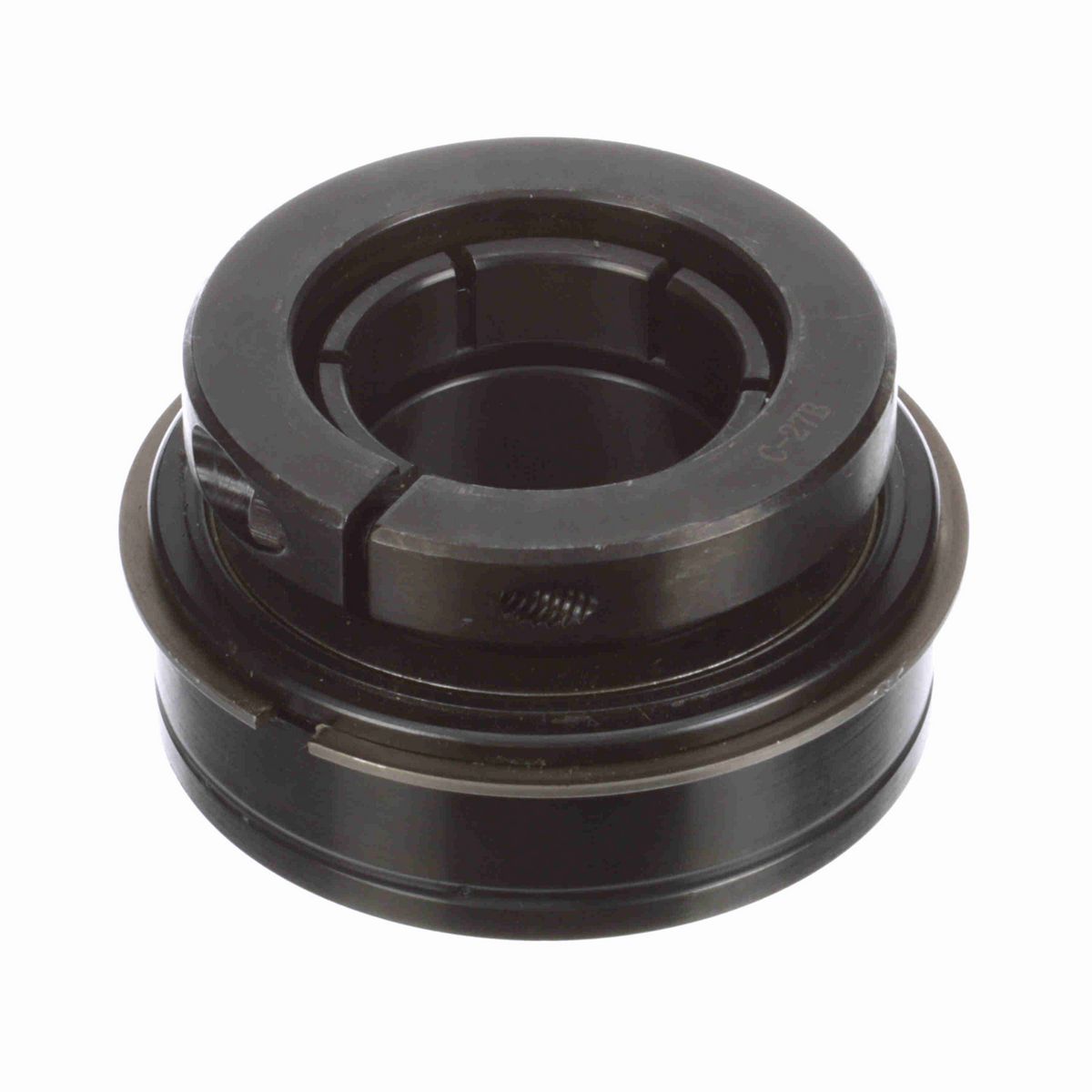

• ER style cylindrical OD bearing with snap and with black oxided bearing rings
• Skwezloc® concentric locking for near perfect concentricity
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Overall Width (in)	2.06 in
Bore Size (in)	1.625 in
Outer Race OD (in)	3.3465 in
Collar OD (in)	3 in
Outer Race OD (mm)	85 mm
Inner Ring OD (in)	2.297 in
Centerline to Front Face (in)	1.25 in
Outer Race Width (in)	1.094 in
Length Through Bore (in)	2.06 in
Outer Race Width (mm)	27.8 mm

Technical Specifications

Rolling Element	Ball Bearing
Housing Type	Insert (ER Style)
Seal Type	Felt Labyrinth Seal
Torx Cap Screw	1/4-20 UNC
Insert Material	52100 Bearing Steel
Bore Shape	Straight
Measure Units	Inch
Internal Clearance	Standard
Misalignment	None
Expansion	No
Platform	Gold Line Ball Bearing
Outer Ring Land Profile	Tapered Lands
End Cap	No
Bearing Insert Coating	Black Oxide
Misalignment Type	Static Only
Precision Rating	ABEC 1
Cage Material	PPS - Polyphenylene Sulfide
Inner Race Profile	Wide Inner Ring
Outer Race Profile	Cylindrical
Vibration Frequency Outer Ring Defect	0.0673 cps
Vibration Frequency Inner Ring Defect	0.0994 cps
Setscrew Torque (in-lbs)	240 in/lbs
Duty/Status	Standard
Size Code	2-111
Vibration Frequency Roller Spin	0.0417 cps
Inner Race Heat Treat Method	Zone-Hardened
Series	Unmounted Replacement Bearings
Maximum Operating Temperature (F)	220 °F
Lubrication Type	Lithium Complex NLGI 2 Grease
Maximum Speed (rpm)	5850 rpm
Locking Type	Concentric
Inner Ring Fillet Radius (in)	0.06 in
Vibration Frequency Fundamental Train	0.0067 cps
Ability to Relubricate	Yes
Cage Type	Land Riding Retainer
Static Load Rating (lb)	5,139 lb
Dynamic Load Rating (lb)	7,901 lb

General Specifications

UPC	662461057407
Weight	2.45 LB
Packaged Length	2.00 IN
Packaged Width	3.63 IN
Packaged Height	3.63 IN
HTC	8482.10.5052
Country of Origin	Mexico
