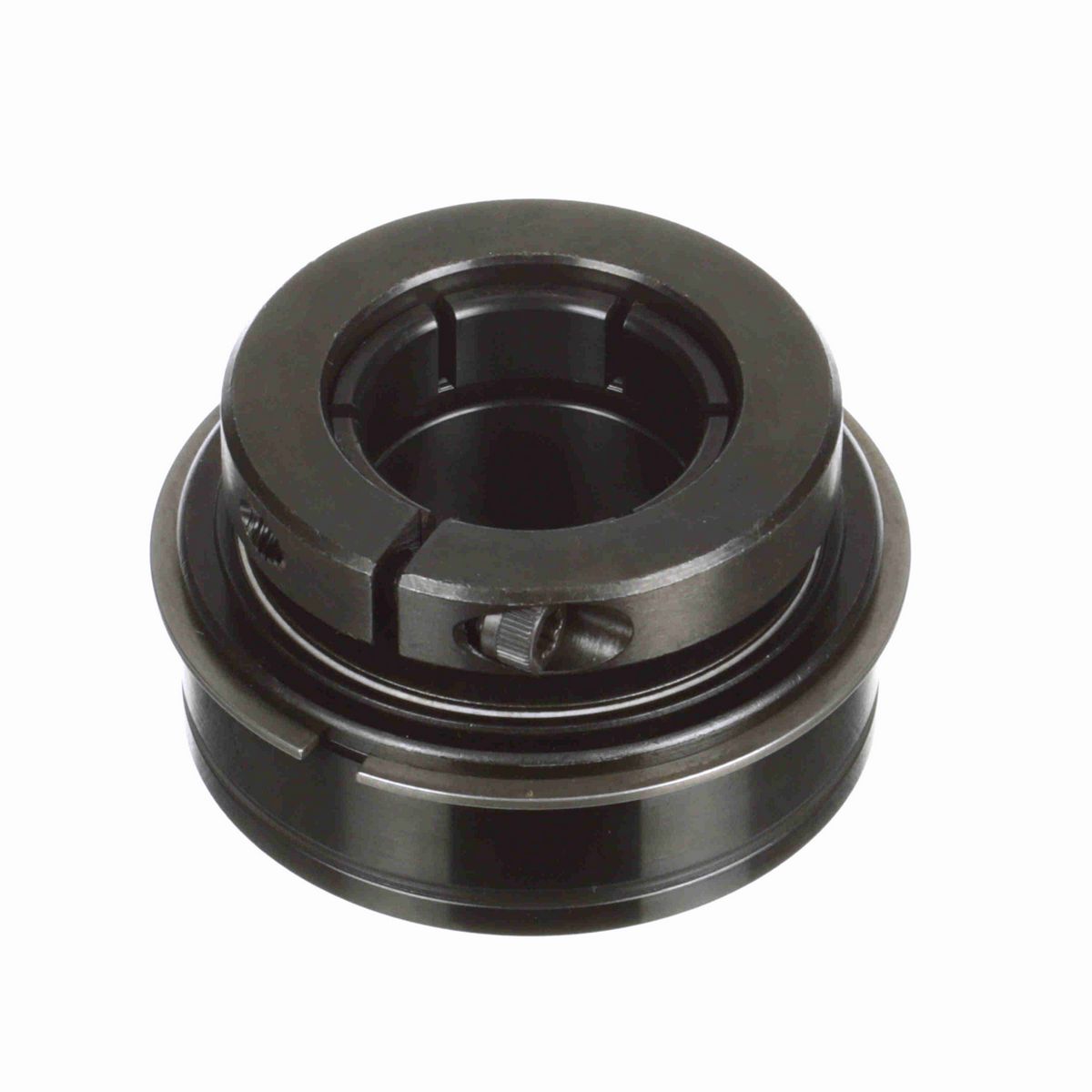

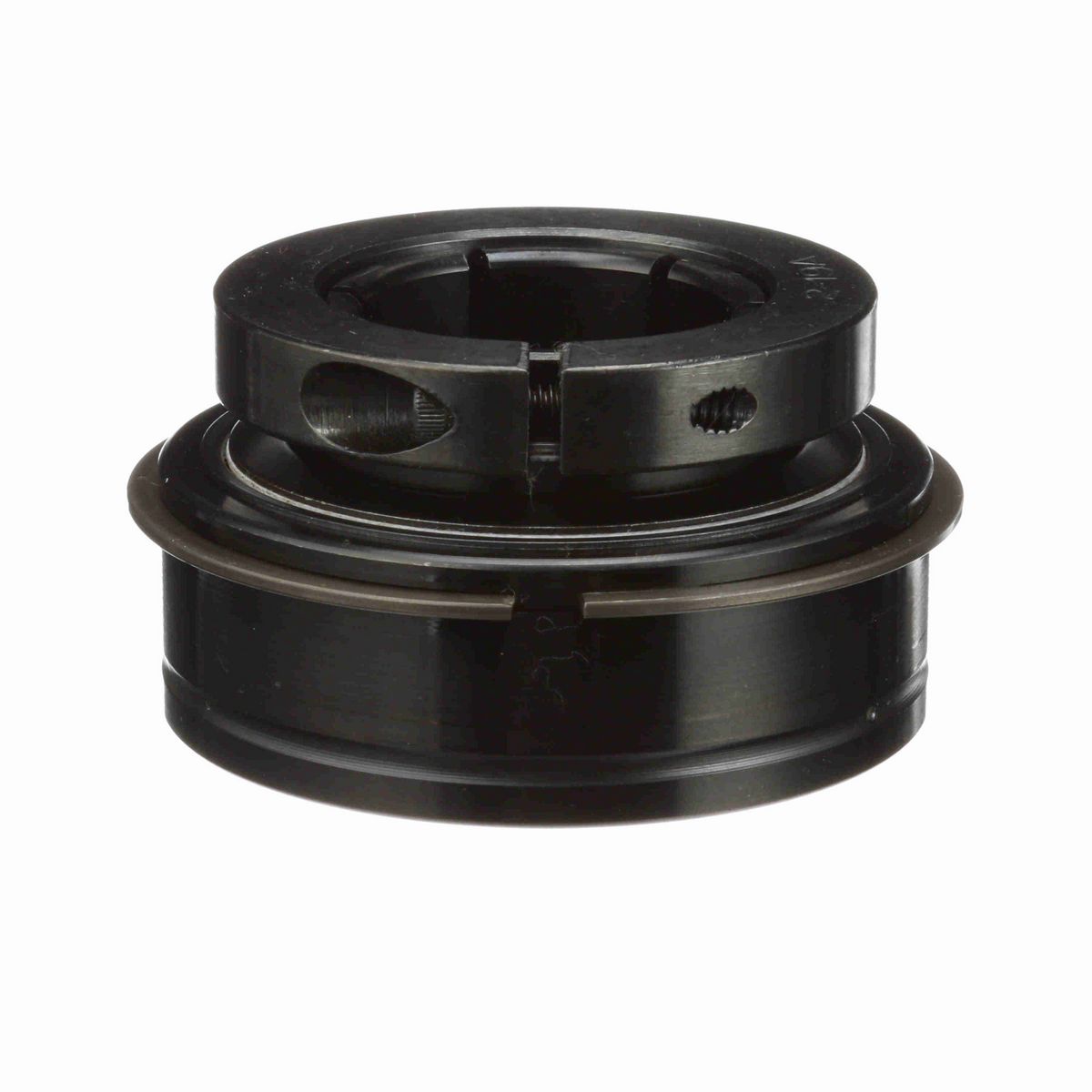

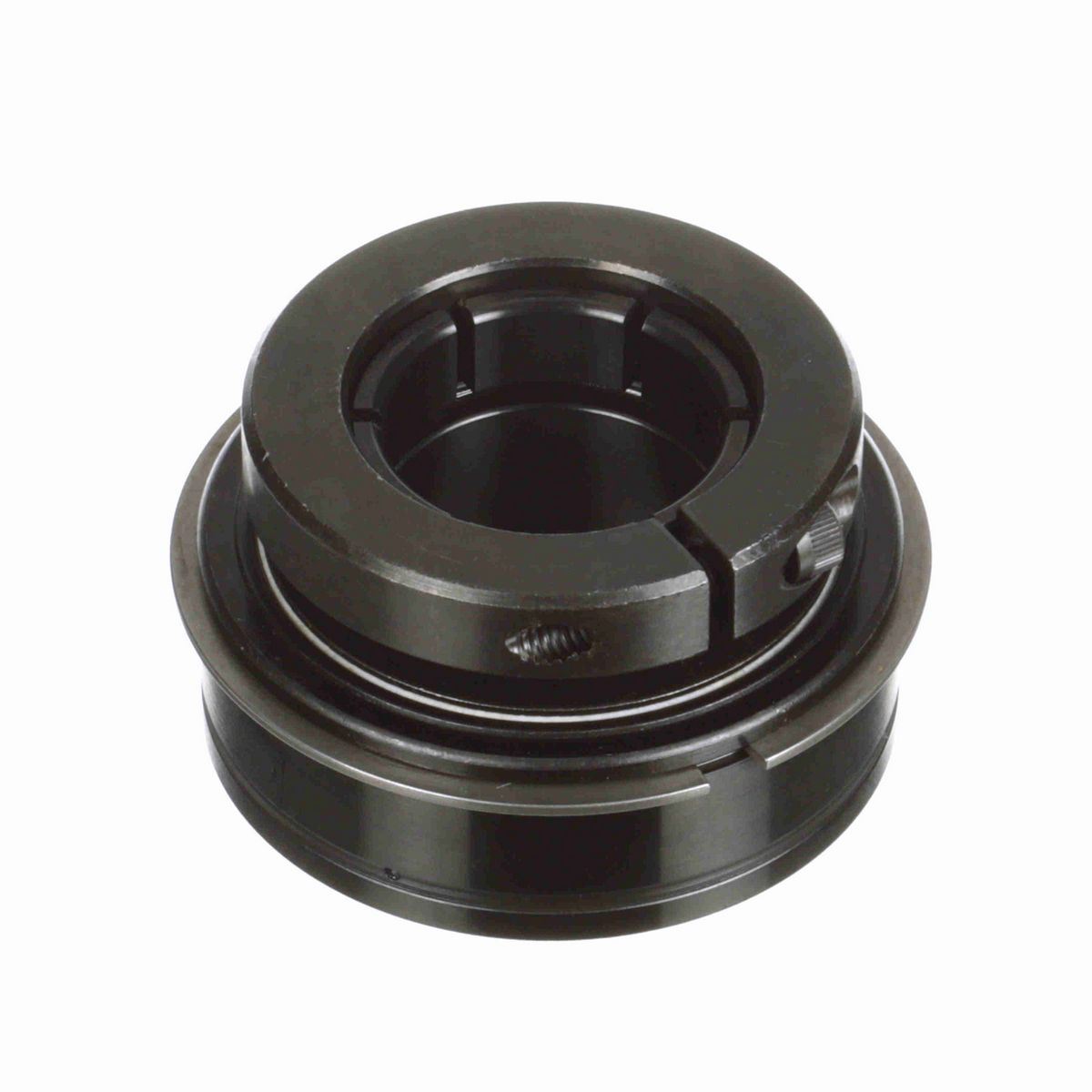

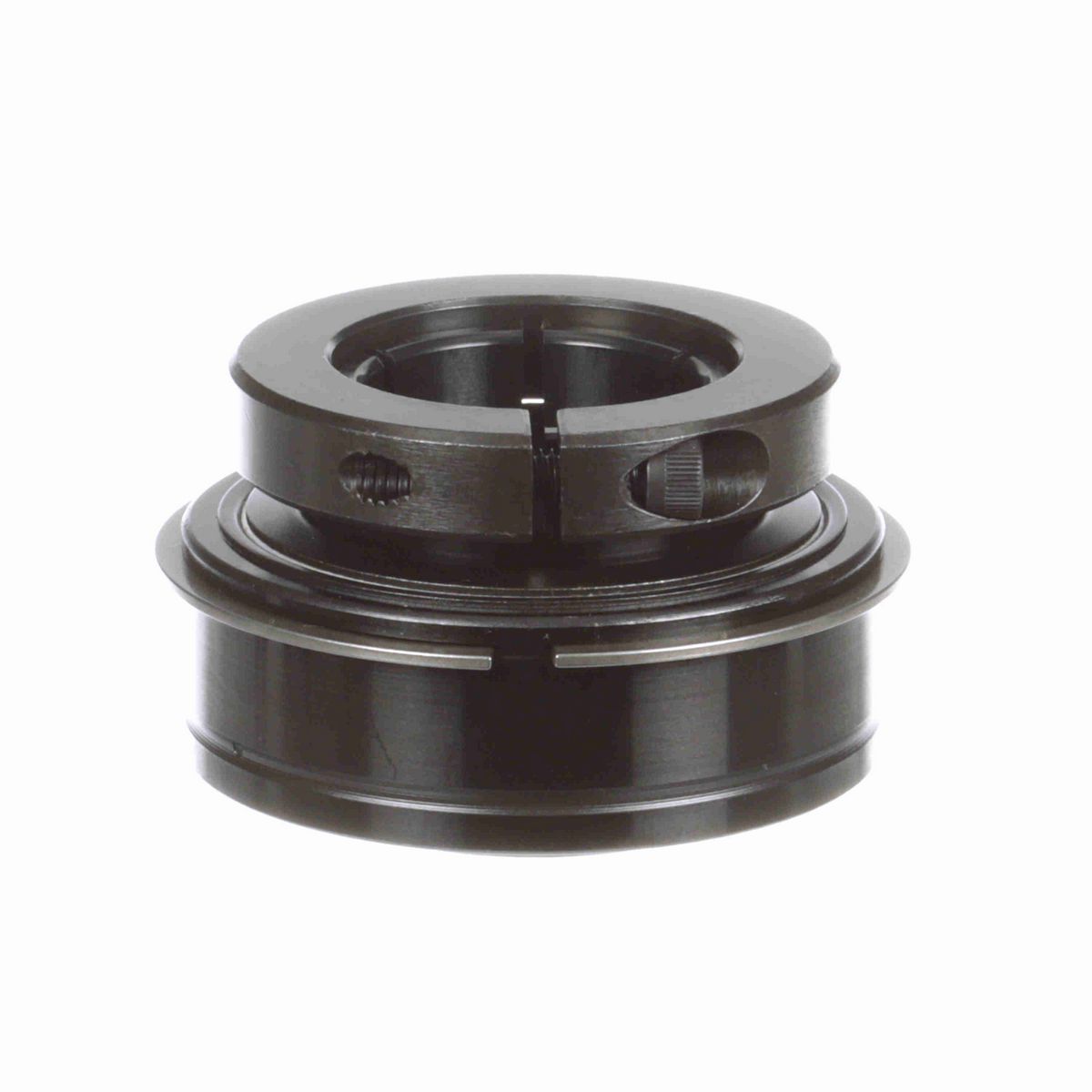

• ER style cylindrical OD bearing with snap and with black oxided bearing rings
• Skwezloc® concentric locking for near perfect concentricity
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Overall Width (in)	2.06 in
Bore Size (in)	1.5 in
Centerline to Front Face (in)	1.25 in
Inner Ring OD (in)	2.063 in
Collar OD (in)	2.75 in
Outer Race Width (in)	1.093 in
Outer Race OD (in)	3.1496 in
Outer Race OD (mm)	80 mm
Length Through Bore (in)	2.06 in
Outer Race Width (mm)	27.8 mm

Technical Specifications

Torx Cap Screw	1/4-20 UNC
Insert Material	52100 Bearing Steel
Measure Units	Inch
Rolling Element	Ball Bearing
Seal Type	Felt Labyrinth Seal
Bore Shape	Straight
Housing Type	Insert (ER Style)
Misalignment	None
Internal Clearance	Standard
Expansion	No
Platform	Gold Line Ball Bearing
End Cap	No
Outer Ring Land Profile	Tapered Lands
Bearing Insert Coating	Black Oxide
Misalignment Type	Static Only
Cage Material	PPS - Polyphenylene Sulfide
Precision Rating	ABEC 1
Inner Race Profile	Wide Inner Ring
Outer Race Profile	Cylindrical
Series	Unmounted Replacement Bearings
Locking Type	Concentric
Ability to Relubricate	Yes
Maximum Operating Temperature (F)	220 °F
Setscrew Torque (in-lbs)	240 in/lbs
Vibration Frequency Roller Spin	0.0376 cps
Vibration Frequency Outer Ring Defect	0.0591 cps
Vibration Frequency Inner Ring Defect	0.0909 cps
Lubrication Type	Lithium Complex NLGI 2 Grease
Inner Ring Fillet Radius (in)	0.06 in
Size Code	2-19
Maximum Speed (rpm)	5850 rpm
Duty/Status	Standard
Inner Race Heat Treat Method	Zone-Hardened
Vibration Frequency Fundamental Train	0.0066 cps
Static Load Rating (lb)	4,467 lb
Cage Type	Land Riding Retainer
Dynamic Load Rating (lb)	7,340 lb

General Specifications

UPC	662461031254
Weight	2.19 LB
Packaged Length	3.63 IN
Packaged Width	2.00 IN
Packaged Height	3.63 IN
HTC	8482.10.5052
Country of Origin	Mexico
