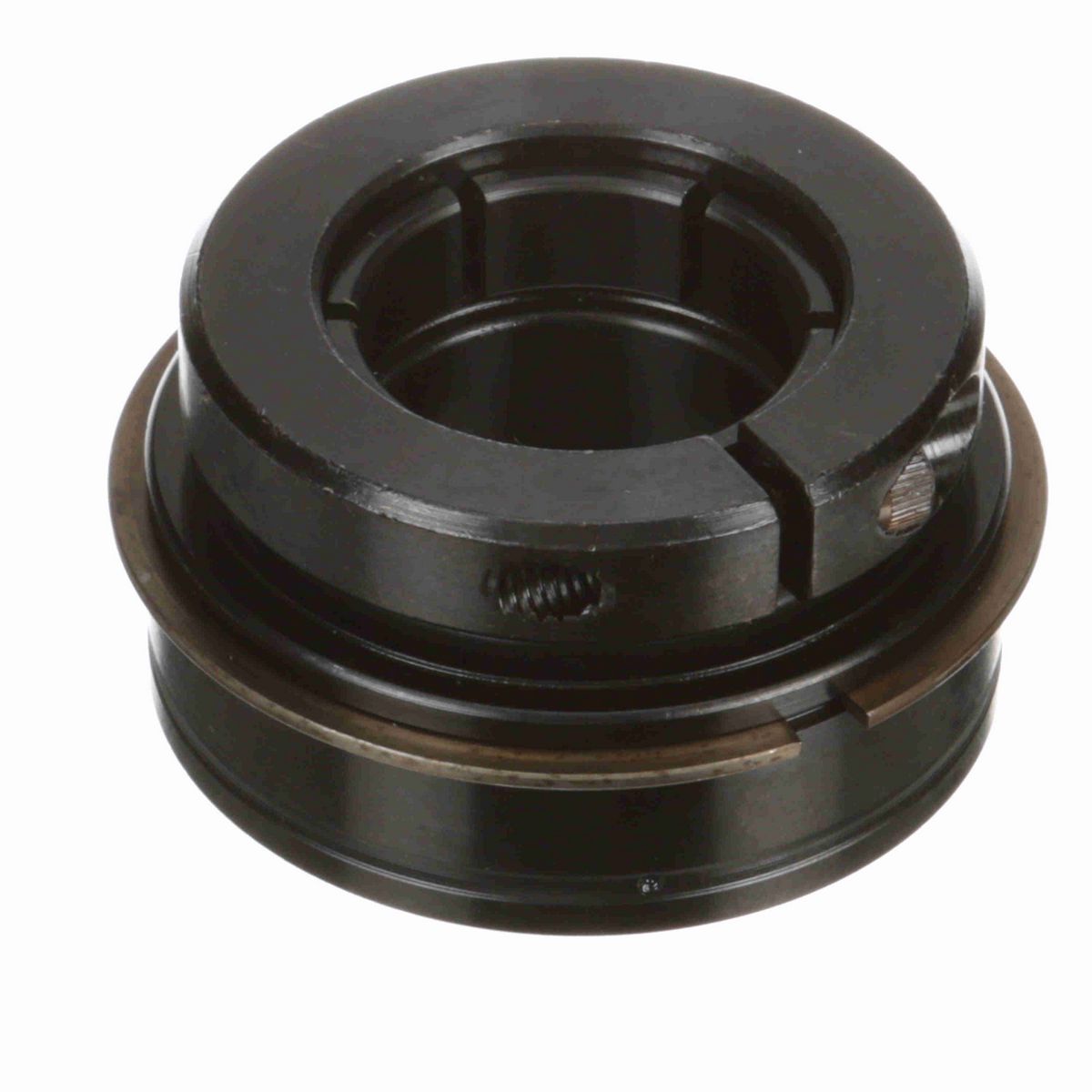

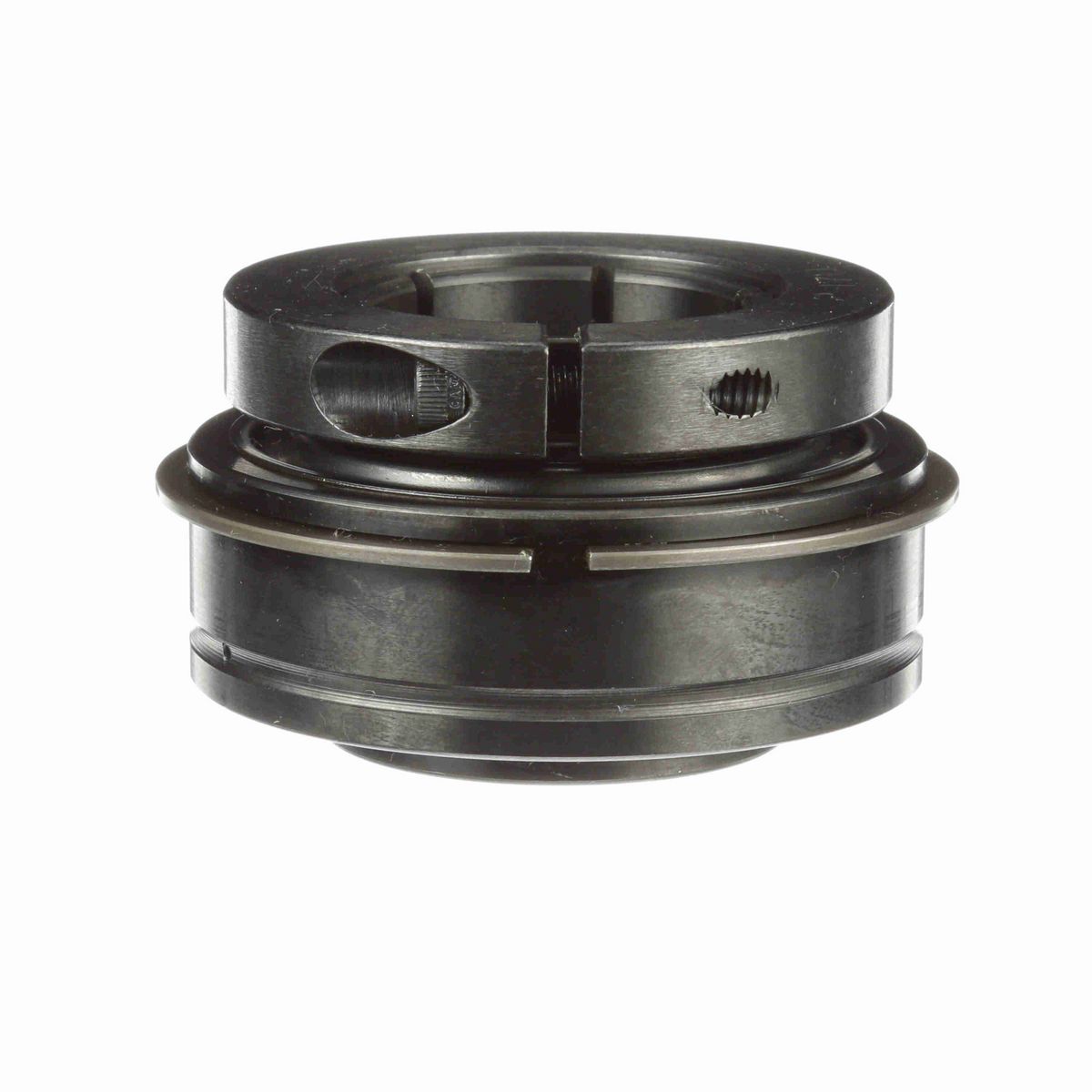

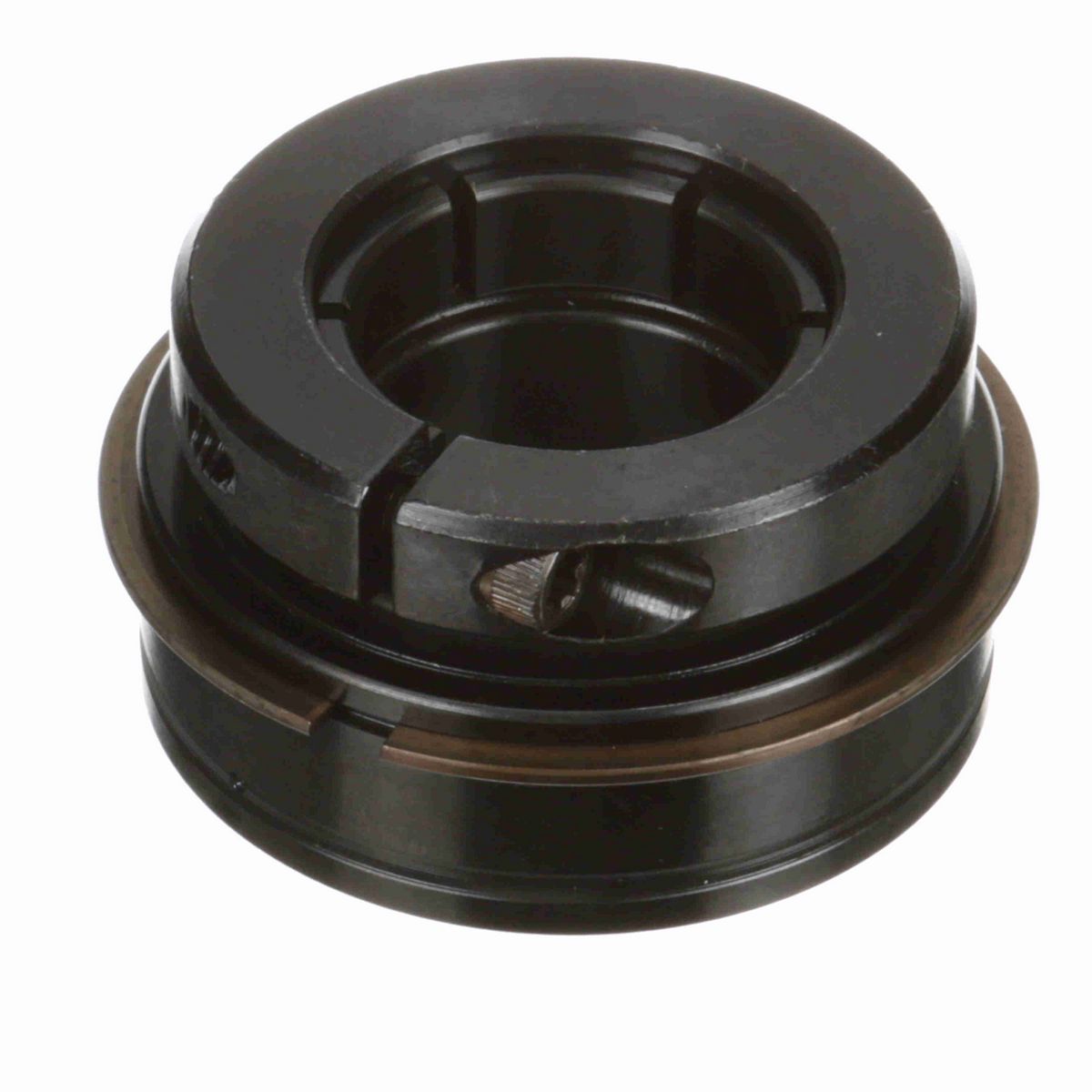

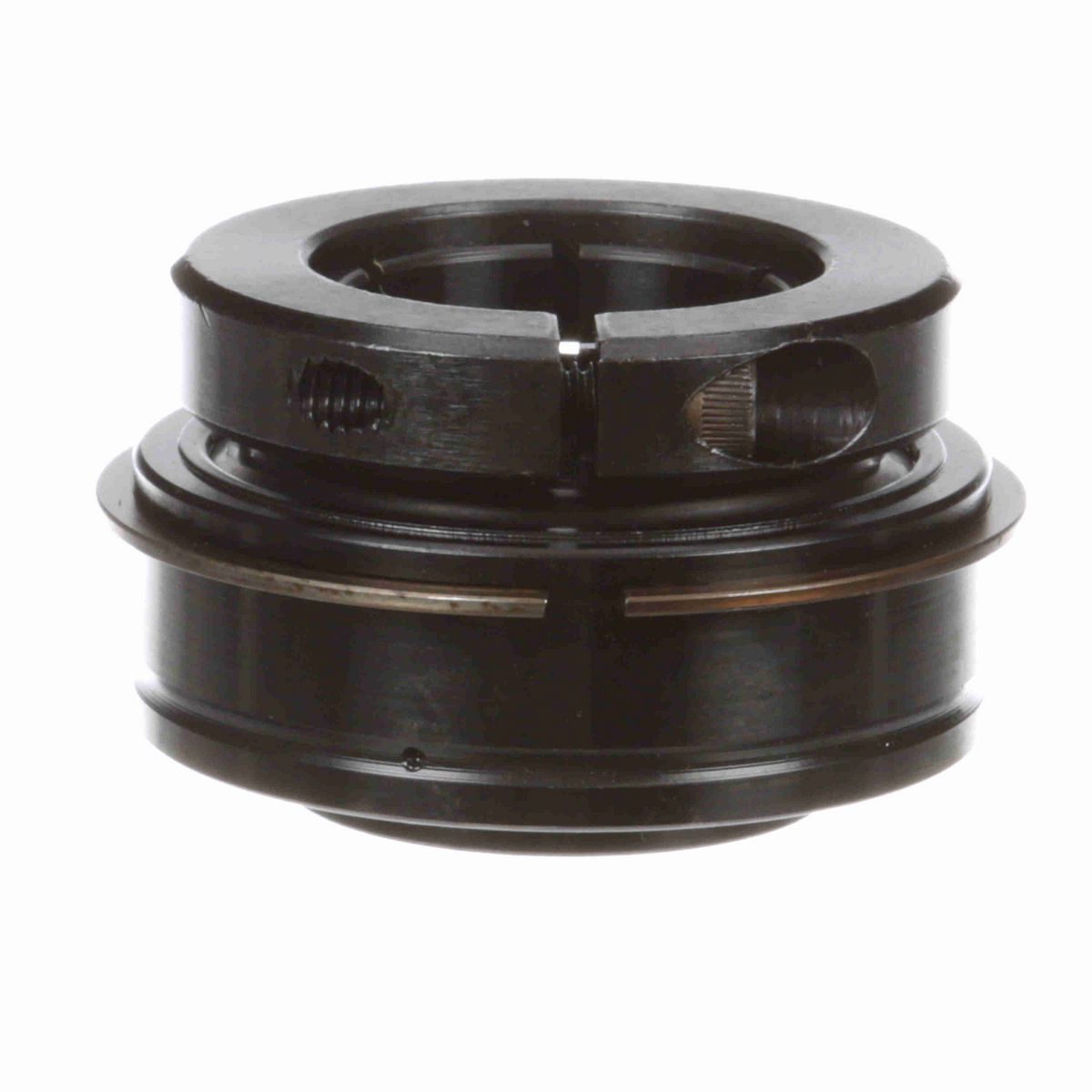

• ER style cylindrical OD bearing with snap and with black oxided bearing rings
• Skwezloc® concentric locking for near perfect concentricity
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Overall Width (in)	1.75 in
Bore Size (in)	1.4375 in
Outer Race OD (in)	2.8346 in
Collar OD (in)	2.62 in
Outer Race Width (in)	0.938 in
Centerline to Front Face (in)	1.063 in
Outer Race OD (mm)	72 mm
Inner Ring OD (in)	1.859 in
Length Through Bore (in)	1.75 in
Outer Race Width (mm)	23.8 mm

Technical Specifications

Insert Material	52100 Bearing Steel
Rolling Element	Ball Bearing
Seal Type	Single Lip Contact Seal
Bore Shape	Straight
Measure Units	Inch
Housing Type	Insert (ER Style)
Expansion	No
Internal Clearance	Standard
Misalignment	None
Platform	Gold Line Ball Bearing
Misalignment Type	Static Only
Bearing Insert Coating	Black Oxide
Outer Ring Land Profile	Tapered Lands
End Cap	No
Precision Rating	ABEC 1
Cage Material	PPS - Polyphenylene Sulfide
Inner Race Profile	Wide Inner Ring
Outer Race Profile	Cylindrical
Vibration Frequency Outer Ring Defect	0.0595 cps
Maximum Operating Temperature (F)	220 °F
Ability to Relubricate	Yes
Size Code	2-17
Lubrication Type	Lithium Complex NLGI 2 Grease
Maximum Speed (rpm)	4650 rpm
Duty/Status	Standard
Inner Ring Fillet Radius (in)	0.04 in
Vibration Frequency Fundamental Train	0.0067 cps
Locking Type	Concentric
Vibration Frequency Roller Spin	0.0383 cps
Inner Race Heat Treat Method	Zone-Hardened
Series	Unmounted Replacement Bearings
Vibration Frequency Inner Ring Defect	0.0905 cps
Cage Type	Land Riding Retainer
Static Load Rating (lb)	3,493 lb
Dynamic Load Rating (lb)	5,782 lb

General Specifications

UPC	662461034224
Weight	1.53 LB
Packaged Length	3.13 IN
Packaged Width	1.75 IN
Packaged Height	3.13 IN
HTC	8482.10.5052
Country of Origin	Mexico
