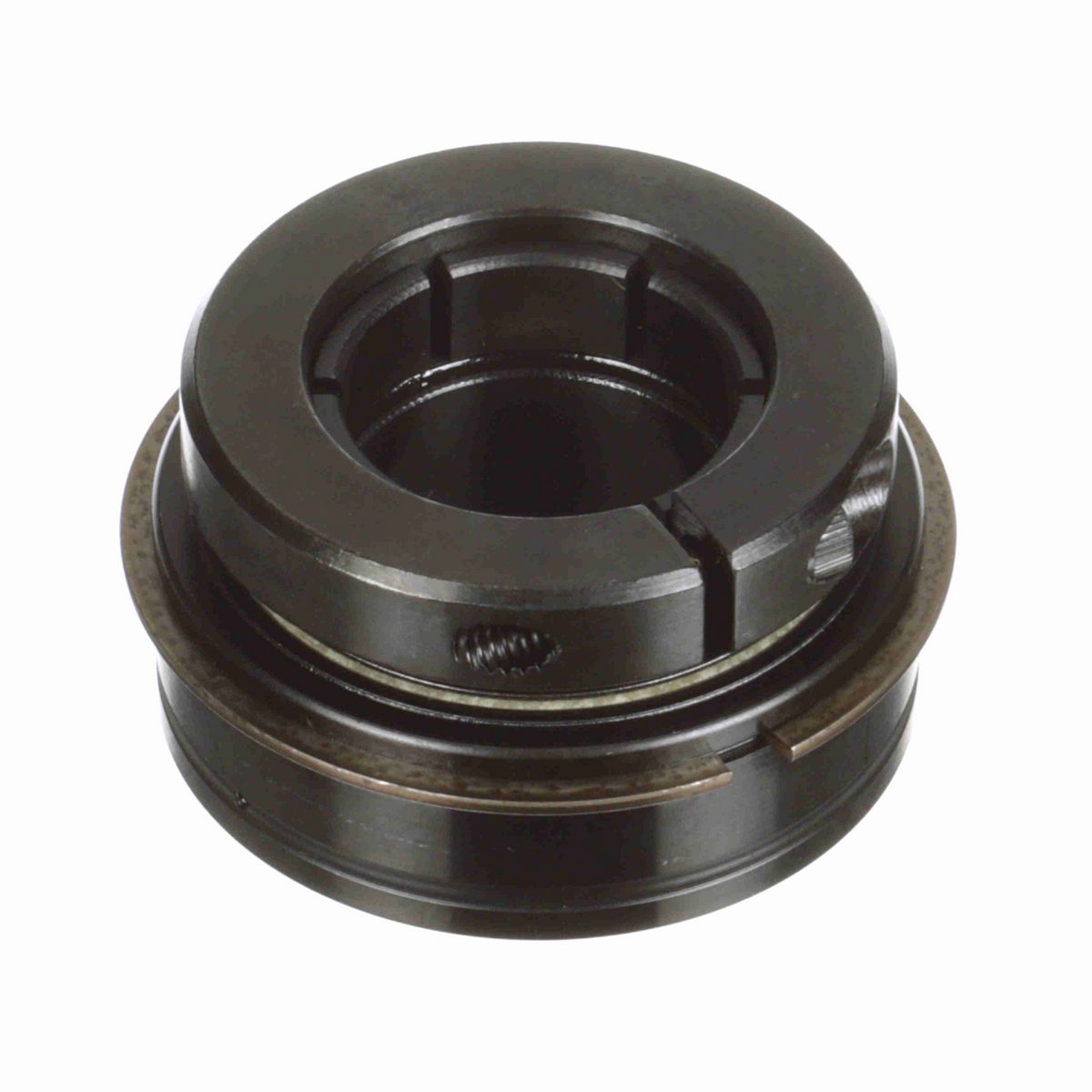

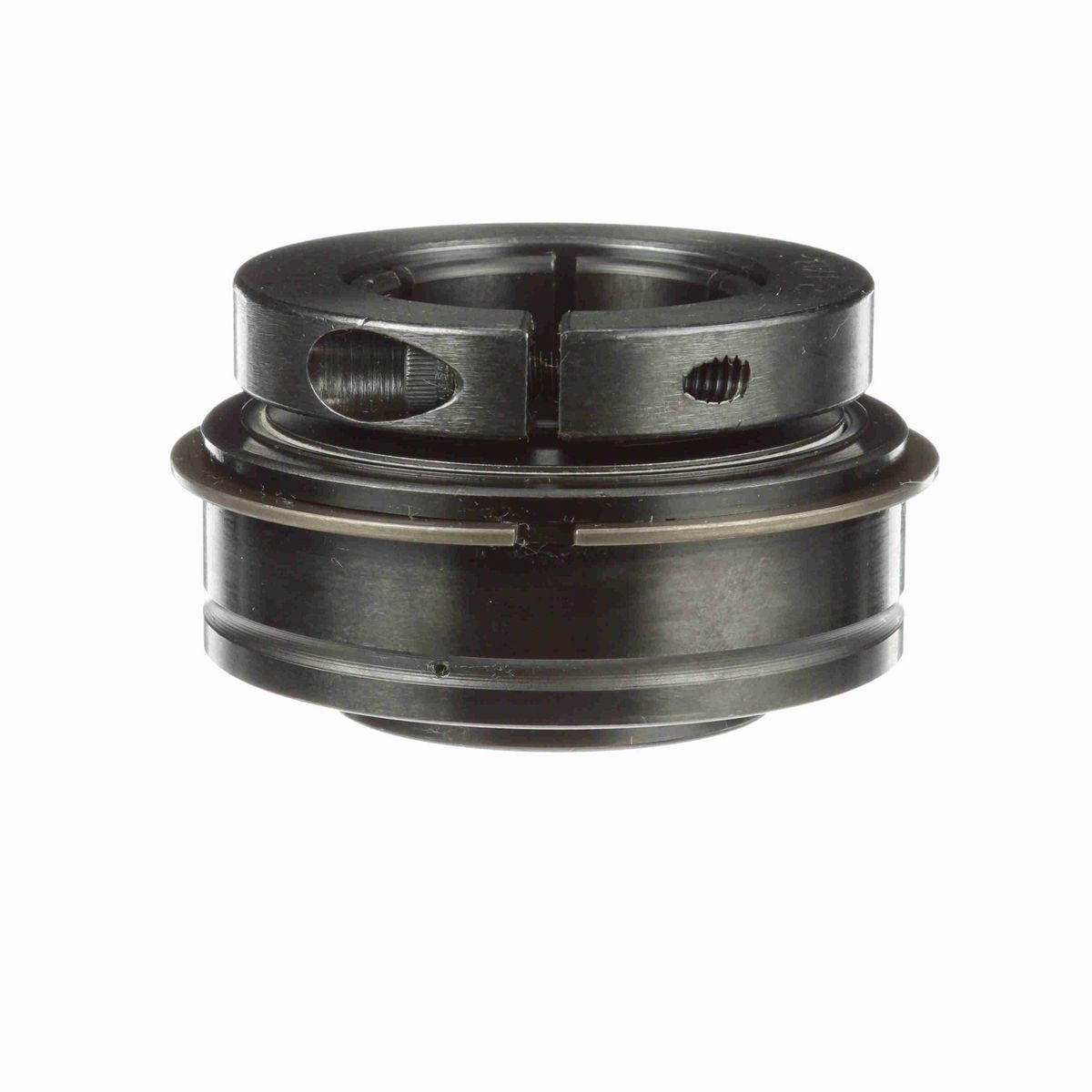

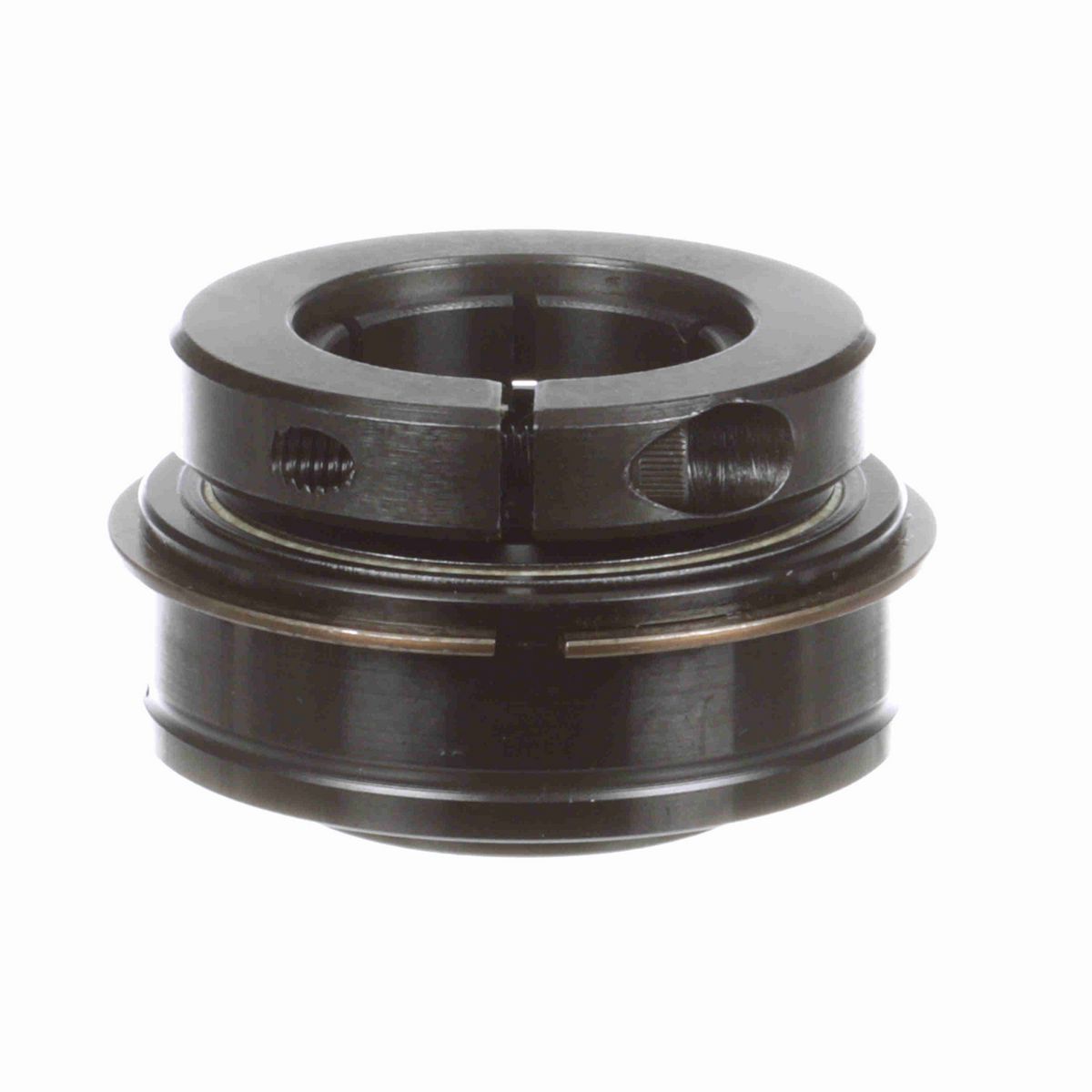

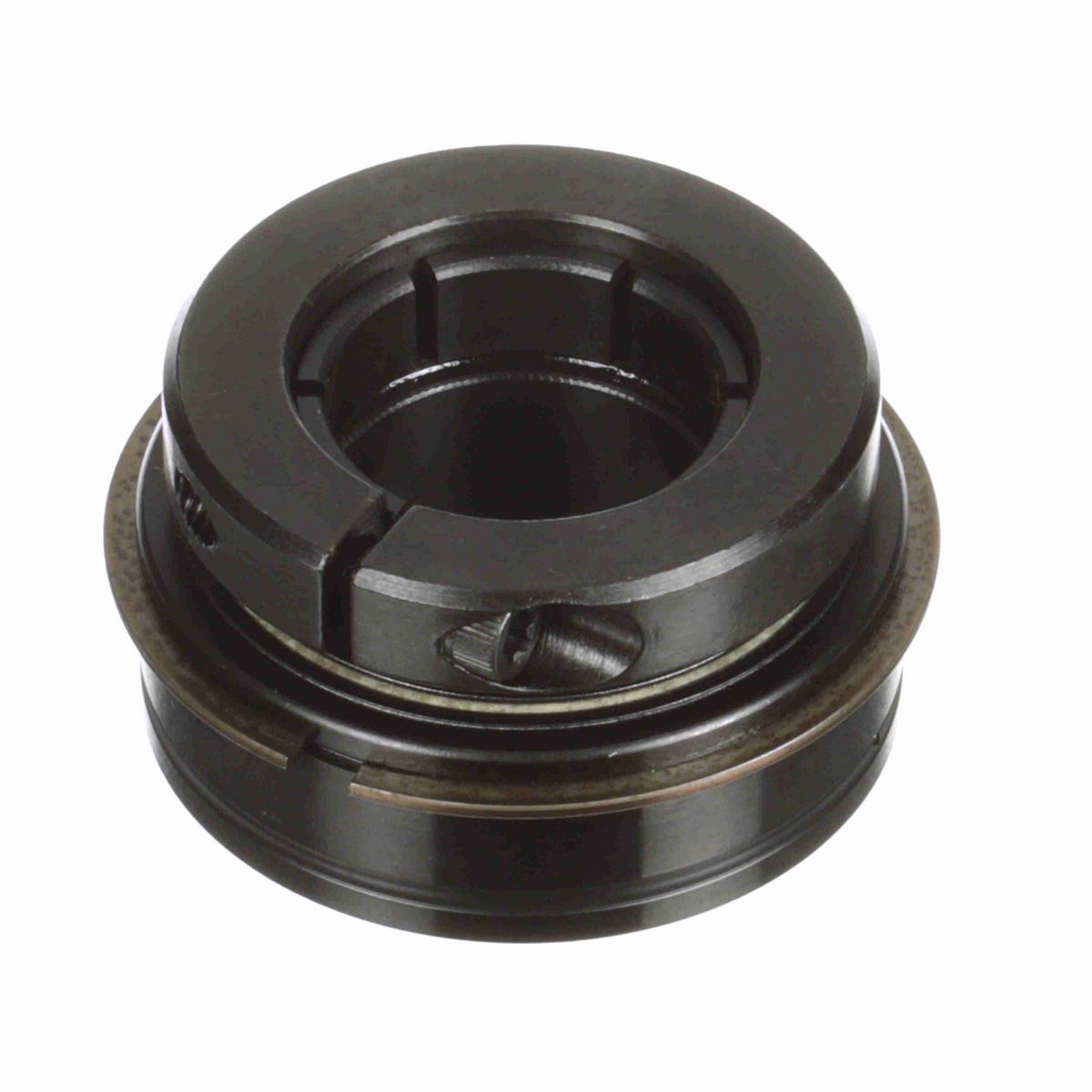

• ER style cylindrical OD bearing with snap and with black oxided bearing rings
• Skwezloc® concentric locking for near perfect concentricity
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Overall Width (in)	1.75 in
Bore Size (in)	1.4375 in
Centerline to Front Face (in)	1.063 in
Outer Race Width (in)	0.938 in
Inner Ring OD (in)	1.859 in
Outer Race OD (mm)	72 mm
Outer Race OD (in)	2.8346 in
Collar OD (in)	2.62 in
Length Through Bore (in)	1.75 in
Outer Race Width (mm)	23.8 mm

Technical Specifications

Insert Material	52100 Bearing Steel
Measure Units	Inch
Rolling Element	Ball Bearing
Housing Type	Insert (ER Style)
Seal Type	Felt Labyrinth Seal
Bore Shape	Straight
Torx Cap Screw	1/4-20 UNC
Misalignment	None
Internal Clearance	Standard
Expansion	No
Bearing Insert Coating	Black Oxide
Platform	Gold Line Ball Bearing
Outer Ring Land Profile	Tapered Lands
End Cap	No
Misalignment Type	Static Only
Precision Rating	ABEC 1
Cage Material	PPS - Polyphenylene Sulfide
Inner Race Profile	Wide Inner Ring
Outer Race Profile	Cylindrical
Locking Type	Concentric
Vibration Frequency Outer Ring Defect	0.0595 cps
Duty/Status	Standard
Size Code	2-17
Series	Unmounted Replacement Bearings
Maximum Operating Temperature (F)	220 °F
Vibration Frequency Inner Ring Defect	0.0905 cps
Setscrew Torque (in-lbs)	240 in/lbs
Inner Race Heat Treat Method	Zone-Hardened
Ability to Relubricate	Yes
Lubrication Type	Lithium Complex NLGI 2 Grease
Maximum Speed (rpm)	6500 rpm
Vibration Frequency Fundamental Train	0.0067 cps
Vibration Frequency Roller Spin	0.0383 cps
Inner Ring Fillet Radius (in)	0.04 in
Static Load Rating (lb)	3,493 lb
Cage Type	Land Riding Retainer
Dynamic Load Rating (lb)	5,782 lb

General Specifications

UPC	662461031247
Weight	1.55 LB
Packaged Length	3.13 IN
Packaged Width	1.75 IN
Packaged Height	3.13 IN
HTC	8482.10.5052
Country of Origin	Mexico
