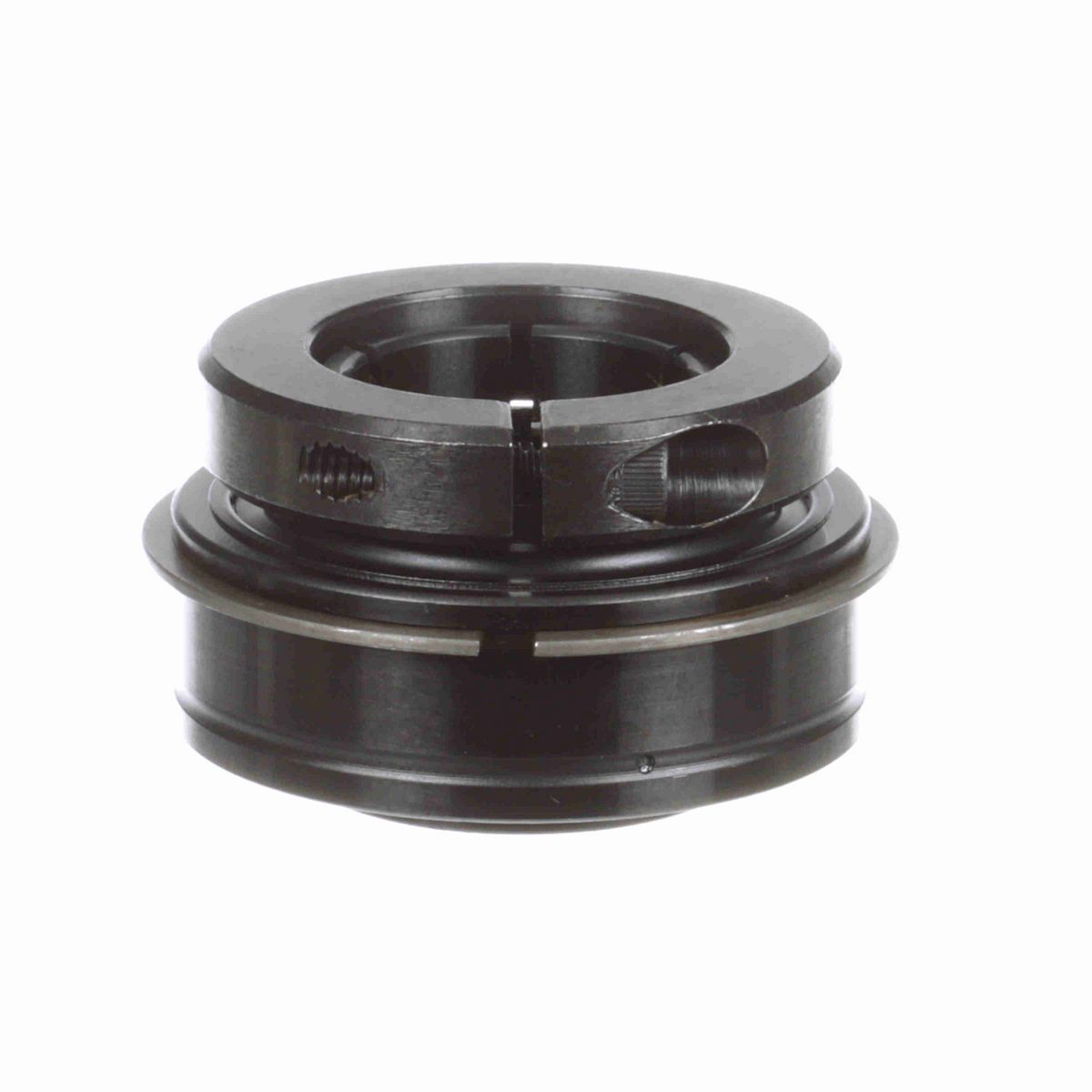

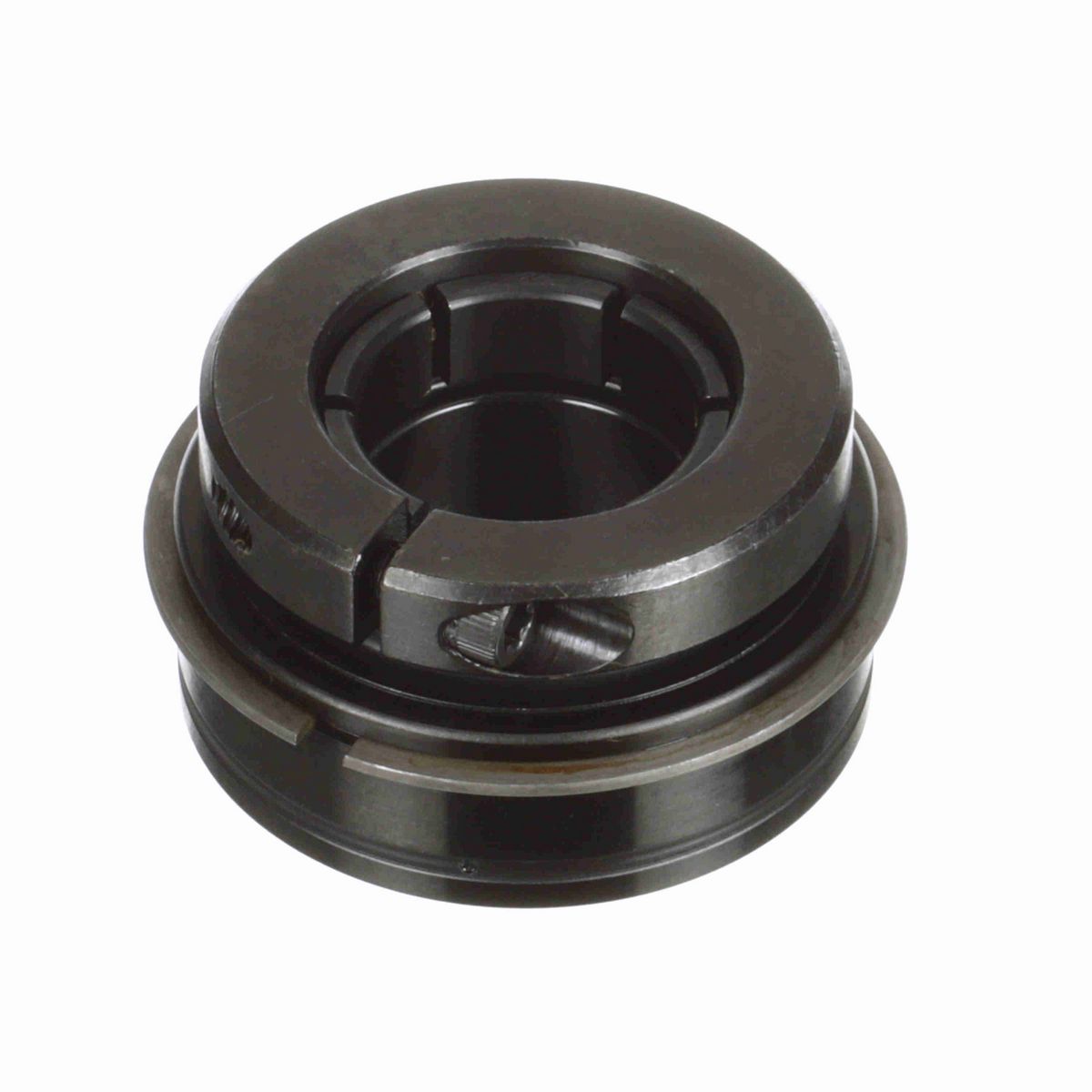

• ER style cylindrical OD bearing with snap and with black oxided bearing rings
• Skwezloc® concentric locking for near perfect concentricity
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Overall Width (in)	1.75 in
Bore Size (in)	1.375 in
Outer Race Width (in)	0.938 in
Centerline to Front Face (in)	1.063 in
Collar OD (in)	2.62 in
Inner Ring OD (in)	1.859 in
Outer Race OD (mm)	72 mm
Outer Race OD (in)	2.8346 in
Length Through Bore (in)	1.75 in
Outer Race Width (mm)	23.8 mm

Technical Specifications

Measure Units	Inch
Seal Type	Single Lip Contact Seal
Rolling Element	Ball Bearing
Bore Shape	Straight
Housing Type	Insert (ER Style)
Insert Material	52100 Bearing Steel
Internal Clearance	Standard
Expansion	No
Misalignment	None
Outer Ring Land Profile	Tapered Lands
Misalignment Type	Static Only
Platform	Gold Line Ball Bearing
Bearing Insert Coating	Black Oxide
End Cap	No
Cage Material	PPS - Polyphenylene Sulfide
Precision Rating	ABEC 1
Inner Race Profile	Wide Inner Ring
Outer Race Profile	Cylindrical
Vibration Frequency Outer Ring Defect	0.0595 cps
Maximum Speed (rpm)	4650 rpm
Vibration Frequency Roller Spin	0.0383 cps
Vibration Frequency Inner Ring Defect	0.0905 cps
Ability to Relubricate	Yes
Duty/Status	Standard
Lubrication Type	Lithium Complex NLGI 2 Grease
Series	Unmounted Replacement Bearings
Locking Type	Concentric
Vibration Frequency Fundamental Train	0.0067 cps
Size Code	2-17
Inner Ring Fillet Radius (in)	0.04 in
Inner Race Heat Treat Method	Zone-Hardened
Maximum Operating Temperature (F)	220 °F
Static Load Rating (lb)	3,493 lb
Cage Type	Land Riding Retainer
Dynamic Load Rating (lb)	5,782 lb

General Specifications

UPC	662461034217
Weight	1.54 LB
Packaged Length	3.13 IN
Packaged Width	1.75 IN
Packaged Height	3.13 IN
HTC	8482.10.5052
Country of Origin	Mexico
