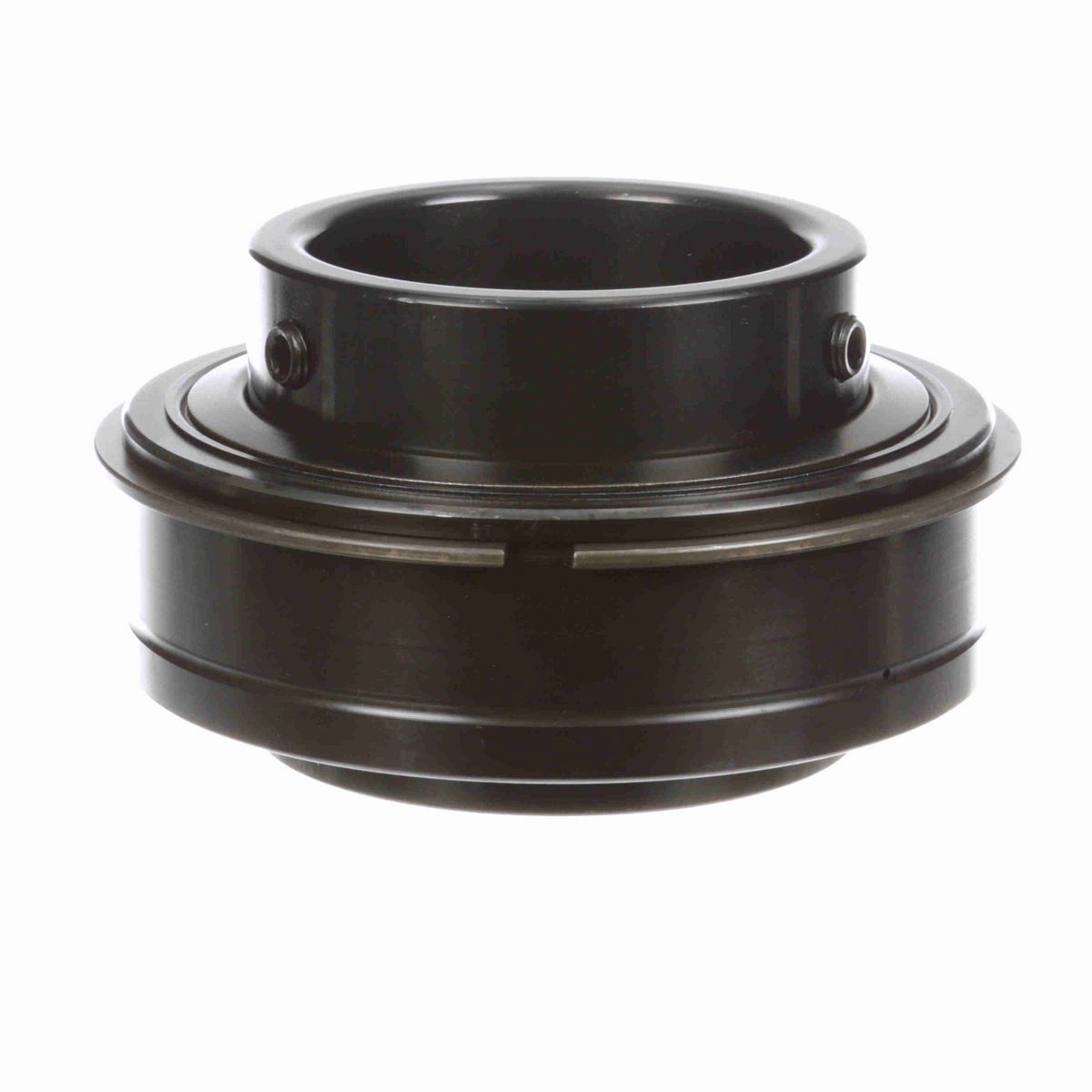

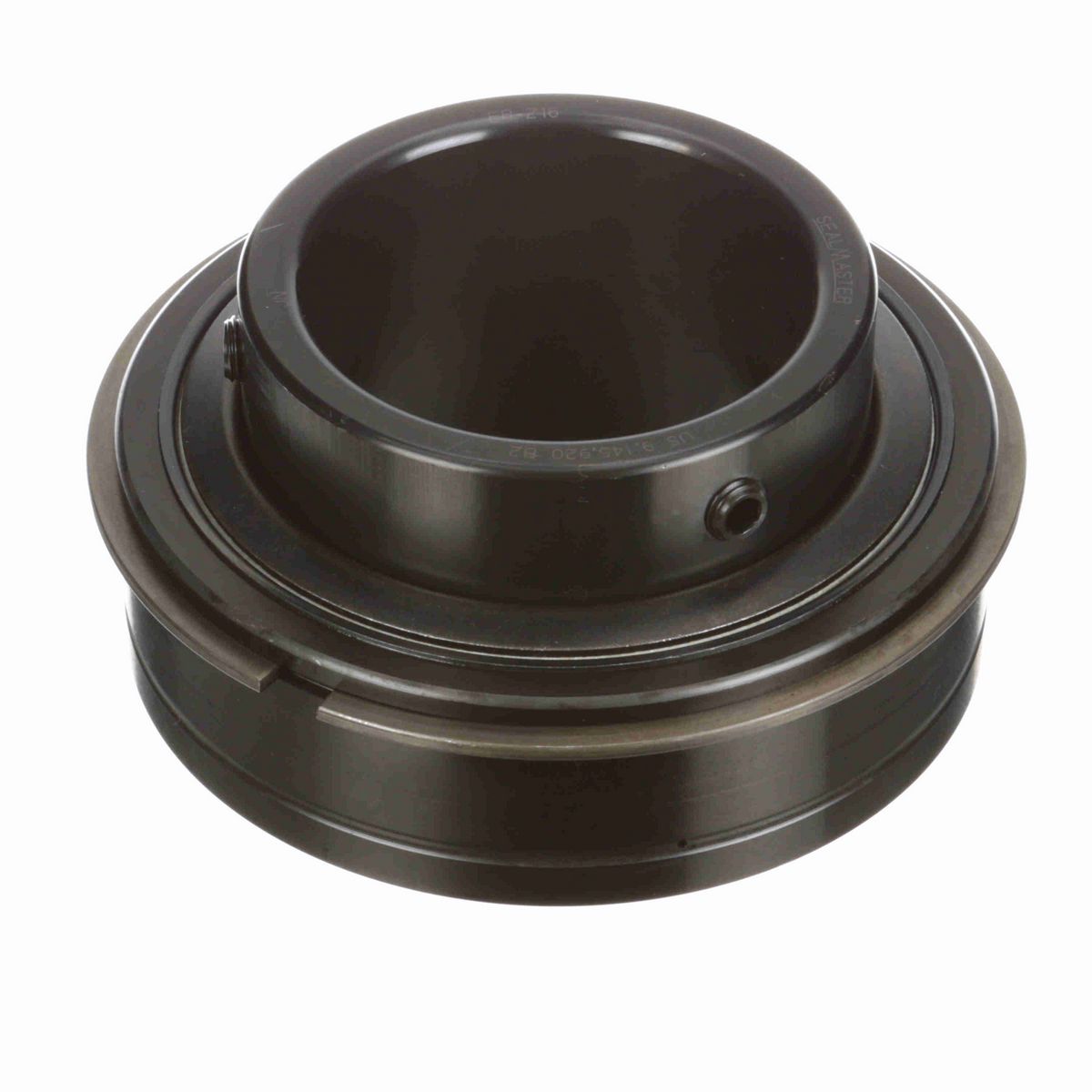

• ER style cylindrical OD bearing with snap and with black oxided bearing rings
• Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Overall Width (in)	3.25 in
Bore Size (mm)	80 mm
Centerline to Front Face (in)	1.938 in
Inner Ring OD (in)	3.922 in
Outer Race OD (in)	5.5118 in
Outer Race OD (mm)	140 mm
Outer Race Width (in)	1.688 in
Length Through Bore (in)	3.25 in
Outer Race Width (mm)	42.9 mm

Technical Specifications

Seal Type	Felt Labyrinth Seal
Set Screw Thread	M10 x 1.5
Insert Material	52100 Bearing Steel
Bore Shape	Straight
Rolling Element	Ball Bearing
Housing Type	Insert (ER Style)
Measure Units	Metric
Expansion	No
Internal Clearance	Standard
Misalignment	None
Bearing Insert Coating	Black Oxide
Misalignment Type	Static Only
Outer Ring Land Profile	Tapered Lands
Platform	Gold Line Ball Bearing
End Cap	No
Cage Material	Brass
Precision Rating	ABEC 1
Inner Race Profile	Wide Inner Ring
Outer Race Profile	Cylindrical
Vibration Frequency Outer Ring Defect	0.0759 cps
Ability to Relubricate	Yes
Locking Type	Set Screw
Inner Race Heat Treat Method	Zone-Hardened
Setscrew Torque (in-lbs)	350-450 in/lbs
Series	Unmounted Replacement Bearings
Inner Ring Fillet Radius (in)	0.12 in
Maximum Operating Temperature (F)	220 °F
Lubrication Type	Lithium Complex NLGI 2 Grease
Size Code	2-33
Vibration Frequency Roller Spin	0.0470 cps
Maximum Speed (rpm)	2250 rpm
Duty/Status	Standard
Vibration Frequency Fundamental Train	0.0069 cps
Vibration Frequency Inner Ring Defect	0.1074 cps
Static Load Rating (lb)	13,174 lb
Cage Type	Land Riding Retainer
Dynamic Load Rating (lb)	17,412 lb

General Specifications

UPC	662461069097
Weight	8.00 LB
Packaged Length	5.75 IN
Packaged Width	5.63 IN
Packaged Height	3.63 IN
HTC	8482.10.5056
Country of Origin	United States of America
