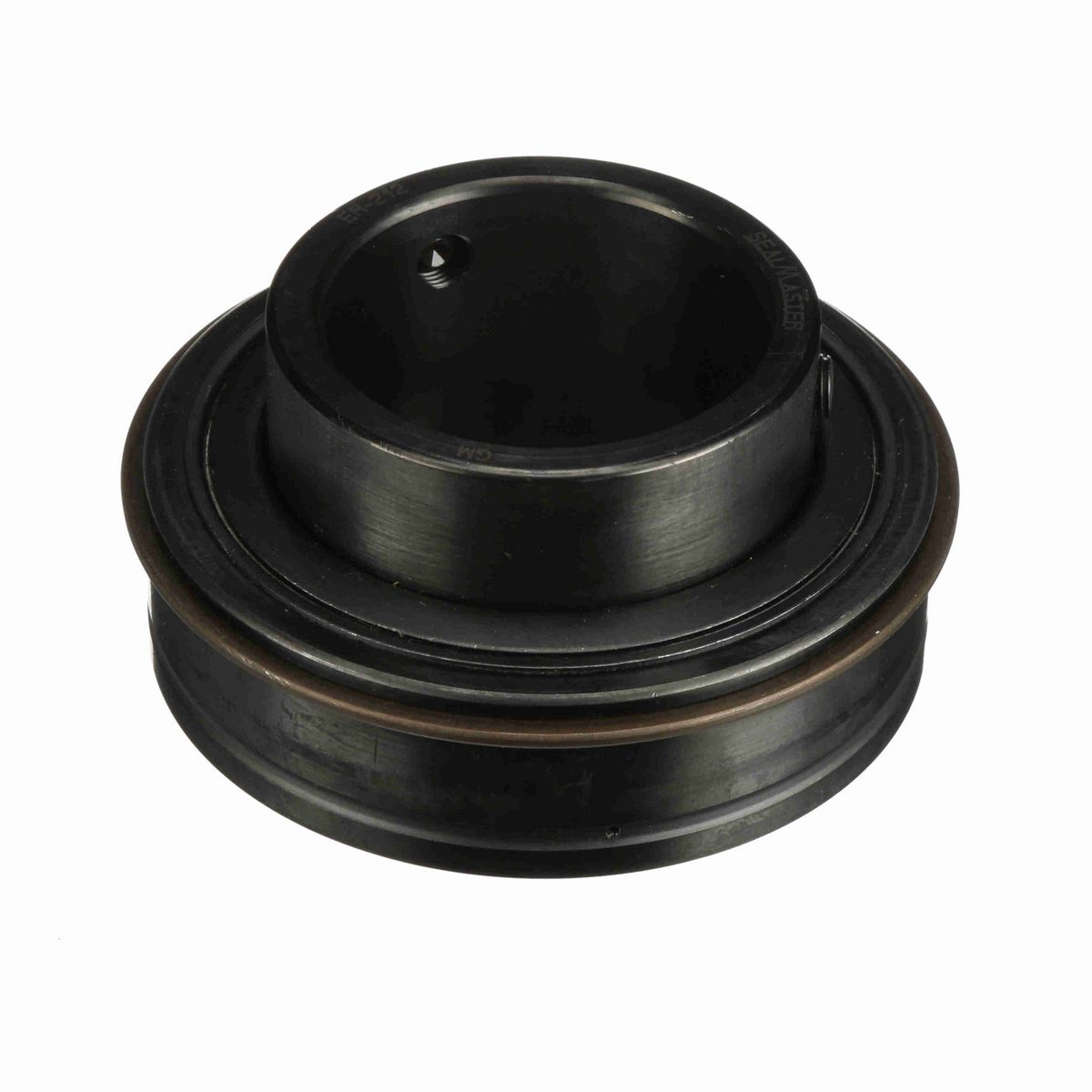

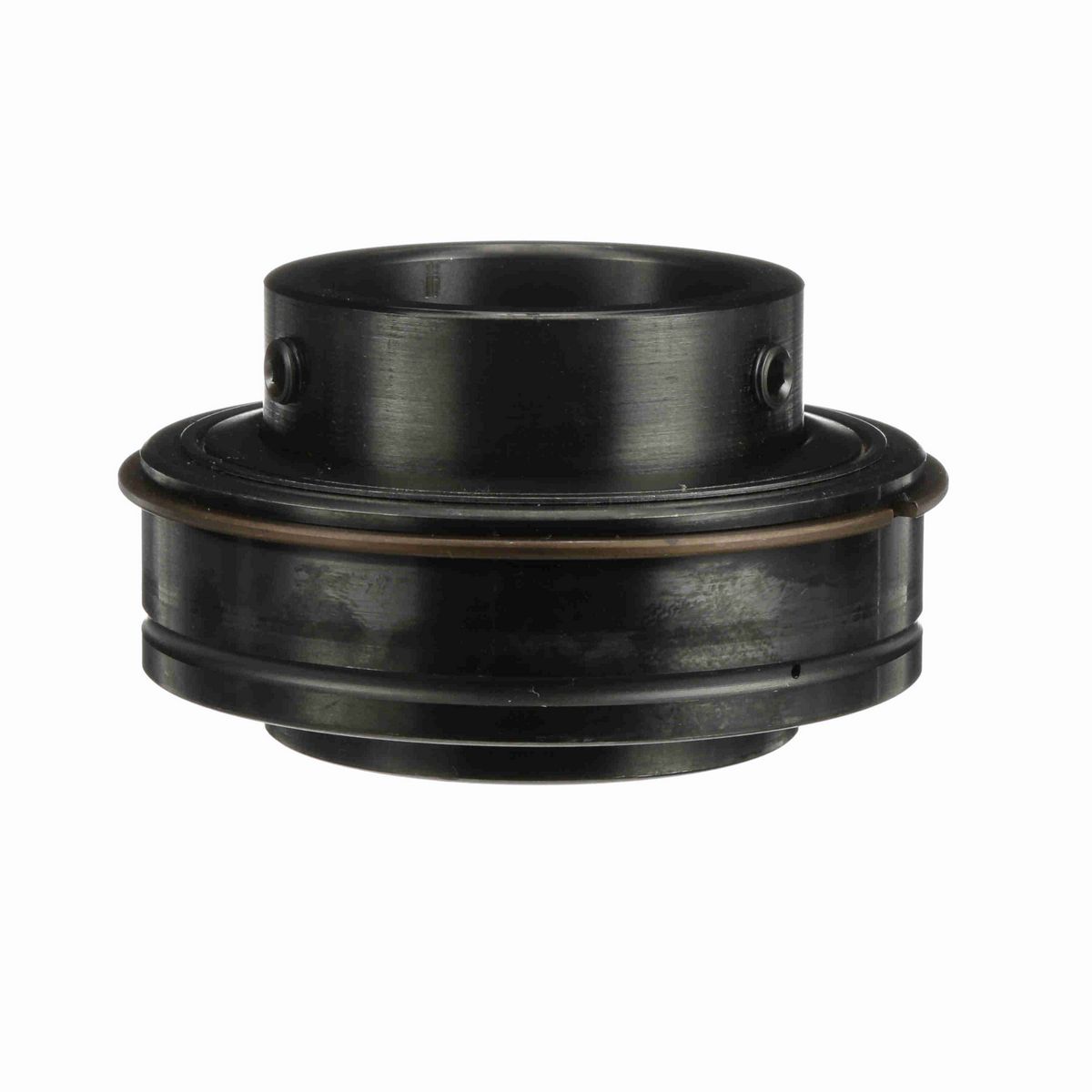

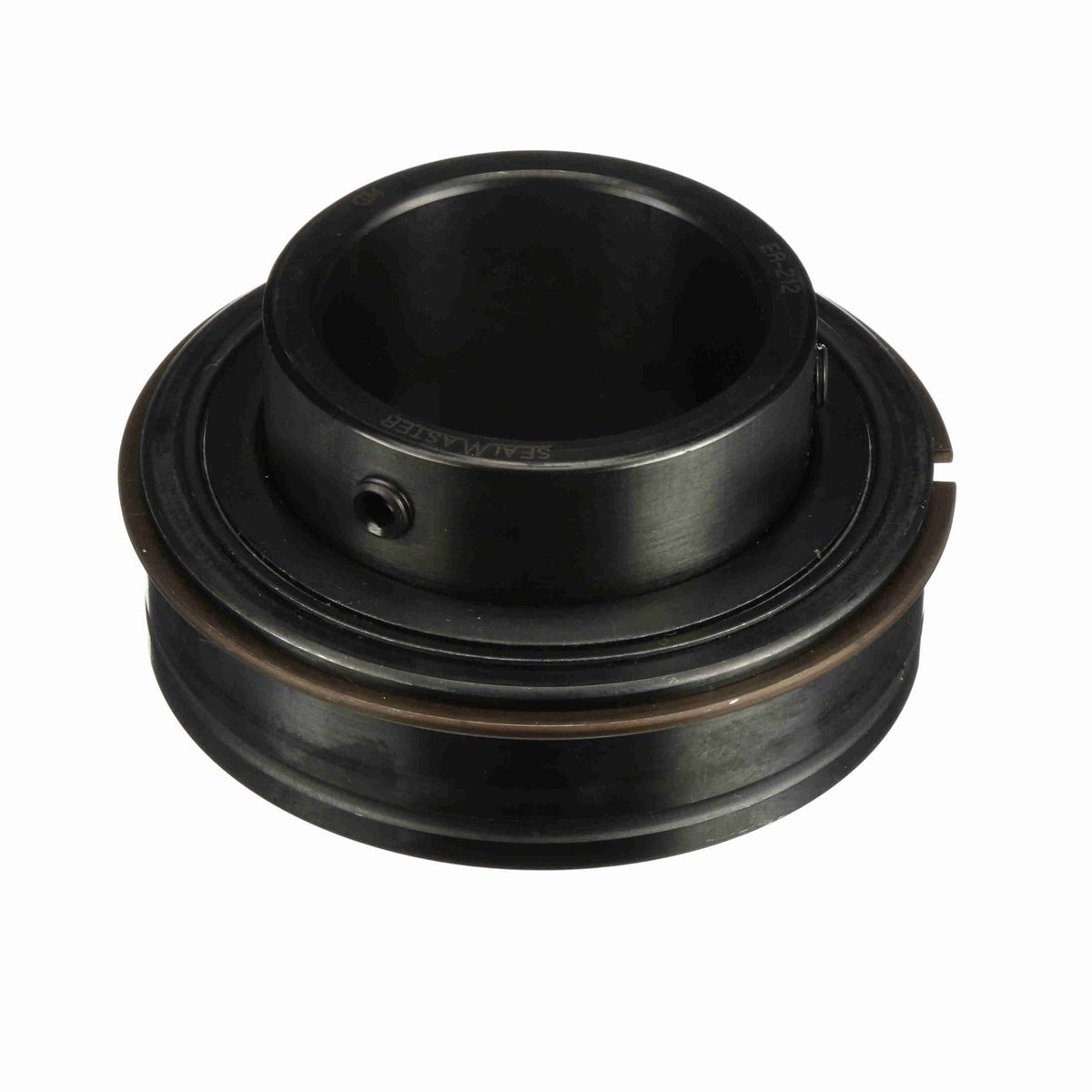

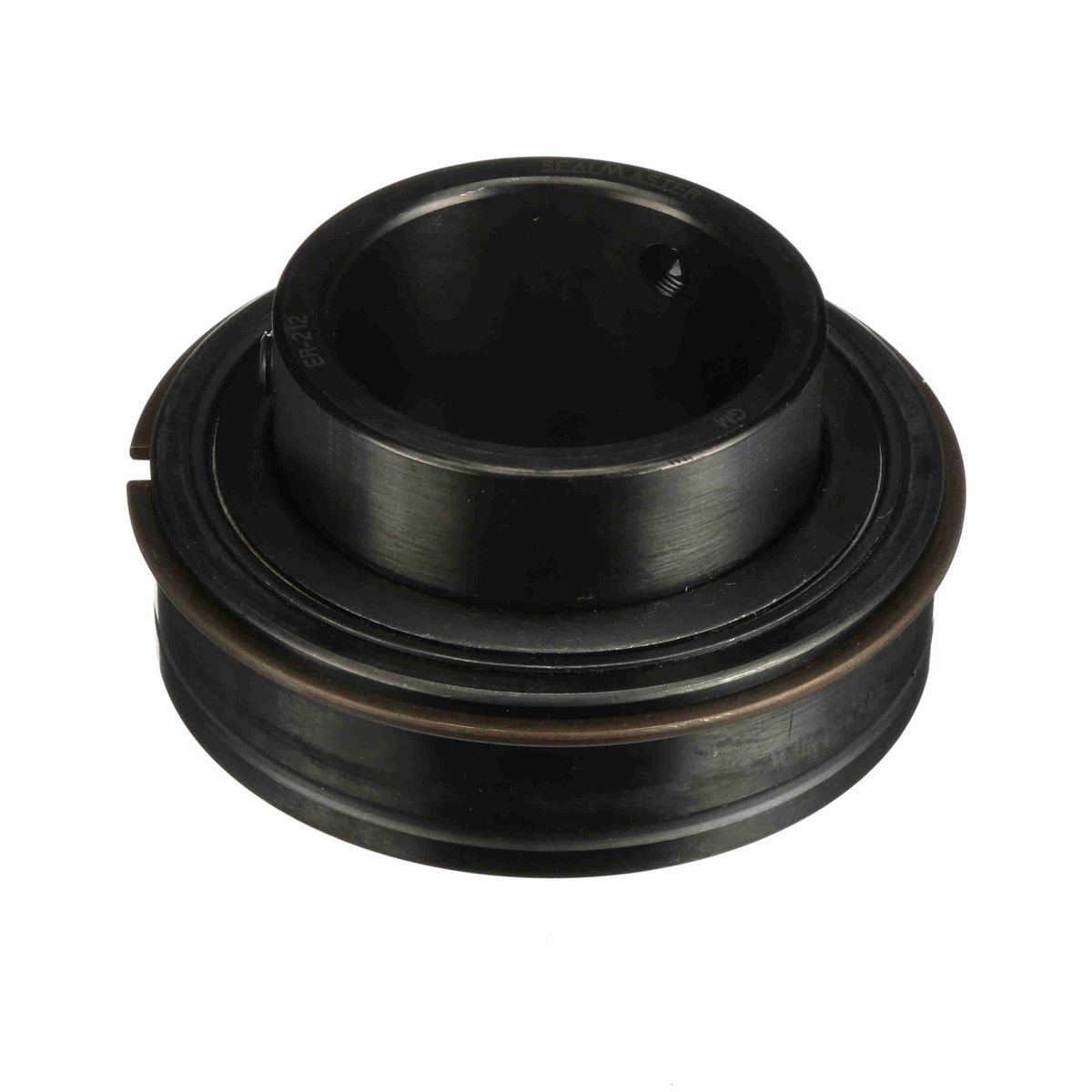

• ER style cylindrical OD bearing with snap and with black oxided bearing rings
• Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Overall Width (in)	2.56 in
Bore Size (mm)	60 mm
Inner Ring OD (in)	2.984 in
Centerline to Front Face (in)	1.563 in
Outer Race Width (in)	1.25 in
Outer Race OD (in)	4.3307 in
Outer Race OD (mm)	110 mm
Length Through Bore (in)	2.563 in
Outer Race Width (mm)	31.8 mm

Technical Specifications

Bore Shape	Straight
Seal Type	Felt Labyrinth Seal
Housing Type	Insert (ER Style)
Set Screw Thread	M10 x 1.5
Measure Units	Metric
Rolling Element	Ball Bearing
Insert Material	52100 Bearing Steel
Internal Clearance	Standard
Expansion	No
Misalignment	None
Platform	Gold Line Ball Bearing
Bearing Insert Coating	Black Oxide
End Cap	No
Outer Ring Land Profile	Tapered Lands
Misalignment Type	Static Only
Precision Rating	ABEC 1
Cage Material	PPS - Polyphenylene Sulfide
Inner Race Profile	Wide Inner Ring
Outer Race Profile	Cylindrical
Inner Ring Fillet Radius (in)	0.08 in
Lubrication Type	Lithium Complex NLGI 2 Grease
Vibration Frequency Outer Ring Defect	0.0678 cps
Duty/Status	Standard
Vibration Frequency Fundamental Train	0.0068 cps
Size Code	2-27
Ability to Relubricate	Yes
Maximum Operating Temperature (F)	220 °F
Maximum Speed (rpm)	3000 rpm
Series	Unmounted Replacement Bearings
Vibration Frequency Inner Ring Defect	0.0989 cps
Setscrew Torque (in-lbs)	230-300 in/lbs
Inner Race Heat Treat Method	Zone-Hardened
Vibration Frequency Roller Spin	0.0432 cps
Locking Type	Set Screw
Cage Type	Land Riding Retainer
Dynamic Load Rating (lb)	11,789 lb
Static Load Rating (lb)	8,150 lb

General Specifications

UPC	662461068441
Weight	3.88 LB
Packaged Length	2.63 IN
Packaged Width	4.75 IN
Packaged Height	4.81 IN
HTC	8482.10.5056
Country of Origin	Mexico
