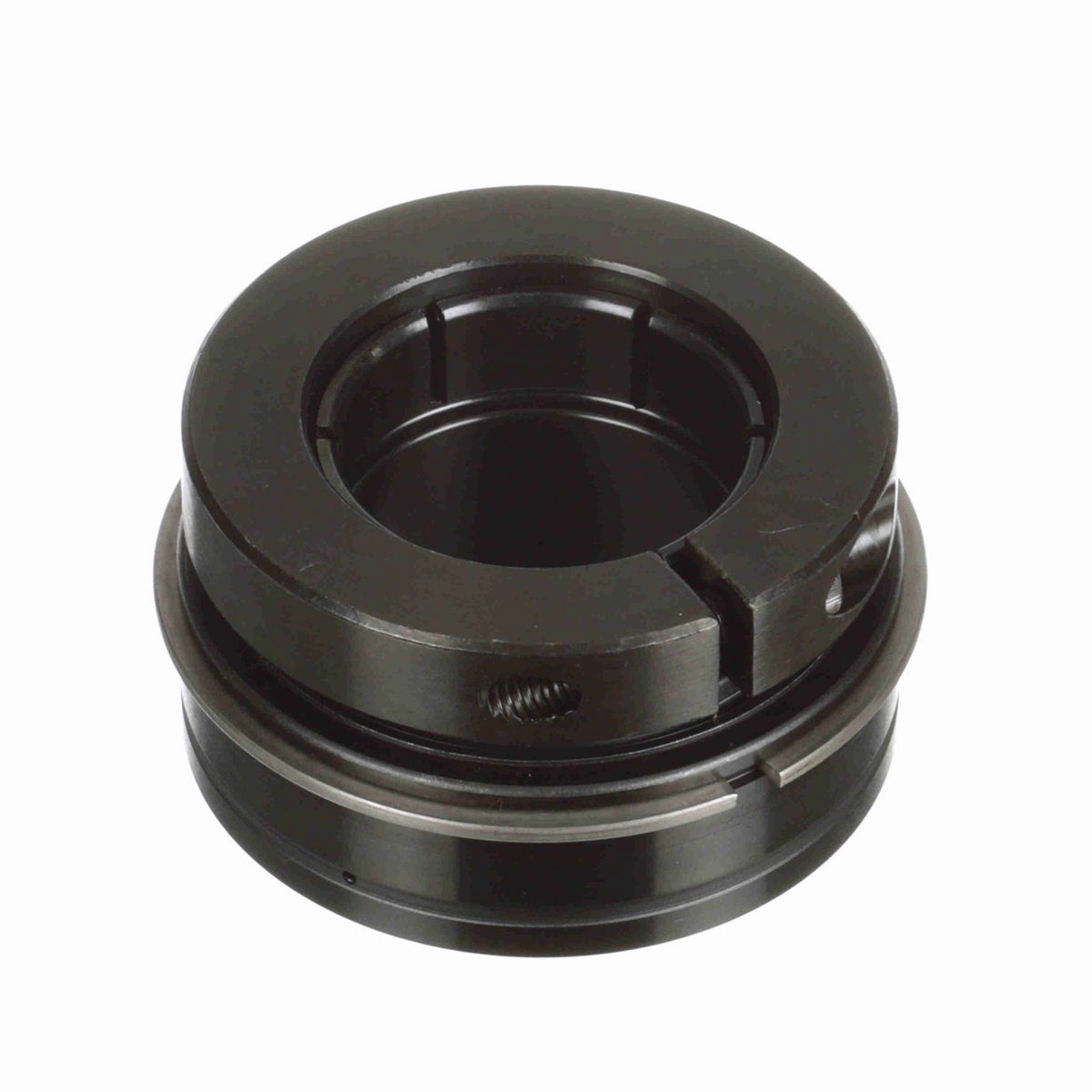

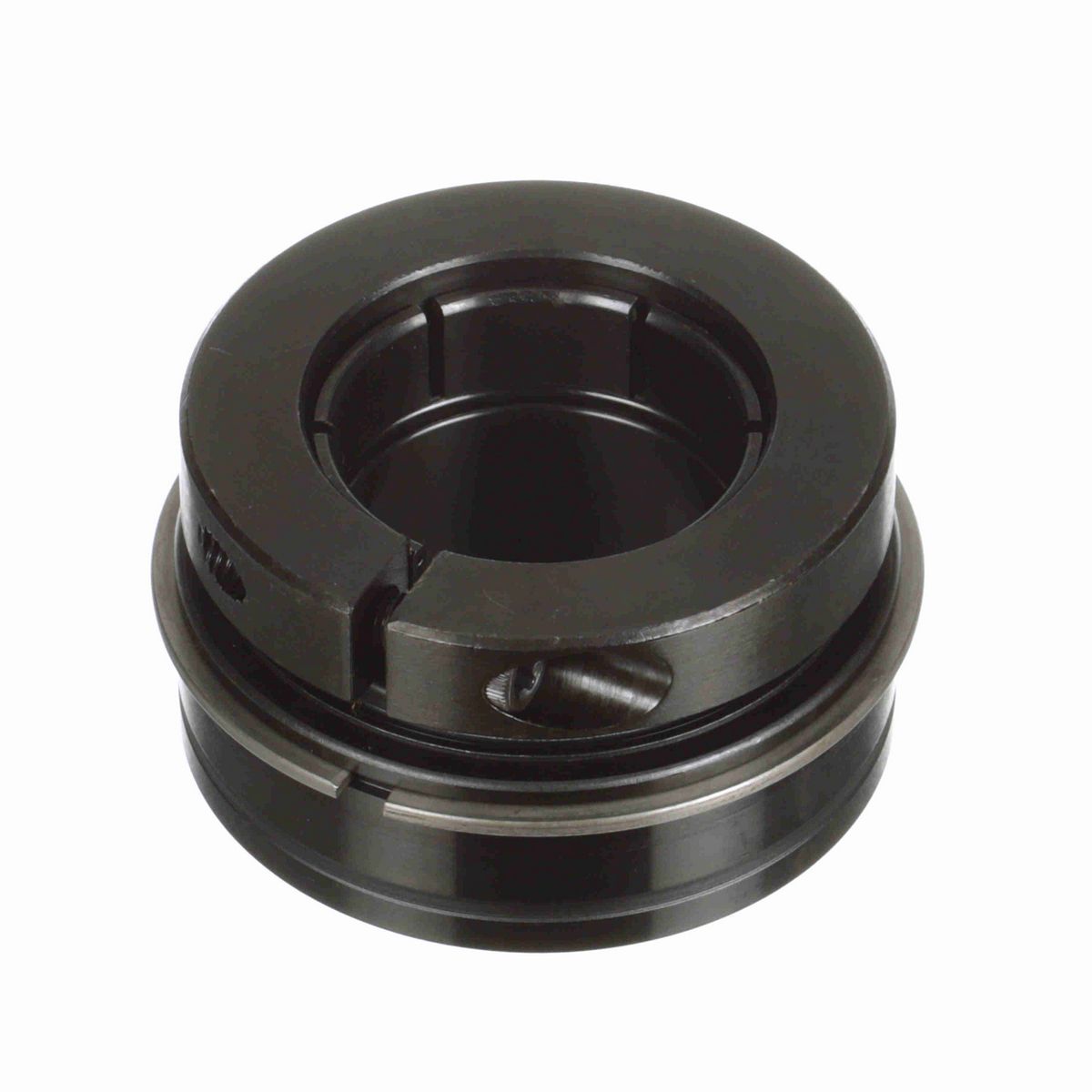

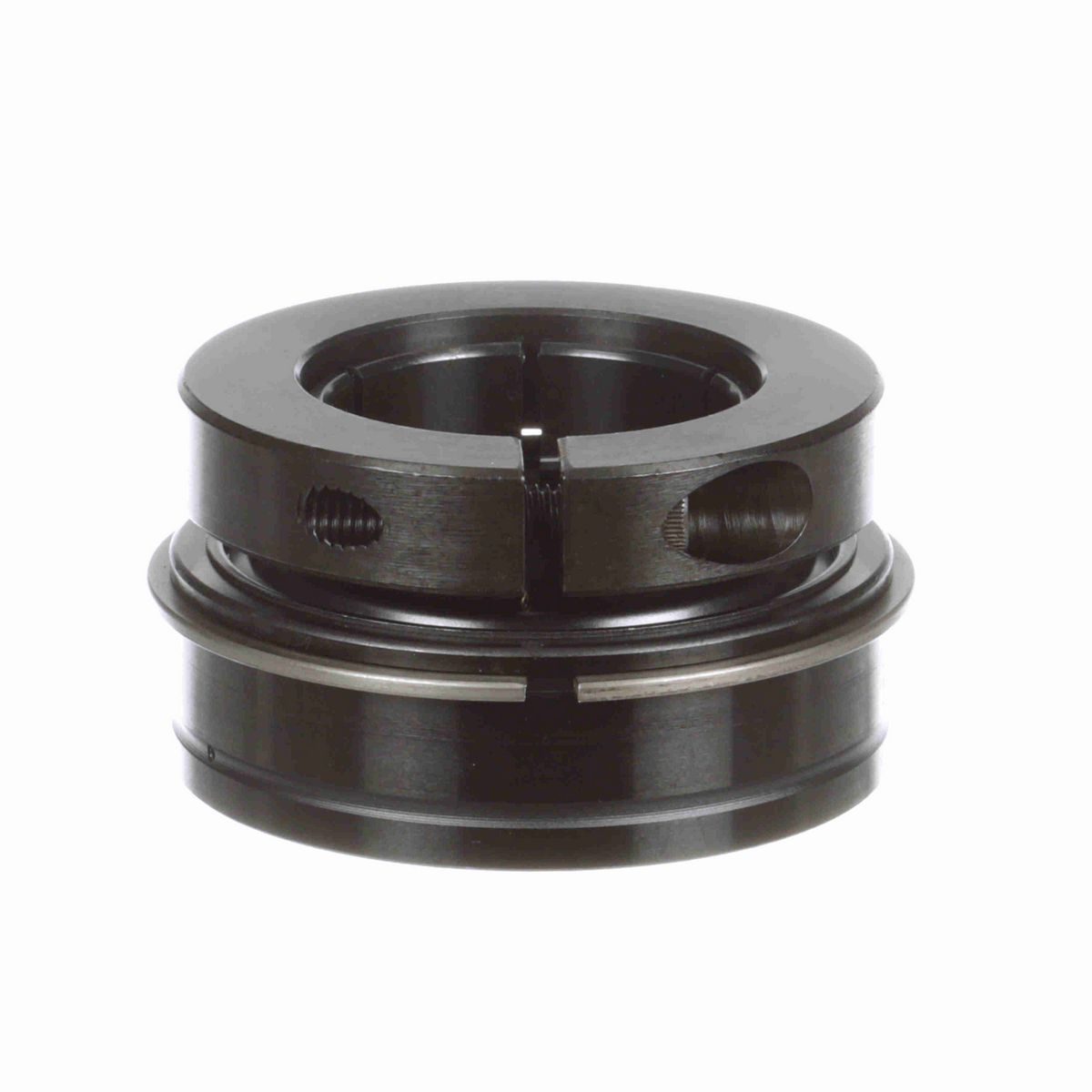

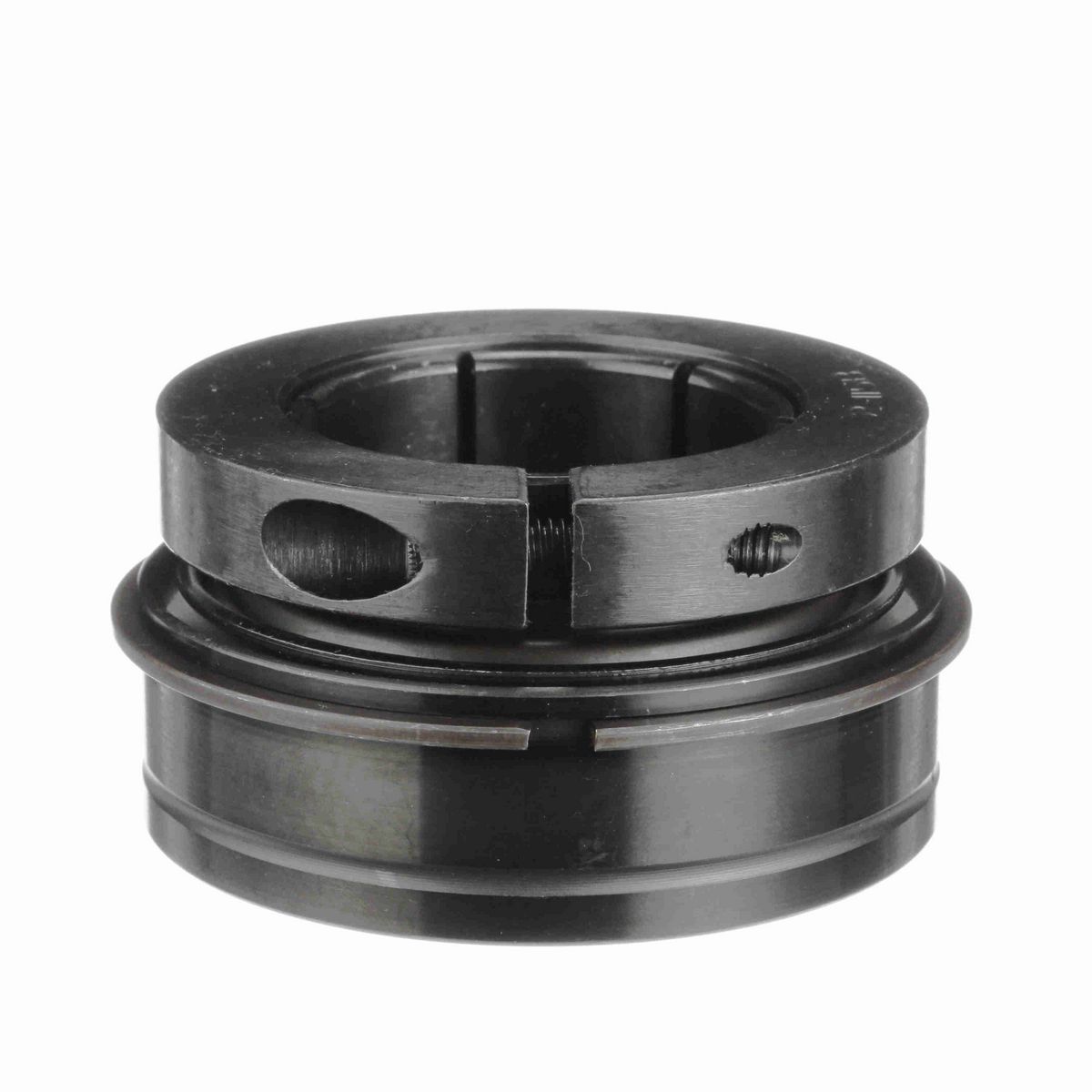

• ER style cylindrical OD bearing with snap and with black oxided bearing rings
• Skwezloc® concentric locking for near perfect concentricity
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Overall Width (in)	2.09 in
Bore Size (mm)	50 mm
Centerline to Front Face (in)	1.344 in
Inner Ring OD (in)	2.469 in
Outer Race OD (in)	3.5433 in
Outer Race OD (mm)	90 mm
Collar OD (in)	3.47 in
Outer Race Width (in)	1.125 in
Length Through Bore (in)	2.09 in
Outer Race Width (mm)	28.6 mm

Technical Specifications

Rolling Element	Ball Bearing
Housing Type	Insert (ER Style)
Bore Shape	Straight
Seal Type	Single Lip Contact Seal
Insert Material	52100 Bearing Steel
Torx Cap Screw	5/16-18 UNC
Measure Units	Metric
Misalignment	None
Internal Clearance	Standard
Expansion	No
Outer Ring Land Profile	Tapered Lands
Platform	Gold Line Ball Bearing
Misalignment Type	Static Only
End Cap	No
Bearing Insert Coating	Black Oxide
Cage Material	PPS - Polyphenylene Sulfide
Precision Rating	ABEC 1
Inner Race Profile	Wide Inner Ring
Outer Race Profile	Cylindrical
Maximum Speed (rpm)	3550 rpm
Vibration Frequency Roller Spin	0.0445 cps
Ability to Relubricate	Yes
Series	Unmounted Replacement Bearings
Size Code	2-115
Duty/Status	Standard
Setscrew Torque (in-lbs)	495 in/lbs
Lubrication Type	Lithium Complex NLGI 2 Grease
Inner Ring Fillet Radius (in)	0.06 in
Vibration Frequency Fundamental Train	0.0068 cps
Locking Type	Concentric
Inner Race Heat Treat Method	Zone-Hardened
Vibration Frequency Inner Ring Defect	0.0984 cps
Maximum Operating Temperature (F)	220 °F
Vibration Frequency Outer Ring Defect	0.0683 cps
Dynamic Load Rating (lb)	7,889 lb
Cage Type	Land Riding Retainer
Static Load Rating (lb)	5,216 lb

General Specifications

UPC	662461254035
Weight	2.75 LB
Packaged Length	4.25 IN
Packaged Width	2.25 IN
Packaged Height	4.25 IN
HTC	8482.10.5052
Country of Origin	Mexico
