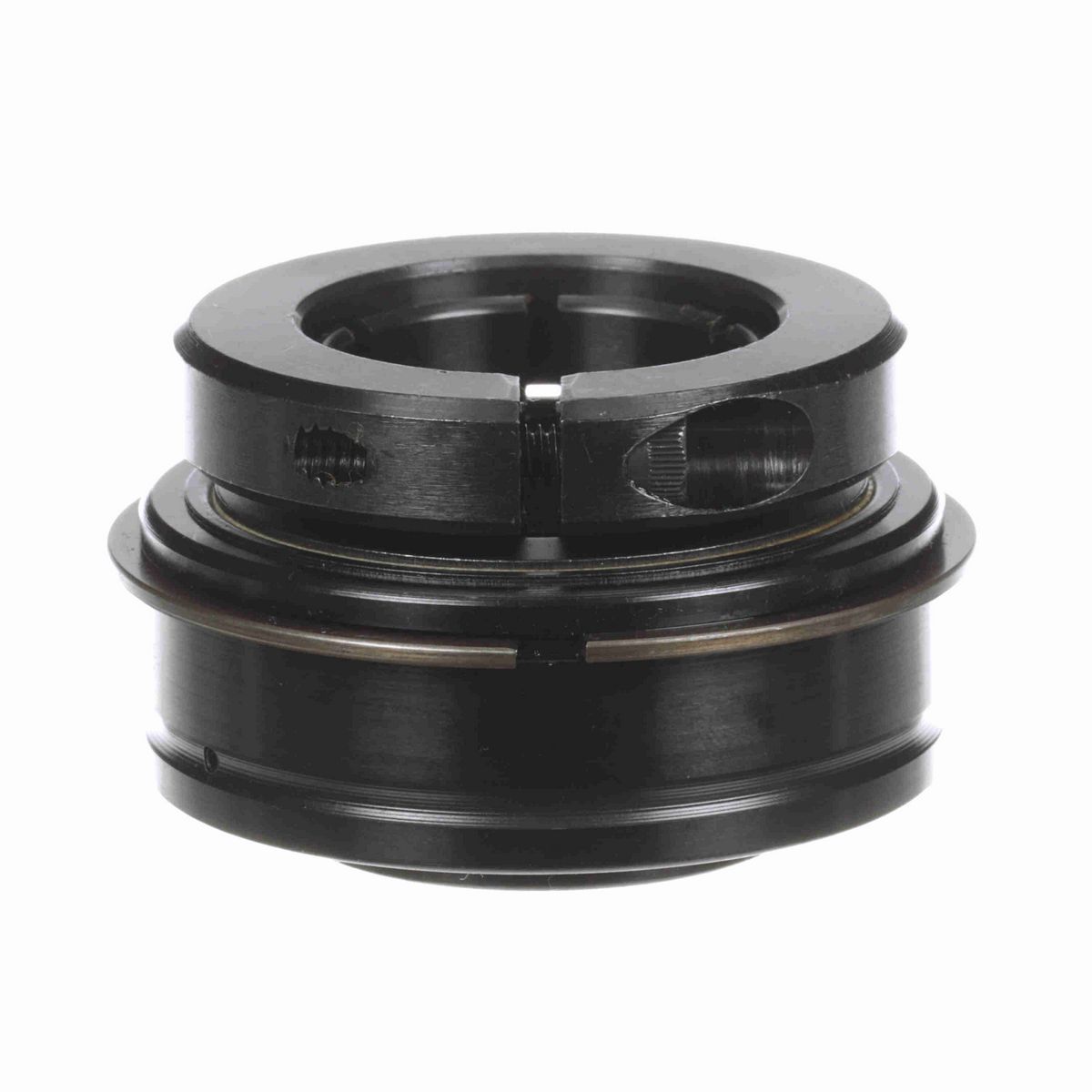

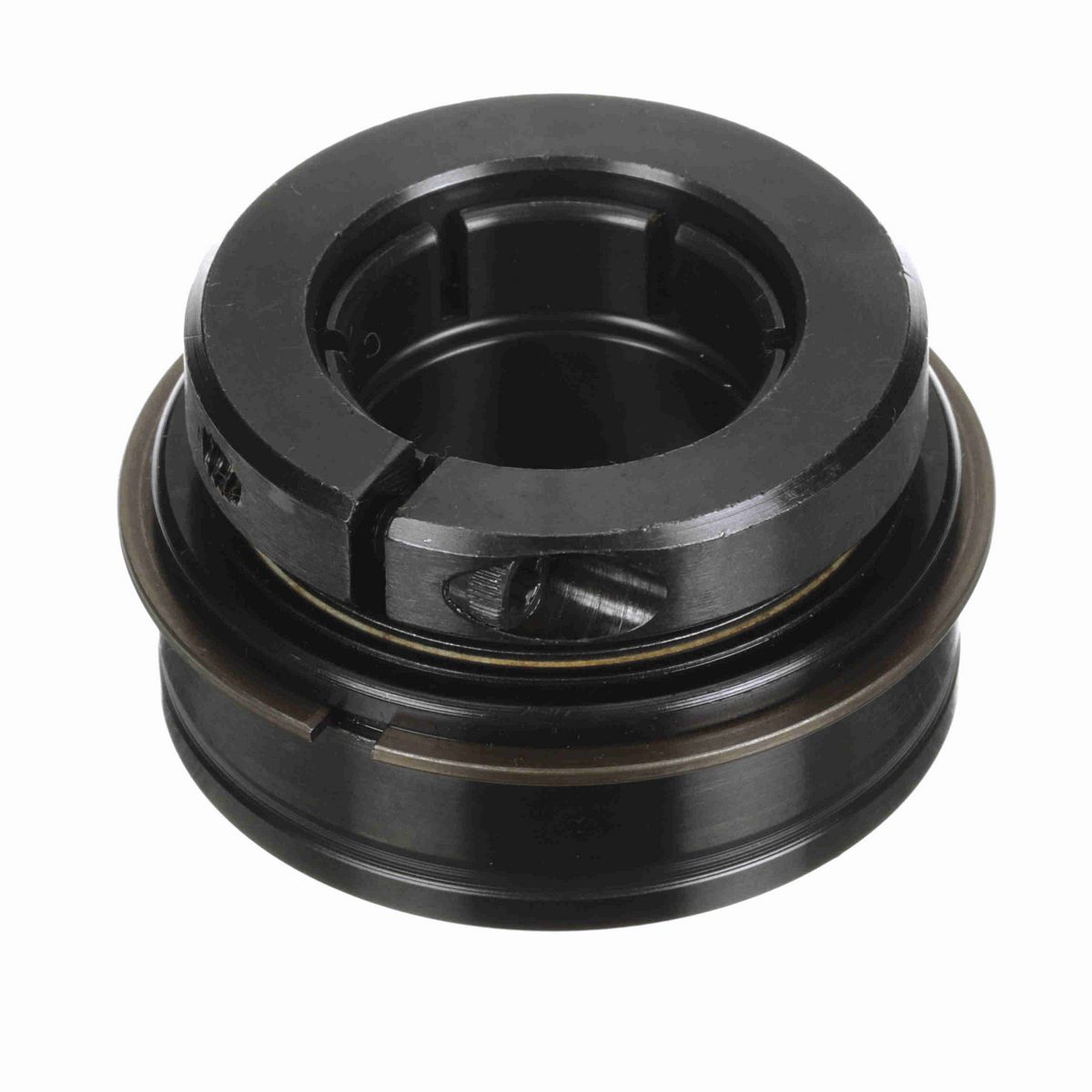

• ER style cylindrical OD bearing with snap and with black oxided bearing rings
• Skwezloc® concentric locking for near perfect concentricity
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Overall Width (in)	1.56 in
Bore Size (in)	1.25 in
Outer Race OD (mm)	62 mm
Outer Race Width (in)	0.875 in
Centerline to Front Face (in)	0.938 in
Inner Ring OD (in)	1.594 in
Outer Race OD (in)	2.4409 in
Collar OD (in)	2.23 in
Length Through Bore (in)	1.56 in
Outer Race Width (mm)	22.2 mm

Technical Specifications

Bore Shape	Straight
Rolling Element	Ball Bearing
Measure Units	Inch
Housing Type	Insert (ER Style)
Insert Material	52100 Bearing Steel
Torx Cap Screw	10-24 UNC
Seal Type	Felt Labyrinth Seal
Misalignment	None
Expansion	No
Internal Clearance	Standard
End Cap	No
Bearing Insert Coating	Black Oxide
Outer Ring Land Profile	Tapered Lands
Platform	Gold Line Ball Bearing
Misalignment Type	Static Only
Precision Rating	ABEC 1
Cage Material	PPS - Polyphenylene Sulfide
Outer Race Profile	Cylindrical
Inner Race Profile	Wide Inner Ring
Vibration Frequency Inner Ring Defect	0.0905 cps
Vibration Frequency Outer Ring Defect	0.0595 cps
Series	Unmounted Replacement Bearings
Lubrication Type	Lithium Complex NLGI 2 Grease
Setscrew Torque (in-lbs)	100 in/lbs
Inner Ring Fillet Radius (in)	0.04 in
Locking Type	Concentric
Vibration Frequency Fundamental Train	0.0066 cps
Size Code	2-13
Duty/Status	Standard
Ability to Relubricate	Yes
Vibration Frequency Roller Spin	0.0385 cps
Maximum Speed (rpm)	7600 rpm
Maximum Operating Temperature (F)	220 °F
Inner Race Heat Treat Method	Zone-Hardened
Dynamic Load Rating (lb)	4,381 lb
Static Load Rating (lb)	2,567 lb
Cage Type	Land Riding Retainer

General Specifications

UPC	662461056929
Weight	1.00 LB
Packaged Length	2.75 IN
Packaged Width	1.56 IN
Packaged Height	2.75 IN
HTC	8482.10.5052
Country of Origin	Mexico
